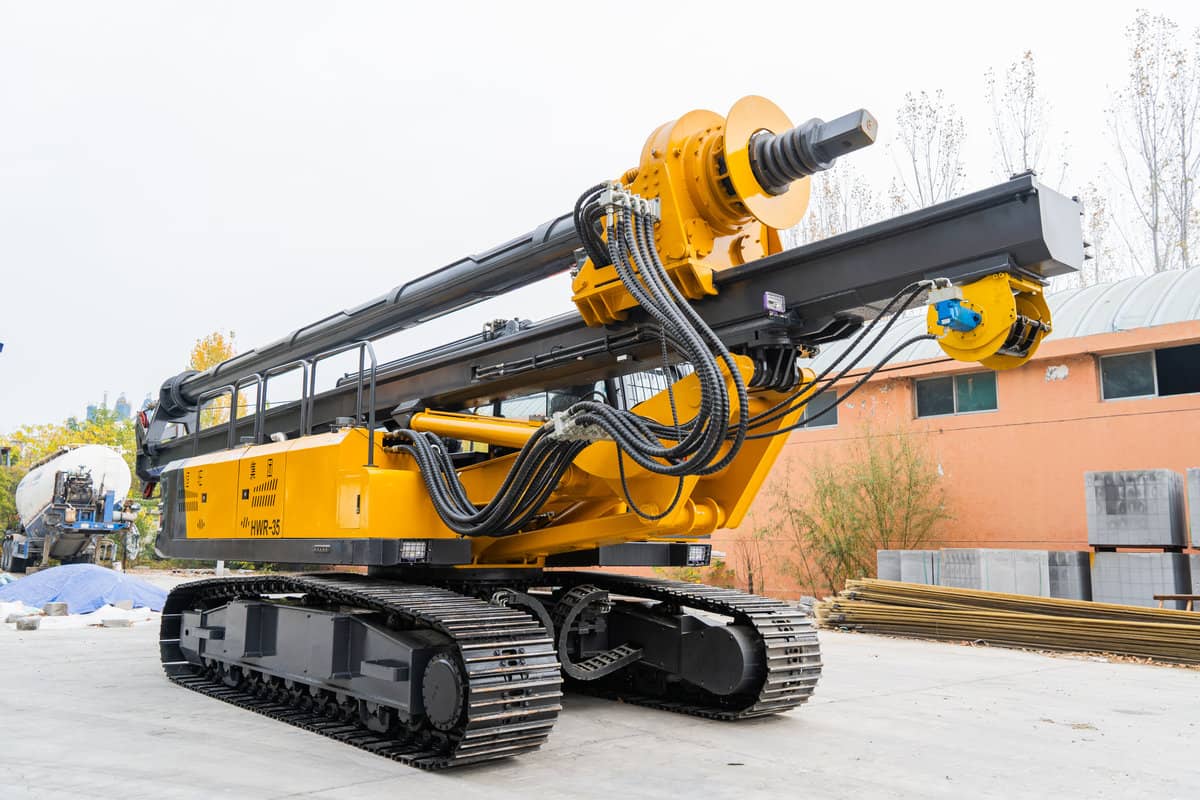

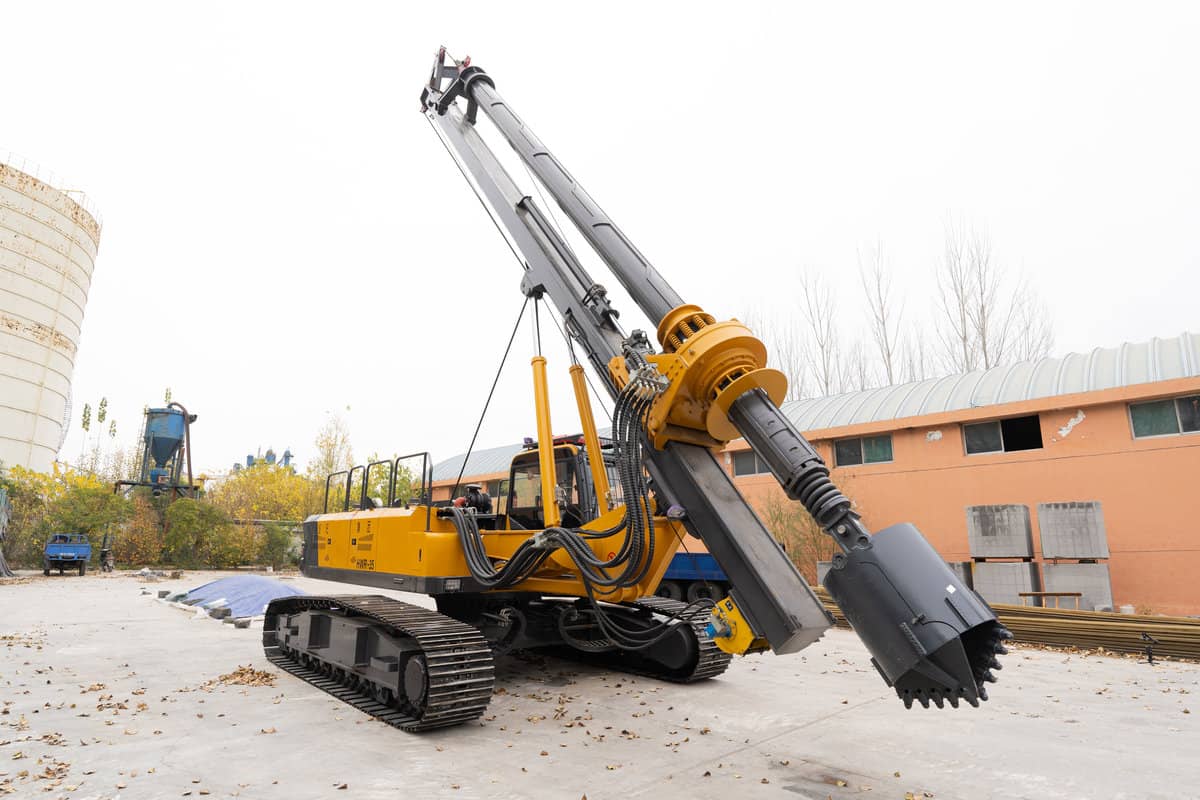

Rotary drilling rig is a kind of pile equipment suitable for hole formation in building foundation engineering. Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction.
Main feature:

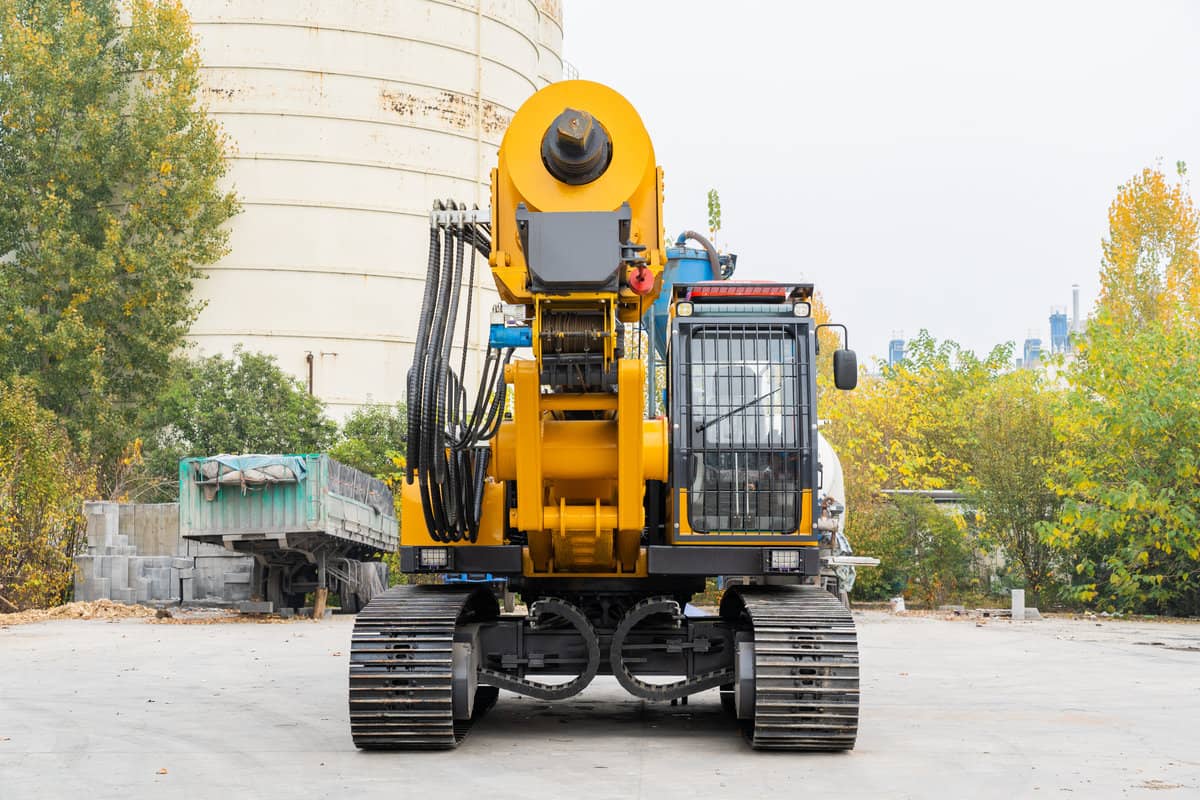

1. Crawler chassis, strong adaptability to terrain.

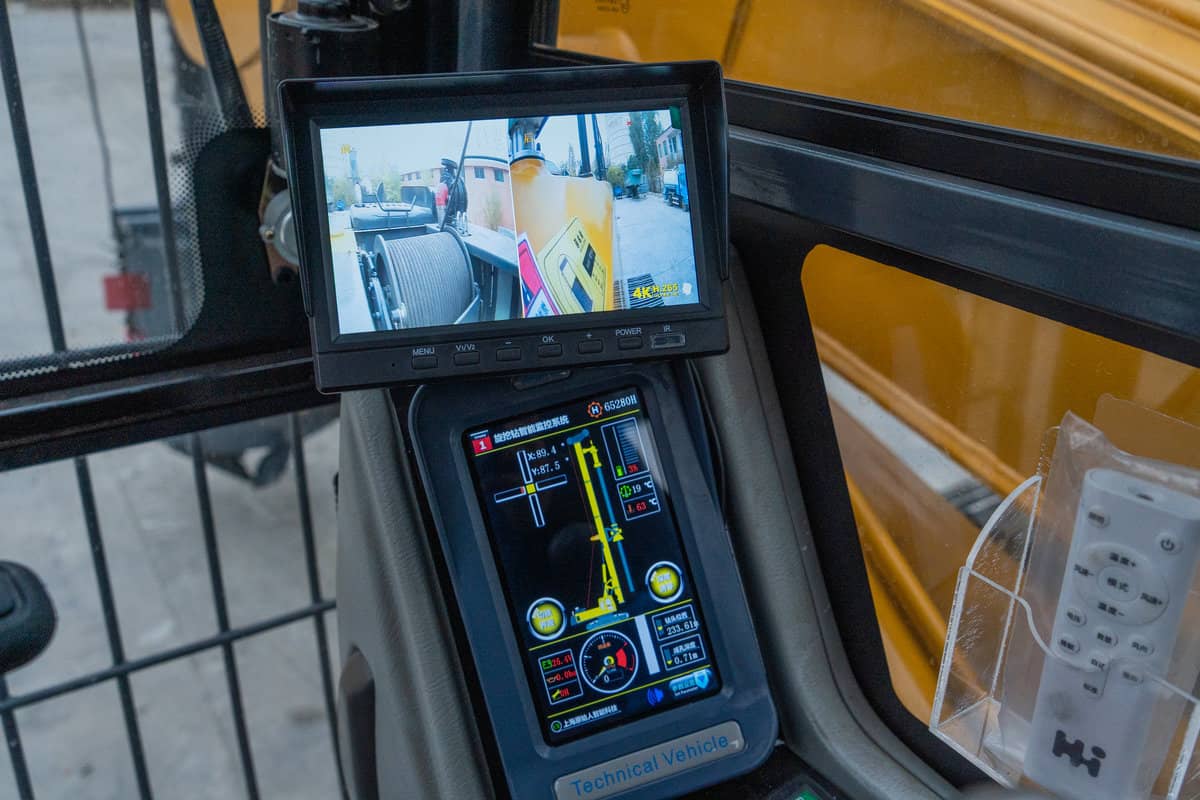

2. Easy to operate: the control handle and instrument panel are arranged centrally, and can be operated by one person.
3. Compared with large rotary drilling rigs, the purchase cost is low and the economic benefit is higher.
Parameters
| Model | HWYDR350 | |||
| Outsize | Working Size (length×Width×Height) | m | 8.8×2.8×12.8 | |

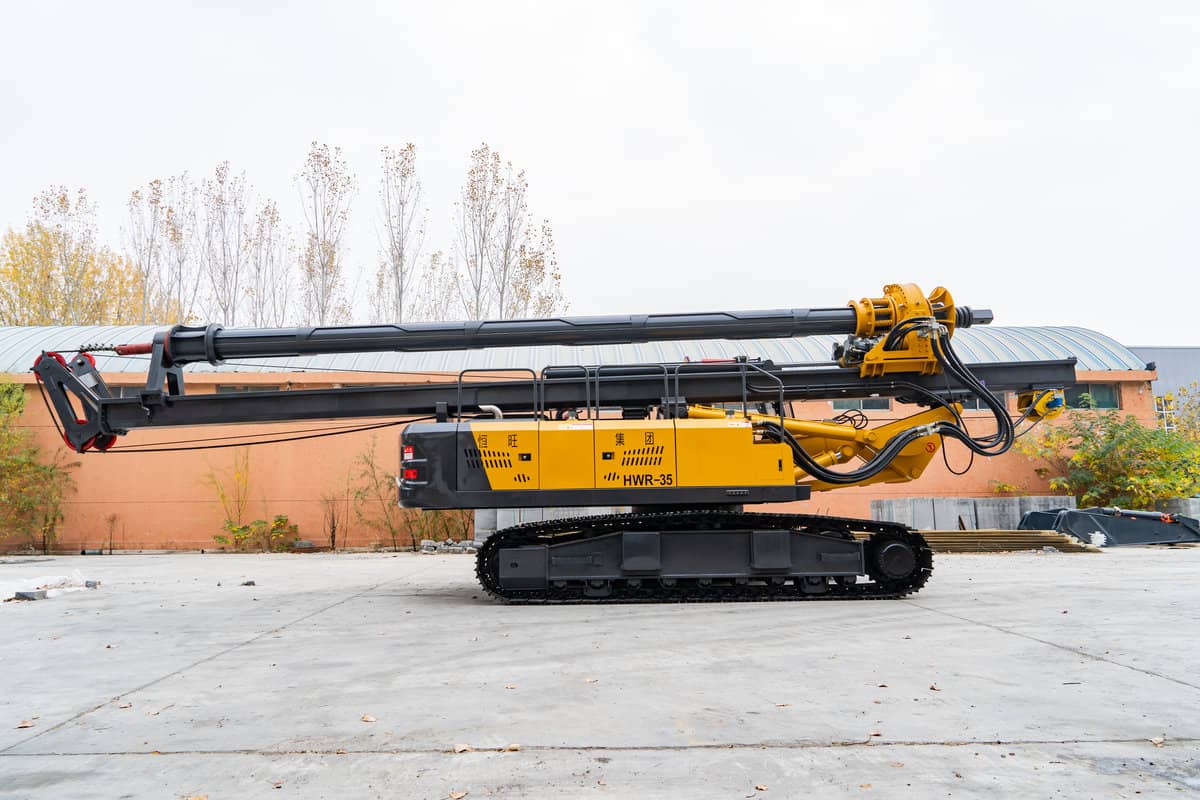

| Transport Size (length×Width×Height) | m | 12.8×3.0×3.65 | ||
| Machine Weight | t | 28 | ||
| Max Drilling Diameter | mm | 1500-1800 | ||
| Max Drilling Depth | m | 35 | ||
| Engine | Brand | Cummins | ||
| Model | 6BTAA5.9-C205 | |||
| Rated Power | kw/rpm | 153/2000 | ||

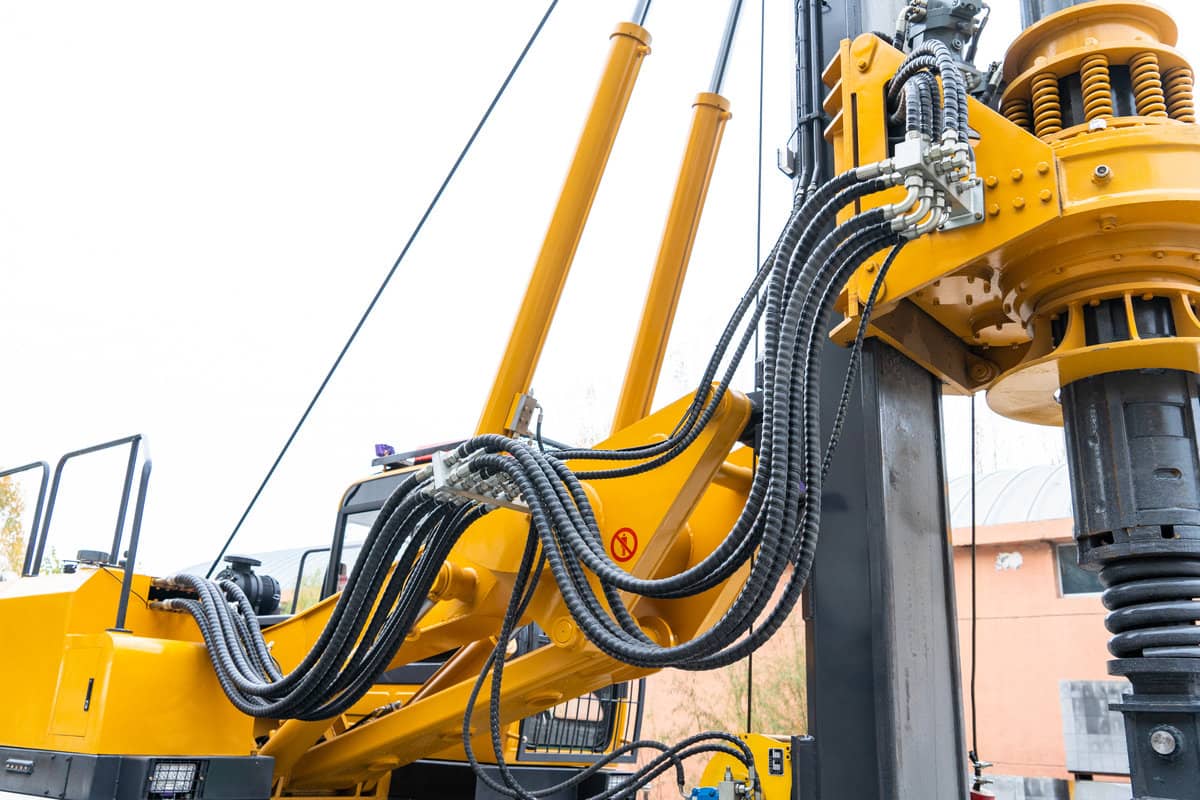

| Hydraulic Flow | Woring Pressure | Main Pump | Mpa | 30 |
| Secondary Pump | Mpa | / | ||
| Max Flow | Main Pump | L/min | 2×80 | |
| Secondary Pump | L/min | / | ||

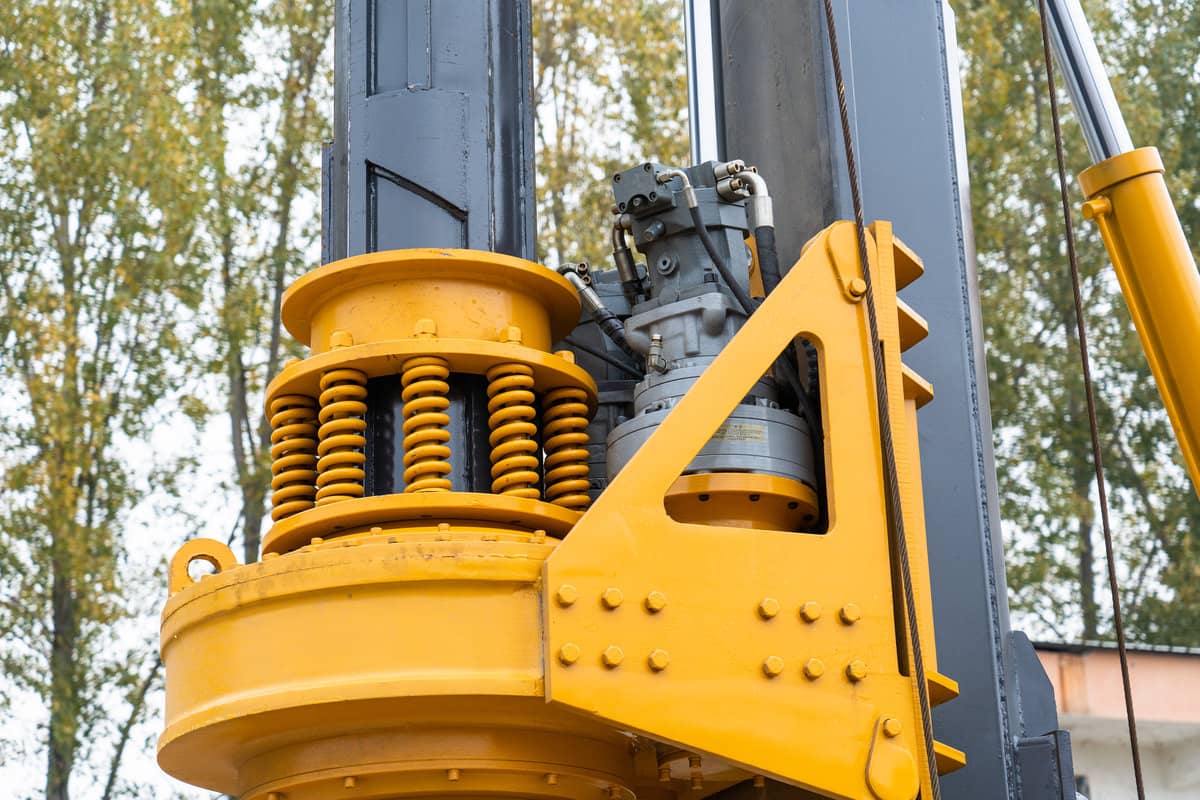

| Power Head | Maximum Torque | Kn.m | 130 | |
| Rotating Speed | rpm | 5-60 | ||
| Maximum Throwing Speed | rpm | 60 | ||
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
