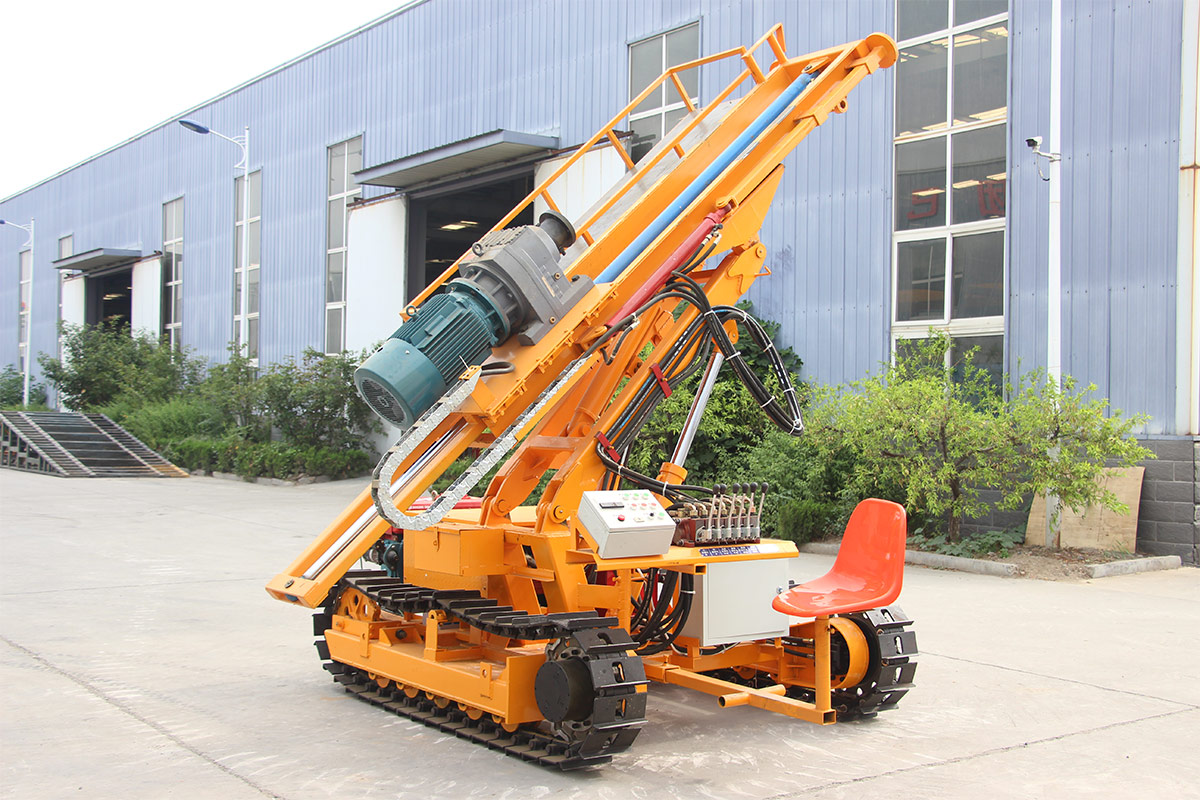

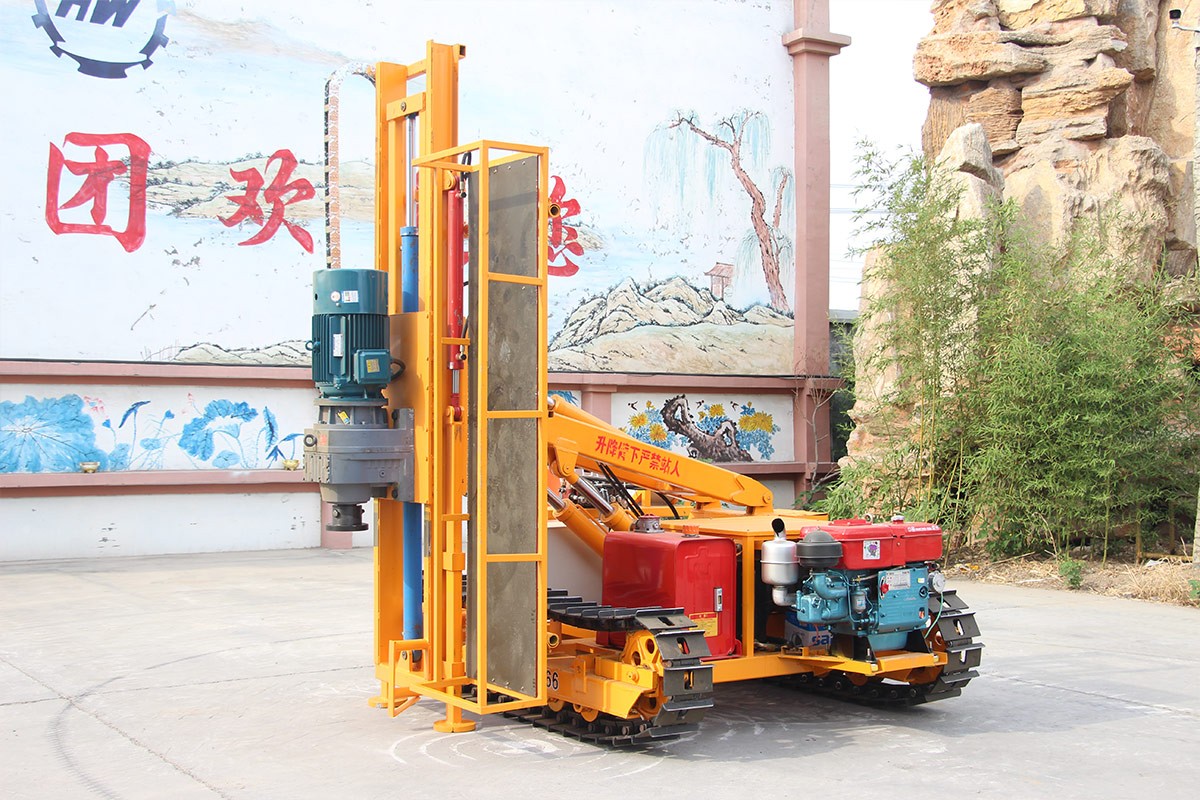

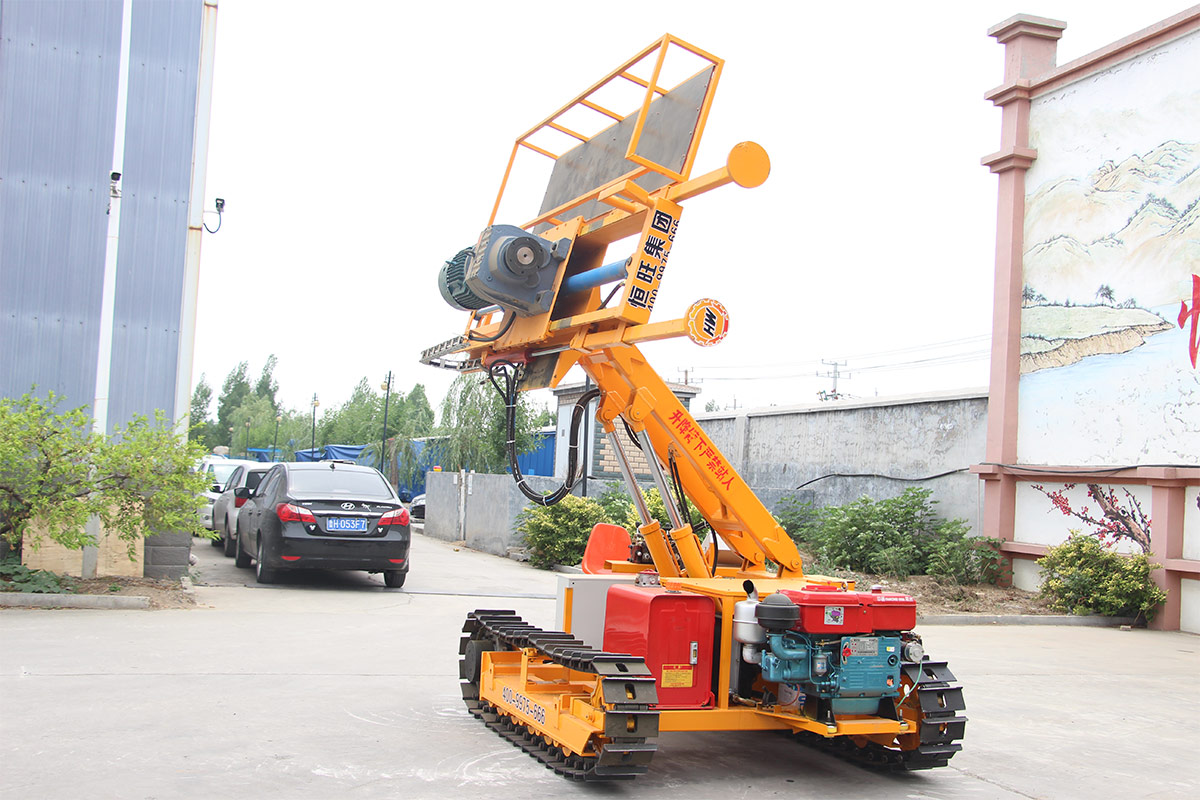

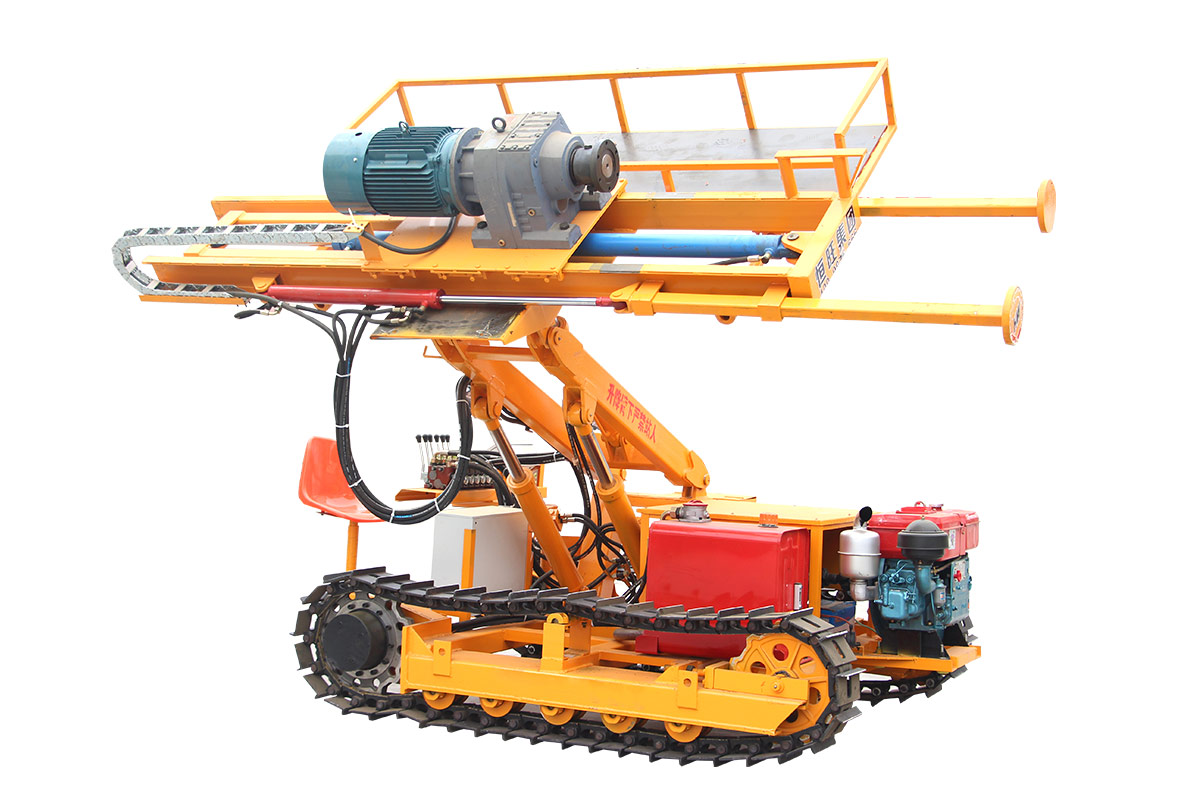

HWMG-3.5M Anchoring Drilling Rig
Drill depth (m): 0～30m
Drilling angle: 0-180°
Crawler anchor drilling rig is a new type of highly efficient and fast mechanized hydraulic operation drilling equipment independently developed and manufactured by our company. The drilling rig adopts full hydraulic control mode, crawler-type walking device, which has the characteristics of high efficiency, specialty, and fast hole expansion speed.
Features:

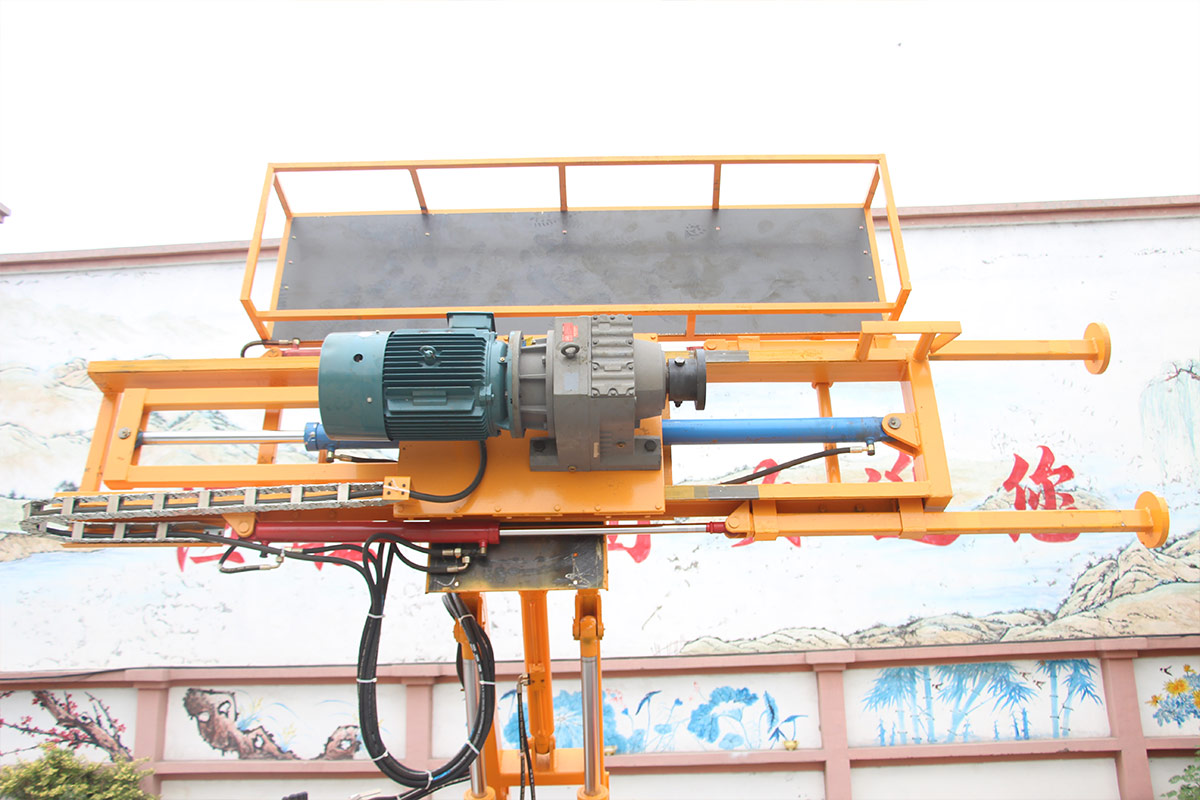

1. Equipped with 22kw power R series hard-tooth surface gear gyrator has the characteristics of large rotation torque, high efficiency and durability.

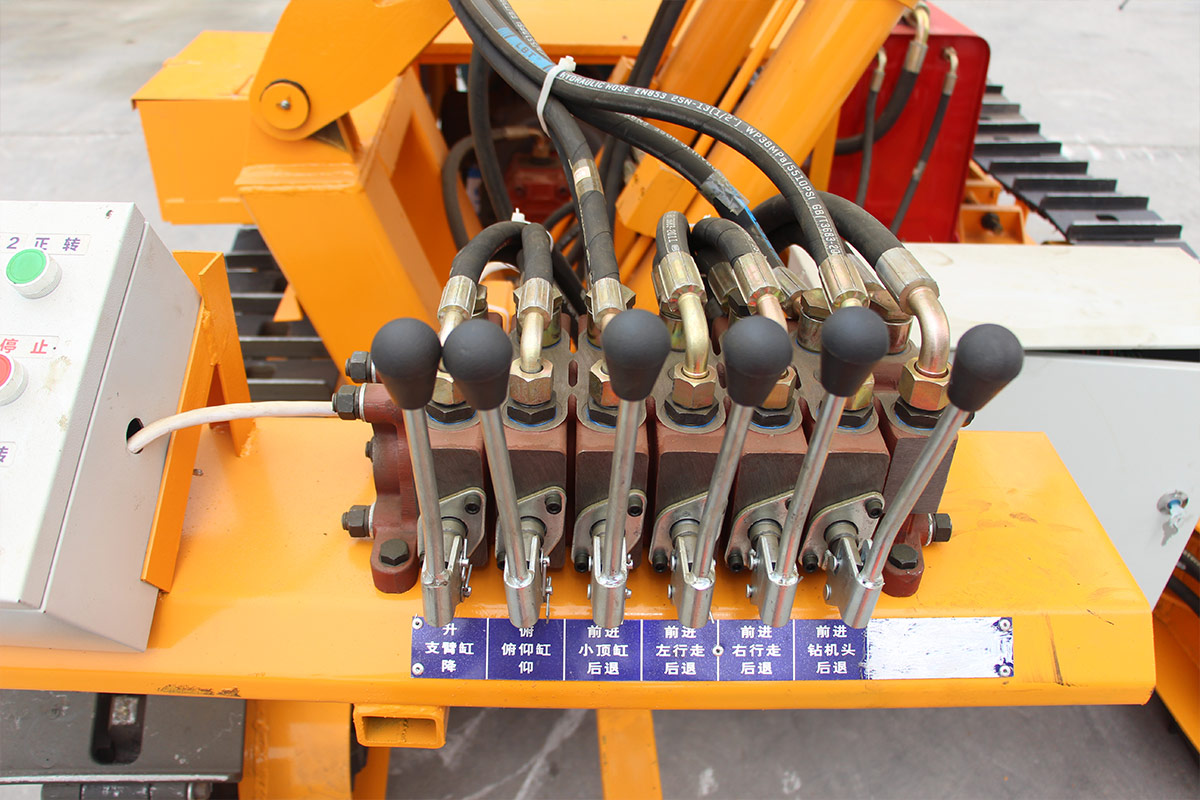

2. Six-column hydraulic valve control, reasonable position, convenient operation, new hydraulic system, advance and retract in one step.
3. Integrated multi-function control box, can quickly start the rig, emergency stop, single and double motor control.

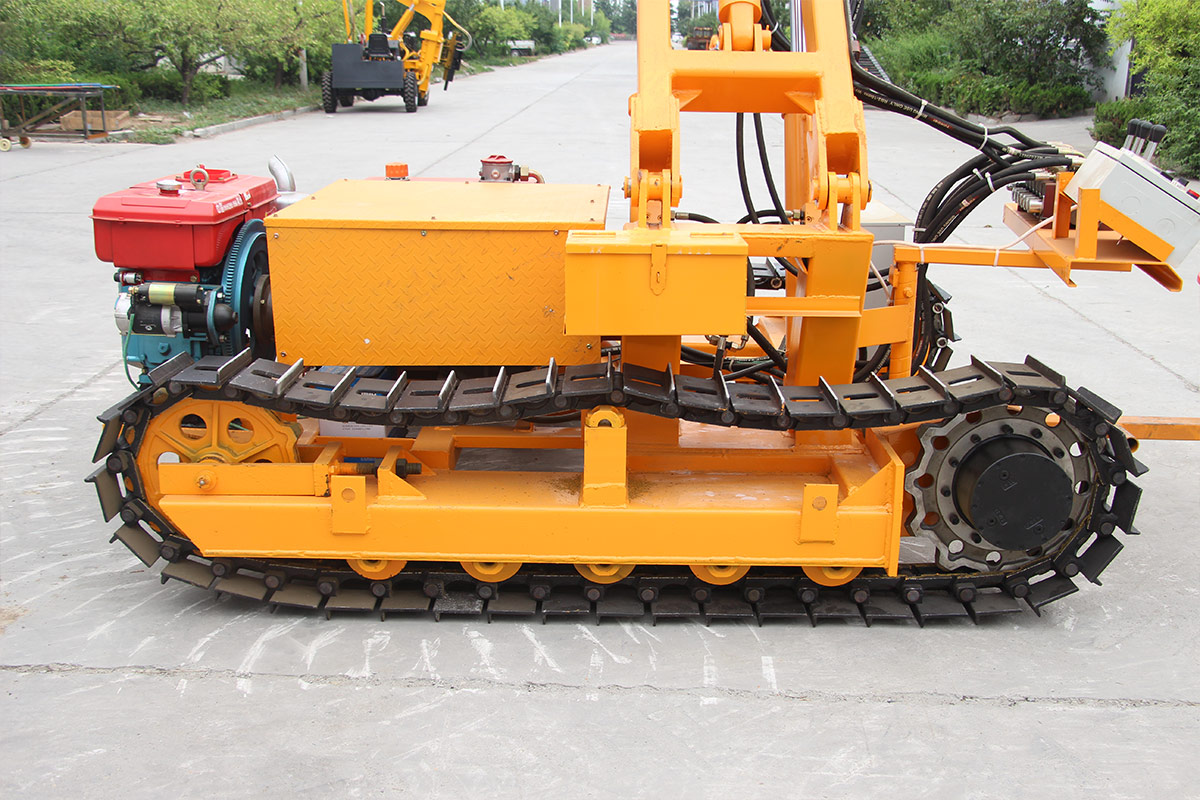

4. The crawler walking device can be used for mobile operation in a harsh construction environment, with efficient climbing ability.
The anchoring rig is primarily employed for landslide and hazardous rock mass anchoring projects, aimed at preventing and controlling various geological disasters in hydropower stations, railways, and highway slopes. It is particularly well-suited for high slope rock mass anchoring projects. Additionally, it is suitable for urban deep foundation pit support, anti-floating bolt and foundation grouting reinforcement engineering holes, blasting holes for blasting engineering, high-pressure jetting piles, tunnel pipe shed support holes, and other applications.
| maximum vertical height | 3.5m |
| Overall dimensions of crawler chassis | 2500*2200 |
| Track shoe width | 270 |
| engine model | changfa |
| Engine maximum power/speed | 22 HP |
| electric motor | Travel motor 15kw |
| Lower slewing bearing | fixed |
| Upper slewing bearing | 180 degree rotation |
| Hydraulic oil pump | 40 |
| Big frame | / |
| Hydraulic legs | / |
| support arm | Single section (both arms) |
| Power Head | Electric 22kw |
| drilling angle | Can drill flat holes/can drill oblique holes/can drill vertical holes |
| Drilling diameter/depth | 65-220mm/30m |
| Chain carriage | 1.8m |
| Drill pipe propulsion and lifting power | 40 |
| Hydraulic system radiator | electric wind |
