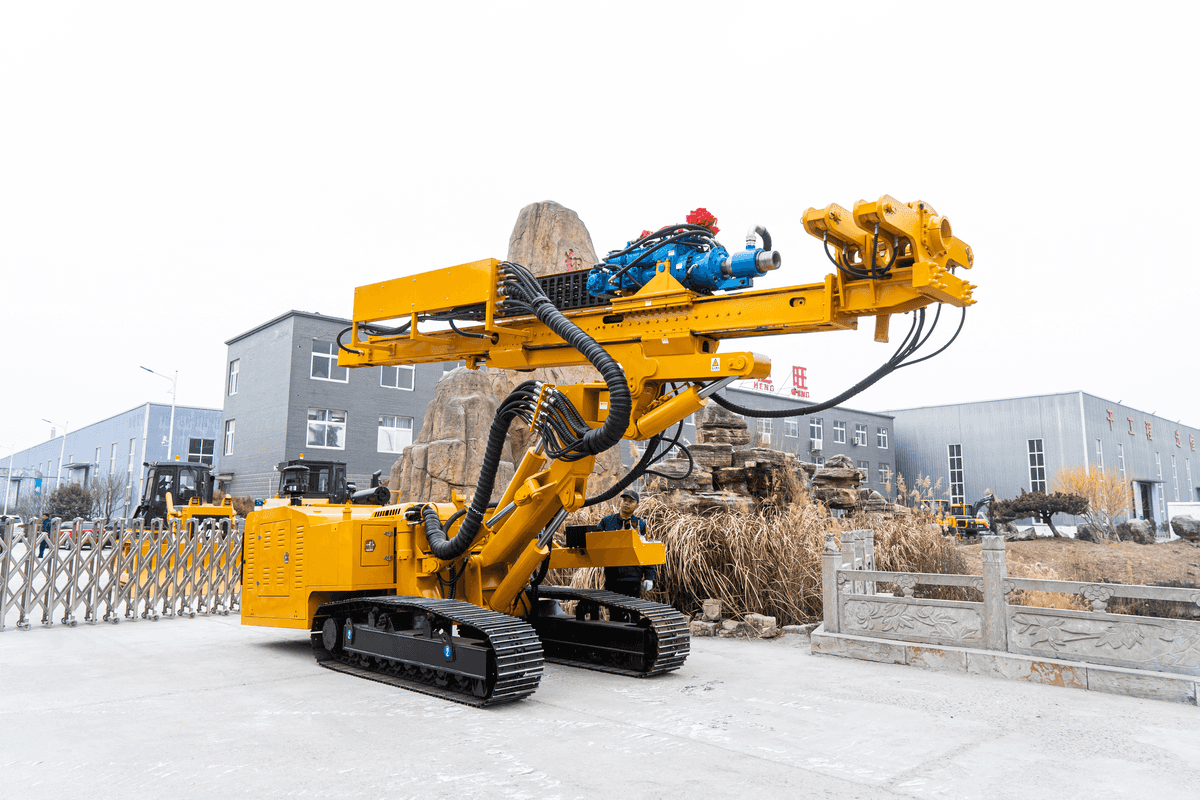

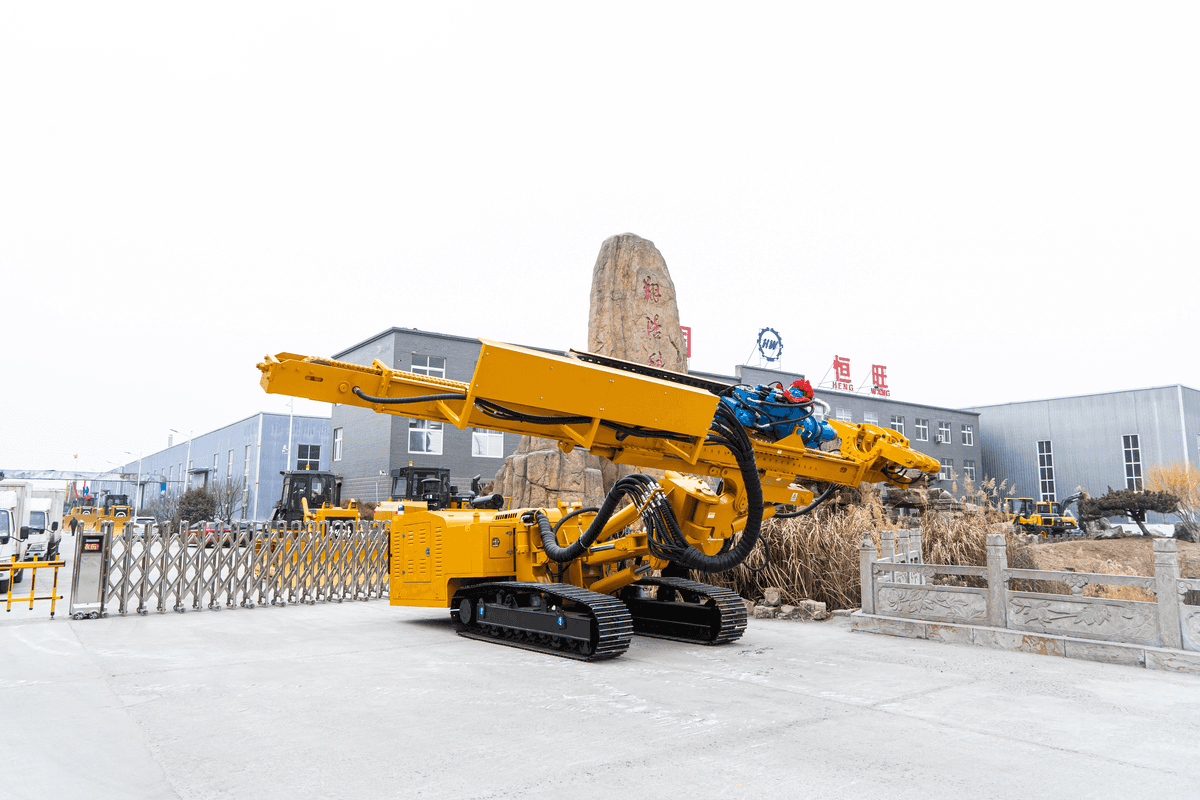

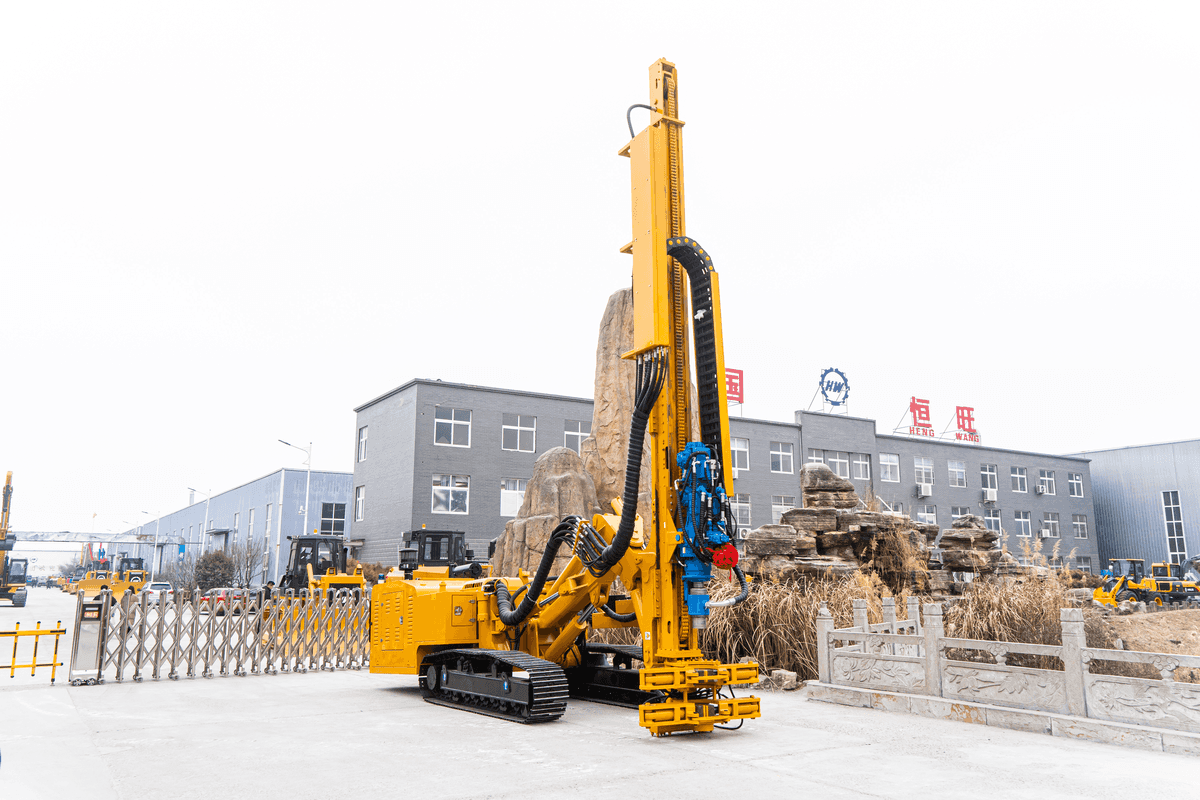

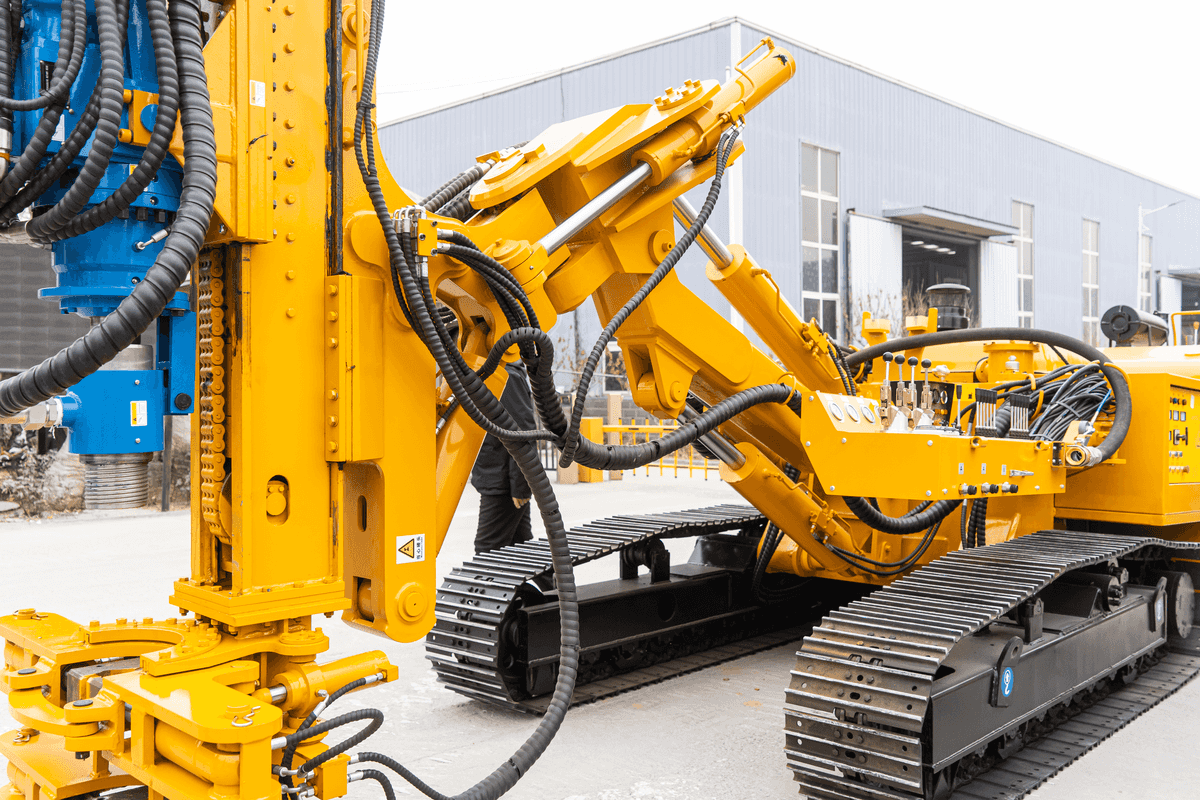

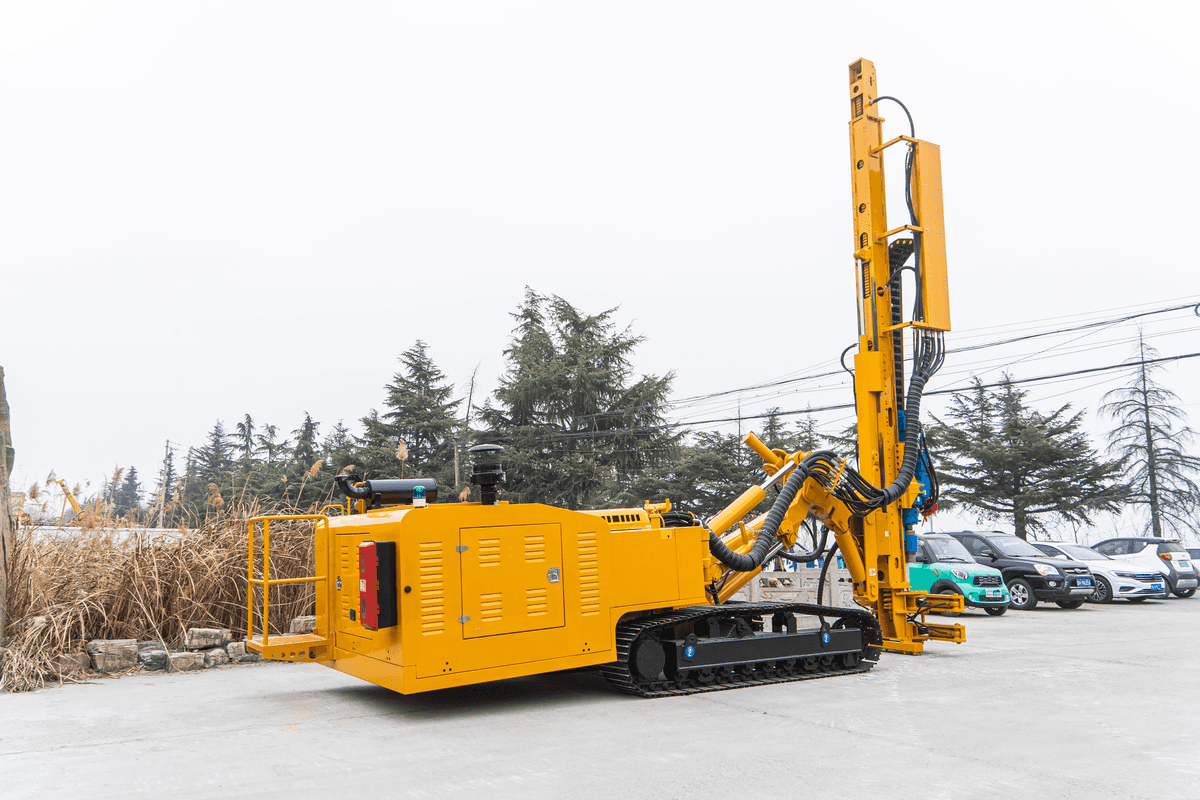

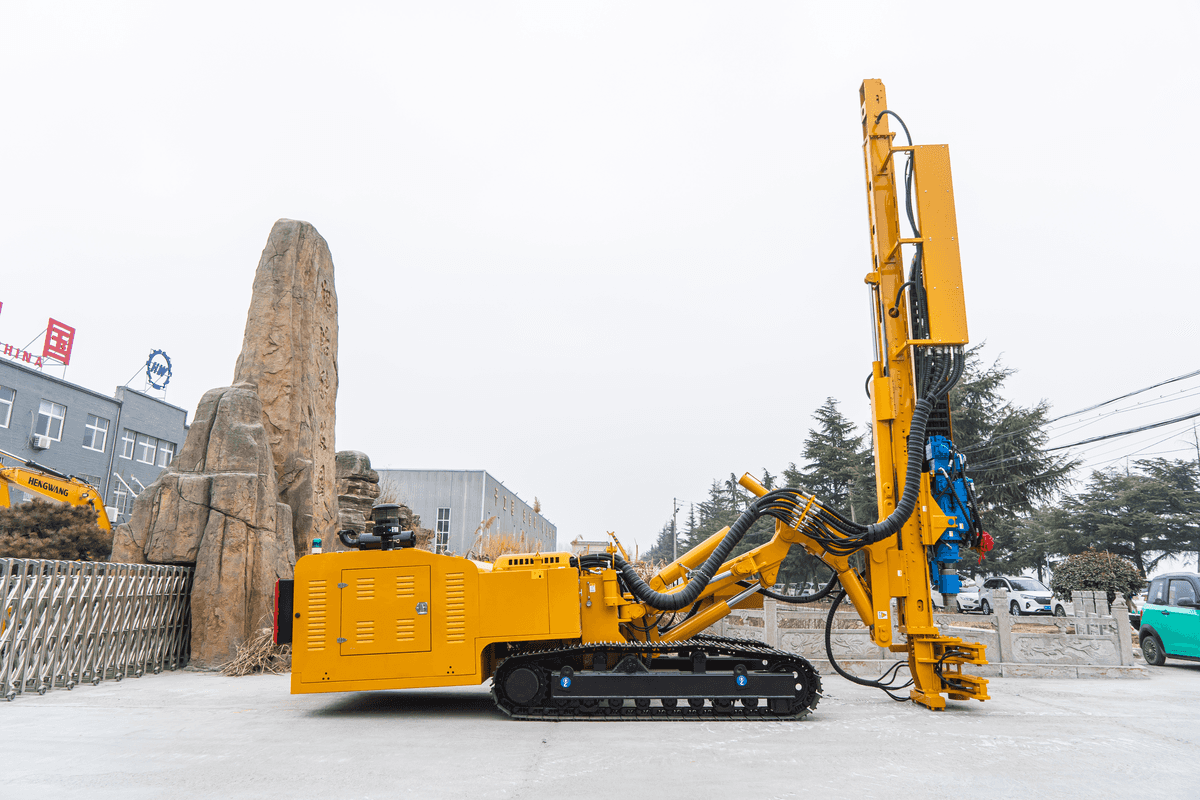

HW-M360 High-Torque Multi-purpose Hydraulic Anchor Drill Rig (Custom Edition)
Drilling Diameter：250-280mm
Drilling Depth：80-120m
| Technical Parameters | HW-M220 | HW-M260 | HW-M360 (Customized) |
| Engine Type | Y2-280S-4 (Cummins Optional) | 7H-220 (Cummins Optional) | Cummins 162KW |
| Max. Drilling Depth | 80m | 100m | 120m |
| Max. Drilling Diameter | 250mm | 250mm | 280mm |
| Max. Parallel Height | 3500mm | 3500mm | 3800mm |
| Rated Power | 90KW | 162KW | 90+11 KW |
| Engine Auxiliary Power | 30KW | Shangchai Power | 162KW |
| Hydraulic System Pressure | 280bar | 280bar | 280bar |
| Power Head | HB500c | HB500B | HB520 |
| Max. Torque | 7500-15000 N·m | 7500-15000 N·m | 7500-16000 N·m |
| Max. Rotation Speed | 84-118 rpm | 84-128 rpm | 84-135 rpm |
| Impact Force | 750 N·m | 800 N·m | 800-900 N·m |
| Percussion Frequency | 1800-2400 bpm | 1800-2400 bpm | 1800-2400 bpm |
| Feeding Stroke | 4.0 m | 4.0 m | 4.8 m |
| Ground Pressure | 4.7 N/cm² | 4.7 N/cm² | 4.9 N/cm² |
| Towing Force | 130 KN | 130 KN | 140 KN |
| Total Weight | 10 ton | 11 ton | 14 ton |
| Transportation Size | 6800x2200x2600mm | 6800x2200x2600mm | 7800x2260x2700mm |
