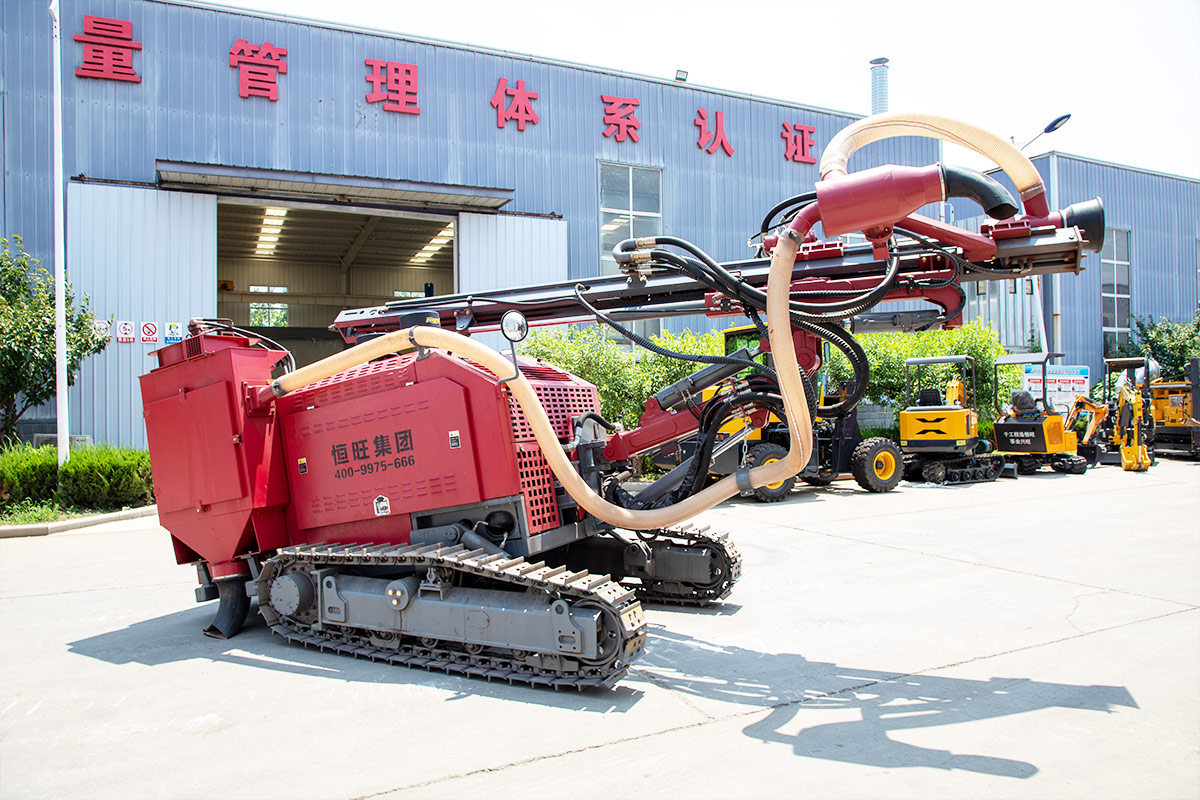

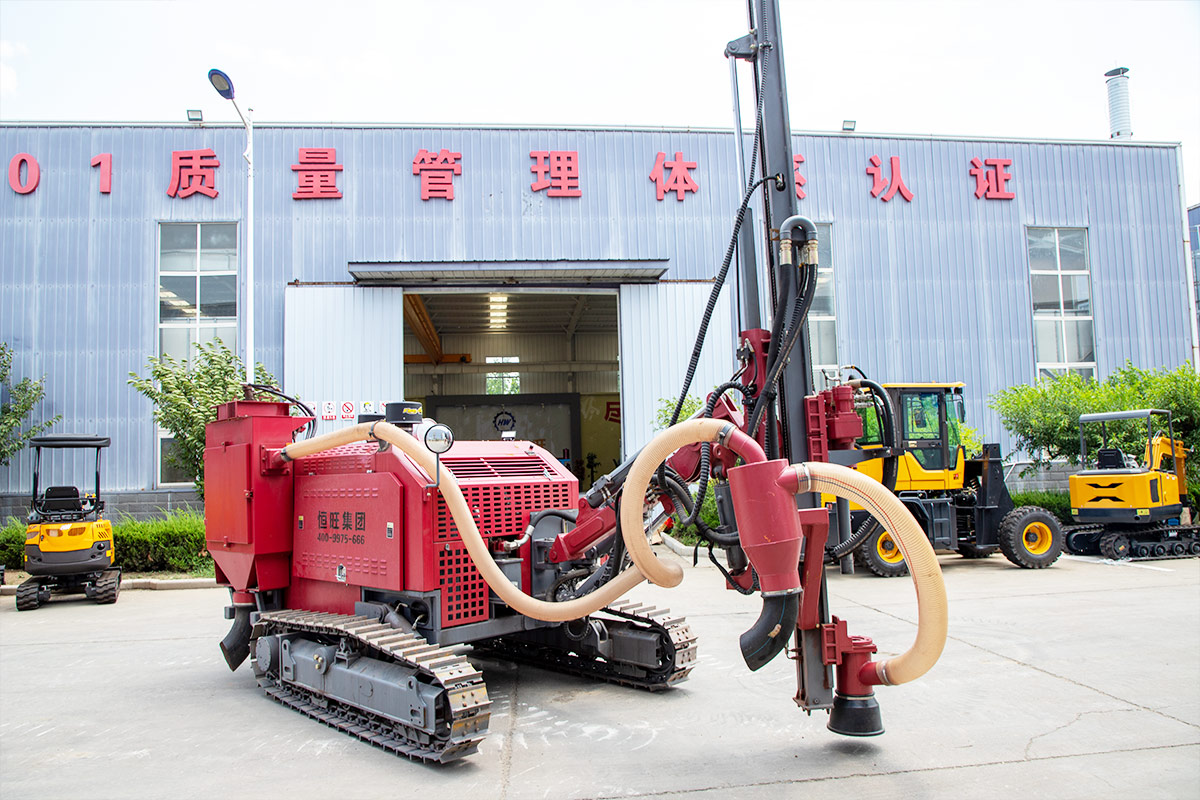

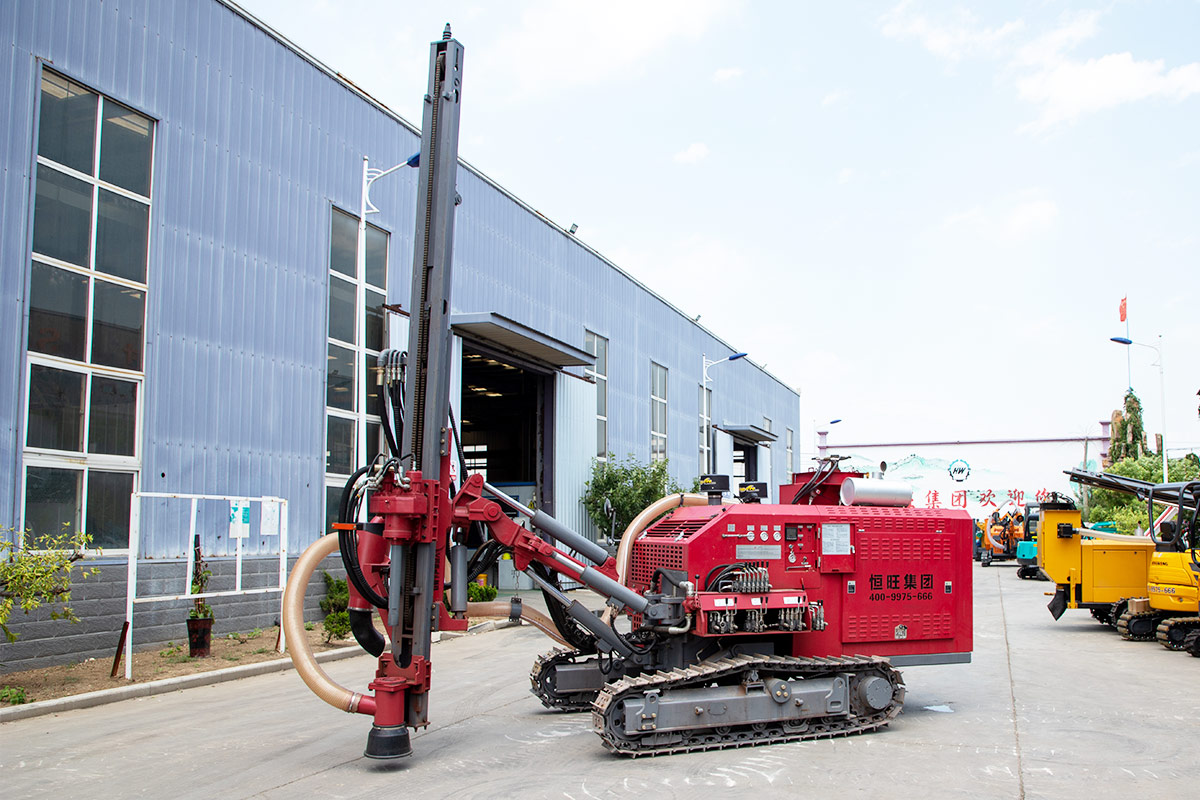

HW935 Integrated DTH Surface Drill Rig
Propulsion: 7.5kN
Drill Diameter: 90-127 mm
| model | HW935 |
| engine | Yuchai |
| power（KW） | 162 |
| Drill pipe type（mm） | φ60*3000 |
| Drilling diameter（mm） | φ90-127 |
| Maximum working torque（N.m） | 1500 |
| Swing speed（rpm） | 0-135 |
| Propulsion（kN） | 7.5 |
| Lifting power（kN） | 31 |
| Propulsion method | oil cylinder chain |
| Leveling angle | ±10° |
| Walking speed（km/h） | 3 |
| Gradeability | 30° |
| gross weight（kg） | 7150 |
| Shipping dimensions（mm） | 7480*2300*2750 |
| Dust collection method | Dry dust collection |
| exhaust volume | Displacement 15m³/min. Pressure 12bar |
| Power Head | 10/15 |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.
I apologize for any confusion, but as an AI language model, I am not able to provide real-time information or process forms. However, based on the information you provided, here is a revised version of the main features:
Main features:
1. Equipped with a two-stage dry dust removal device, minimizing environmental pollution during drilling operations.
2. Centralized console design enhances operational efficiency and reduces labor costs.
3. The crawler chassis ensures stability and enables the drilling rig to adapt to various challenging working conditions.
Company Profile
Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
