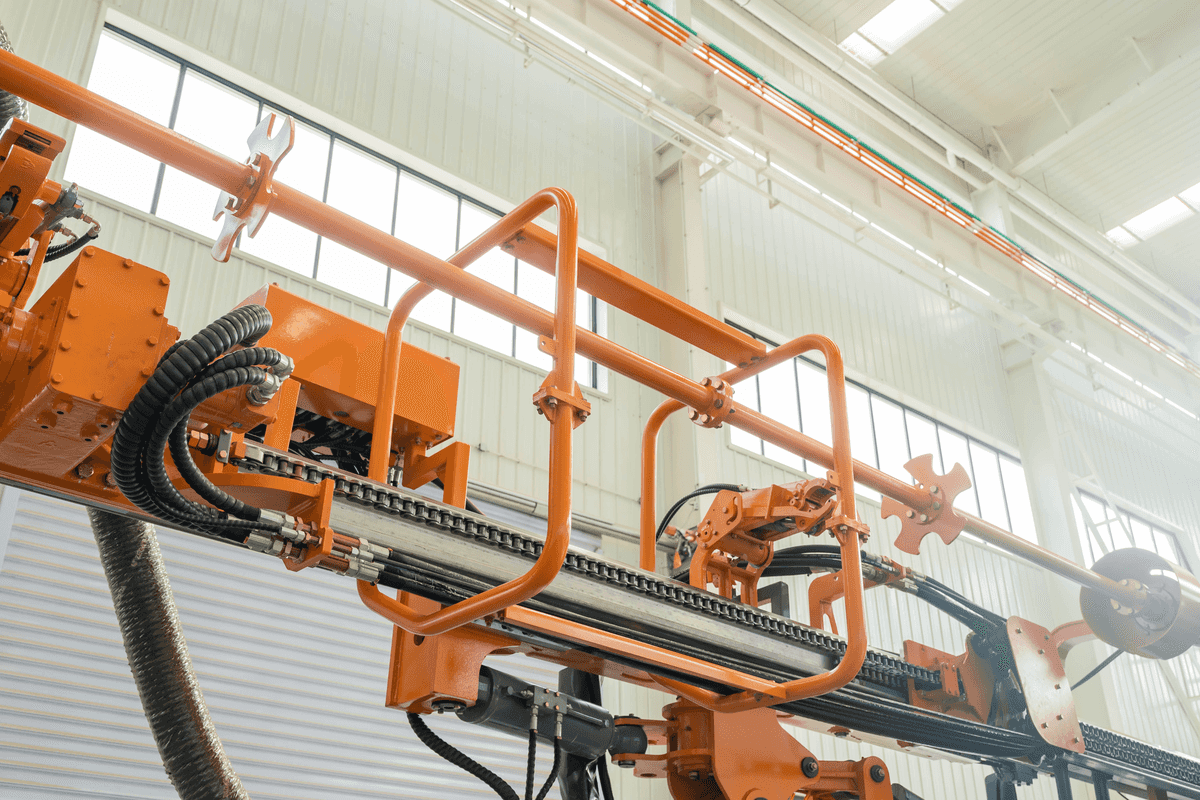

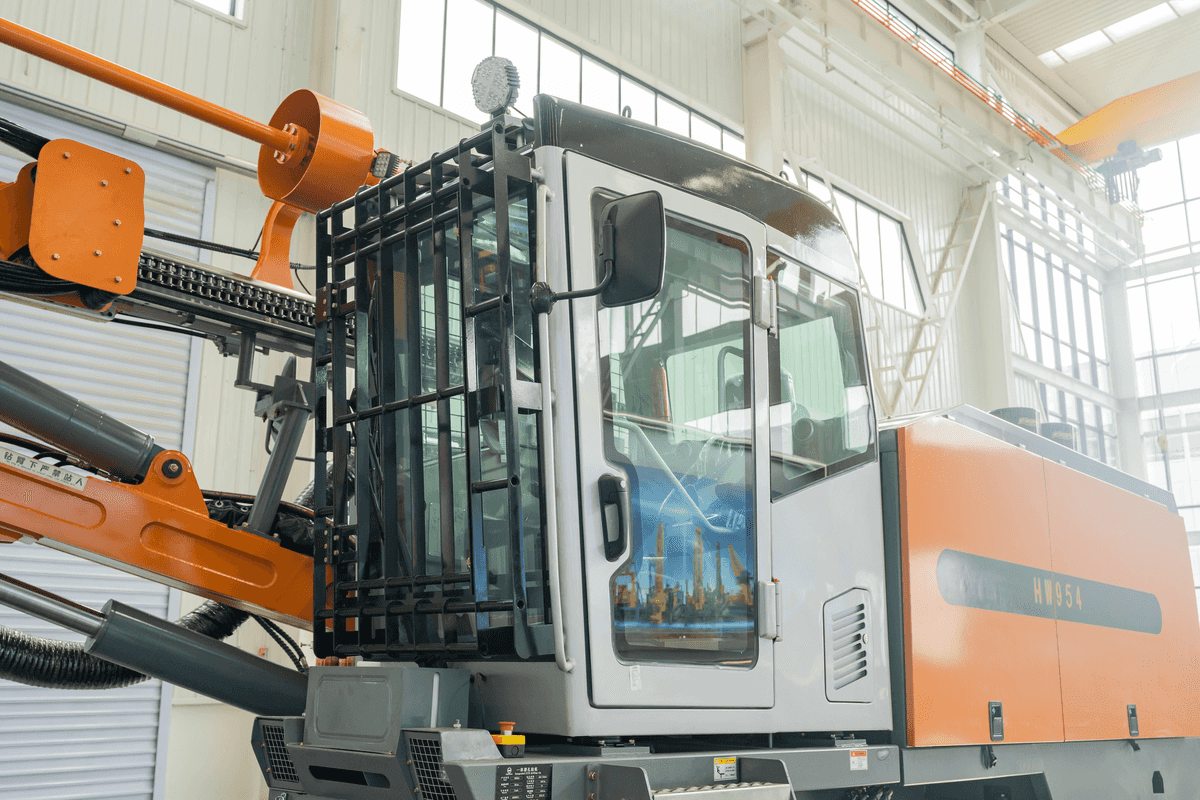

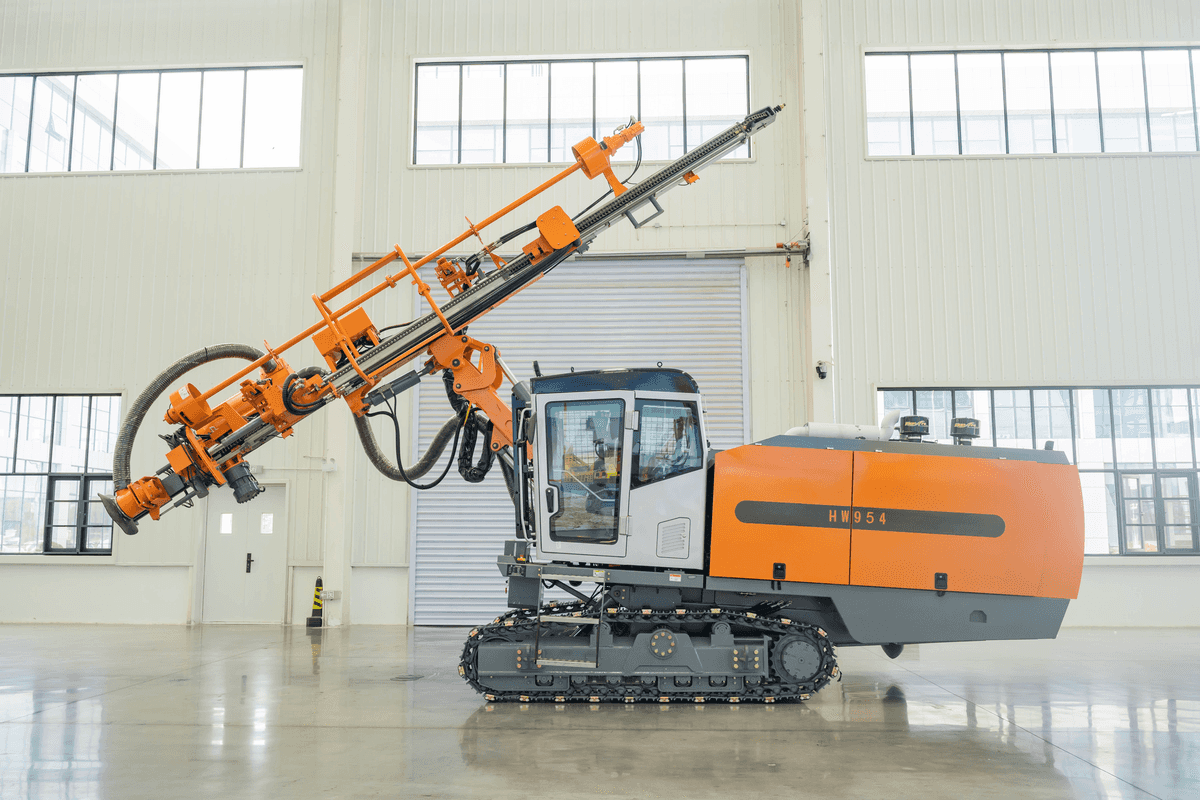

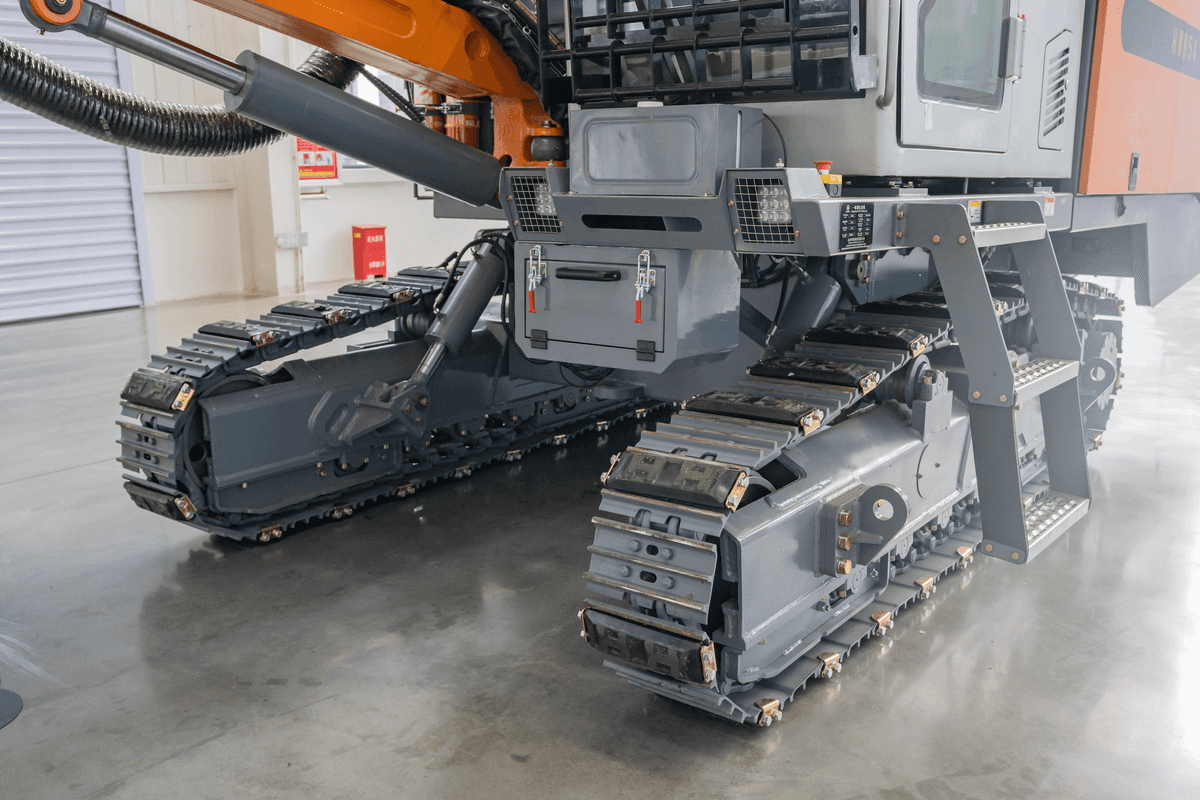

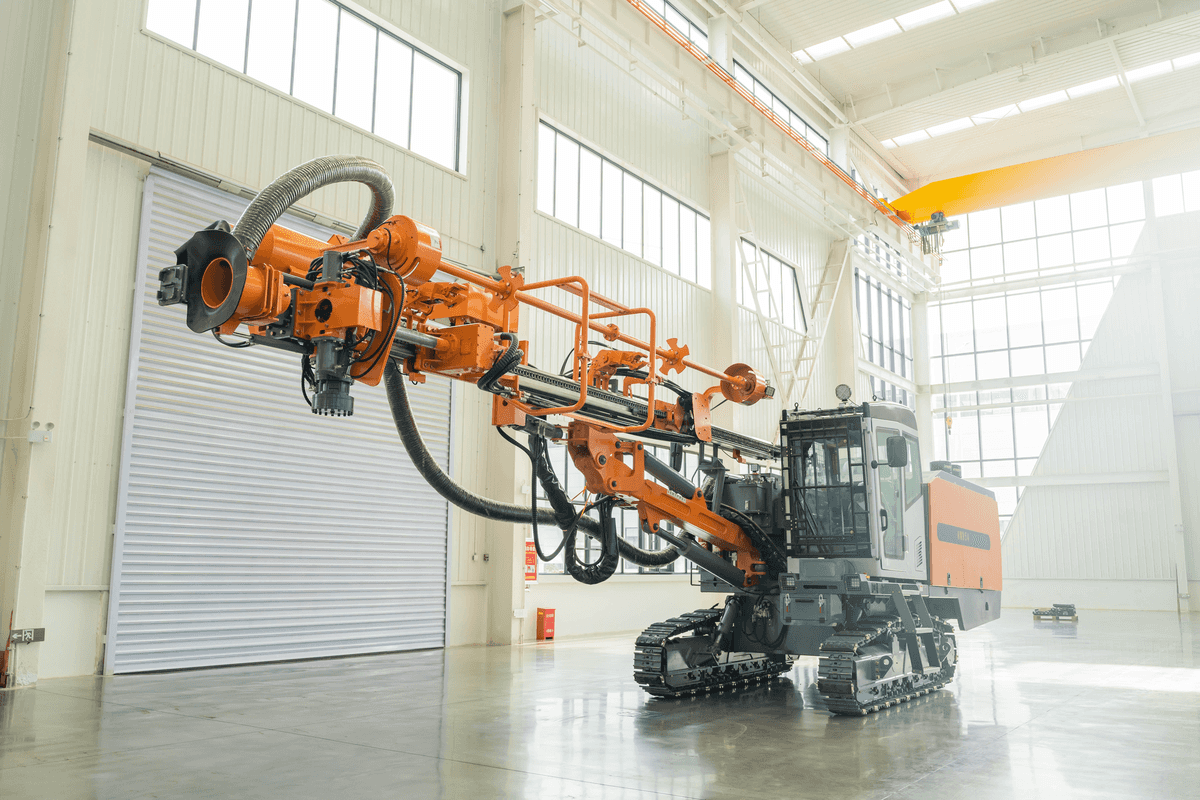

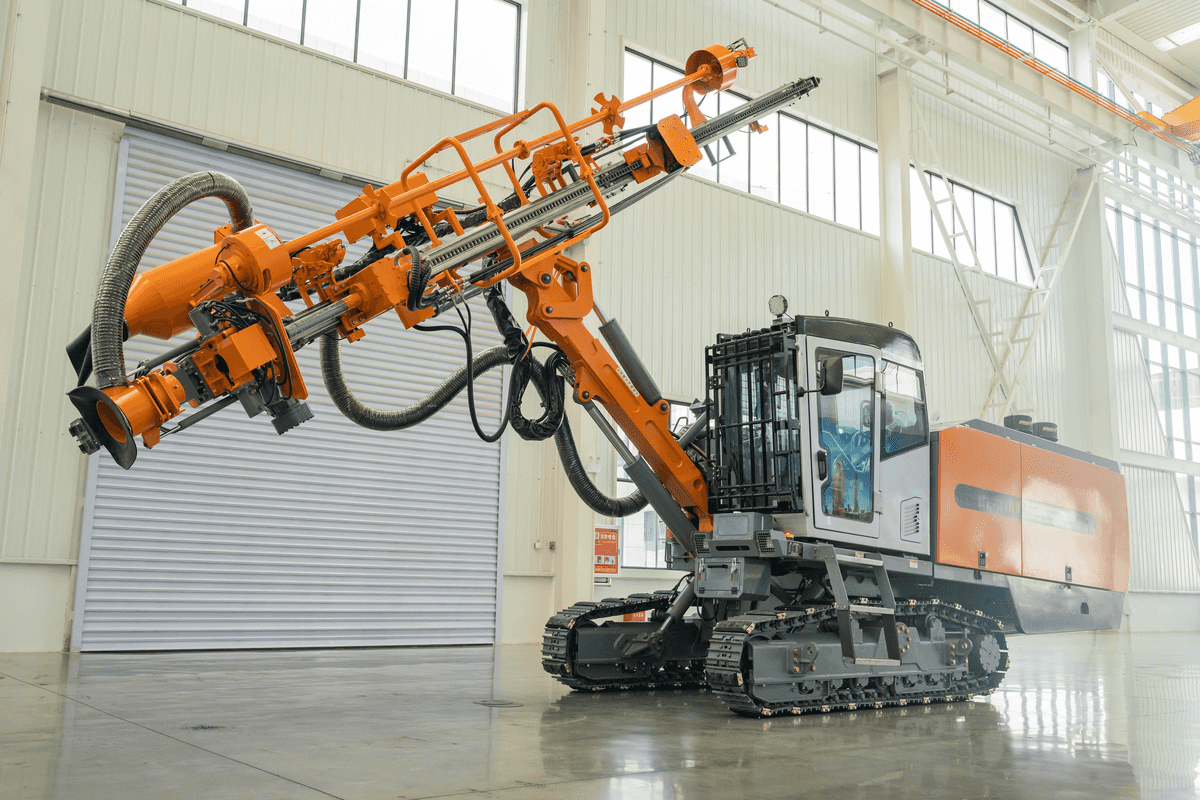

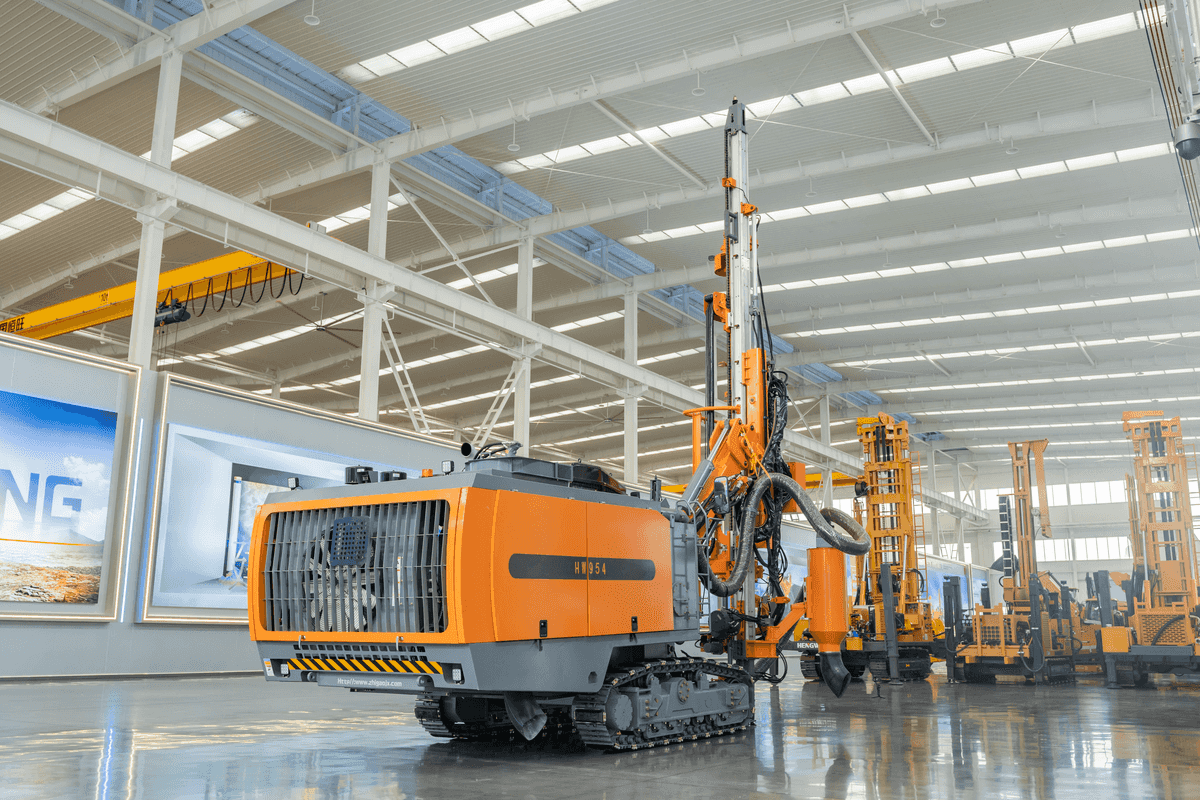

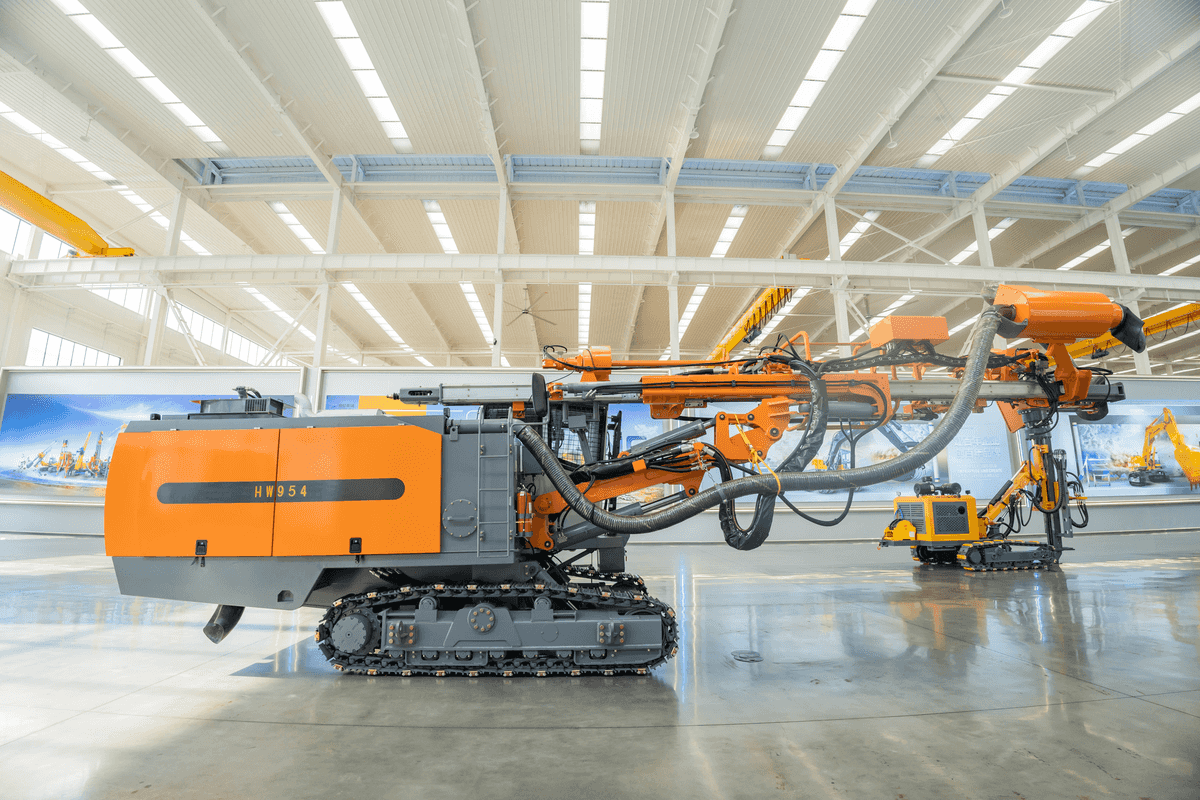

HW954 Integrated DTH Surface Drill Rig
Drilling diameter (mm)：φ115-152
Drill pipe type (mm)：φ89*5000
Technical Specifications: HW954 Integrated DTH Drill Rig
| Parameter | Specifications |
| Model | HW954 |
| Operating Weight | 15,000 kg |
| Dimensions (L×W×H) | 11,200 × 2,360 × 3,100 mm |
| Engine (Standard) | Cummins / 264 kW |
| Rotation Torque (Max) | 4,000 N·m |
| Drilling Hole Diameter | Φ115 - 152 mm |
| DTH Hammer (Standard) | 5 inch |
| Drilling Rod | Φ89 × 5,000 mm |
| Diesel Tank Volume | 480 L |
| FAD (Free Air Delivery) | 20 m³/min |
| Working Pressure | 22 bar |
Looking for a High-Efficiency Drilling Solution?We welcome all inquiries regarding the HW954. Whether you need detailed pricing, shipping information, or customized configurations for your specific project, our team is ready to assist you.
Company Profile
Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
Certificate
