Horizontal Directional Drilling

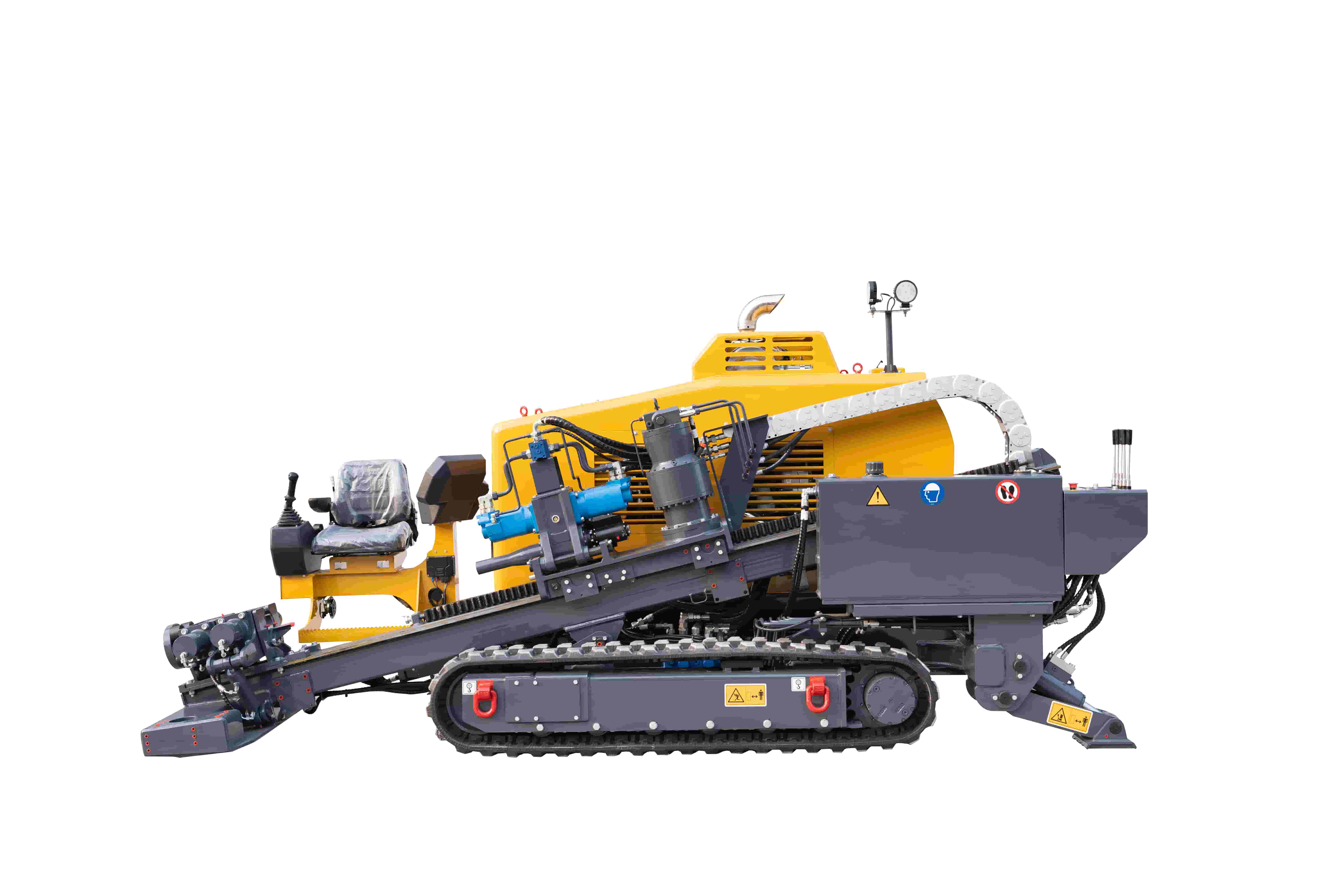

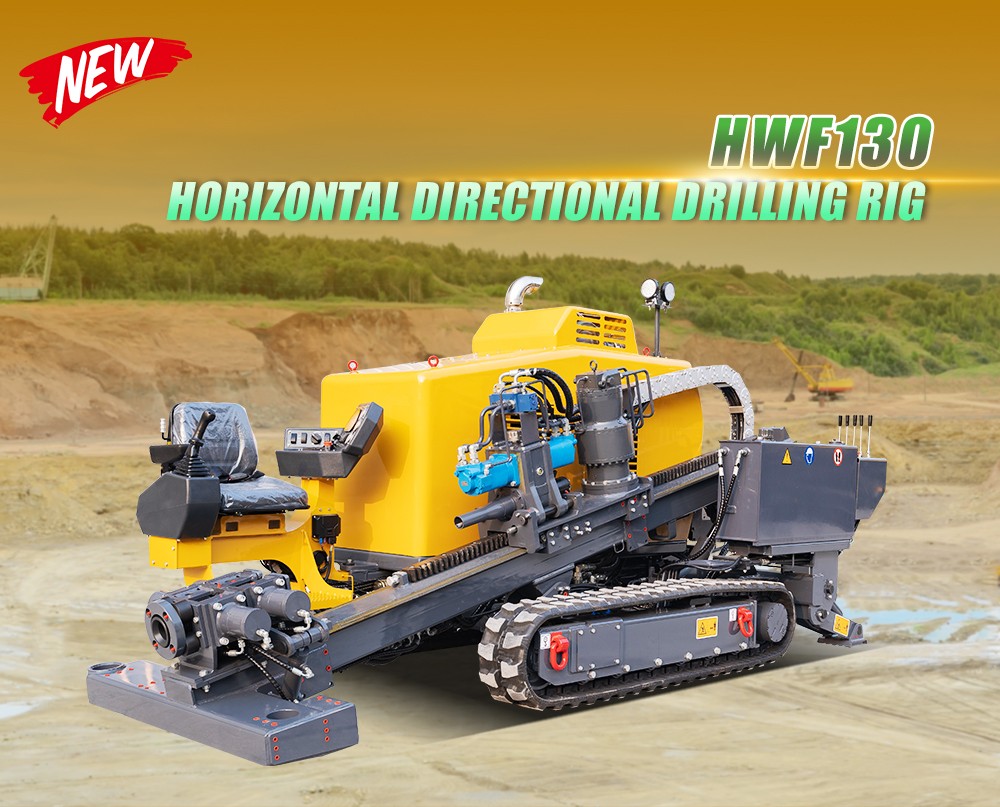

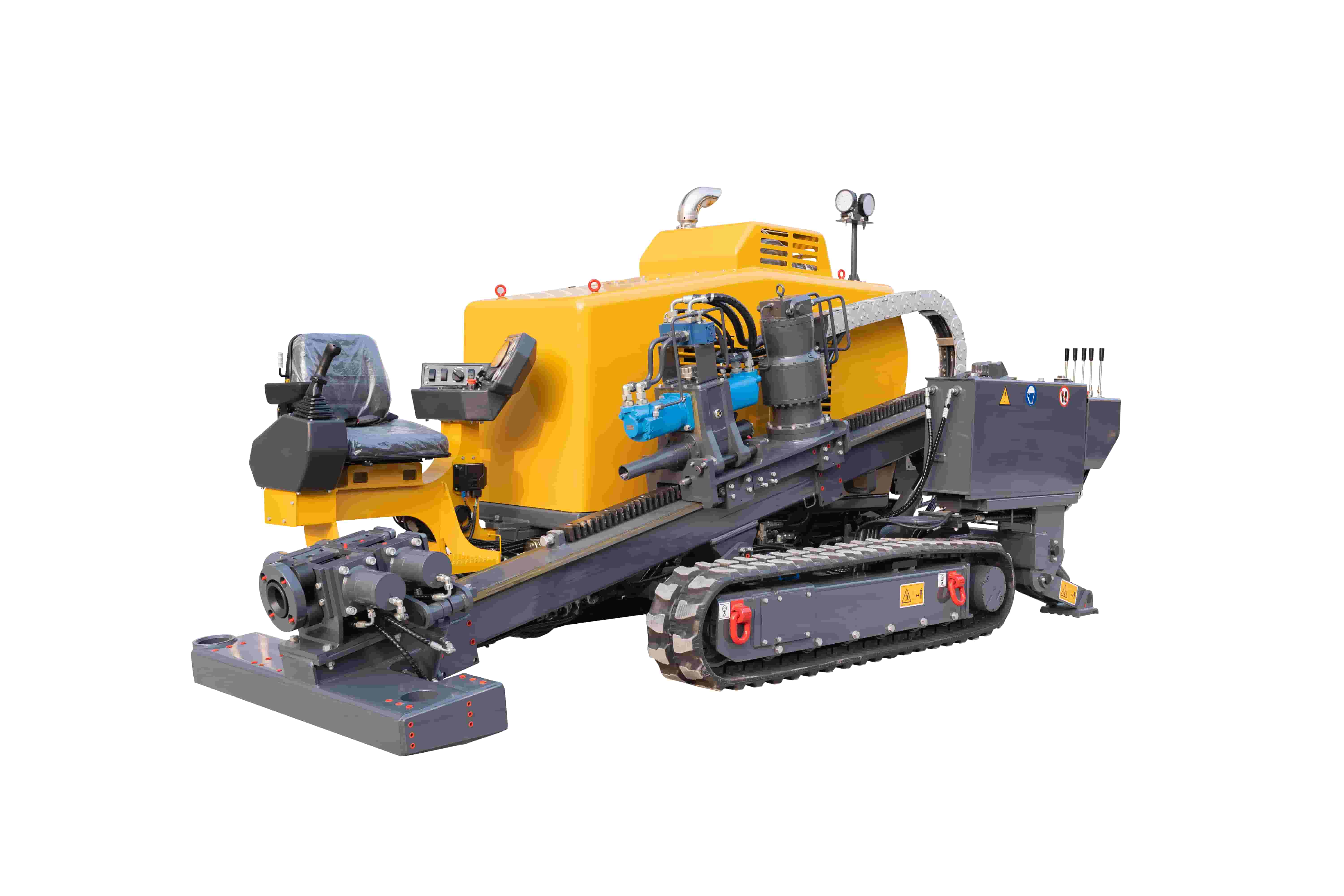

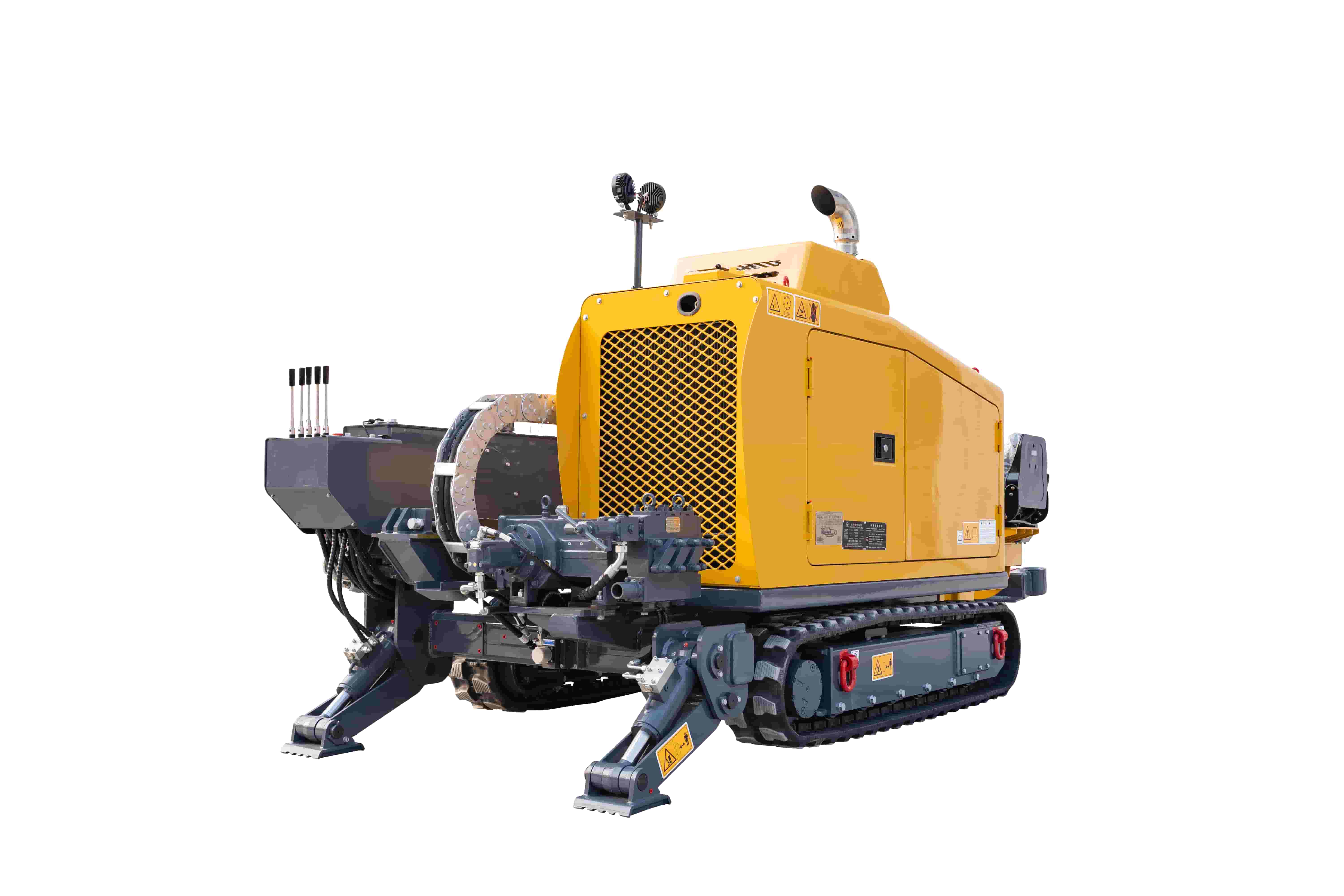

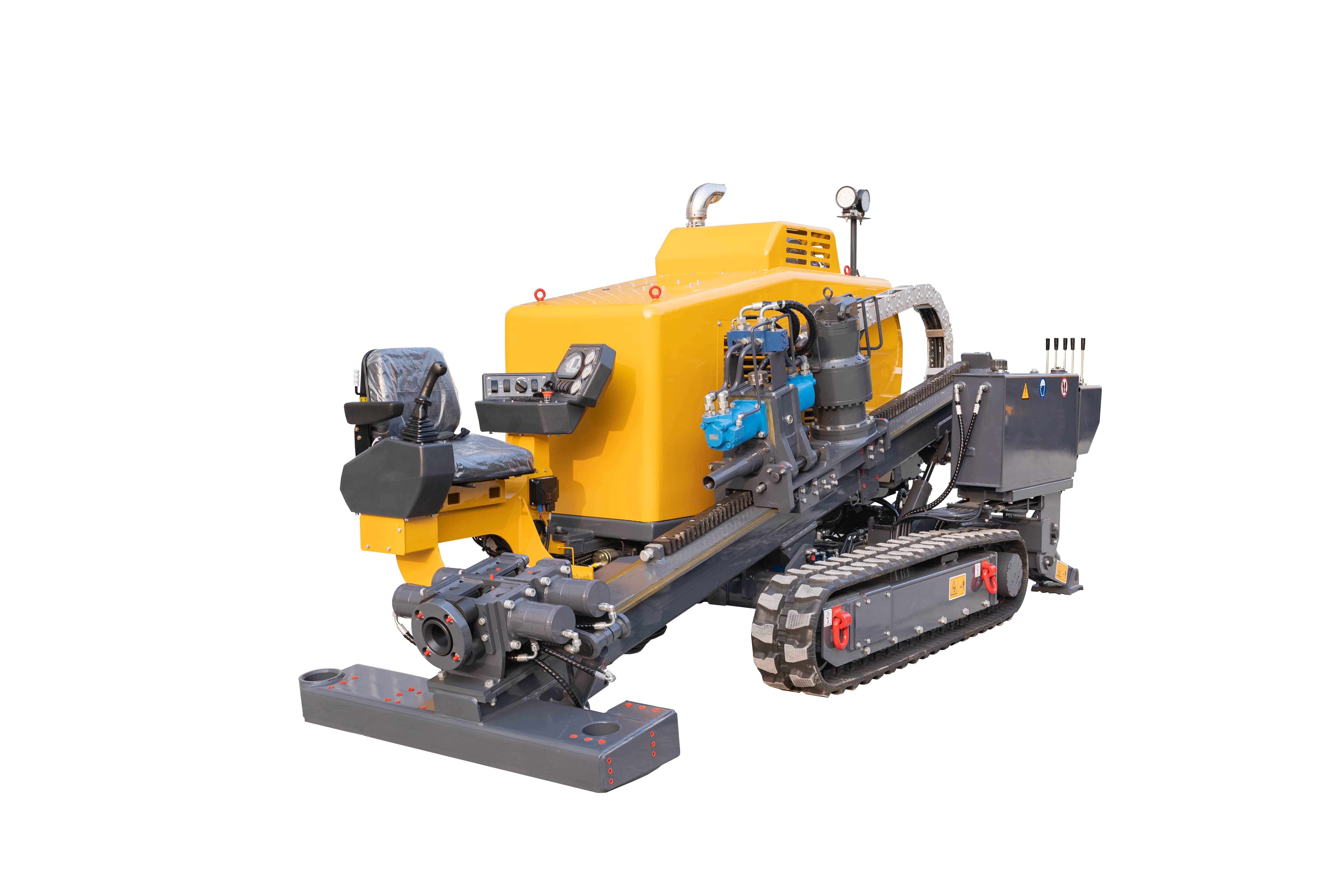

HWF130 horizontal directional drill

Factory Direct
Training on Arrival
One-year warranty

Push and pull: kN 135
Maximum speed: m/min 40
Torque: N·m 3200

Horizontal directional drilling (HDD) rigs are specialized equipment used for trenchless installation of underground utilities, such as pipelines and cables. These rigs offer several advantages and have distinct characteristics:

Advantages:

1. Minimal Surface Disruption: HDD rigs create underground pathways without extensive excavation, reducing disruption to the surface, minimizing traffic congestion, and preserving landscaping.


2. Environmental Friendliness: By minimizing excavation and reducing the need for open trenches, HDD rigs help protect the environment and avoid soil contamination.


3. Versatility: HDD rigs can be used in a variety of soil and rock conditions, making them suitable for a wide range of projects, including water, gas, and electricity utilities.


4. Cost-Effective: While the initial setup cost may be high, HDD can be more cost-effective in the long run due to reduced restoration and surface repair expenses.


5. Reduced Risk: There is a lower risk of utility strikes, worker accidents, and damage to existing structures when compared to traditional trenching methods.


HWF130 main technical parameters:


engineCummins
Rated power (National IV)kW/r/min 81/2200
Push and pullkN 135
Maximum speedm/min 40
Torque

N·m 3200

Maximum speedr/min 230
Mud pump maximum flow

L/min 100

Drill pipe diameter x length

medium 52/60x1.8(mmxm)

Maximum penetration angle18°
Overall machine quality5.0t
Dimensions(LxWxH)

4200x1680x2170(mm)
