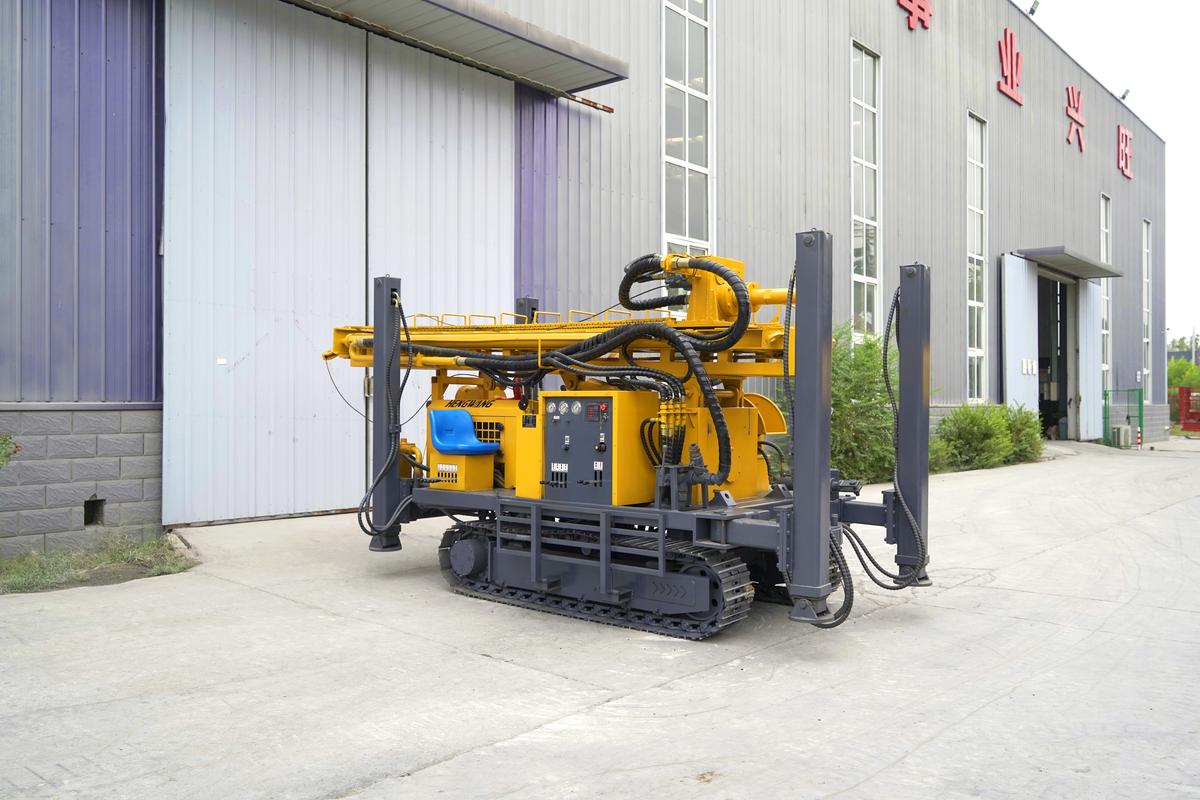

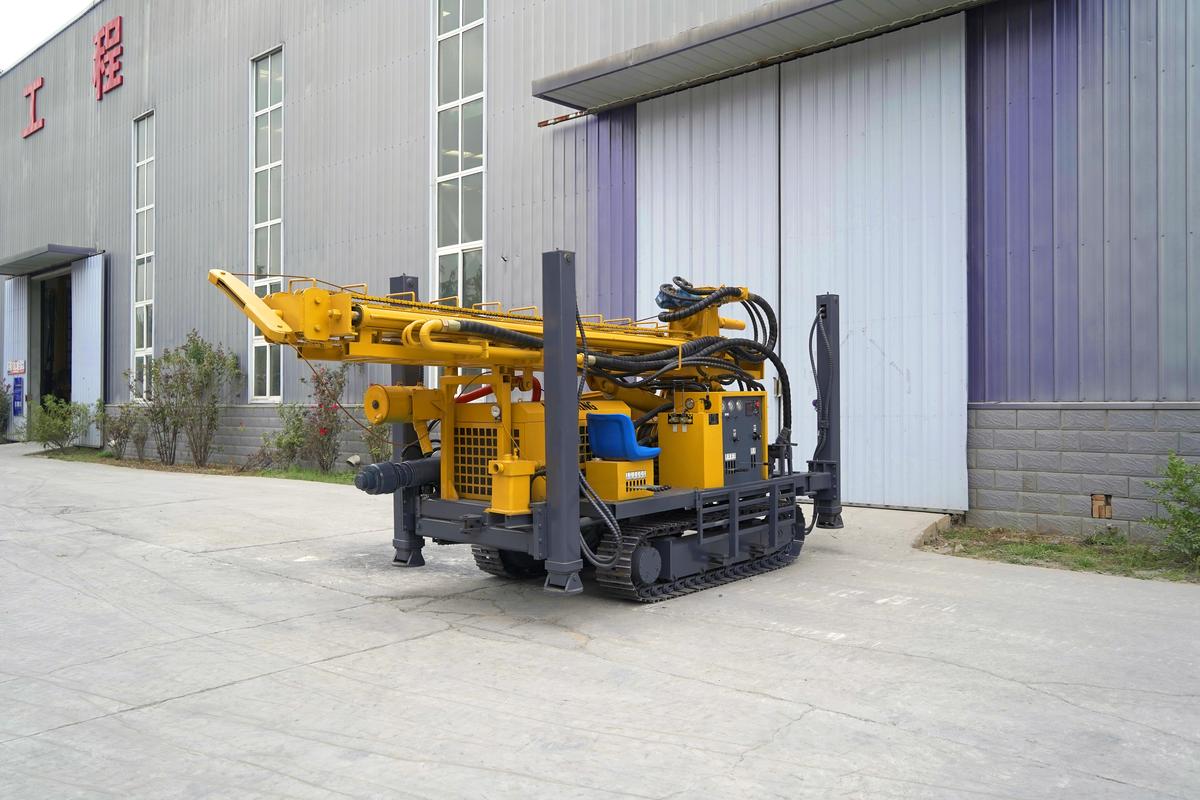

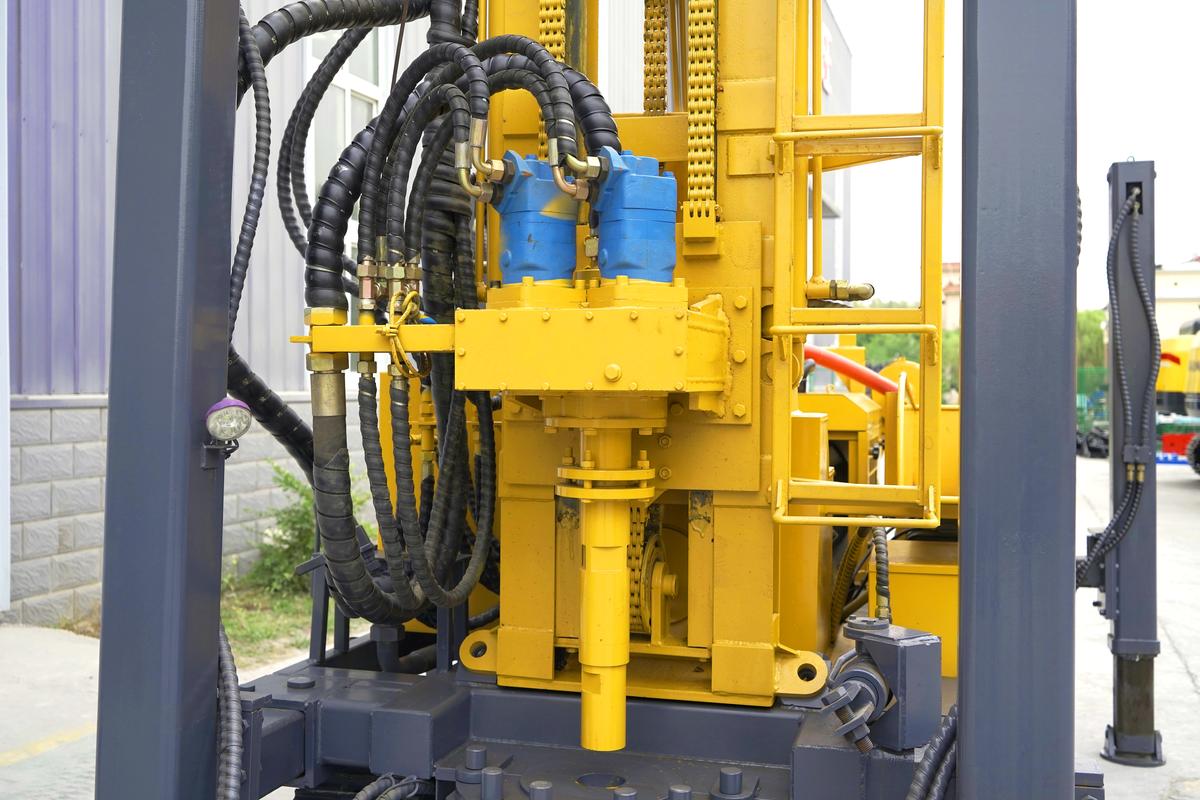

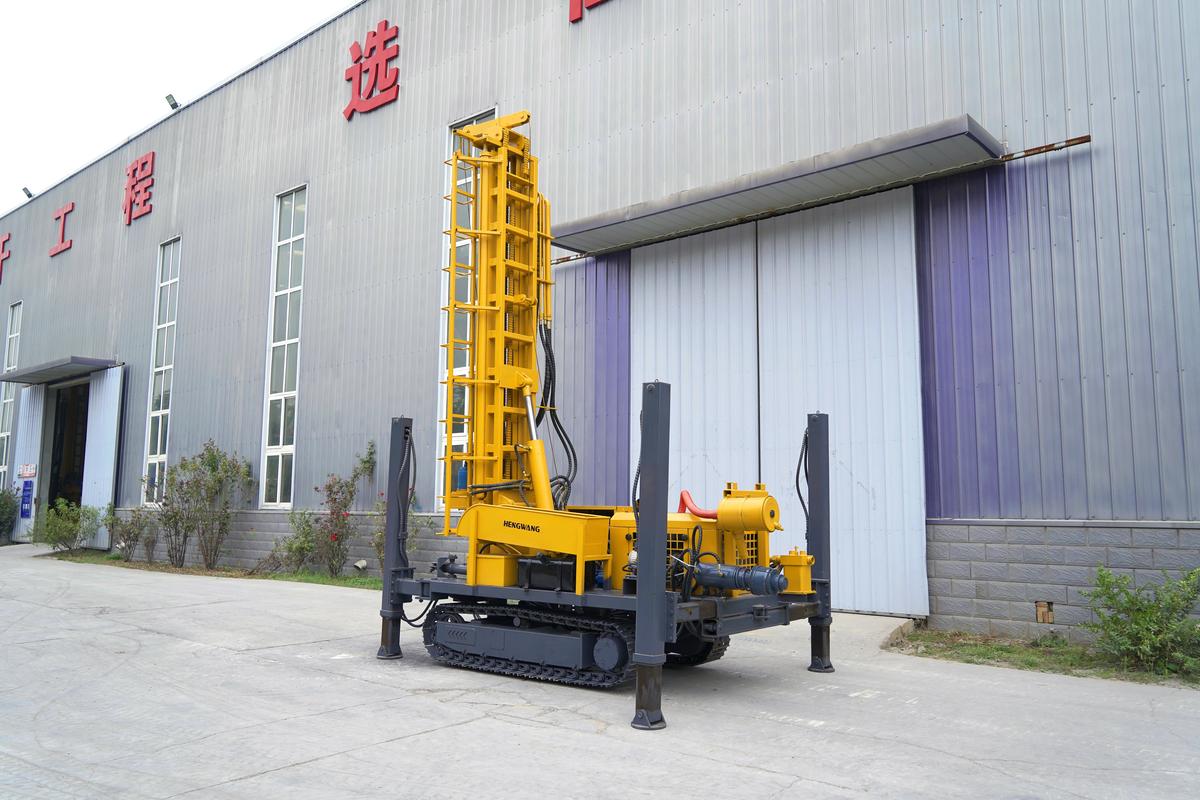

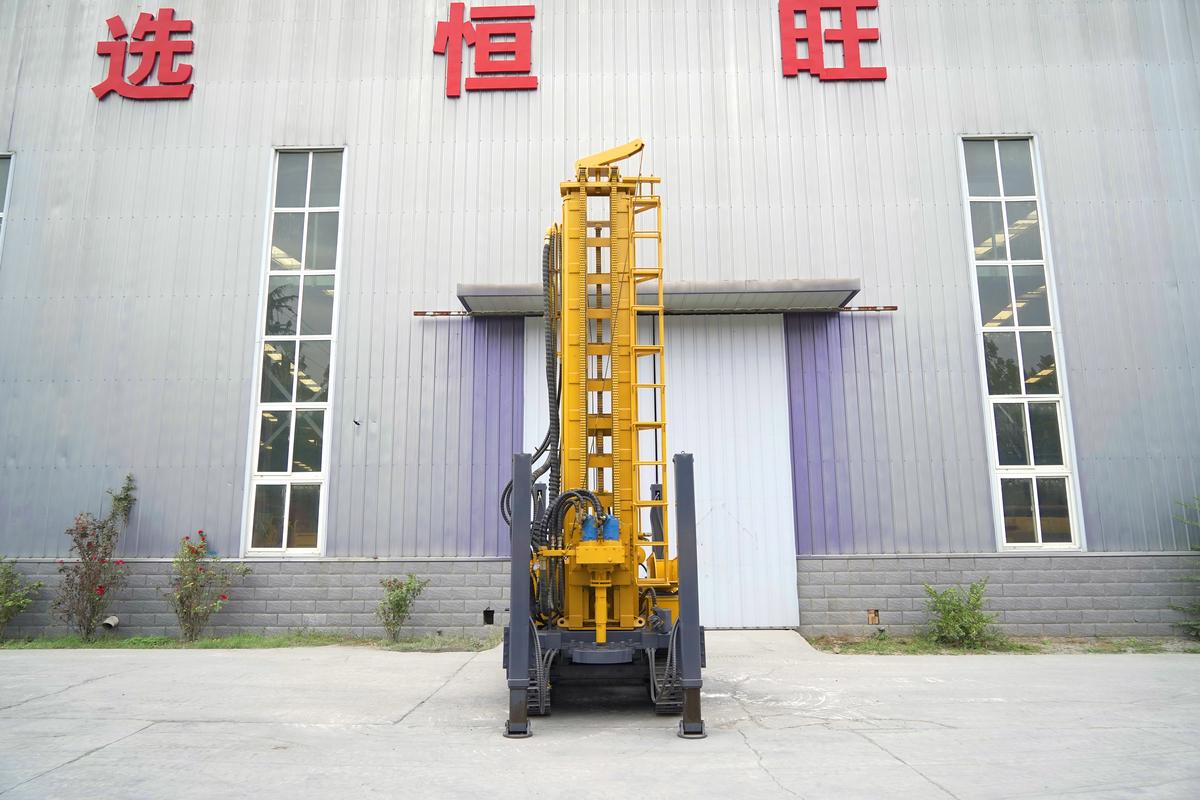

HQZ-260L Pneumatic Drill Rig

Factory Direct
Training on Arrival
One-year warranty

Drilling depth: 260m
Drilling diameter: 130-305mm
Engine Power: 76/77.3Kw

Hengwang Pneumatic Drilling Rig Series

HQZ pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.

>>> Product Details <<<


Main feature:

1. Crawler walking is more suitable for muddy field movement.

2. Pneumatic drilling rig, with air compressor, the efficiency is equivalent to 10~15 times of ordinary drilling rig.

3. The drilling on the rock is mainly based on the down-the-hole hammer drilling process. The down-the-hole hammer rock drilling operation efficiency is high, and the drilling cost per meter is lower.



modelHQZ-260Lunit
tower3m
ChassisRubber track         /        Steel track/
Drilling diameter130-305mm
Drilling depth260m
One-time advancement length3.6m
Walking speed2.5km/h
Maximum gradeability30
/
Engine brandYunnei                /              Yuchai/
Engine power76/73kw
working pressure1.7-3.0mpa
Air consumption17-31m³/min
Drill pipe diameter76/89mm
Drill pipe length1.5/2.0/3.0m
Lifting power17T
Swing speed45-65rpm
Rotating torque4500-4700          /            4500-5000N.m
Dimensions3900*1850*2350mm
weight4.8                    /                6    T



Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
