Construction

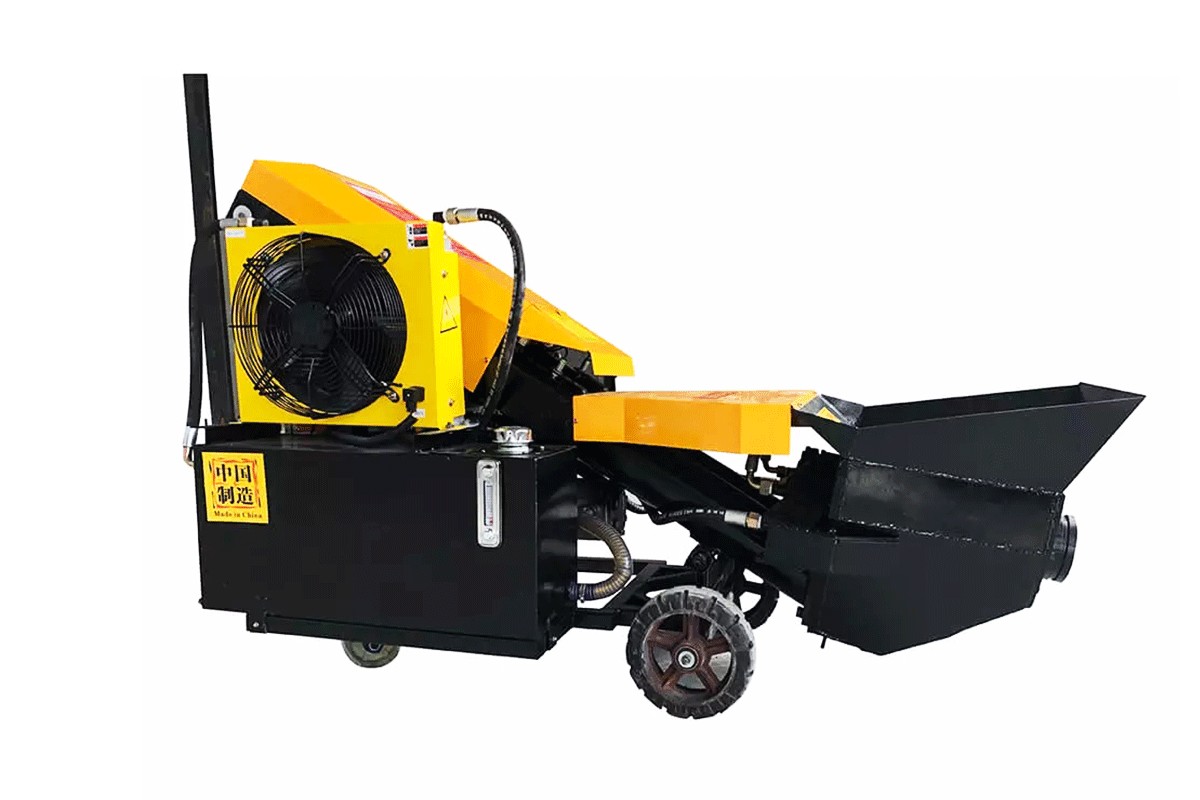

HWJP-20 Concrete Pump

Factory Direct
Training on Arrival
One-year warranty

Rated Power: 30Kw
Aggregate size: 15mm
Output: 8m³/h

1. High working efficiency: hydraulic pumping is adopted, with high system reliability and stable throughput.

2. Continuously adjustable injection amount: variable plunger pump is adopted for the main oil pump, and the injection speed can be freely adjusted.

3. The addition amount of accelerating agent can be continuously adjusted: it can be adjusted according to the amount of gunite.

4. Long service life of wearing parts: the service life of wearing parts of the host shall not be less than 4000M3.

5. equipped with automatic lubrication system: for the main sealing parts with automatic lubrication, grease filling amount, filling time automatic control, greatly extend the life of vulnerable parts.

6. Humanized product design: more convenient operation.


Model

HWJP-20

Power

30kw

Voltage

380V

Vertical delivery distance

50m

Horizontal delivery distance

80m

Output

8m3/h

Max.Aggregate size

15mm

Outlet diameter

100mm

Cylinder stroke

1000mm

Pipe diameter

100mm

Dimension

3800*1000*1550mm

Weight

900kg
