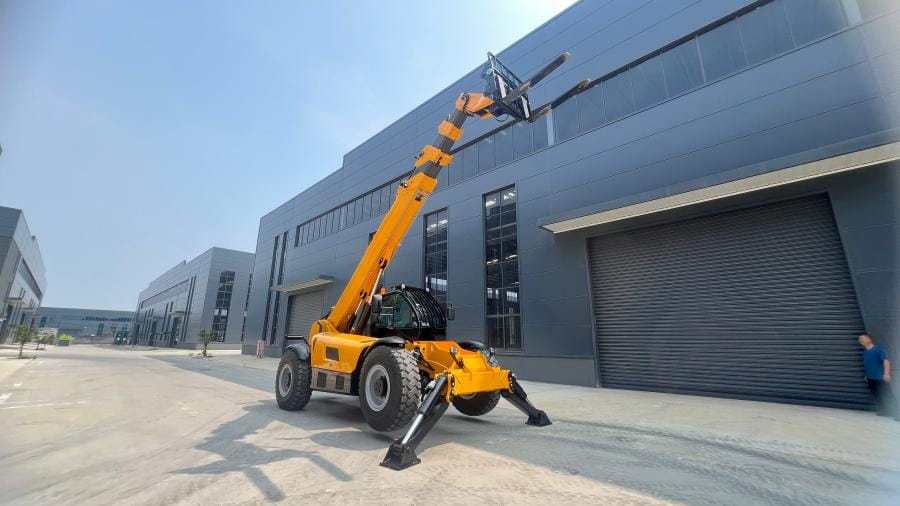

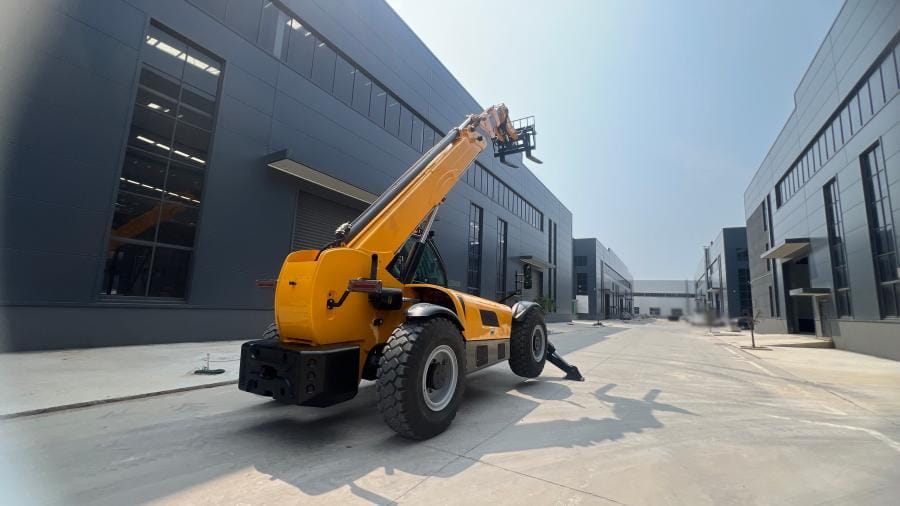

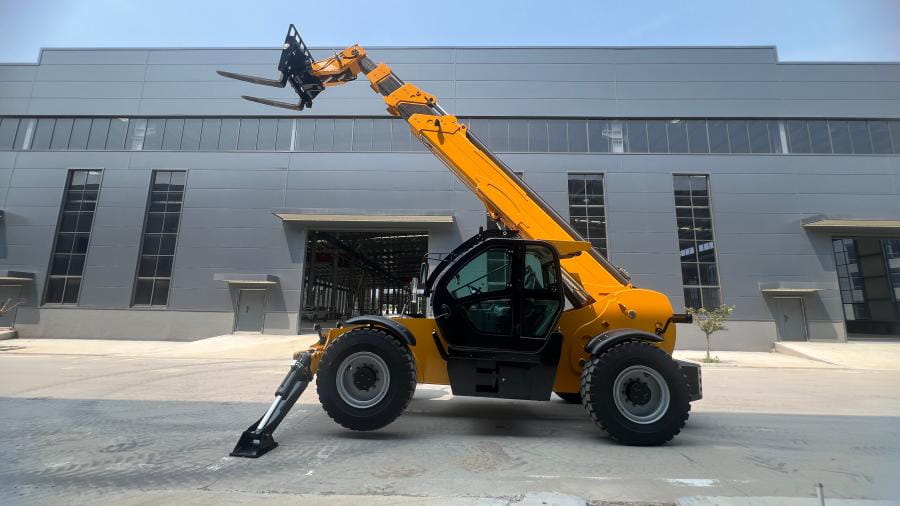

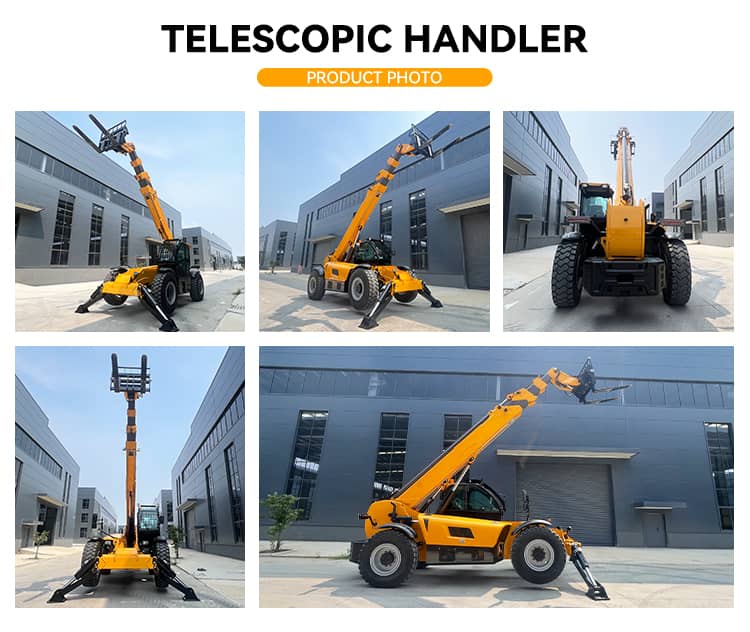

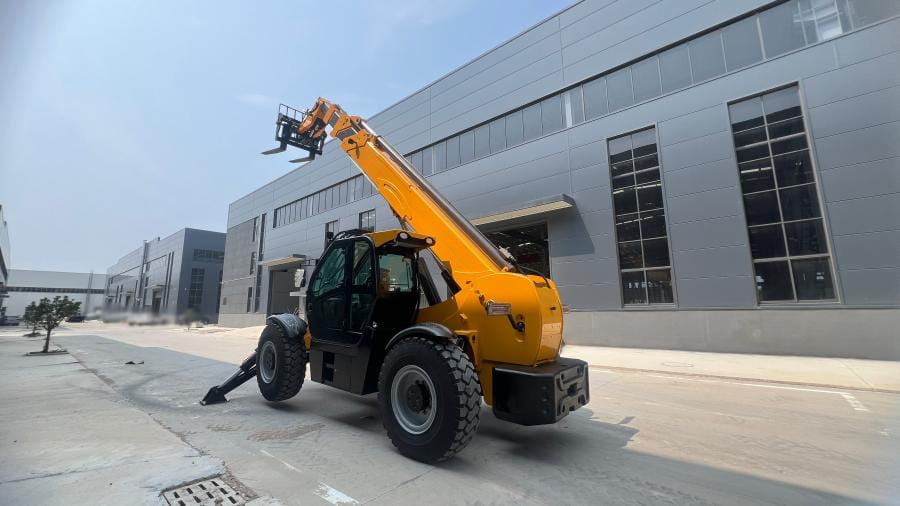

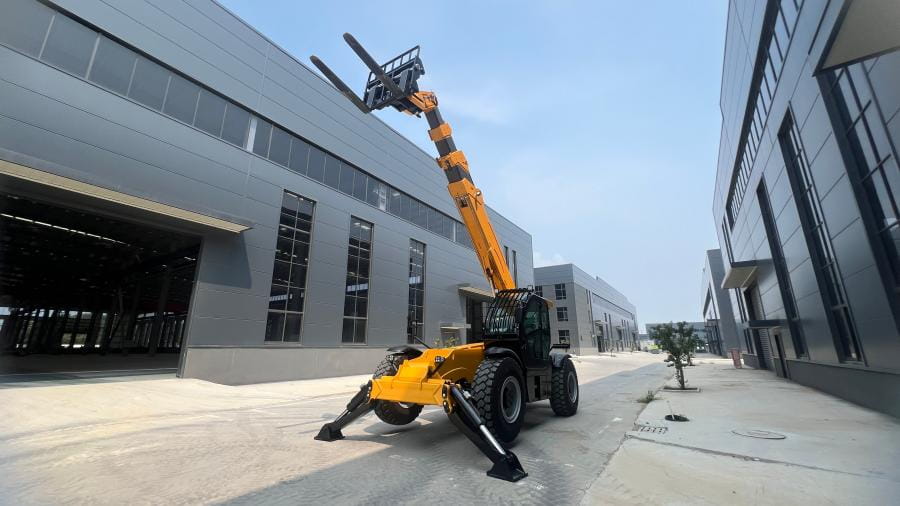

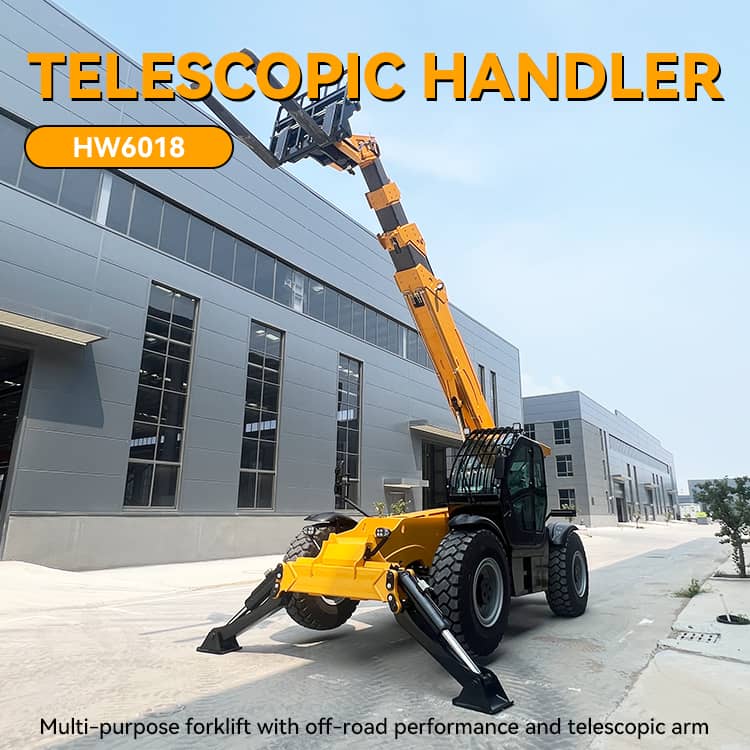

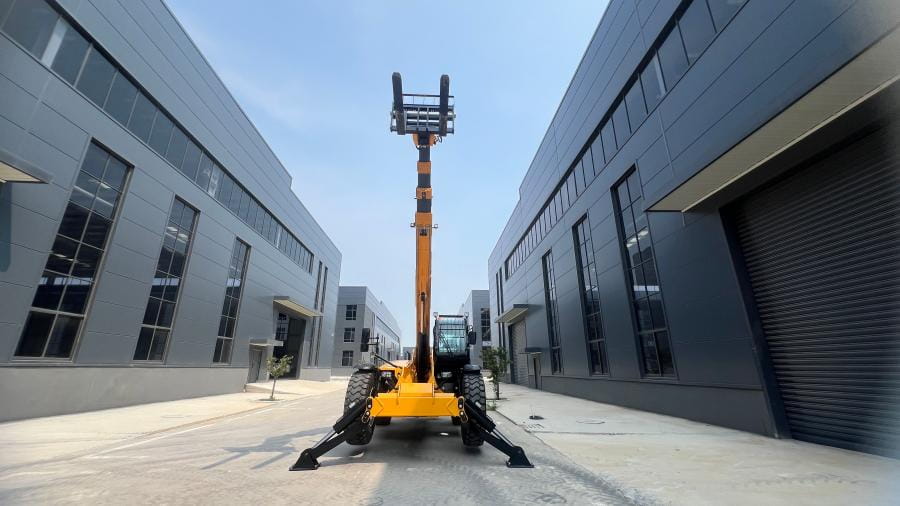

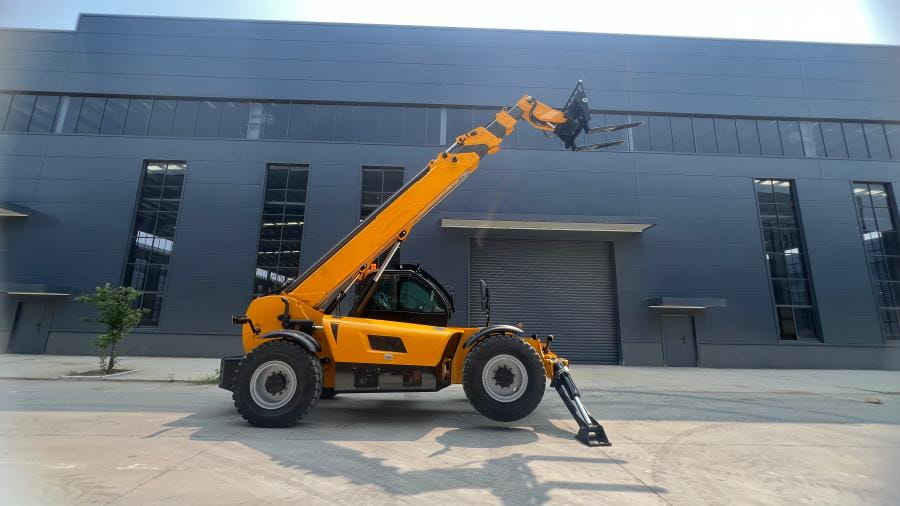

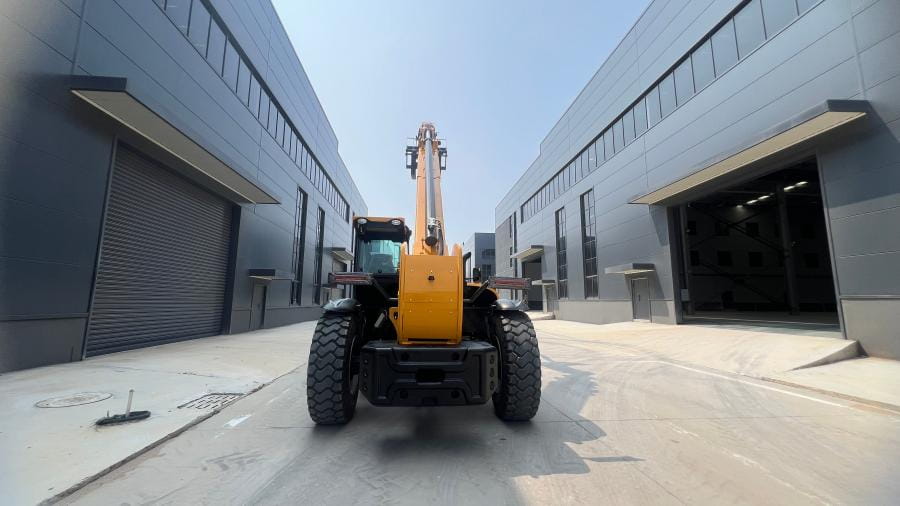

| Model | HW6018-B |
| Engine | Yuchai |
| Power | 110 kW |
| Emission Standard | National II (China) |
| Operating Weight | 17,000 kg |
| Rated Load Capacity | 6.0 Tons |
| Max. Lifting Height | 17.3 m |
| Dimensions (LWH) | 7,100 x 2,600 x 2,850 mm |
| Hydraulic Oil Capacity | 220 L |
| Fuel Tank Capacity | 260 L |
| Axles | Wet braking axles (Zhuoshibo) |
| Cabin | Luxury cabin |
| Transmission System | Hydraulic torque converter |
| Drive Mode | Full electronic control |
| Gears | F4 / R4 (4 Forward / 4 Reverse) |

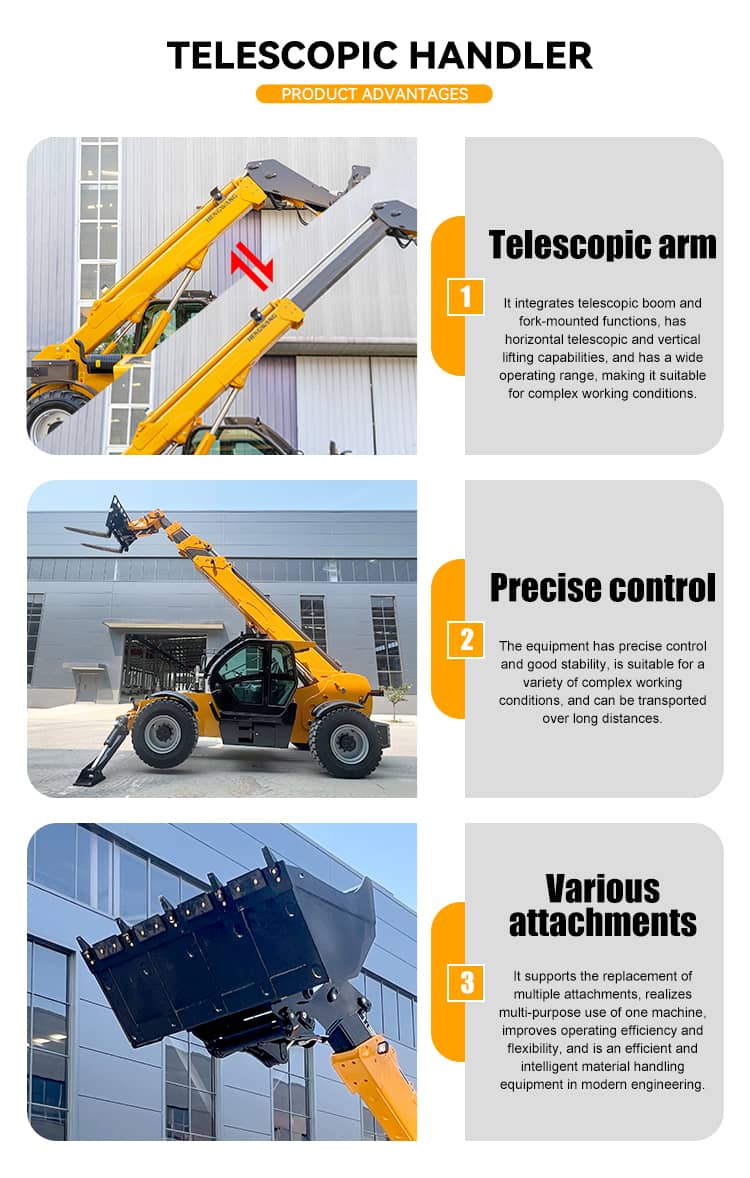

| Telescopic Boom | 4-Section |
| Boom Material | BS1000 High-strength manganese steel |
| Forks | 1,220 mm Floating/Sliding pallet forks |
| Frame Leveling Function | Supported (Frame Tilt) |
| Tire Model | 17.5-25 Tubeless tires (Advance Brand) |
| Max. Travel Speed | 40 km/h |

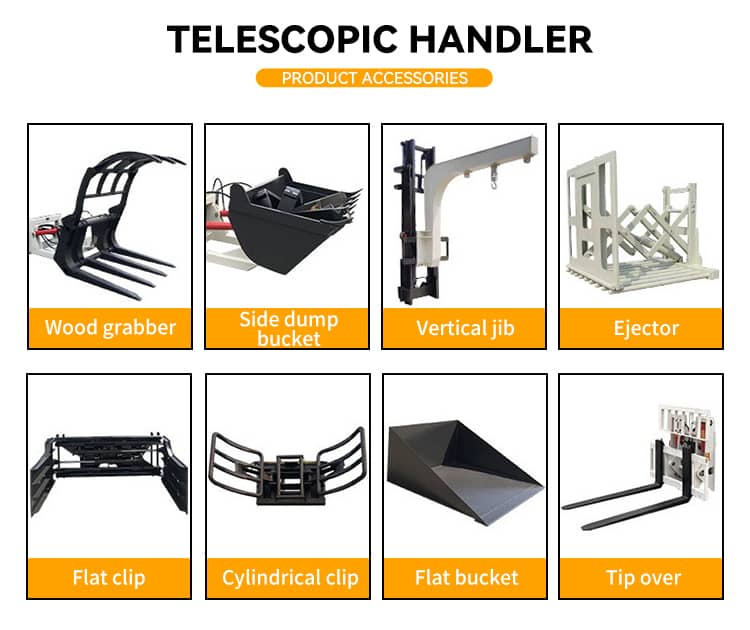

| Quick Hitch | Hydraulic quick coupler |
| Hydraulic System | Electro-hydraulic load-sensing proportional system |
| Engine Hood | Fully-opening stamped steel hood |
| Remarks | Includes outriggers and cast iron counterweight |

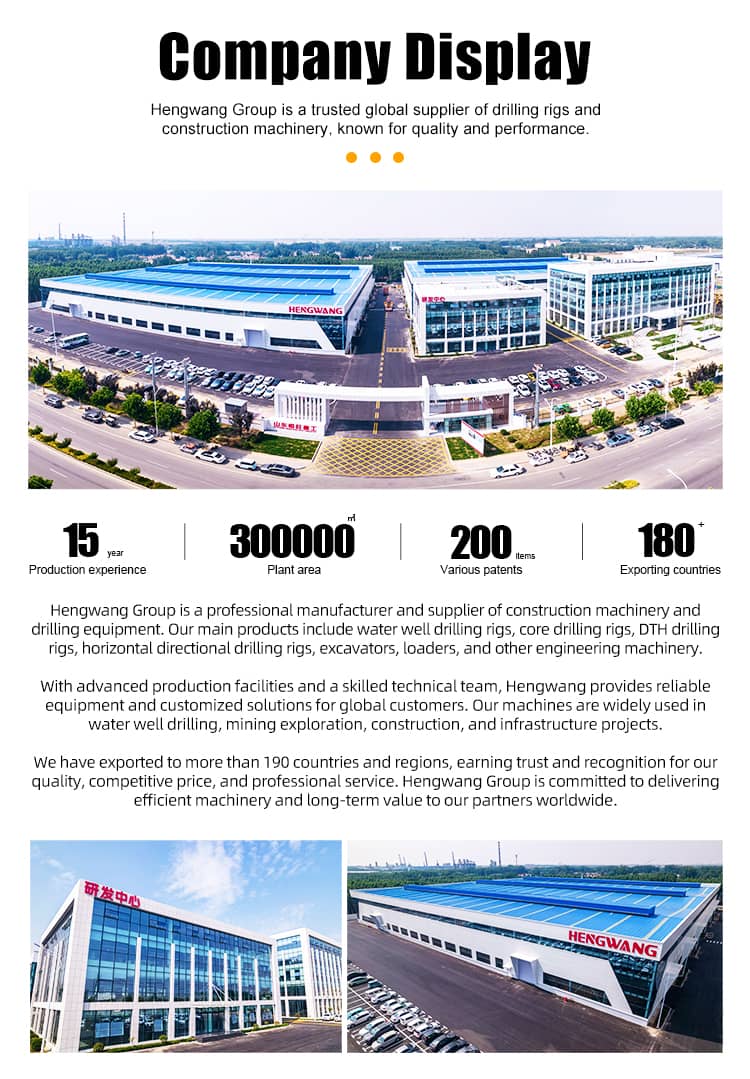

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
