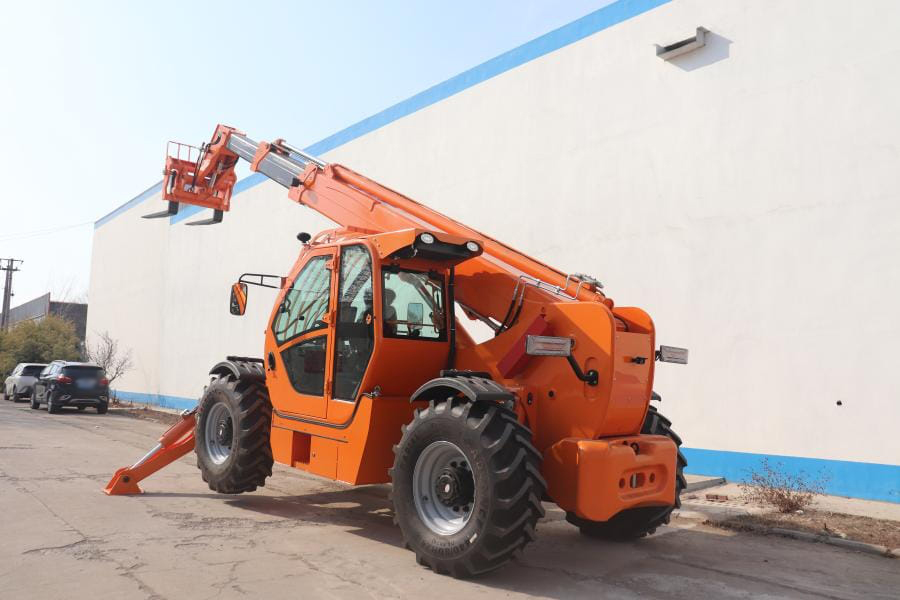

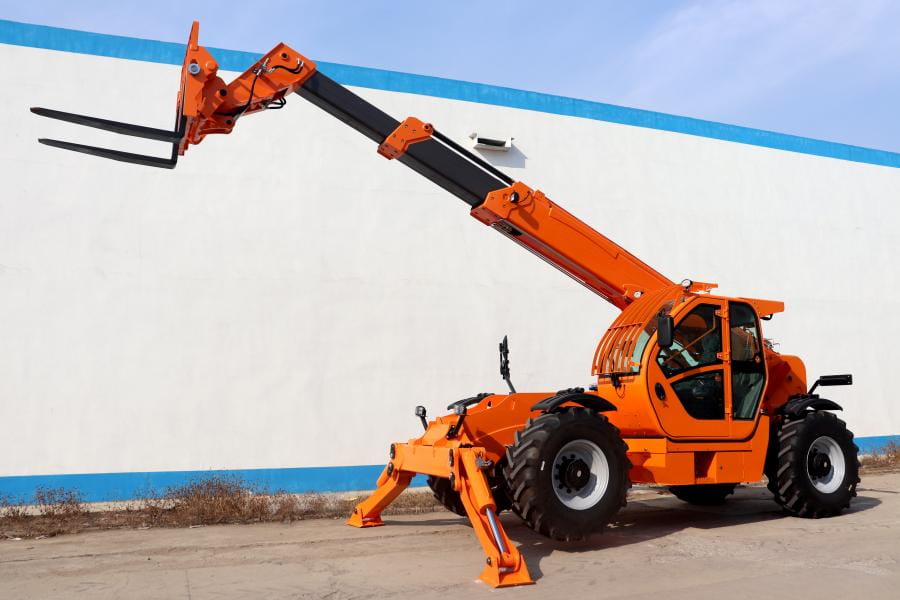

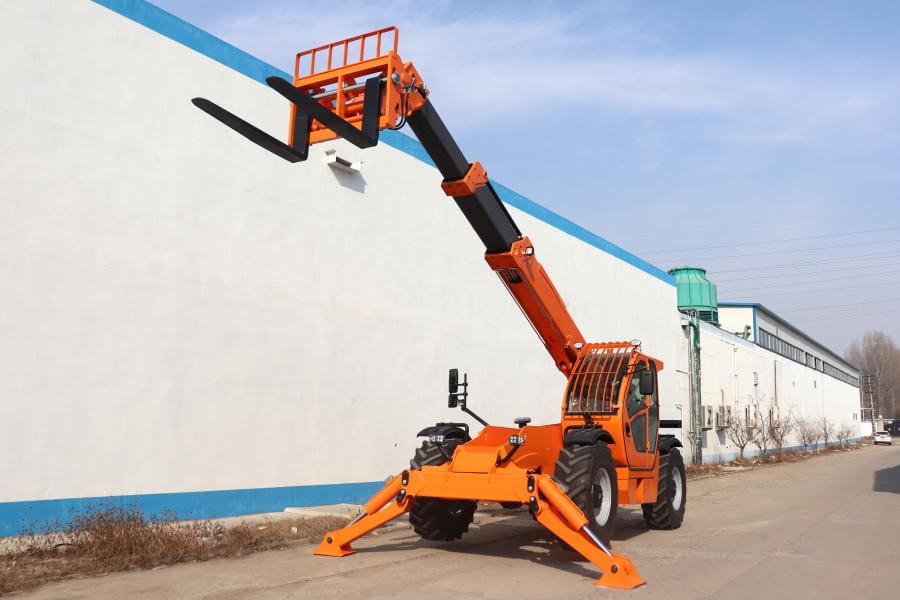

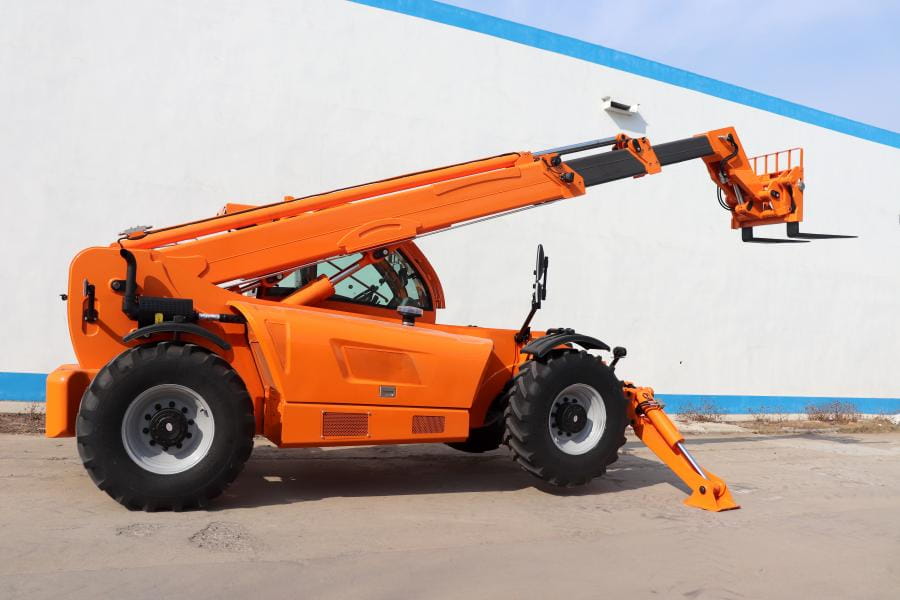

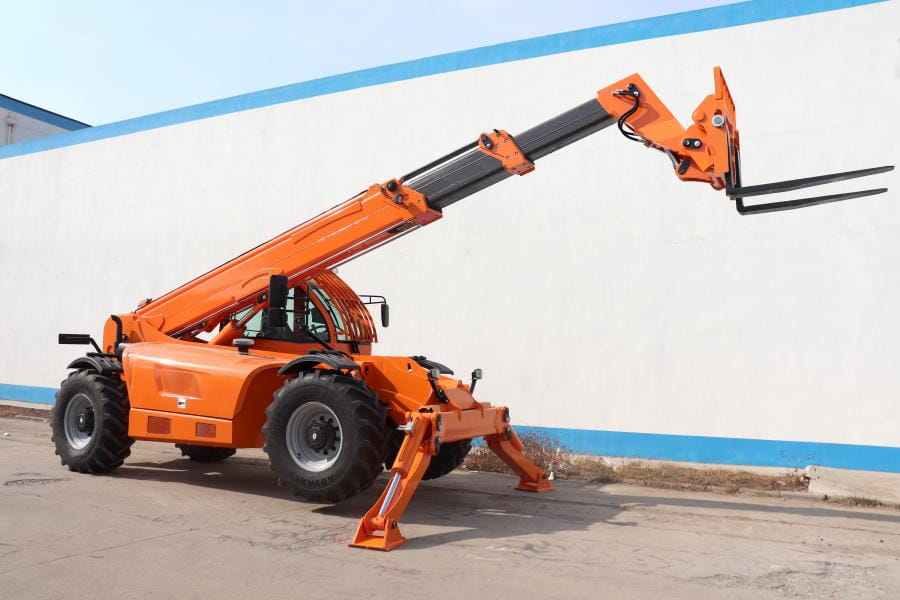

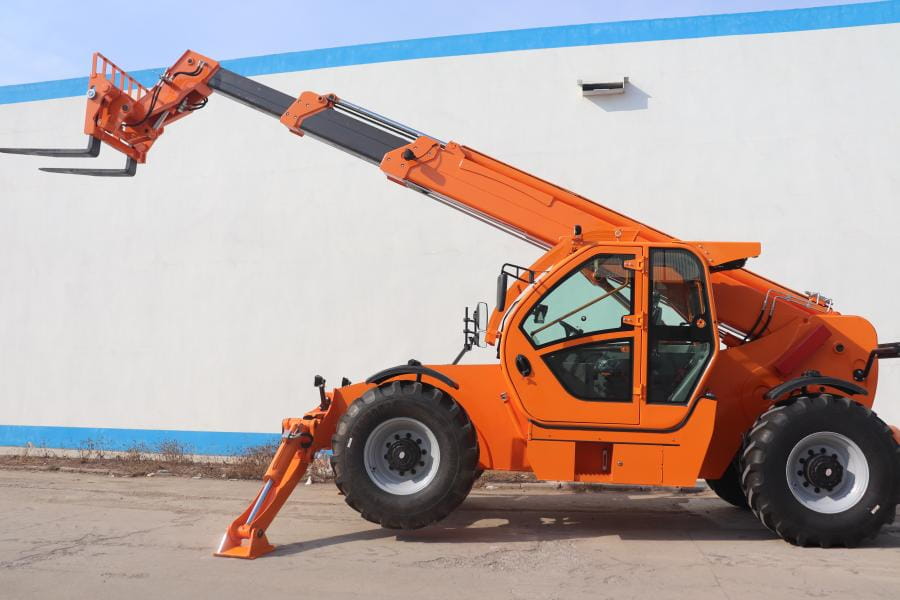

HW5014 Telehandler - Telescopic Handler for Construction & Agriculture
Rated Load: 5 Tons
Max. Lifting Height: 14 Meters
| Specification Item | HW5014-A (High-End) | HW5014-B (High-Efficiency) |
| Engine | Weichai (Opt: Yuchai/Cummins) | Yuchai |
| Power | 96 kW | 91 kW |
| Emission Standard | China Stage III / Stage IV | National II (China) |
| Rated Load Capacity | 5.0 Tons | 5.0 Tons |
| Operating Weight | 12.8 Tons (12,800 kg) | 13.6 Tons (13,600 kg) |
| Max. Lifting Height | 13.45 m | 14.0 m |
| Dimensions (L×W×H) | 7,750 x 2,500 x 2,700 mm (Incl. Forks) | 6,600 x 2,350 x 2,650 mm |
| Transmission System | Static Shifting (Opt: Power Shift) | Hydraulic Torque Converter |
| Drive Mode | Shifting while driving | Full Electronic Control |
| Gears | - | F4 / R4 (4 Forward / 4 Reverse) |
| Axles | Wet Braking Axles | Air Brake Axles (Dry Type) |
| Hydraulic System | Rexroth / Nuoman | Electro-hydraulic Load-sensing |
| Telescopic Boom | Hexagonal Integrated Bending | 3-Section Boom |
| Boom Material | High-strength Structural Steel | BS1000 High-strength Manganese |
| Frame Leveling | Supported (±8°) | Supported (Frame Tilt) |
| Tire Model | 17.5-25 | 440/80R24 Tubeless (Advance) |
| Max. Travel Speed | 32 km/h | 40 km/h |
| Fuel Tank Capacity | 140 L | 195 L |
| Hydraulic Oil Capacity | 135 L | 170 L |
| Display Screen | 10-inch (Opt: 360° Camera) | Luxury Cabin Standard |

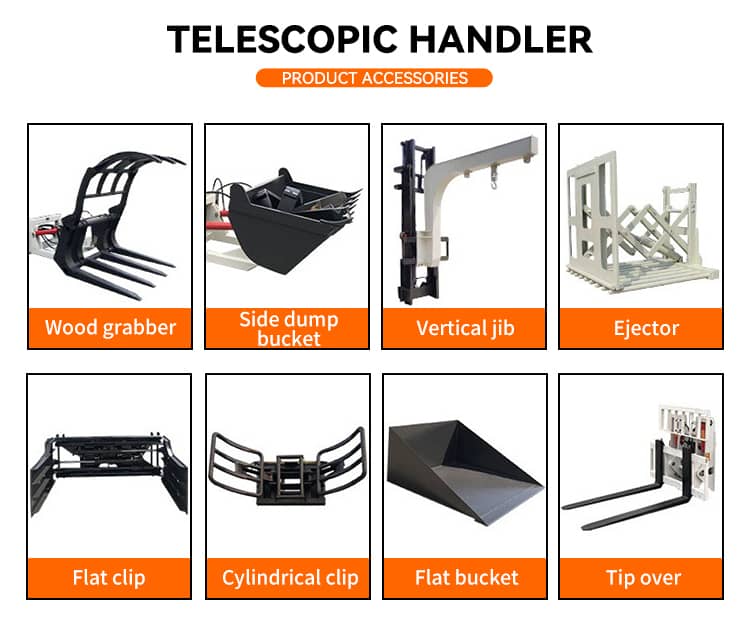

| Quick Hitch | Optional | Hydraulic Quick Coupler |
| Forks | Standard | 1,220 mm Floating/Sliding |
| Special Remarks | Compact Structural Design | Outriggers & Cast Iron Counterweight |
Company Profile

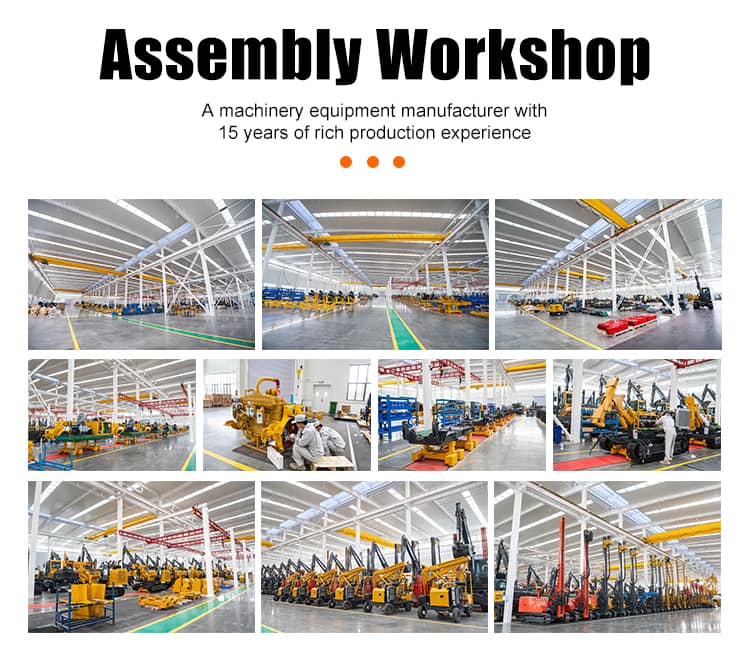

Shandong Hengwang Group, founded in 2011 in the cultural city of Jining, Shandong, has grown into a comprehensive innovative technology enterprise integrating R&D, production, trade, and logistics. With a factory area exceeding 300,000 square meters and over 2,000 employees, the company completed and put into operation its billion-yuan Intelligent Manufacturing Base in 2024, reinforcing its strong manufacturing foundation.
Adhering to an "innovation-driven, quality-first" philosophy, Hengwang develops and exports over 40 categories of machinery products to more than 180 countries and regions. Holding over 200 patents and multiple international certifications, the company provides customers with integrated solutions and high-quality service, consistently striving towards its vision of building a century-old brand with outstanding value.
