Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.

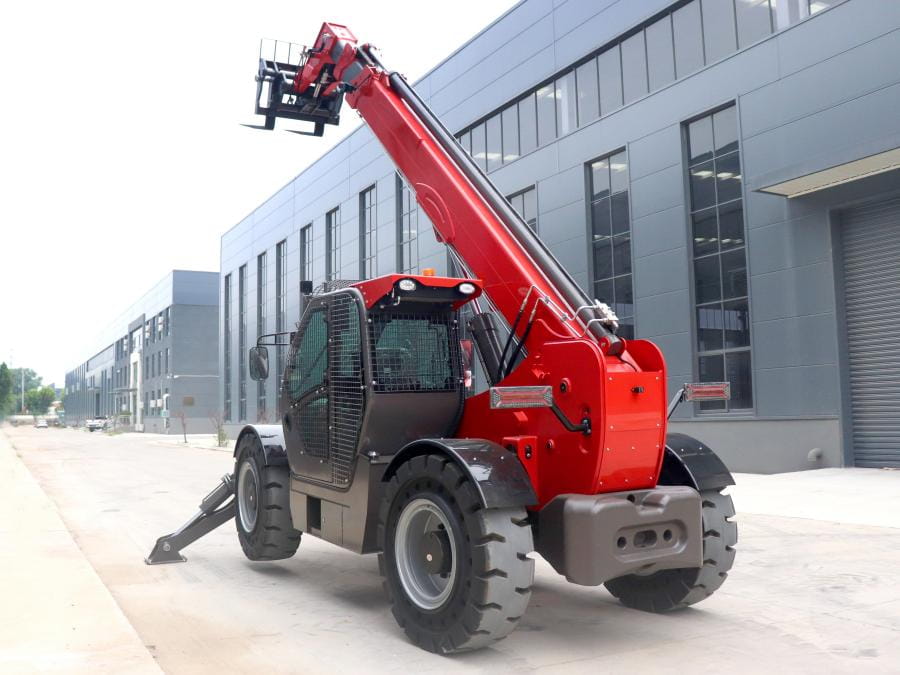

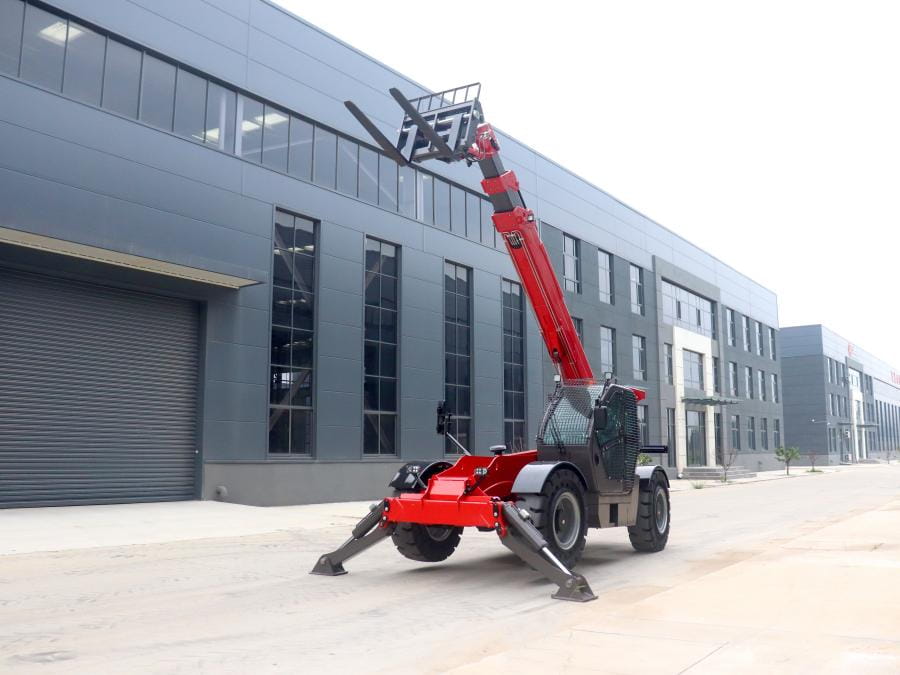

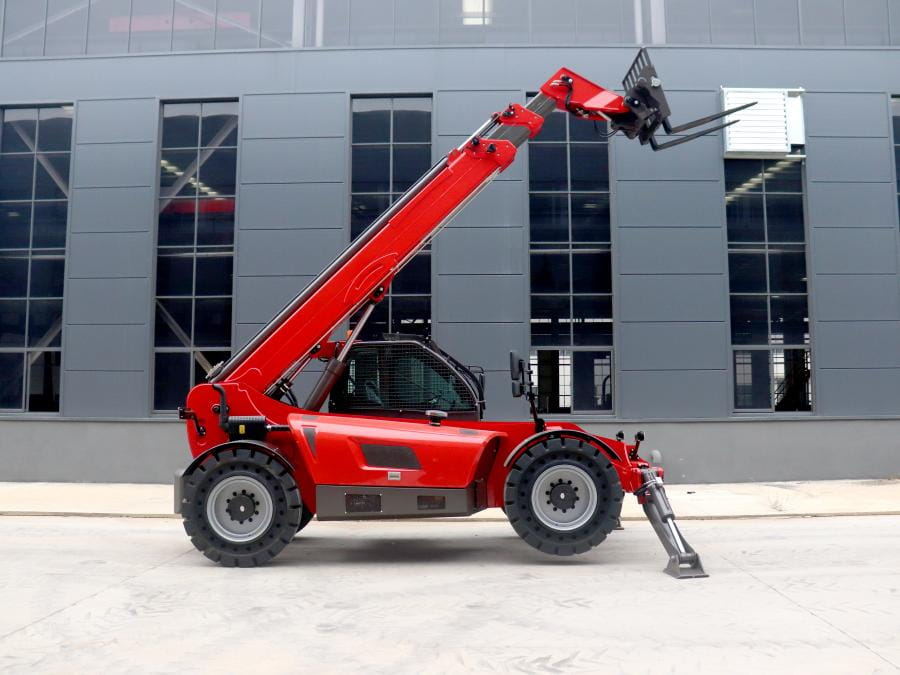

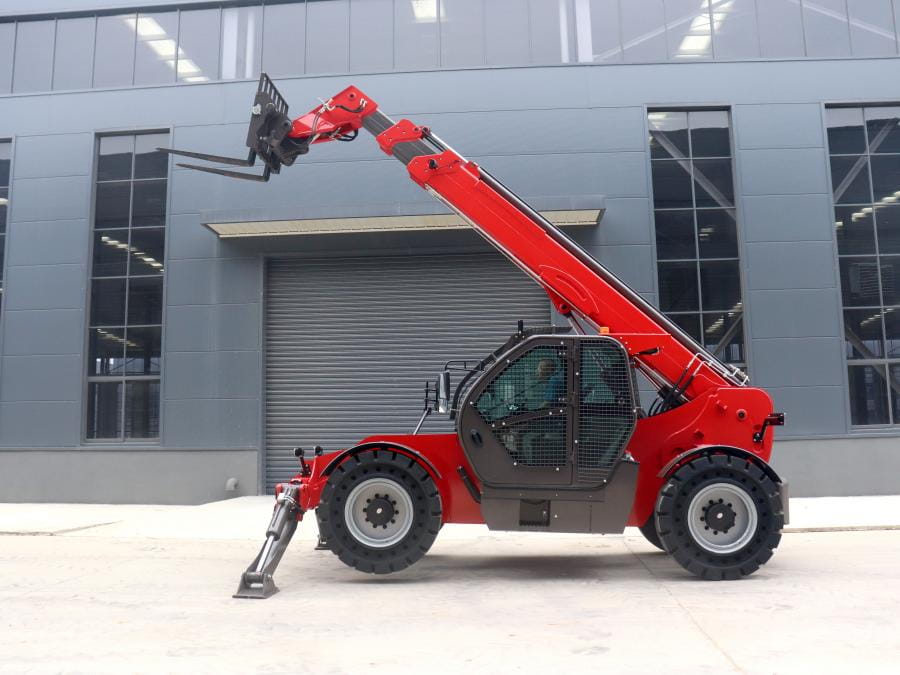

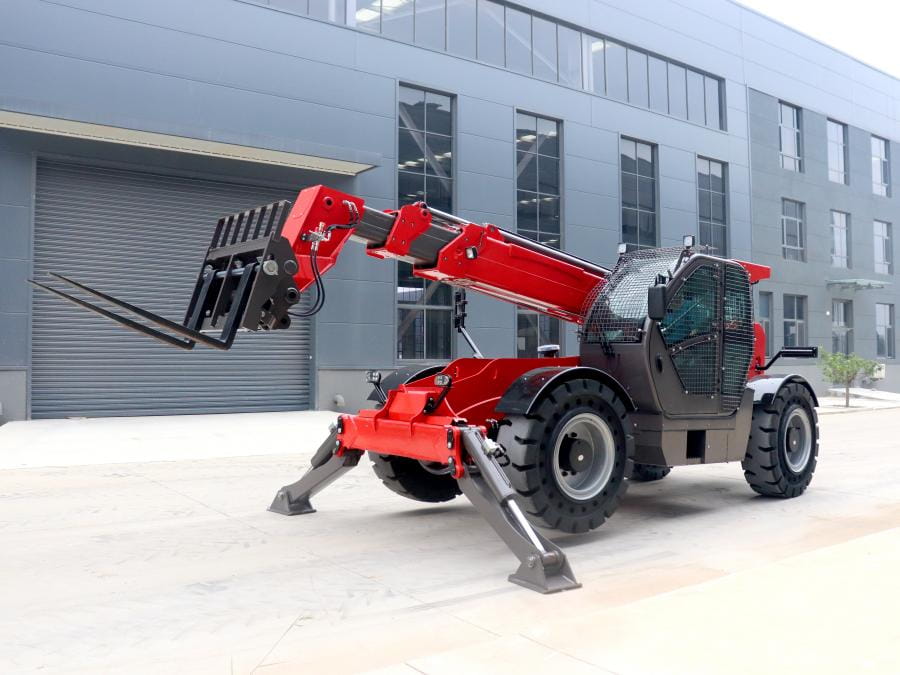

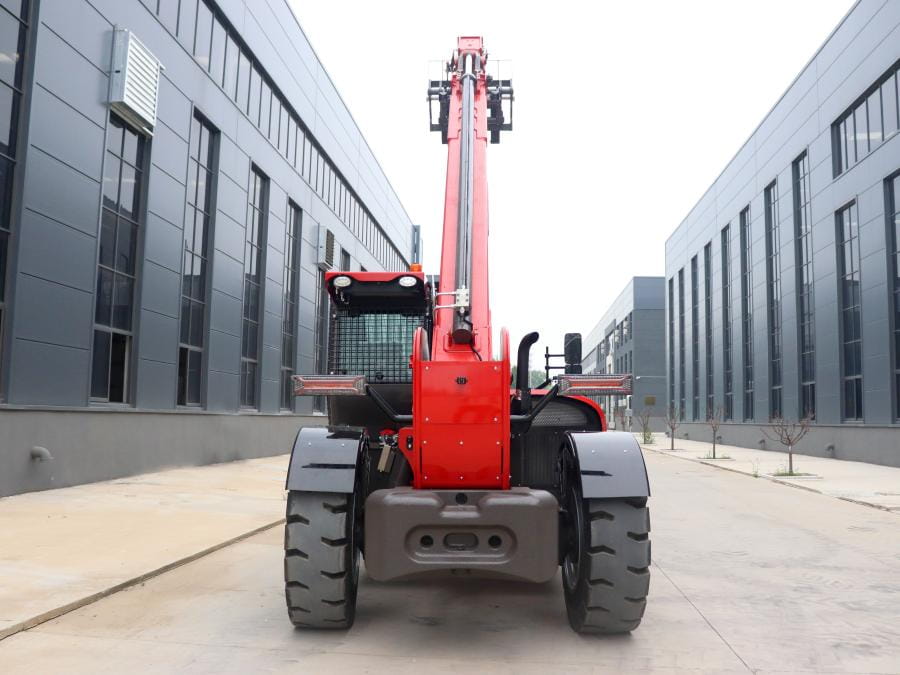

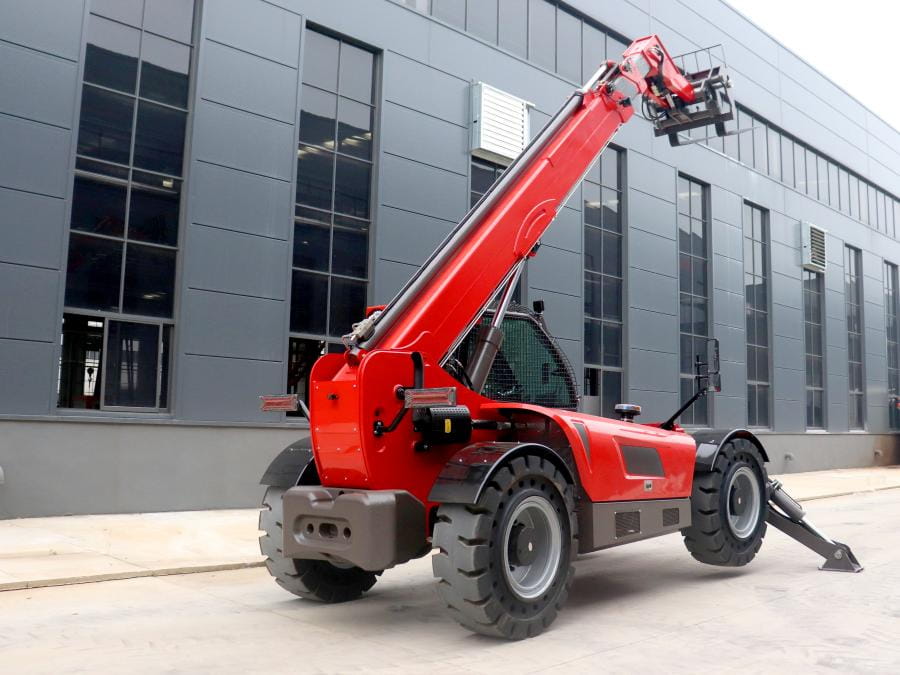

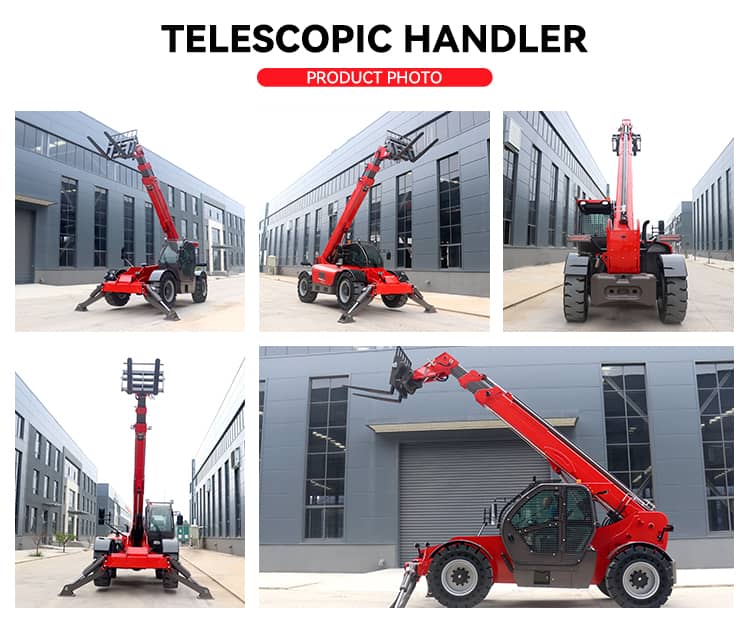

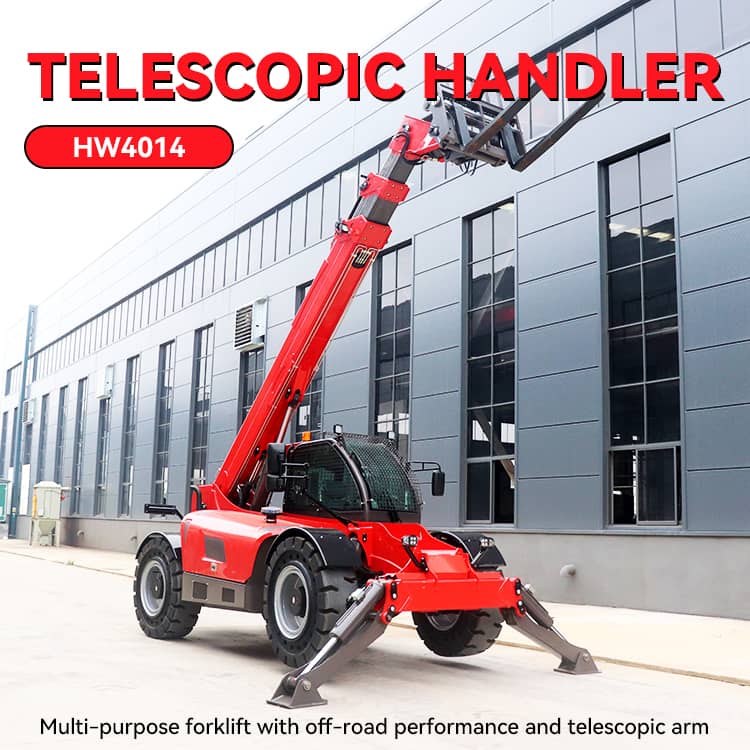

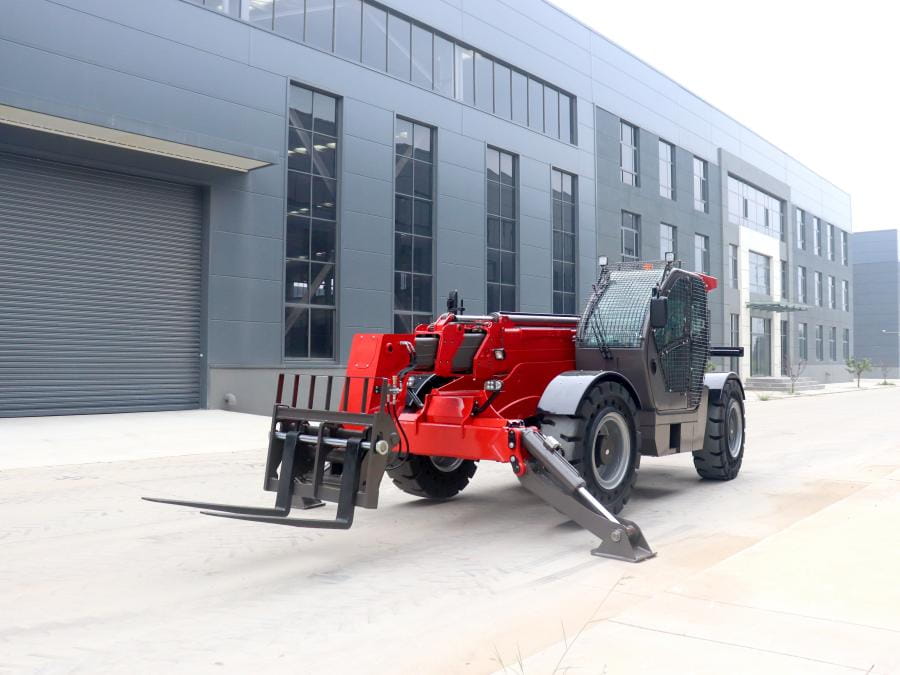

Feature | Model HW4014-A | Model HW4014-B |
Engine | Yuchai (Optional: Weichai / Cummins) | Yuchai |
Power Output | 96 kW | 85 kW |
Emission Standard | China Stage III / Stage IV | National II (China) |
Operating Weight | 12.6 Tons | 13,000 kg (13.0 Tons) |
Rated Load Capacity | 4.0 Tons | 4.0 Tons |
Max. Lifting Height | 13.45 m | 14.0 m |
Overall Dimensions (LWH) | 7,750 x 2,500 x 2,700 mm (Inc. Forks) | 6,400 x 2,350 x 2,550 mm |
Transmission | Static Shifting (Opt: Power Shift) | Hydraulic Torque Converter |
Drive Mode | Manual / Shifting while driving | Full Electronic Control |
Gears | Standard Configuration | F4 / R4 (4 Forward / 4 Reverse) |
Axles | Wet Braking Axles | Air Brake Axles (Dry Type) |
Hydraulic System | Rexroth / Nuoman | Electro-hydraulic Load-sensing |
Telescopic Boom | Hexagonal integrated bending design | 3-Section Boom |
Boom Material | High-strength Structural Steel | BS1000 High-strength Manganese Steel |
Frame Leveling | Supported (±8°) | Supported (Frame Tilt) |
Tire Model | 17.5-25 | 440/80R24 Tubeless (Advance Brand) |
Max. Travel Speed | 32 km/h | 40 km/h |
Fuel Tank Capacity | 140 L | 195 L |
Hydraulic Oil Capacity | 135 L | 170 L |
Cabin | Luxury Cabin (10-inch Display) | Luxury Cabin |

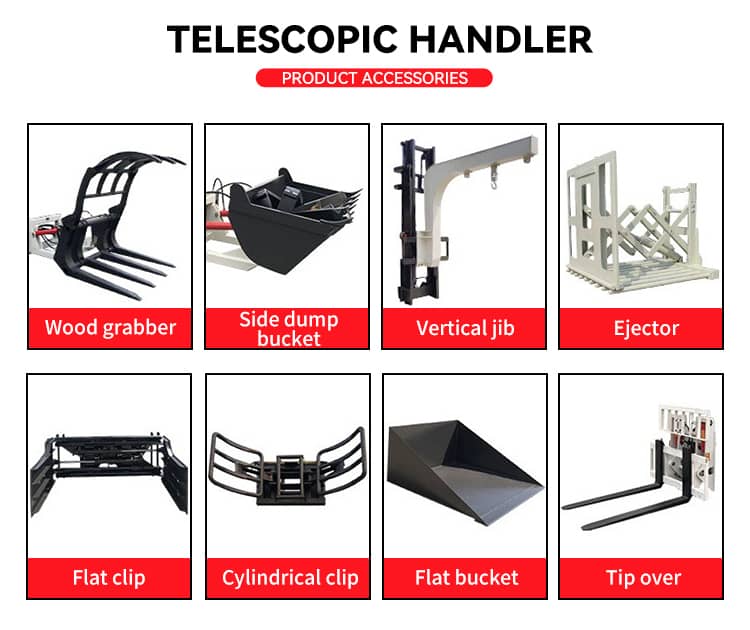

Quick Hitch | Optional | Hydraulic Quick Coupler (Included) |

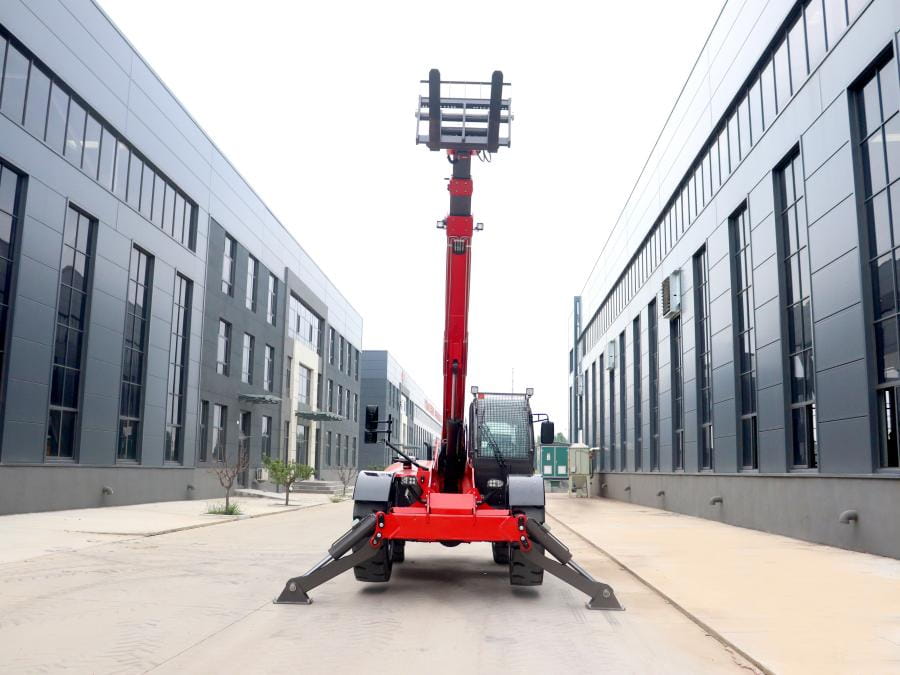

Additional Features | Optional 360° Camera System | Outriggers, Counterweight, 1.2m Forks |

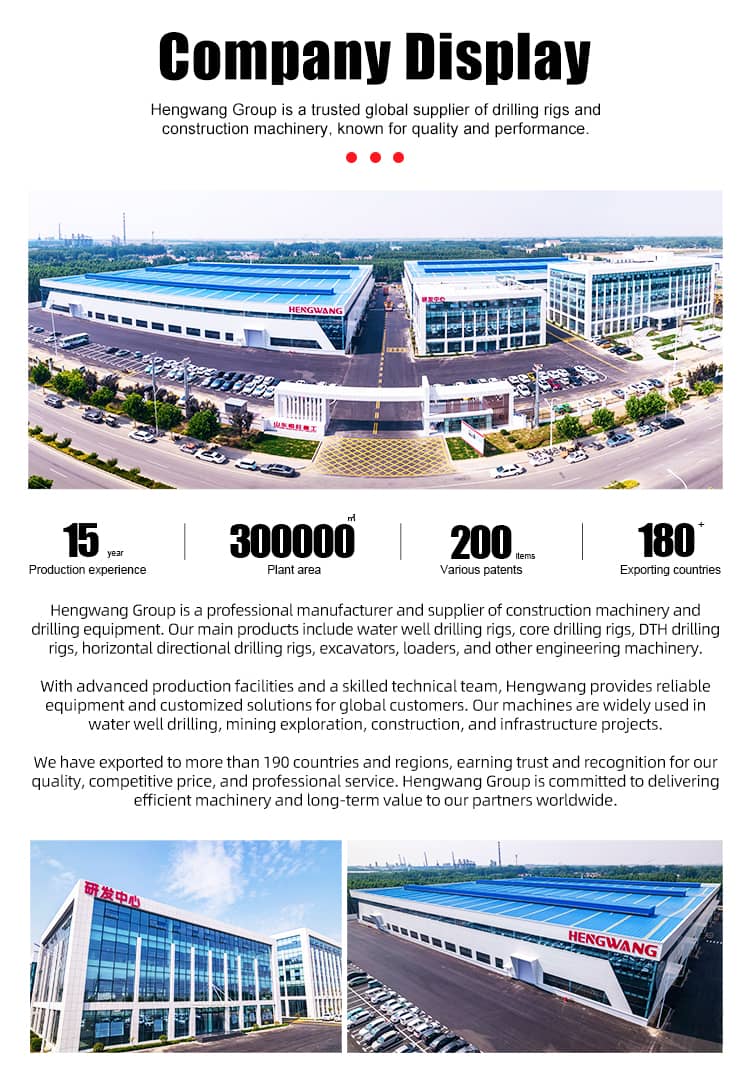

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
