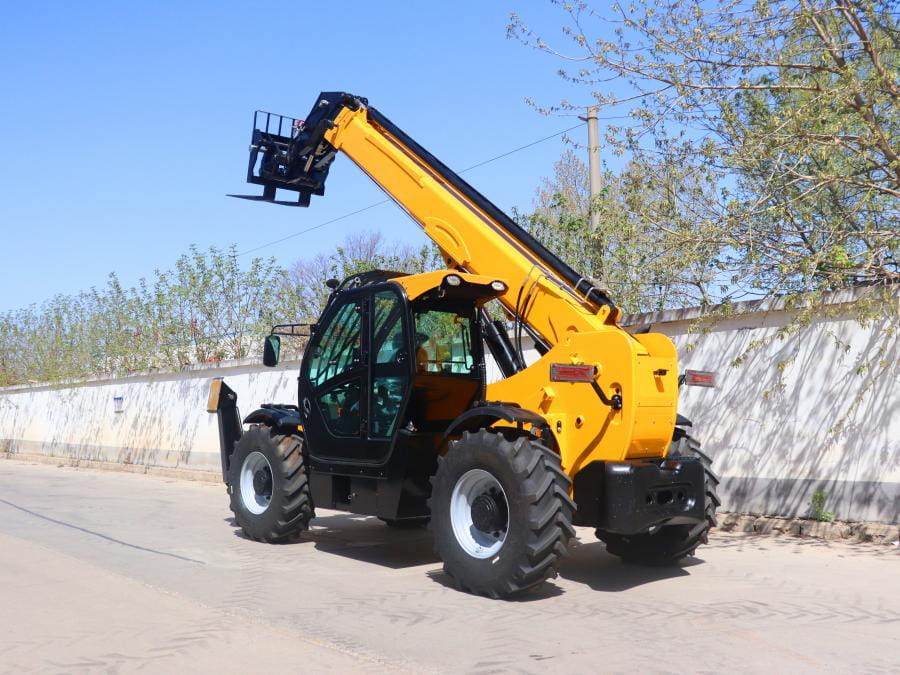

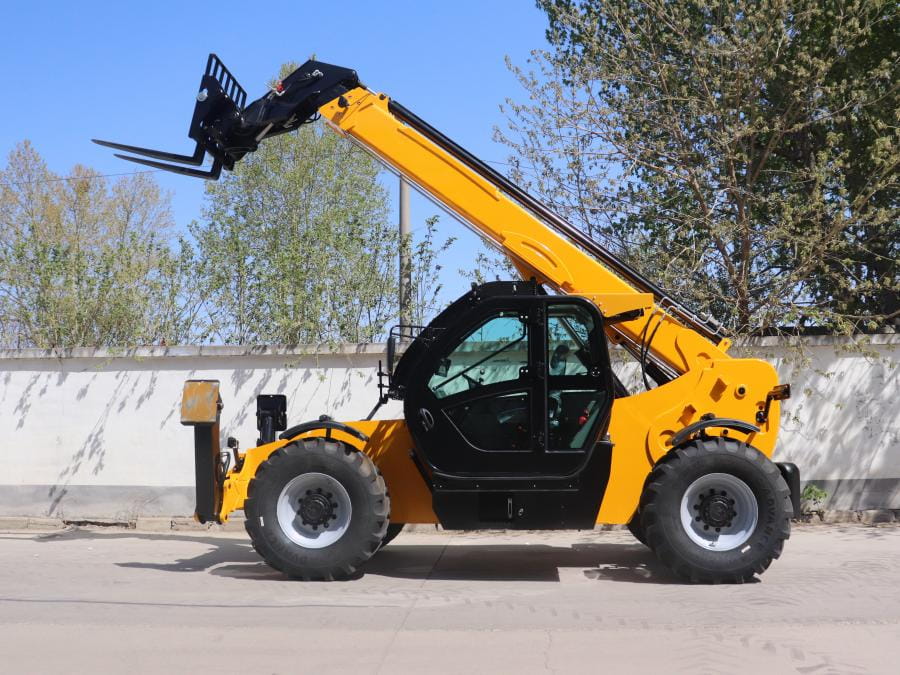

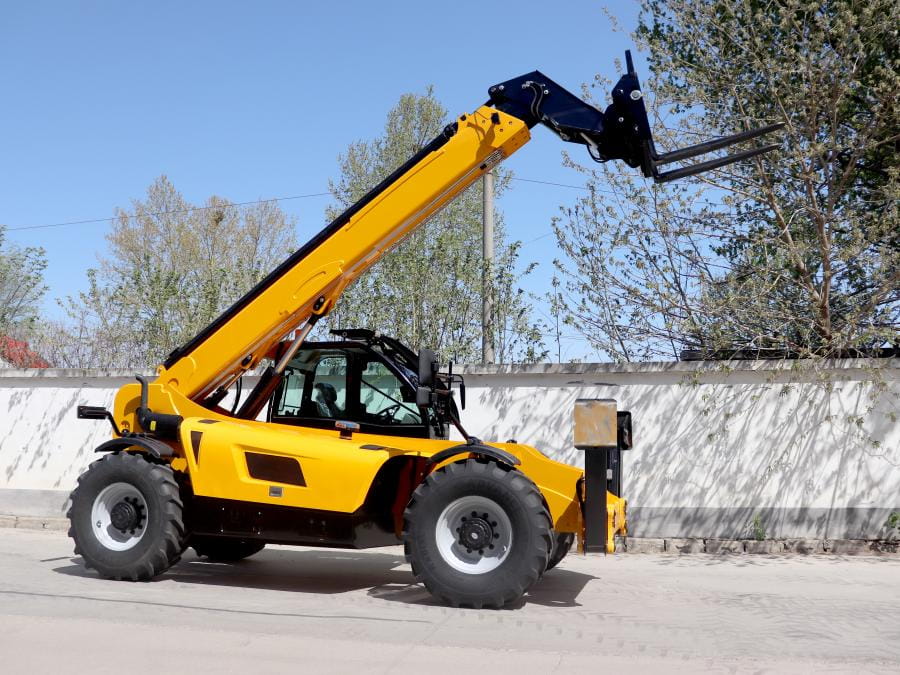

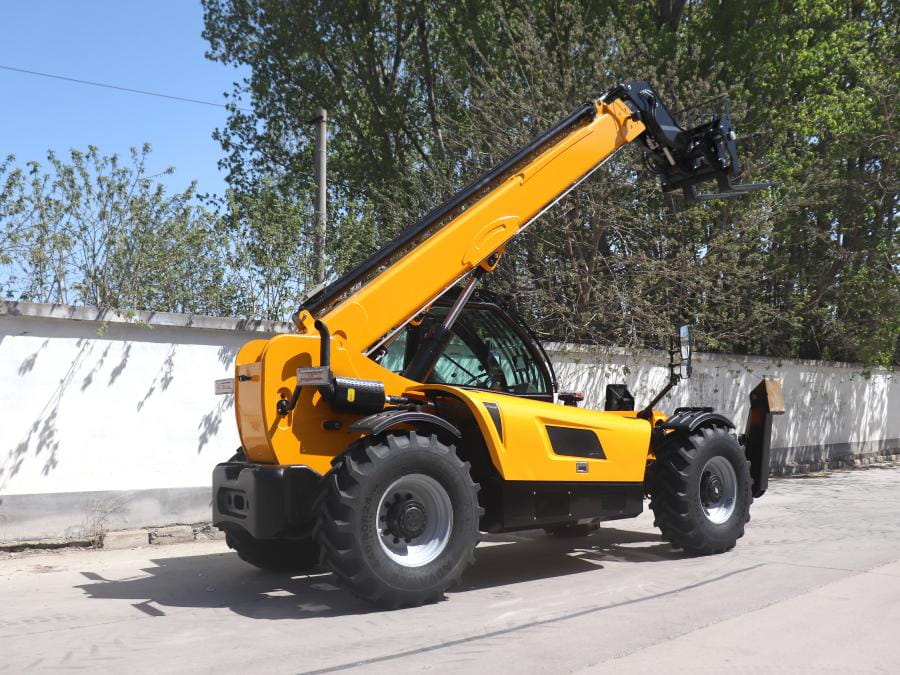

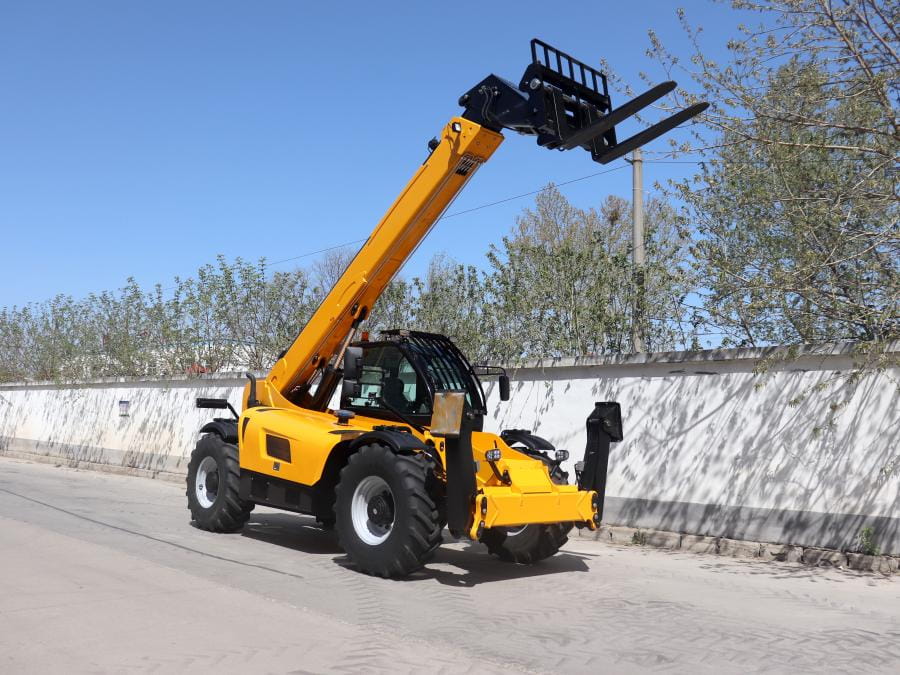

Specification Item | HW5010-A | HW5010-B |
Engine | Weichai (Optional: Yuchai/Cummins) | Yuchai |
Power | 93 kW | 91 kW |
Emission Standard | China Stage III / Stage IV | National II (China) |
Rated Load Capacity | 5.0 Tons | 5.0 Tons |
Operating Weight | 12,050 kg | 12,500 kg |
Max. Lifting Height | 9.45 m | 10.0 m |
Overall Dimensions (LWH) | 7,650 x 2,500 x 2,700 mm (Incl. Forks) | 6,400 x 2,350 x 2,550 mm |
Transmission System | Static shifting (Opt: Power shift) | Hydraulic torque converter |
Drive Mode | - | Full electronic control |
Gears | - | F4 / R4 (4 Forward / 4 Reverse) |
Axles | Wet braking axles | Air brake axles (Dry type) |
Hydraulic System | Rexroth / Nuoman | Electro-hydraulic load-sensing |
Telescopic Boom | Hexagonal integrated bending design | 2-Section boom |
Boom Material | High-strength structural steel | BS1000 High-strength manganese steel |
Frame Leveling | Available (±8°) | None |
Tire Model | 17.5-25 | 440/80R24 Tubeless (Advance) |
Max. Travel Speed | 32 km/h | 40 km/h |
Fuel Tank Capacity | 140 L | 195 L |
Hydraulic Oil Capacity | 135 L | 170 L |
Cabin & Display | Luxury cabin + 10-inch screen | Luxury cabin |
Quick Hitch | Optional | Hydraulic quick coupler |
Additional Features | 360° camera (Optional) | Outriggers, Cast iron counterweight |
