Geological Exploration Drill Rig

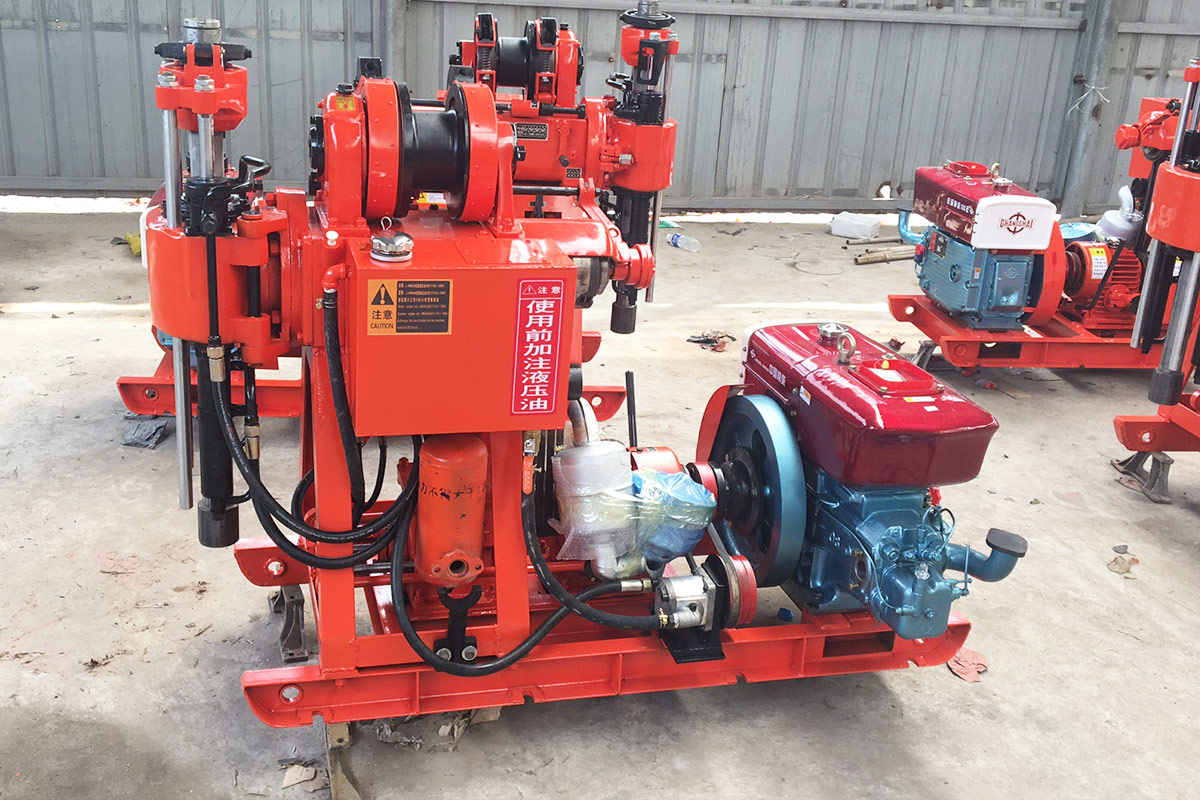

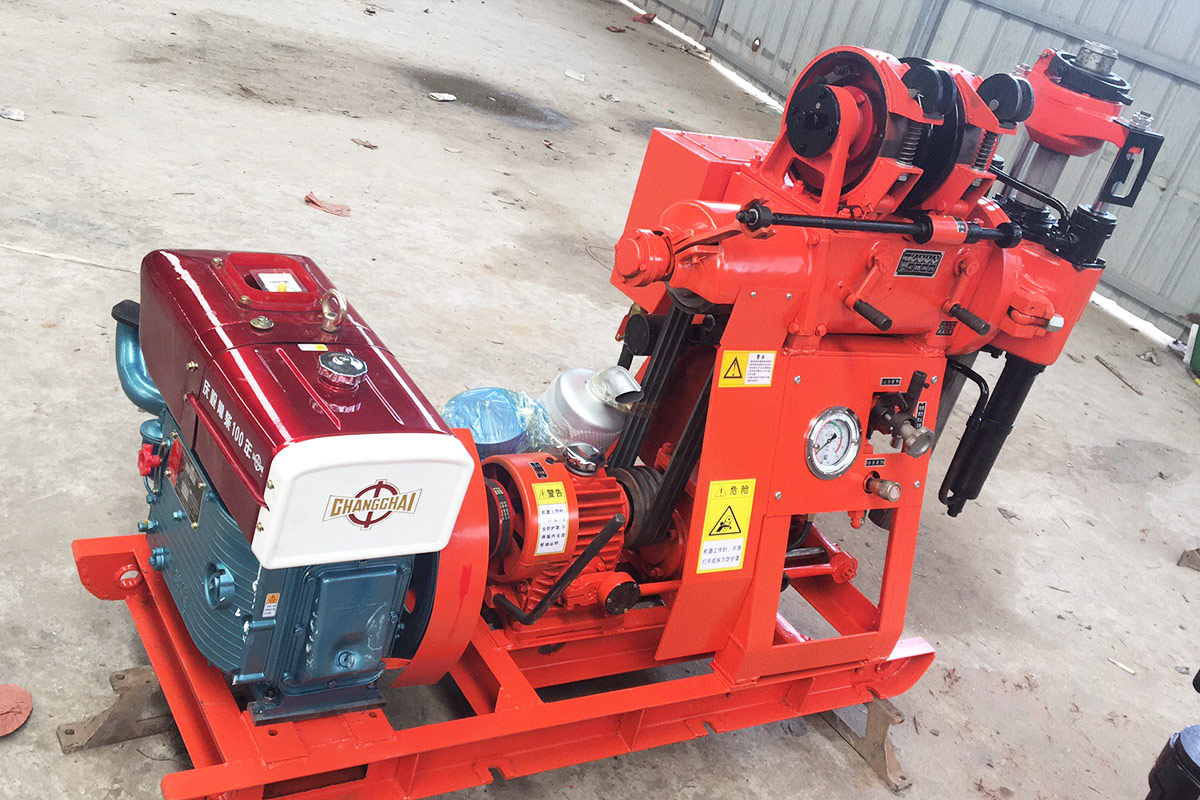

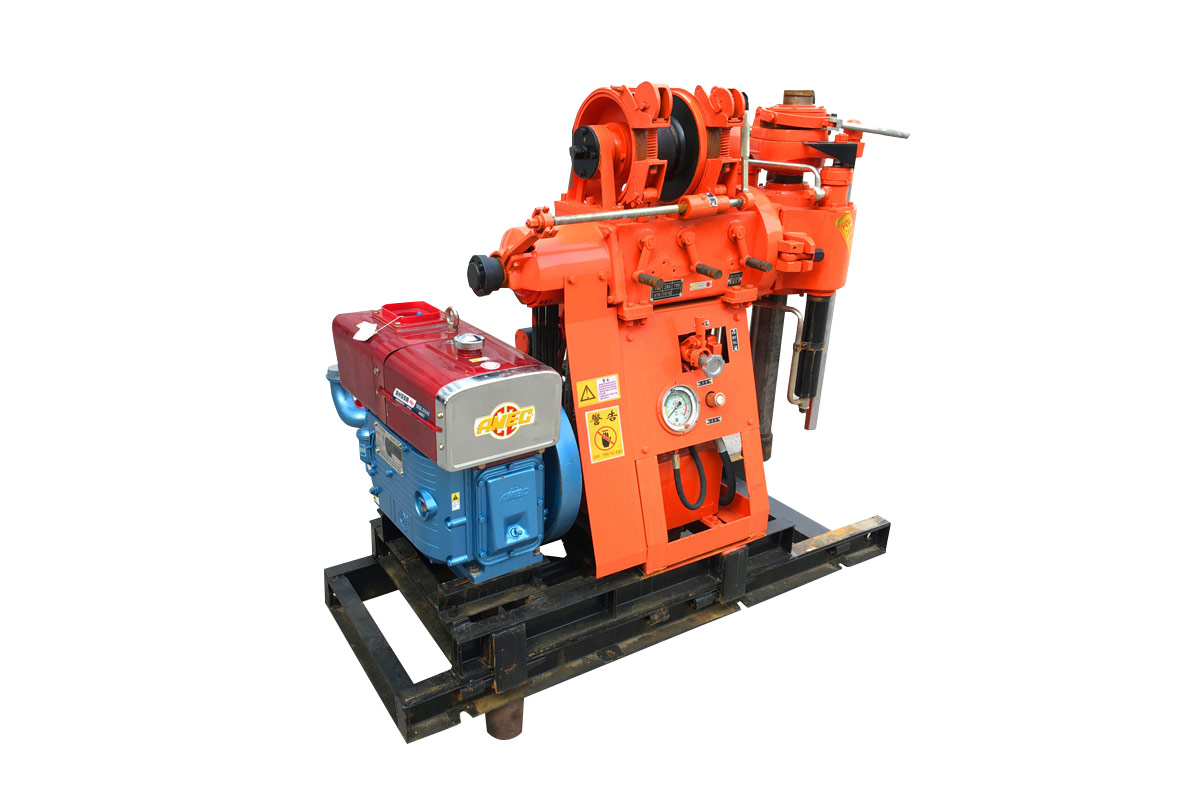

XY-1A Core Drilling Rig

Factory Direct
Training on Arrival
One-year warranty

Drill Diameter: 75-150mm
Drill Depth: 180m
Engine Power: 13.2Kw

The drilling rig is a high-speed drilling rig suitable for drilling engineering such as geological exploration, road and building exploration and blasting holes.

We can drill with alloy, diamond and compact bits depending on the substrate. It can drill 2-9 grades of sandy clay, rock formations, etc.


Feature:

1. Equipped with hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.

2. The ball clamping mechanism is used instead of the chuck, which can realize non-stop, convenient operation, safety and reliability.

3. The hoist is equipped with a frame to form a double-sided support star structure, which can withstand strong impacts.

Model

XY-1A

Drilling depth

180m

Open hole dia

φ75-150mm

End hole dia

75-46mm

Main rod

53/59*4200mm

Drill rod dia

φ50mm φ42

Drill angle

90°~75°

Supporting power

13.2Kw/2200/r/min

Weight/size

920kg/2400*950*1400

Drill mast

Rated load

2t

Effective height

6m

Tower leg specifications

73mm

Winch parameters

Single rope lifting force

9.6kN

Single rope lifting speed

0.3. 0.8. 1.29. 1.96. 2.23m/s

Roll diameter

φ140mm

Rope diameter

27m

Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.

Submit the form to get the latest parameters and quotations.
