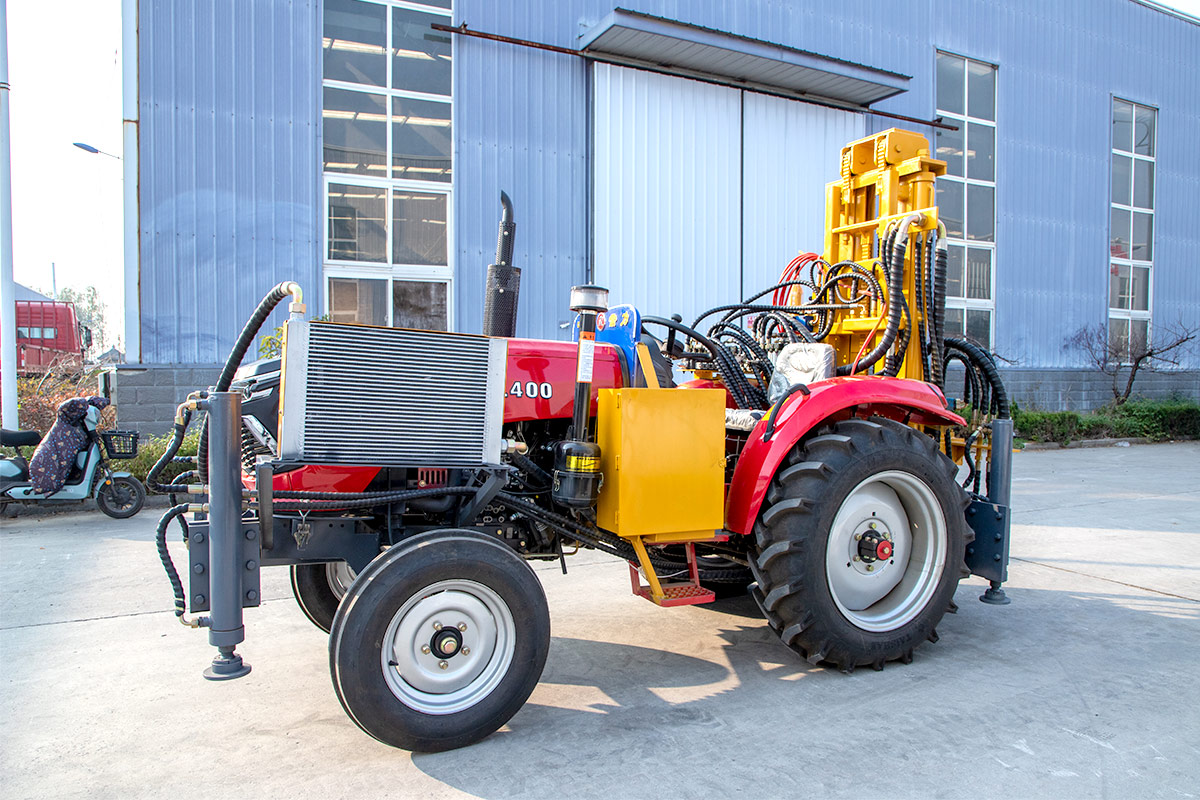

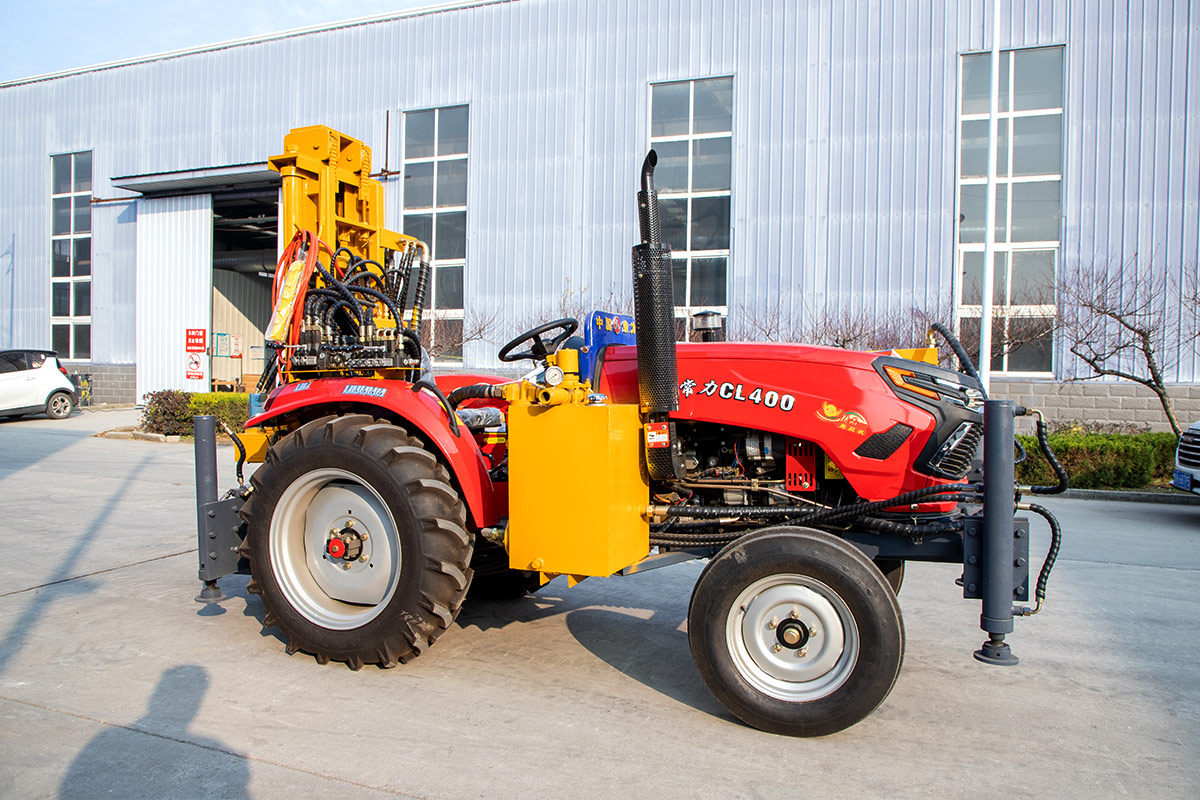

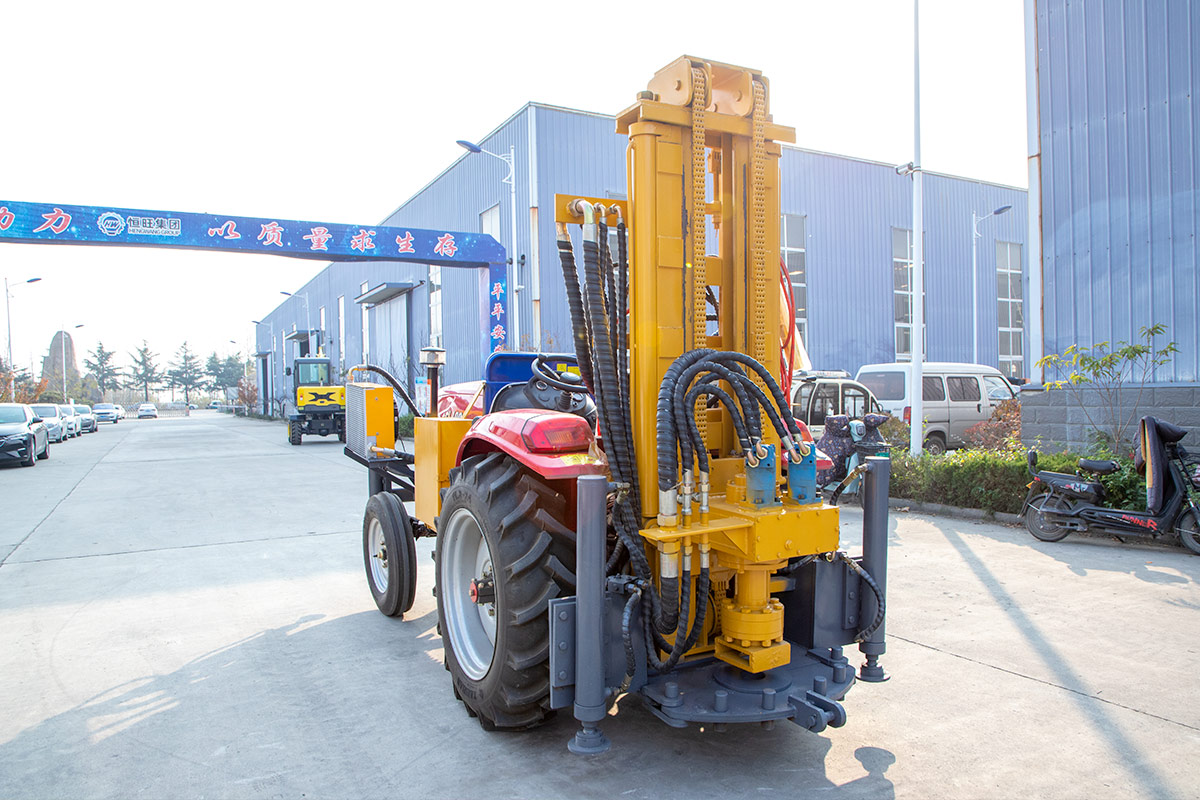

Heng wang water borehole drillling is an integrated drilling equipment that combines a tractor and a pneumatic water well drilling rig. It is easy to walk and is combined with an air compressor.

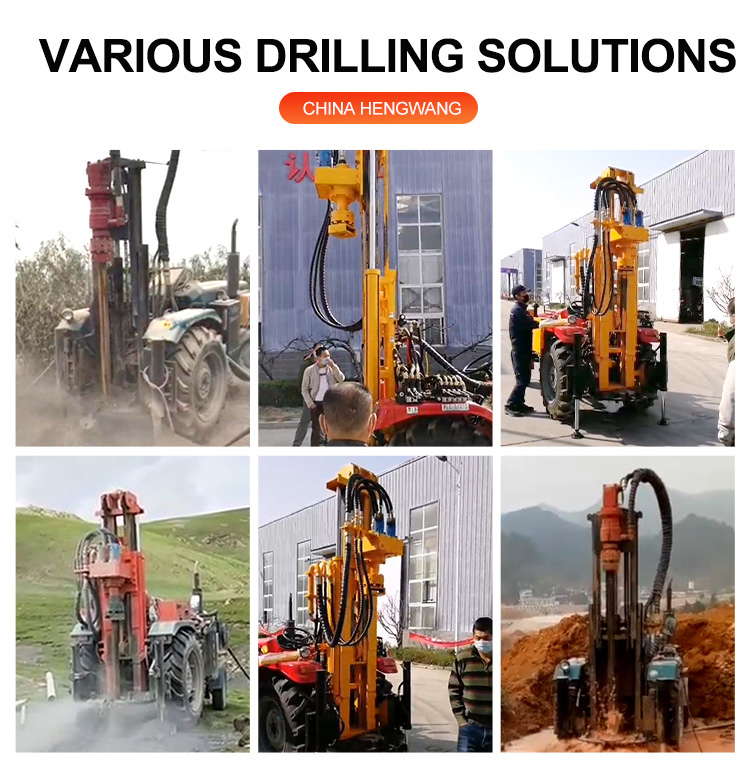

Suitable for industrial, civil drilling and geothermal drilling projects. The main feature of pneumatic drilling rig is strong power, and the efficiency is 10 to 15 times that of ordinary hydraulic wells.

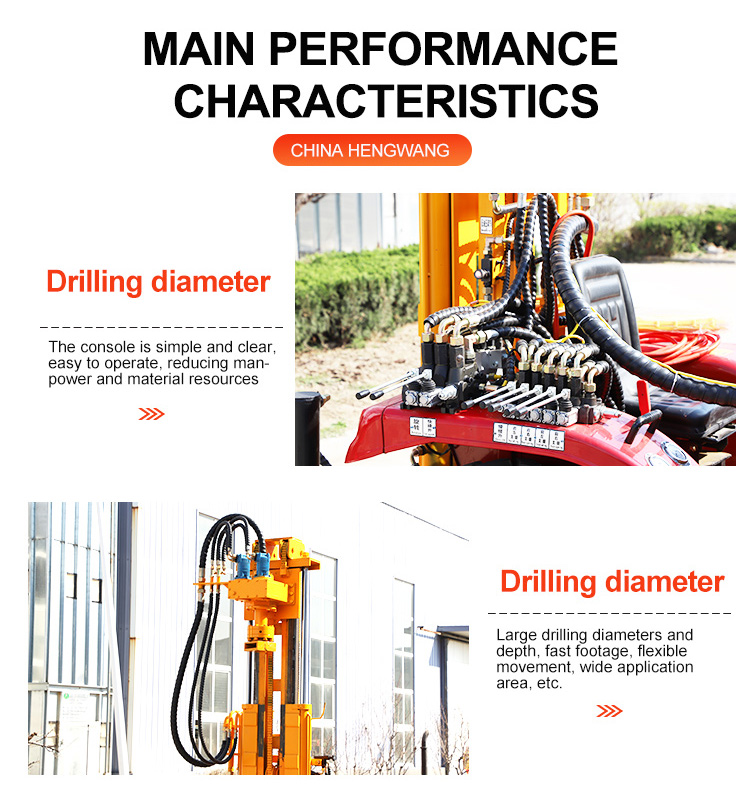

Main features:
1. High power, fast drilling speed and low unit fuel consumption;
2. Large aperture, up to 130~219mm;
3. Tracked chassis improves off-road performance.
Parameter:
| model | HQZ-200 | |
| Chassis | Tractor | / |
| Drilling diameter | 130-254 | mm |
| Drilling depth | 200 | m |
| One-time advancement length | 1.5 | m |
| Engine power | 40 | HP |
| working pressure | 1.7-2.5 | mpa |
| Air consumption | 17-31 | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.5 | m |
| Lifting power | 12 | T |
| Swing speed | 40-60 | rpm |
| Rotating torque | 3500-3800 | N.m |
| Dimensions | 3900*1600*2600 | mm |
| weight | 3.5 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
