Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.

Tractor Type

TQZ-260 Pneumatic Drill Rig

Factory Direct
Training on Arrival
One-year warranty

Drilling depth: 260m
Drilling diameter: 130-254mm
Engine Power: 50Hp

Crazy Engineering Day discounts, submit the form to receive discounts on orders.

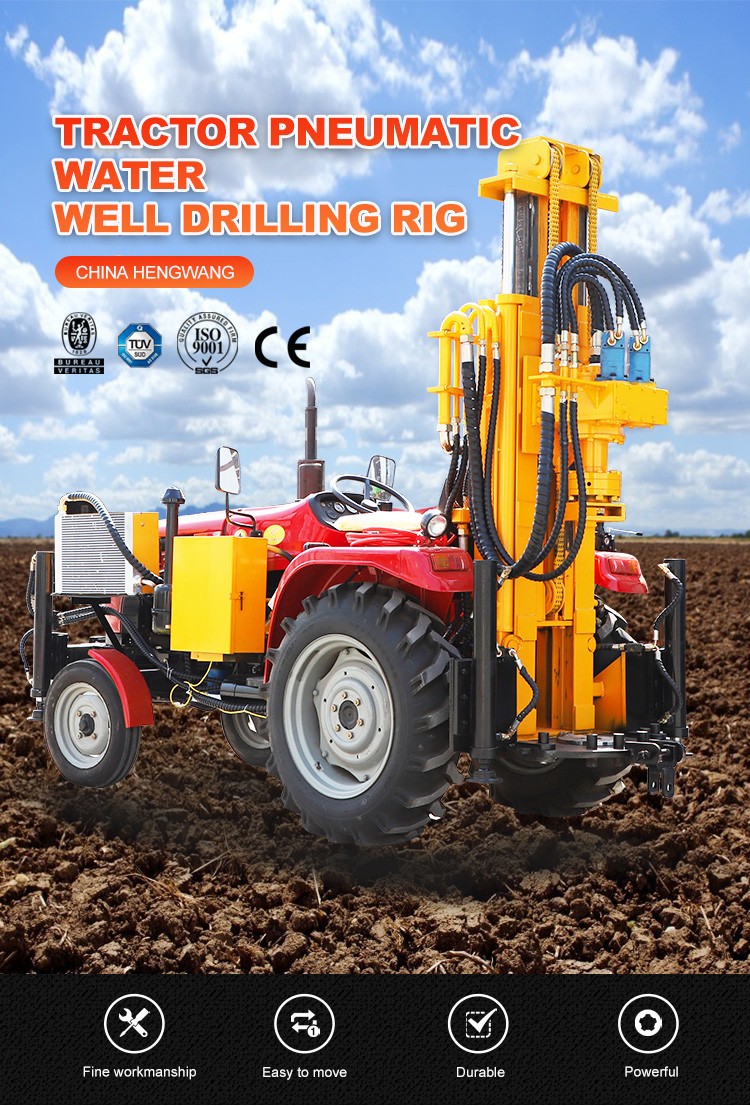

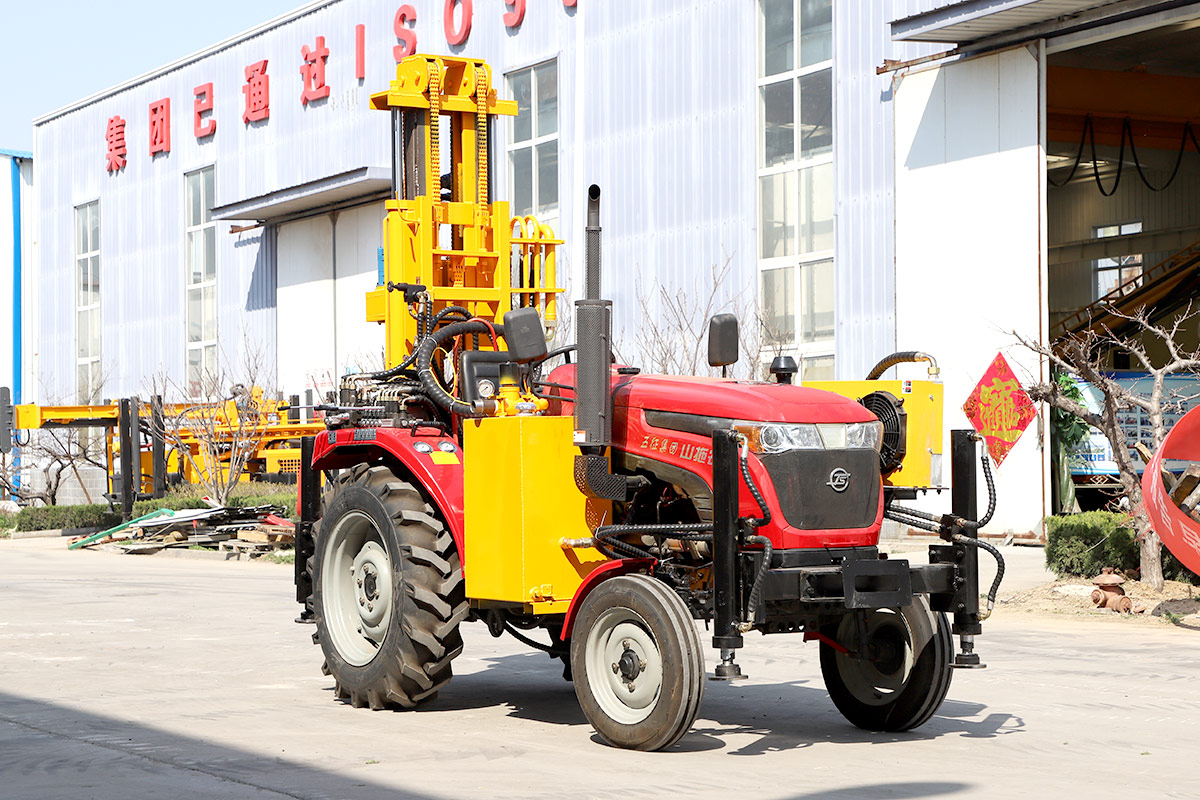

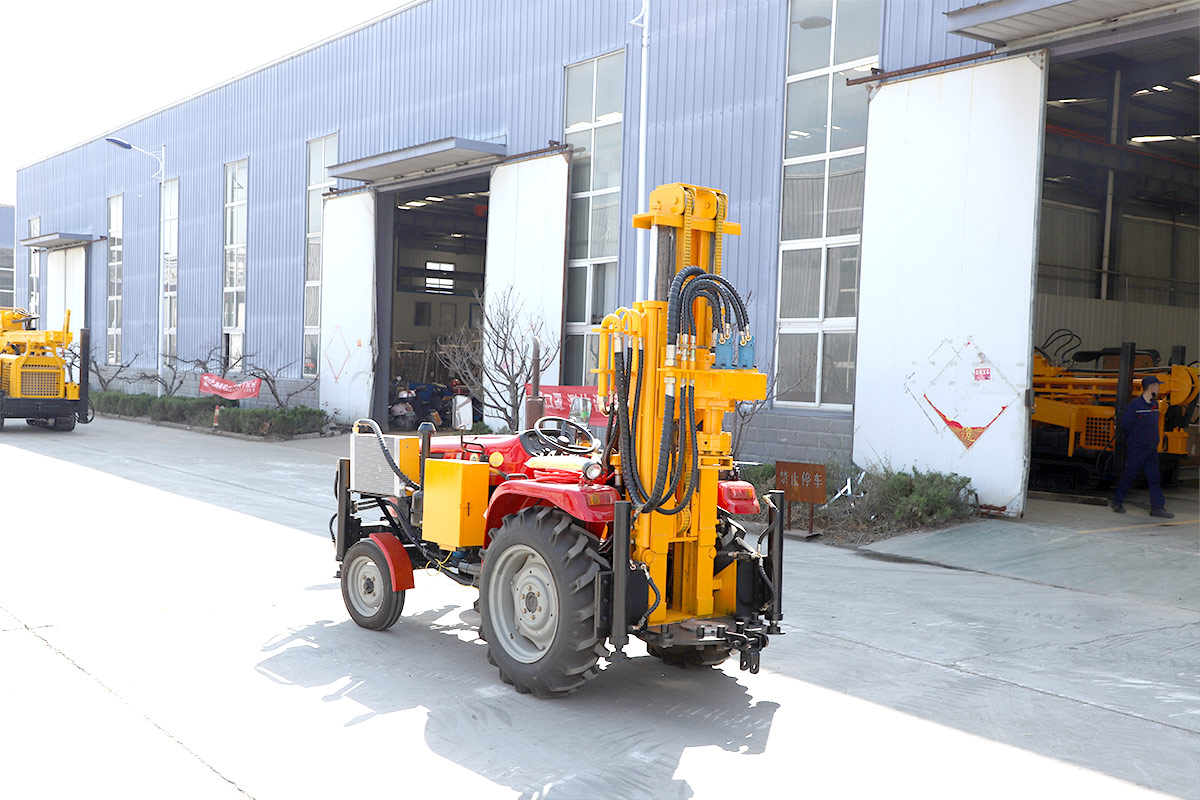

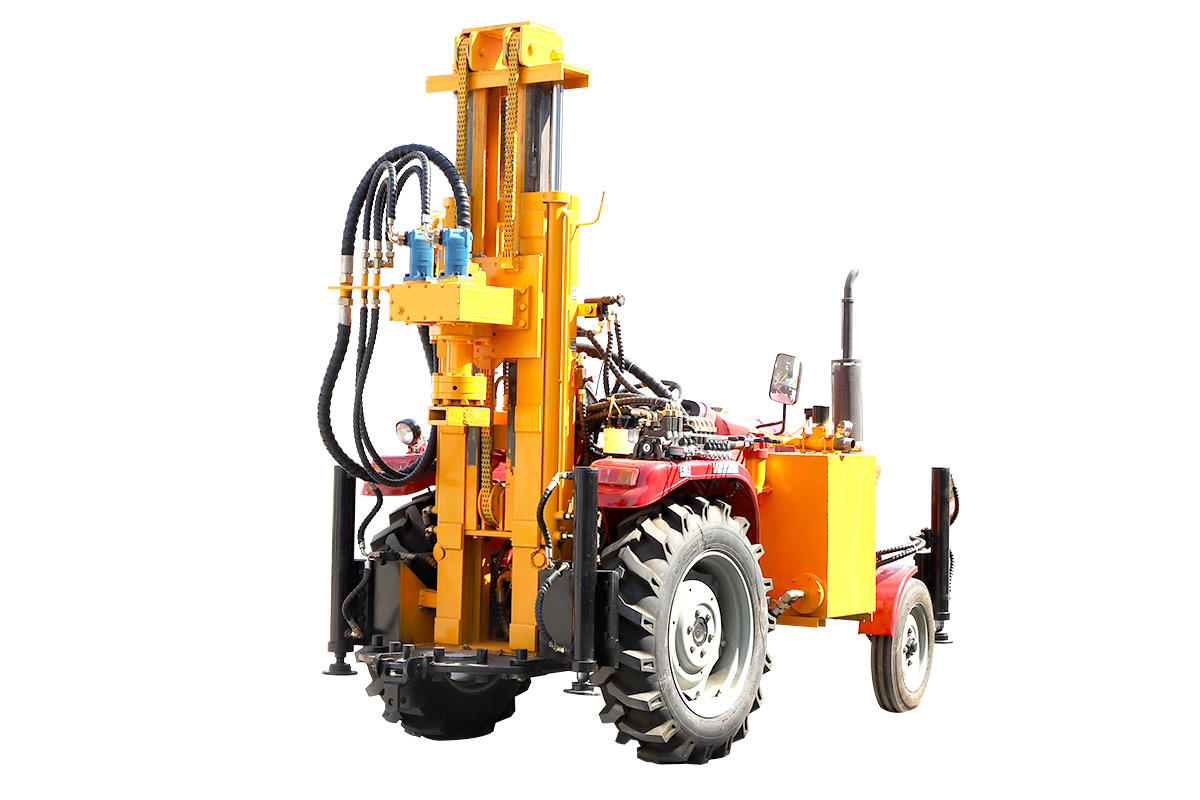

Heng wang water well drilling rig is an integrated drilling equipment by combining tractor and pneumatic water well drilling rig, which is easy to walk and combined the air compressor.

Suitable for industrial, civil drilling and geothermal drilling projects.The main feature of pneumatic drilling rigs is strong power, and the efficiency is 10 to 15 times that of ordinary hydraulic wells.

Main features:

1. High power, fast drilling speed and low unit fuel consumption;

2. Tracked chassis improves off-road performance;

3. The body is compact and easy to transport.



Parameter:


Model

TQZ-260

Overall weight (T)

4

Dimension (mm)

3800*1700*2700

Drilling diameter (mm)

130-254

Drilling depth (m)

260

One-time advance length of the drill (mm)

1500

Traveling speed (km/h)

30

Climbing capacity (max)

25°

Minimum ground clearance (mm)

250

Working Air Pressure (mpa)

1.7-2.5

Air consumption (m3/min)

17-31

Main machine power (HP)

40

Rotation speed (pm)

40-65

Rotary torque (Nm)

4000—4700



Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
