Solar Pile Driver

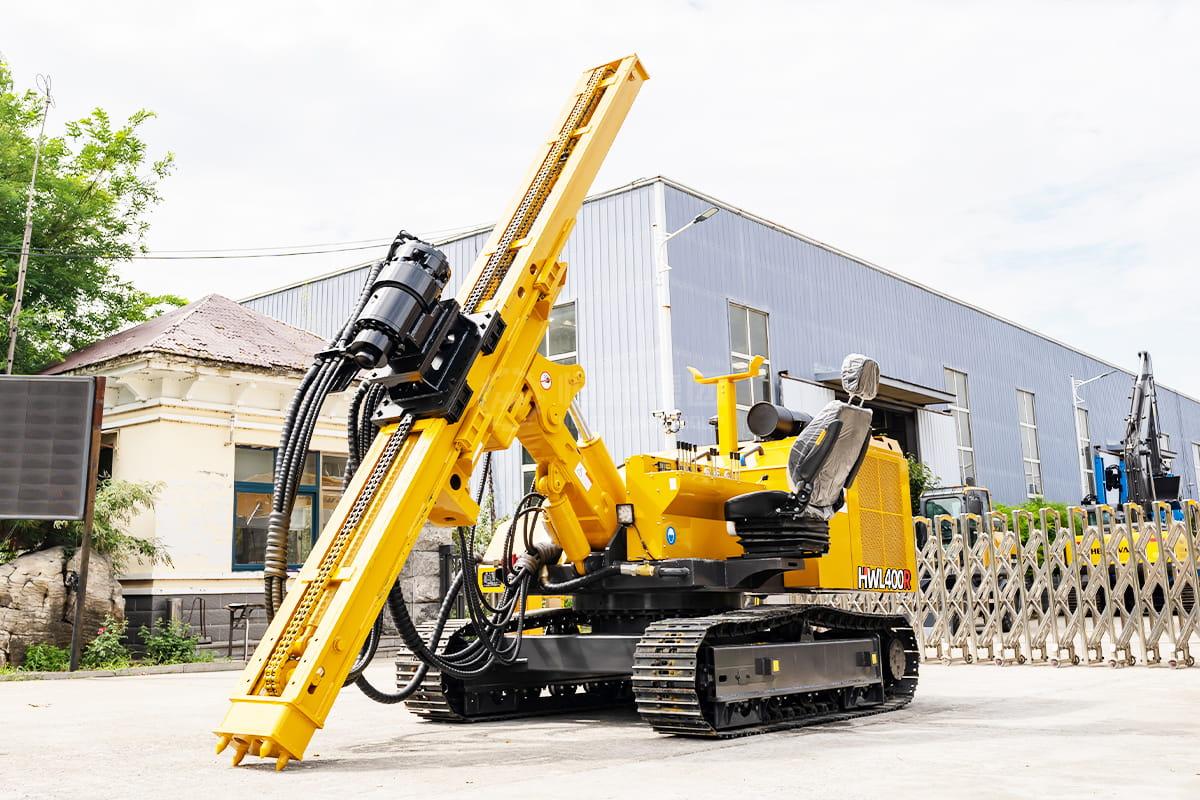

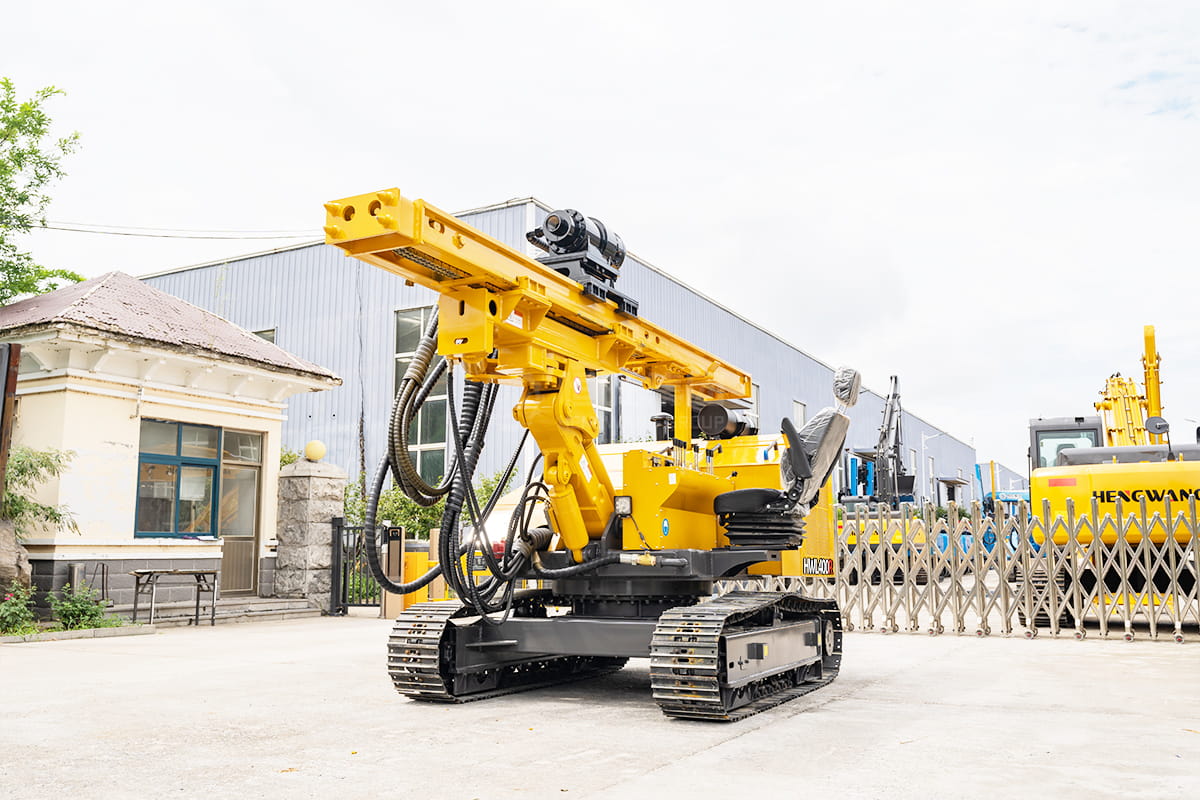

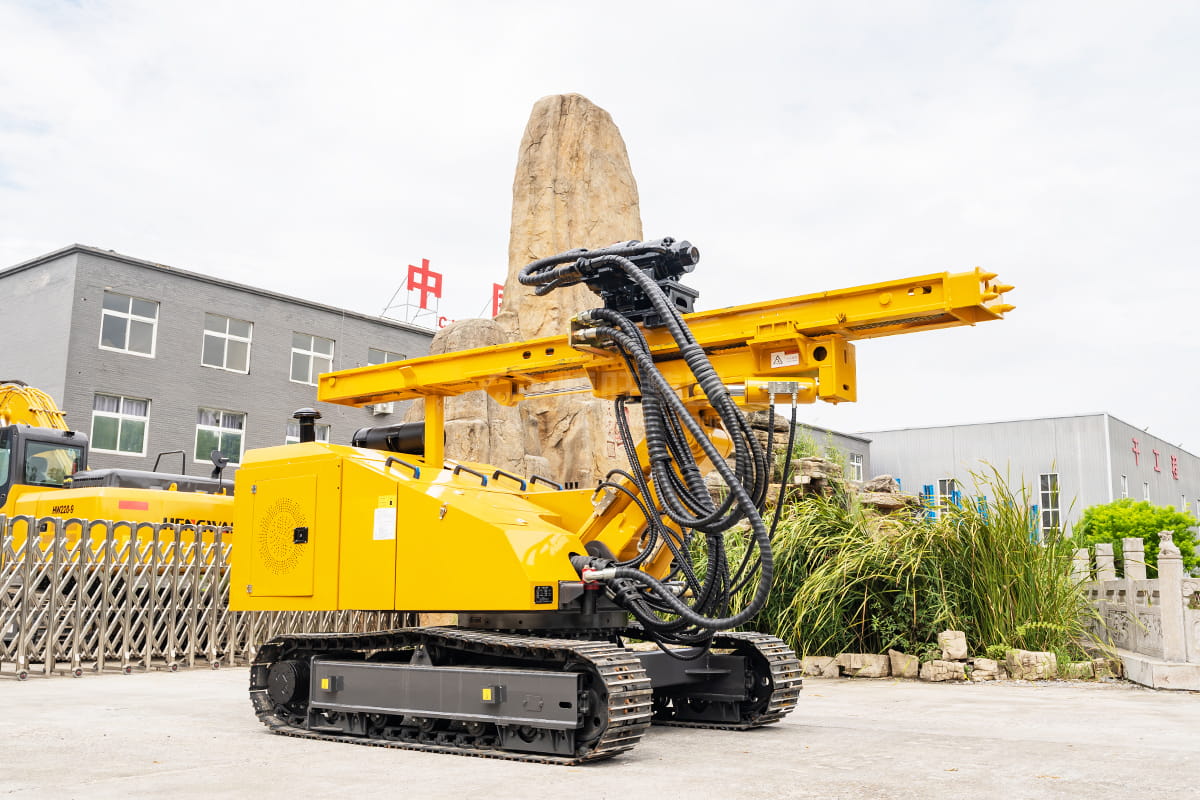

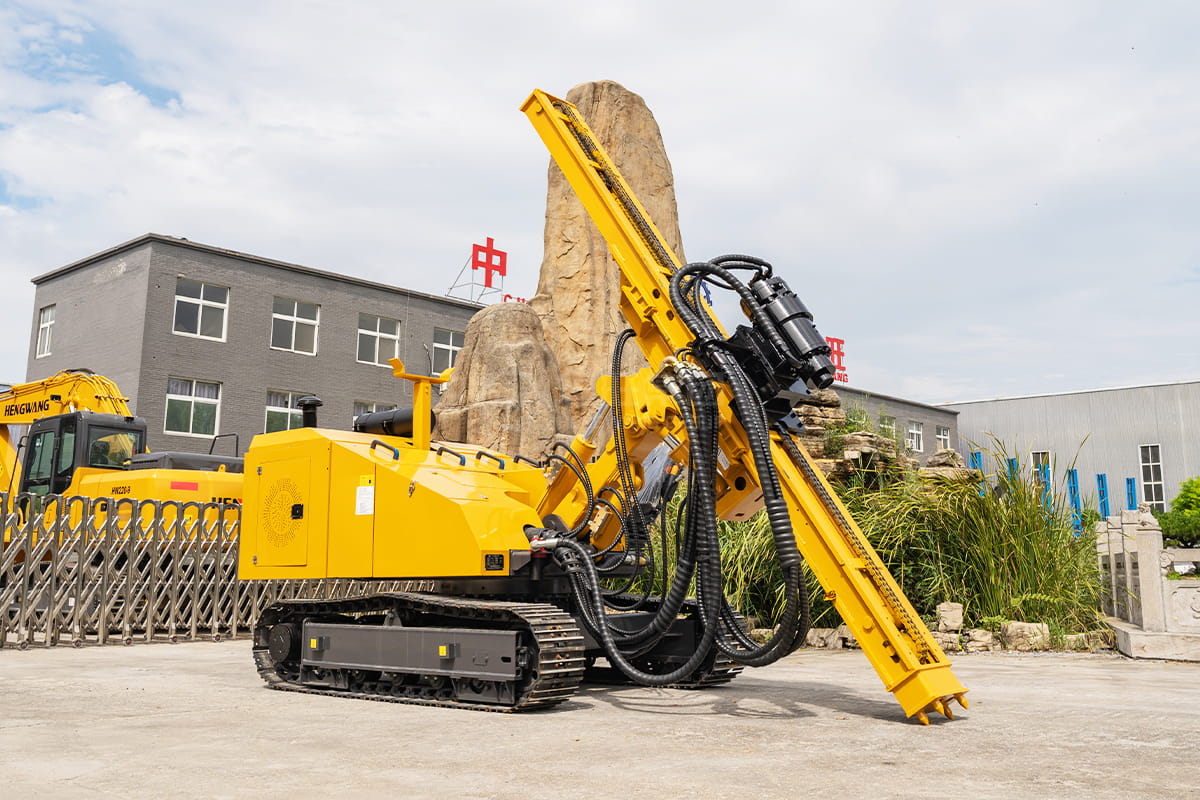

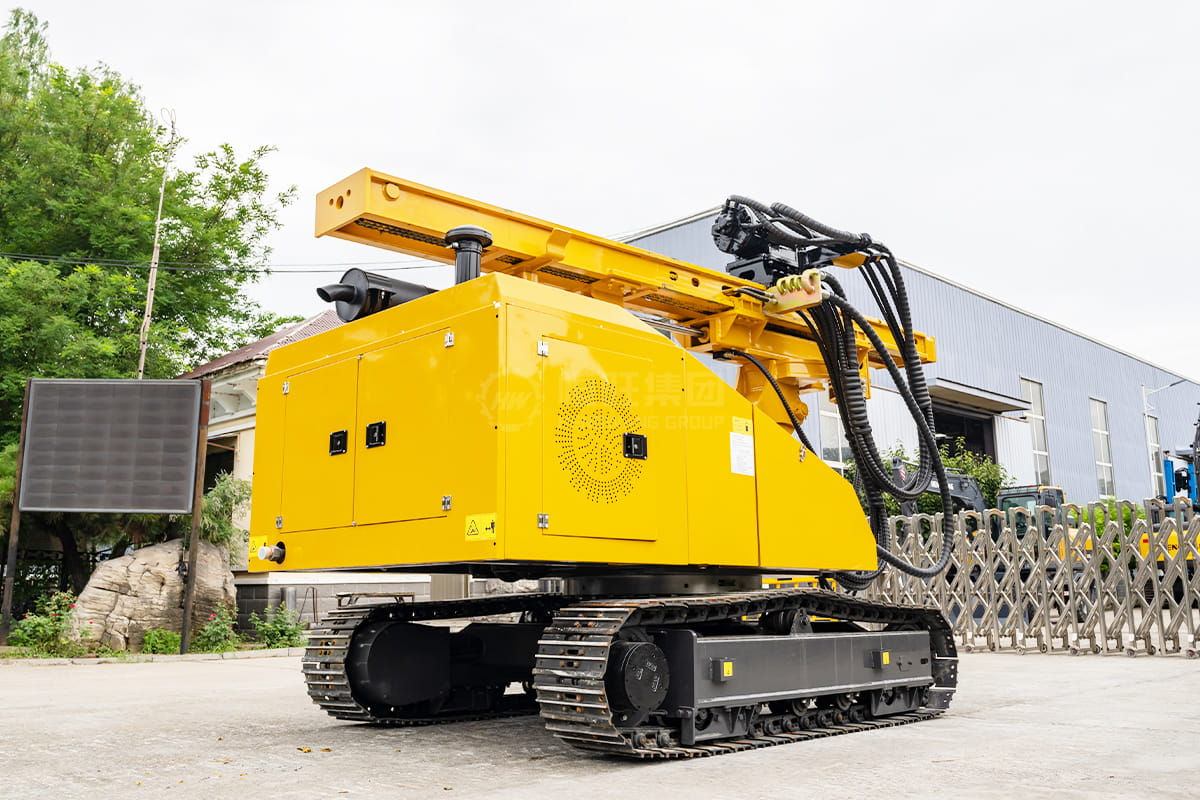

HWL400R Solar Pile Driver

Factory Direct
Training on Arrival
One-year warranty

Pile Length: 4m
Rotation angle : 360°
Machine Weight: 7.6T

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon





Product numberHWL400R
Hydraulic hammer model75/85/100 optionalmm
Hydraulic hammer flow50-110L/min
Impact frequency350-800bmp
Drill rod diameter75/85/100mm
pile height4m
Pile height sliding guide frame tilt angle(Left)5(Right)5°
Rack rotation angle360°
Hydraulic system pressure22mpa
Gear pump displacement40+40+25ml/r
Driving speed3km/h
Vehicle weight7600kg
Engine power85kw
Engine rated speed2600r/min
Track shoe width350mm
dimensions

L*W*H 2375*1980*5670mm(working status)

L*W*H 5670*1980*2375mm(Shipping status(The transportation height is the height with the hydraulic hammer head/hydraulic power head removed)


Optional
Hydraulic drilling power headmodel

HWQK350


Torque8000-12000(Optional)N•m
single maximum depth4m
Maximum DTH diameter130-400mm
Maximum spiral drilling diameter500mm










The HWL400R is a piling equipment originally designed for early-stage piling in photovoltaic power stations. However, through research and development efforts and continuous upgrading, it has been enhanced to be suitable for various piling projects in farms, pastures, orchards, and similar applications.

Main features:

1. A reasonable power engine ensures fuel efficiency while maintaining stability and high performance.

2. High-quality hydraulic components and a strict assembly process ensure the high efficiency of the hydraulic system.

3. International high-standard raw materials are used to ensure the stability of the vehicle body.

4. The design features an industrial aesthetic.
