Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.

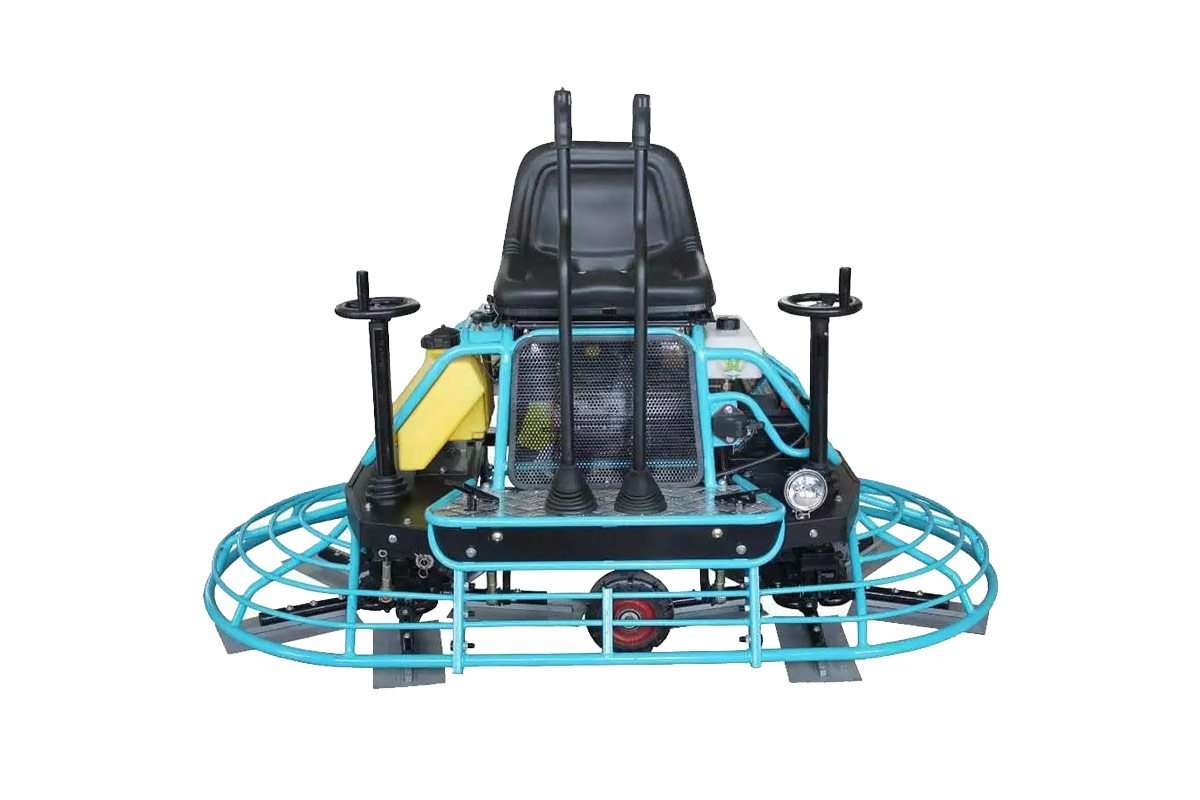

Mainly for the large-area cement floor and professional ultra-flat ground pulping, compaction, smoothing, smearing;
It is equipped with honda gasoline engine, quality assurance, superior performance and easy start-up;
Gearbox with large modulus design, aluminum alloy case, maintenance-free and long service life;
The trowel blade support arm is made of ultra-large-diameter carbon structural steel which is strictly heat-treated, which can adapt to the individual workers operation;
The scientifically designed centrifugal clutch transmission mechanism has large transmission torque, long service life and convenient maintenance;
Low center of gravity design makes the machine run smoothly and flexibly;
The surface adopt plastic sprayed, beautiful , rust and corrosion resistant.
Model | HWP-1000 |
Engine mode | Honda GX690 |
Efficiency | 24hp/3600rpm |
Disk diameter | 1000mm |
Work speed | 0-135rpm |
Spatula piece number | 2x4 pcs |
The size of the spatula | 310×150mm |
Engine type | Two cylinder,air cooled four stroke gasoline engine |
Tank capacity | 20L |
Lubricating oil quantity | 1.8L |
Fuel consumption | 313g/kwh |
Operation mode | Driving operation |
0utline size (L*W*H) | 2100*1000*1050mm |
Weight | 380kg |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the lowest price.
Simply complete the form below and a Hengwang product expert will contact you shortly.
