Rock Drill & Splitter
Rock Drill & Splitter
/uploads/product/rock-drill-splitter/YT24/01.jpg
/uploads/product/rock-drill-splitter/YT24/02.jpg
/uploads/product/rock-drill-splitter/YT24/03.jpg

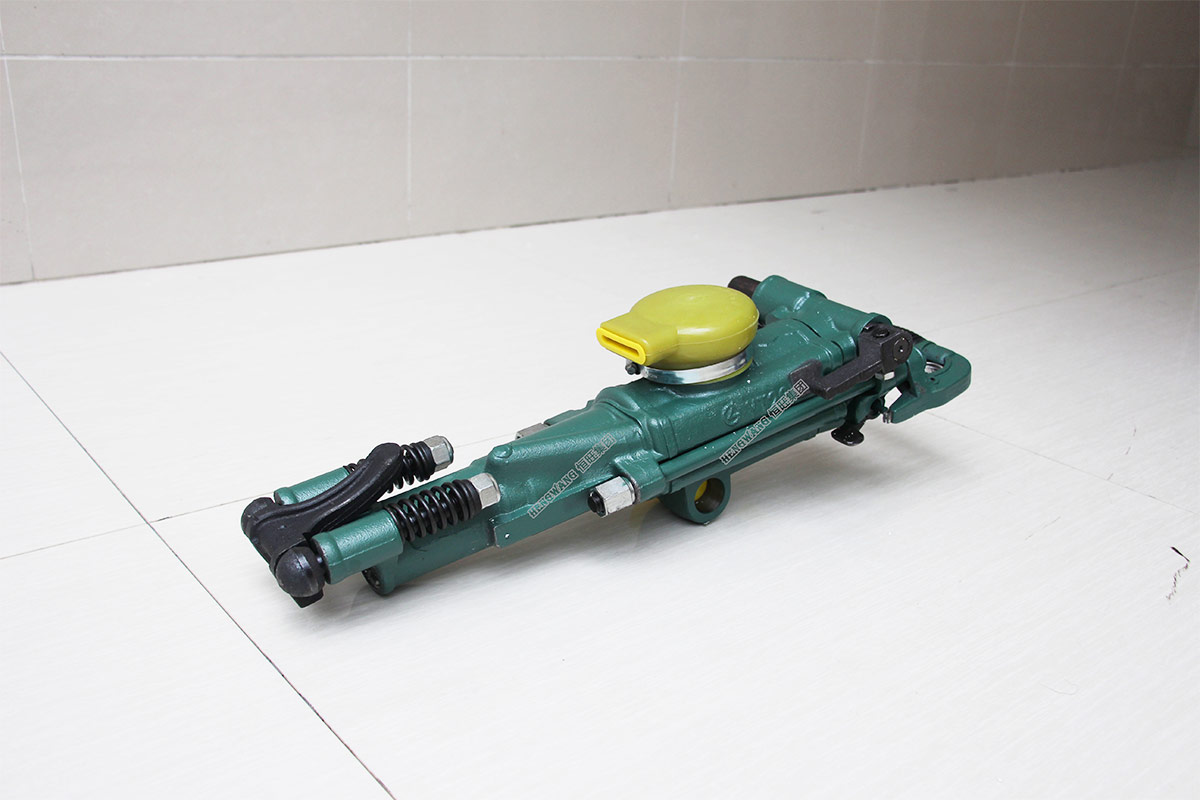

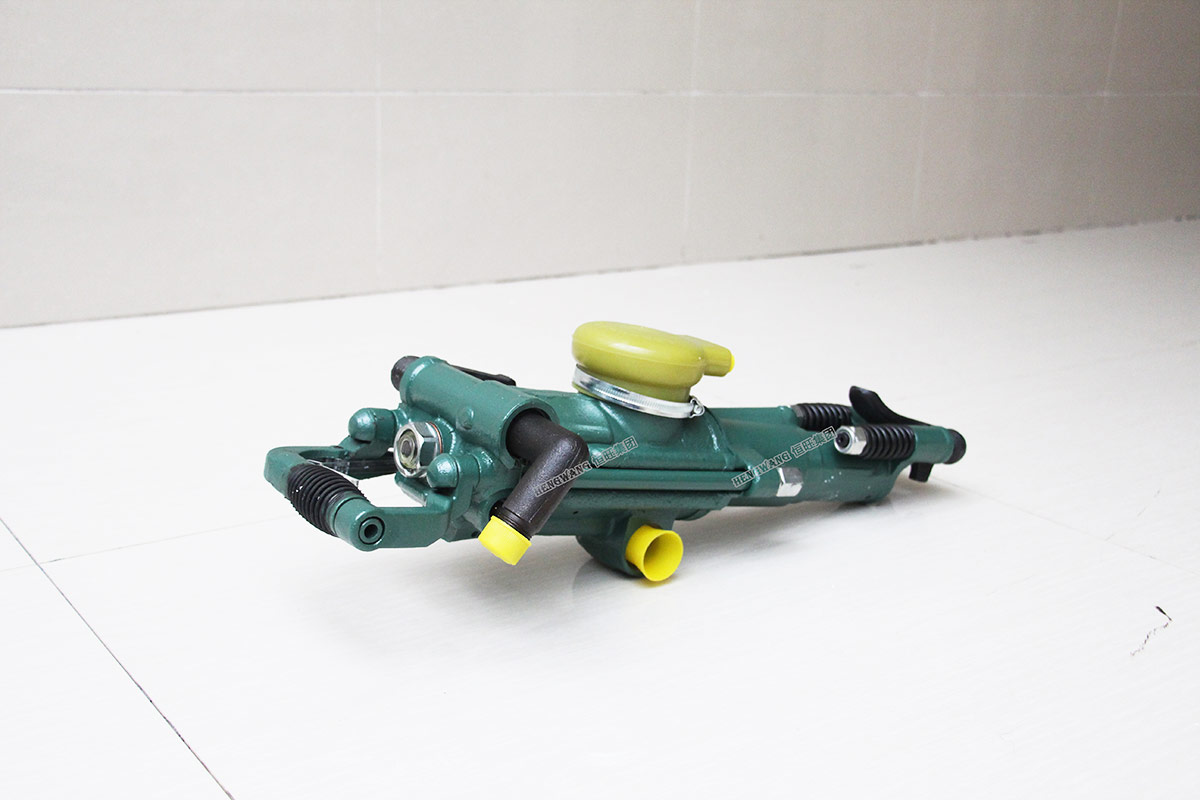

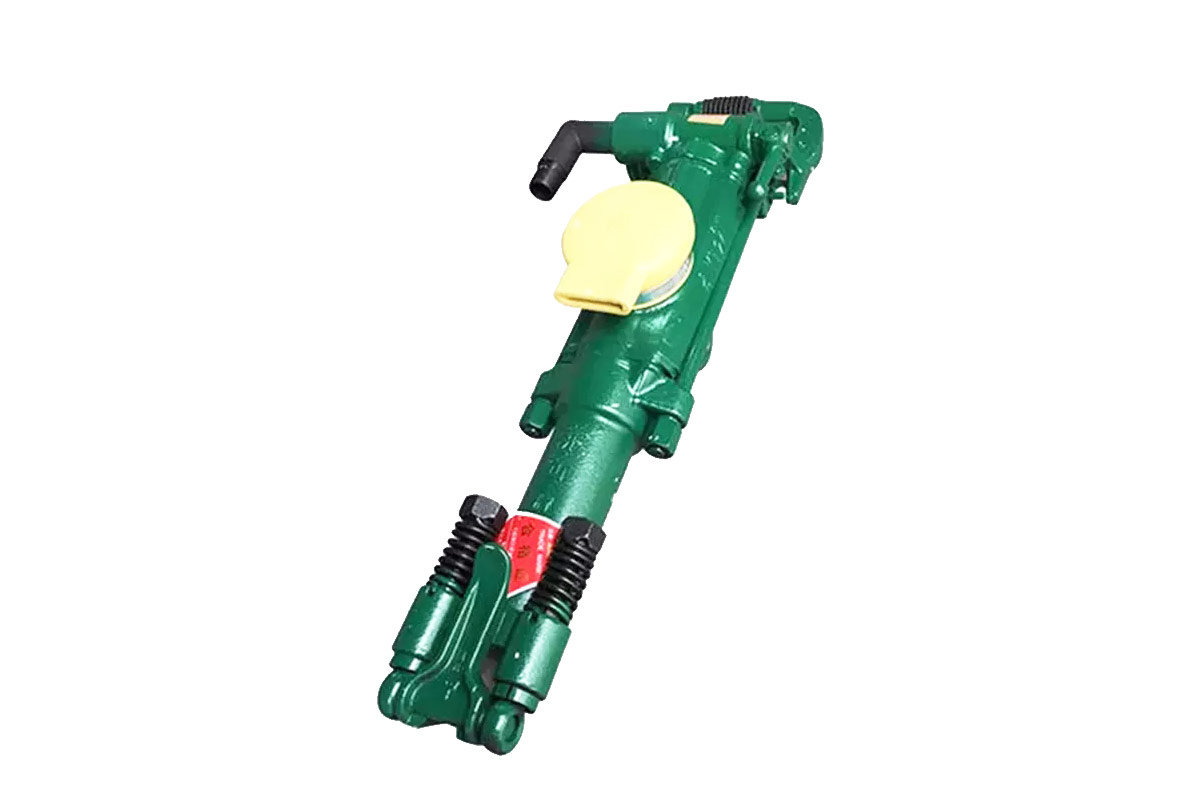

YT24 Rock Drill
Drilling Depth: 5M
Drill Rod: B22
Weight: 24Kg
  • PRODUCT DESCRIPTION

YT24 rock drill, pneumatic jack hammer can be used to digging dry or wet by horizontal holes, vertical holes or angling holes on medium-hard rock or hard rock. Widely used in mines, railway, irrigation and quarry to drill holes and for the second digging holes.

TypeYT24
Weight (kg)24
Air consumption (L/s)≤67
Bore Dia. (mm)Φ34-42
Drilling depth (m)5
Shank(mm)22×108
Air pressure (MPa)0.63
Suitable air-legsFT140BD
Height (kg)15.613.9
Length (mm)16871400
Feed length (mm)1250965
