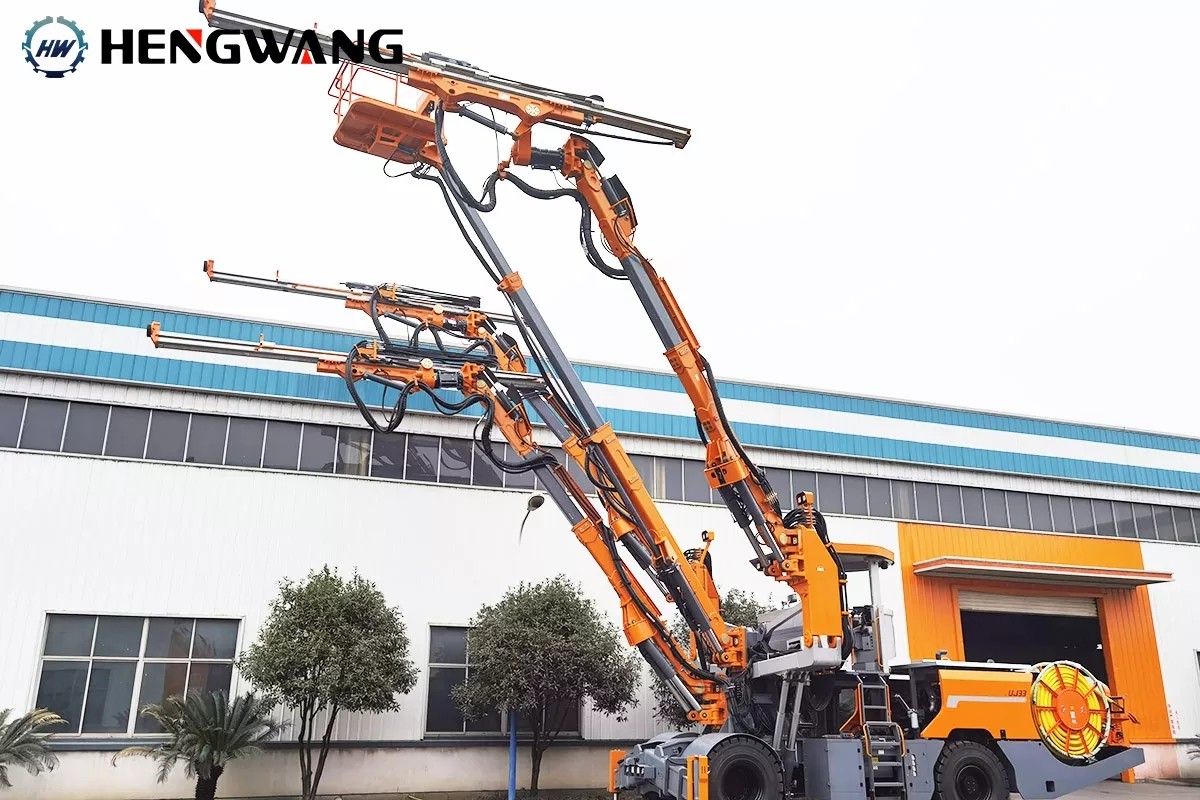

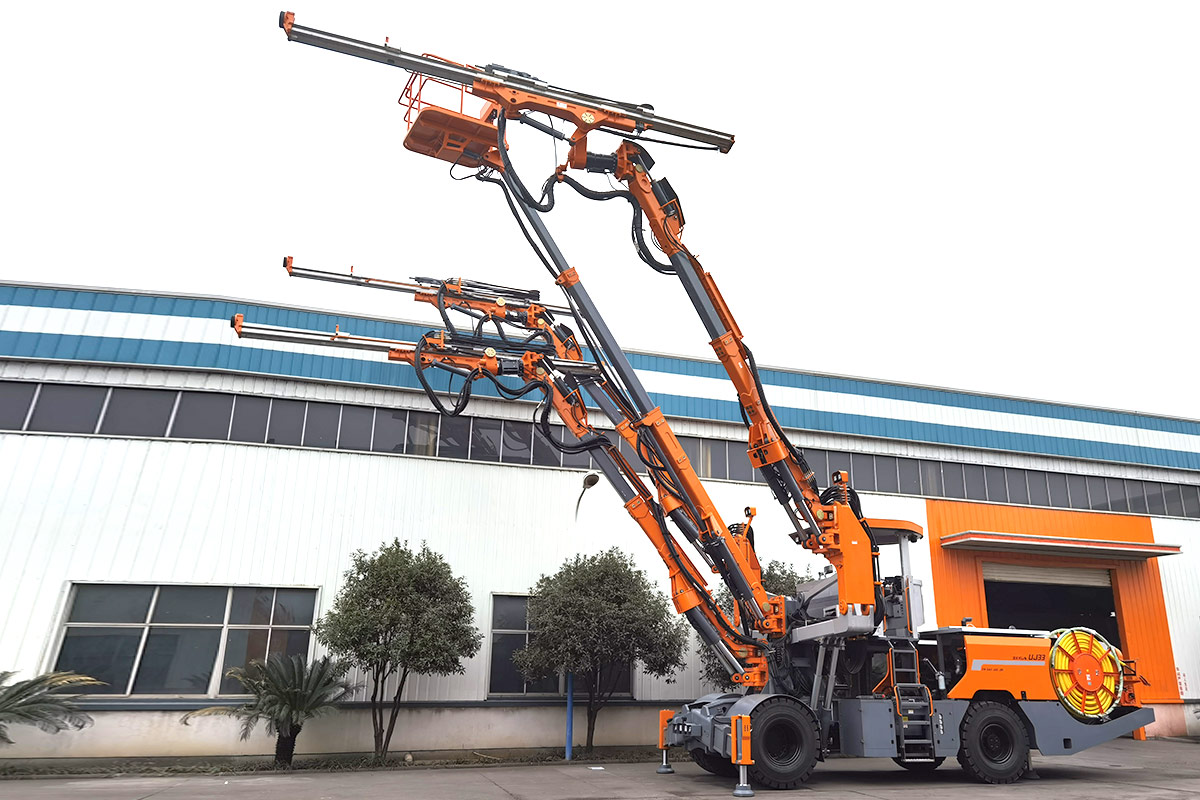

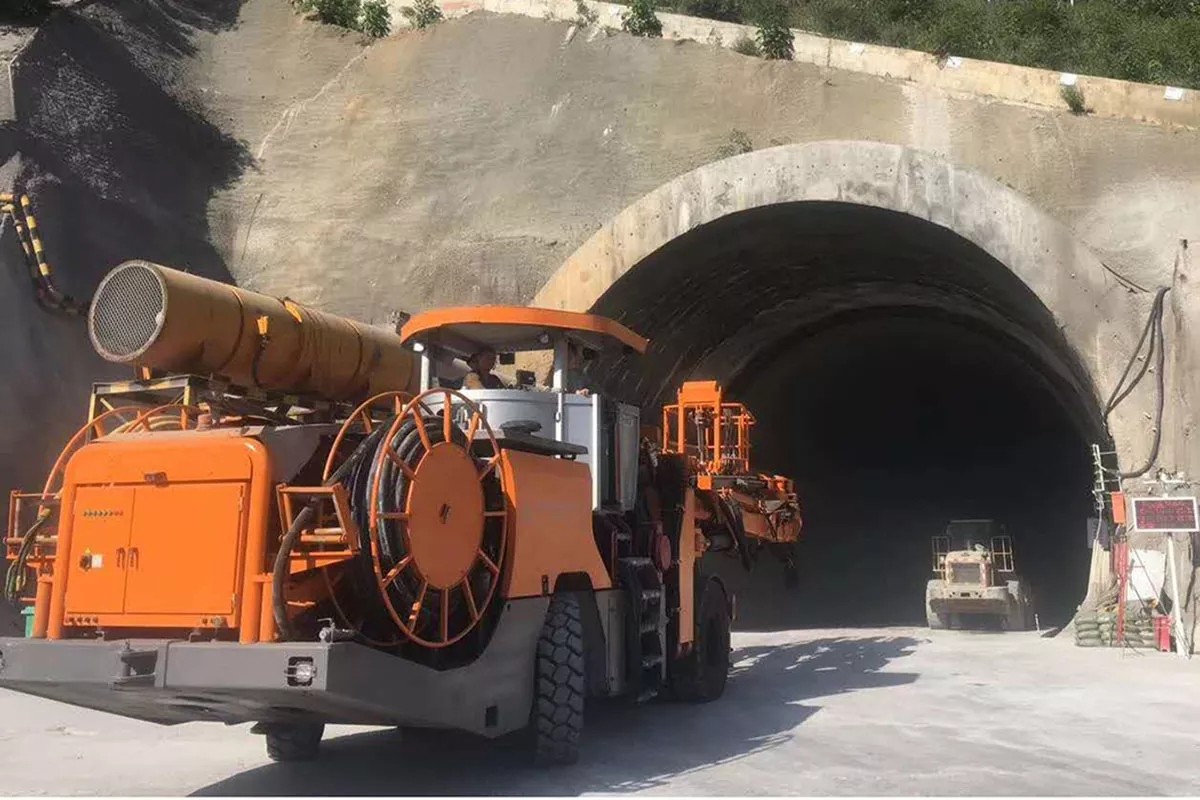

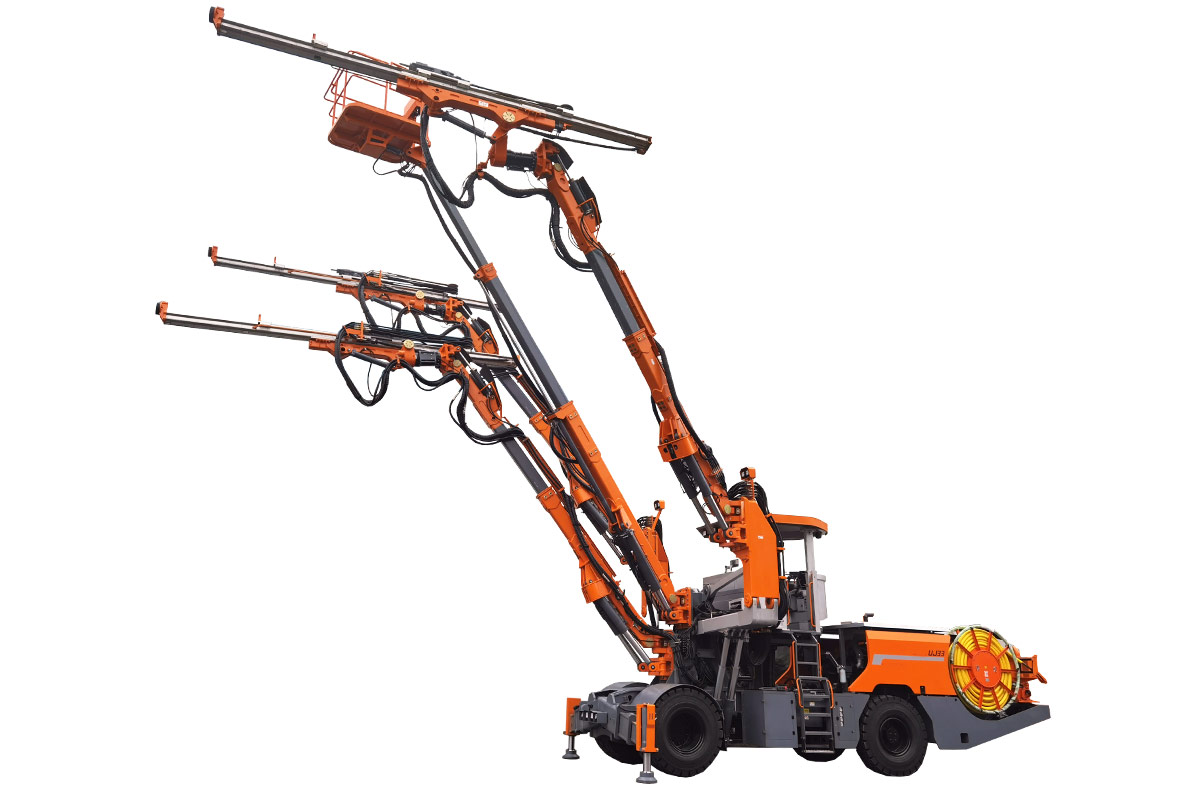

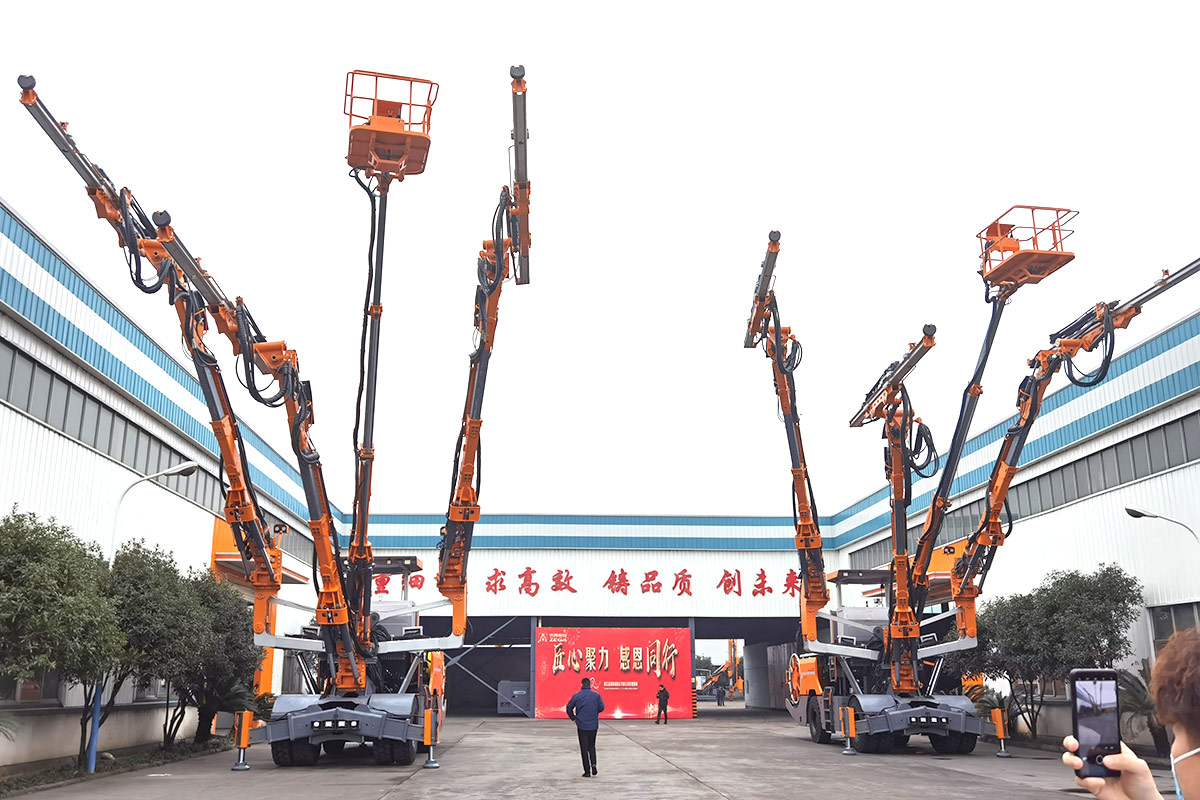

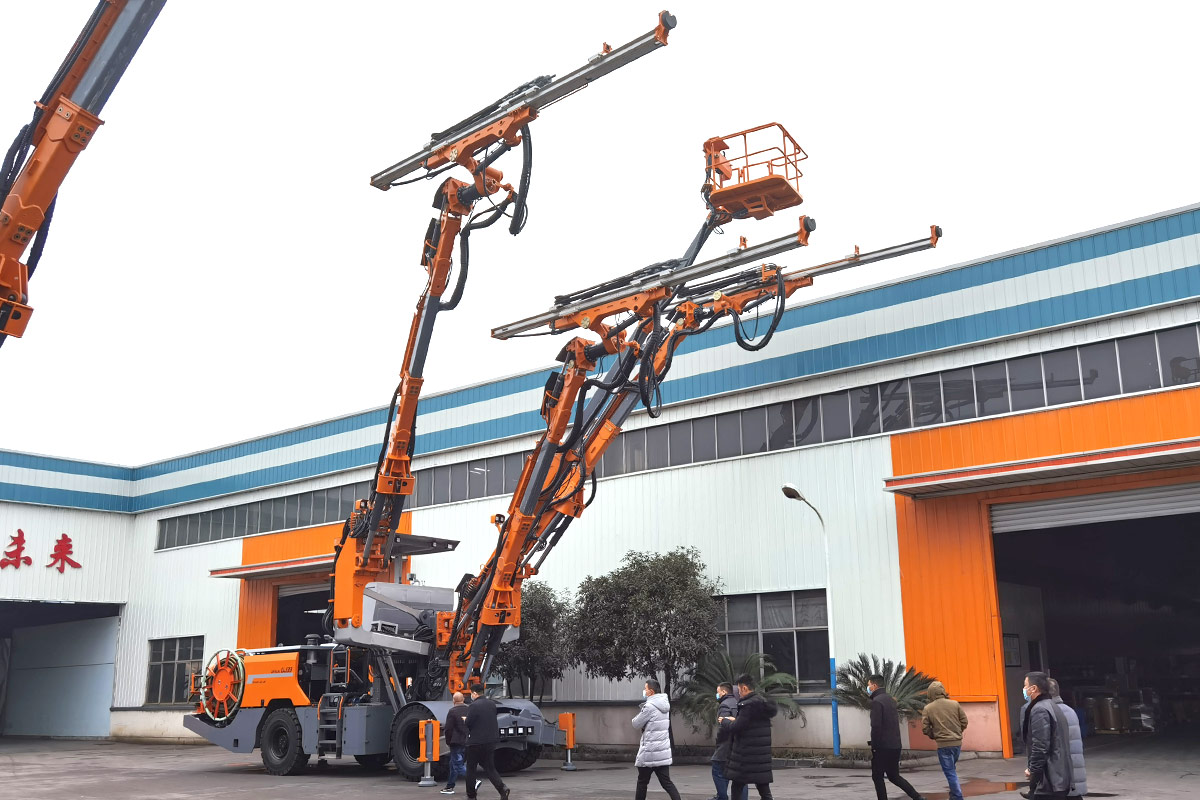

HW-UJ33 underground drilling jumbo used for highway, railway, hydropower and other medium-sized tunnel excavation, anchor construction, and equipped with heavy drilling booms and a service platform, all-round high standard configuration to meet the different needs of customers.
The design of the independent pilot-type drilling hydraulic system with 9 patents of 2 invention patents. With 15 of intelligent control and protection functions, better maneuverability, more stable and reliable.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us!
| Service Platform | ||||
| Parallel Holding | Total | Boom Swing angle | ±45º | |
| Max.Working Height (from Botton): 12000mm | ||||
| Rated Load | 600kg | |||
| Feed | ||||
| Total Length | 6110mm | 6776mm | 7386mm | 7996mm |
| Rod Length | 4305 | 4915 | 5525 | 6135 |
| Rod Depth | 4013 | 4623 | 5223 | 5843 |
| Lift Force | 20.0KN | 20.0KN | 20.0KN | 20.0KN |
| (ZY104) Drifter (ZY104) | ||||
| Jumbo top to rotation unit center | 88mm | Rotation Speed | 0-388rpm | |
| Impacting Power | 20kW | Rotation torque (Max.): 680N.m | ||
| Impacting Frequency | 60Hz | Weight | 170Kg | |
| Boom | ||||
| Feed Extension | 1800mm | Boom lifting angle (Max.) | +68º/-45º | |
| Boom Extension | 1600mm | Boom Swing angle (Max.) | ±45º | |
| Parallel Holding | Total | Feed tilt | +3º/-90º | |
| Feed Beam roll over | 360º | |||
| Electric system | ||||
| Total power | 220kW | Starting Mode | Star/Delta/Unloading start | |
| Main electric motor | 3*55kW | |||
| Voltage | 380V | Dimensions | 3*185+3*95/3mm2 | |
| Frequency | 50-60Hz | Cabl reel capacity | 100M | |
| Shank adaptor | ||||
| Thread | Diameter | Length | ||
| T38 | 38mm | 525mm | ||
| R32 | 32mm | 525mm | ||
| Screw air compressor system | ||||
| Pressure | 7bar | F.A.D | 1m3/min | |
| Electric Pressurized Water Pump | ||||
| Max.working pressue | 17bar | Max.Flow | 300L/min | |
| Water hose reel capacity | 100m | Power | 15kW | |
| Chassis | ||||
| Diesel Engine | Cummins QSL8.3-C240-III | |||
| Rated engine power (2, 200rpm): 179kW | ||||
| Approach angle & departure | 15º | Tyre | 14.00*R24 | |
| Hydraulic support leg | 4 PCS | Driving brake | Two independent loops | |
| Emergency stop & parking brake | SHAR | Fuel tank capacity | 150L | |
| Gradient at Max.Load | "1:4 | Hydraulic Oil Tank | 750L | |
| Tramming speed | 17/10/5km/h | |||
| Rods | ||||
| T38-D38-T38*6135mm | φ64-89mm bolting | |||
| R32-D32-R32*6135mm | φ64-89mm bolting | |||
| T38-H32-R32*6135mm | Face drilling | |||
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
