Pneumatic Drill Rig

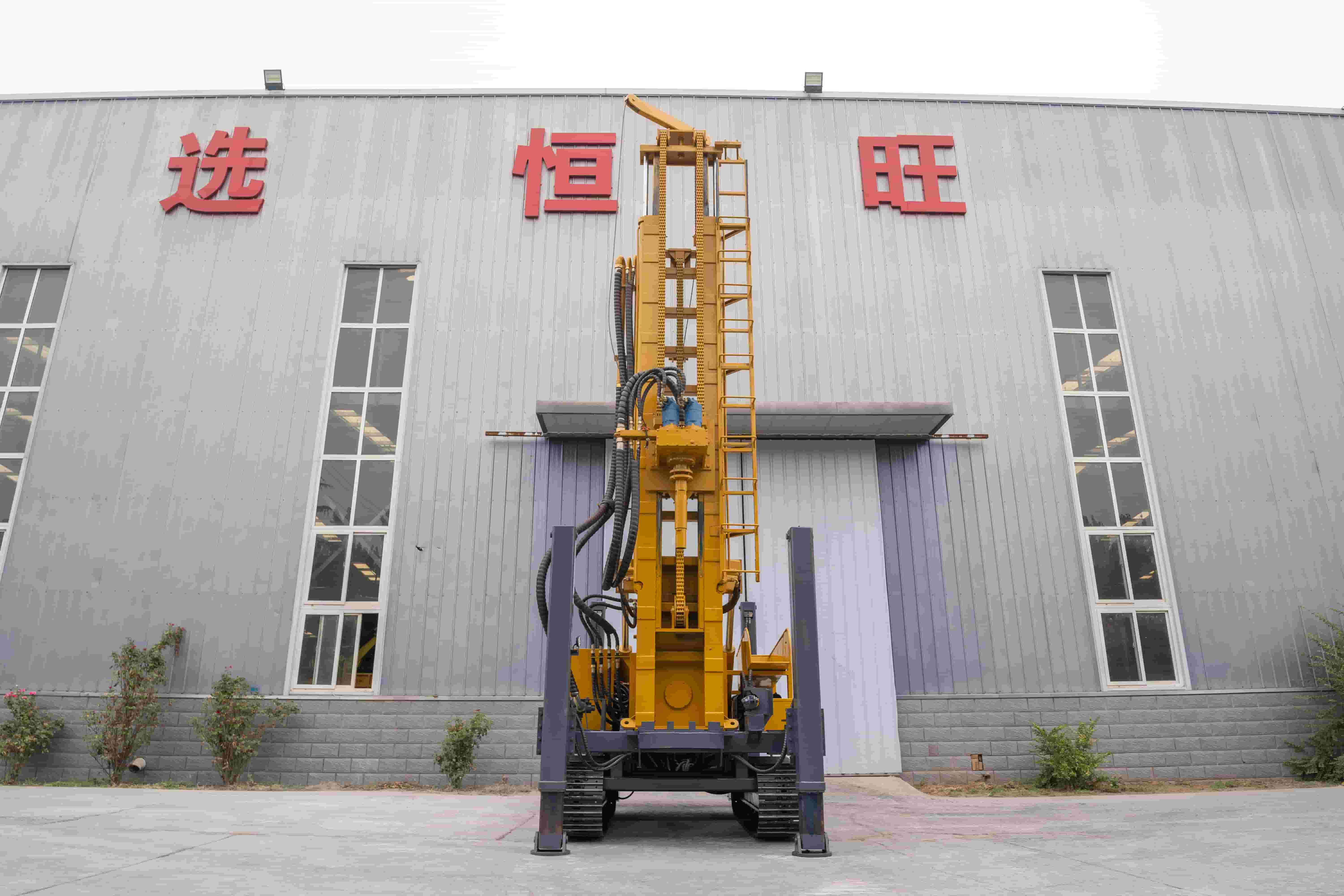

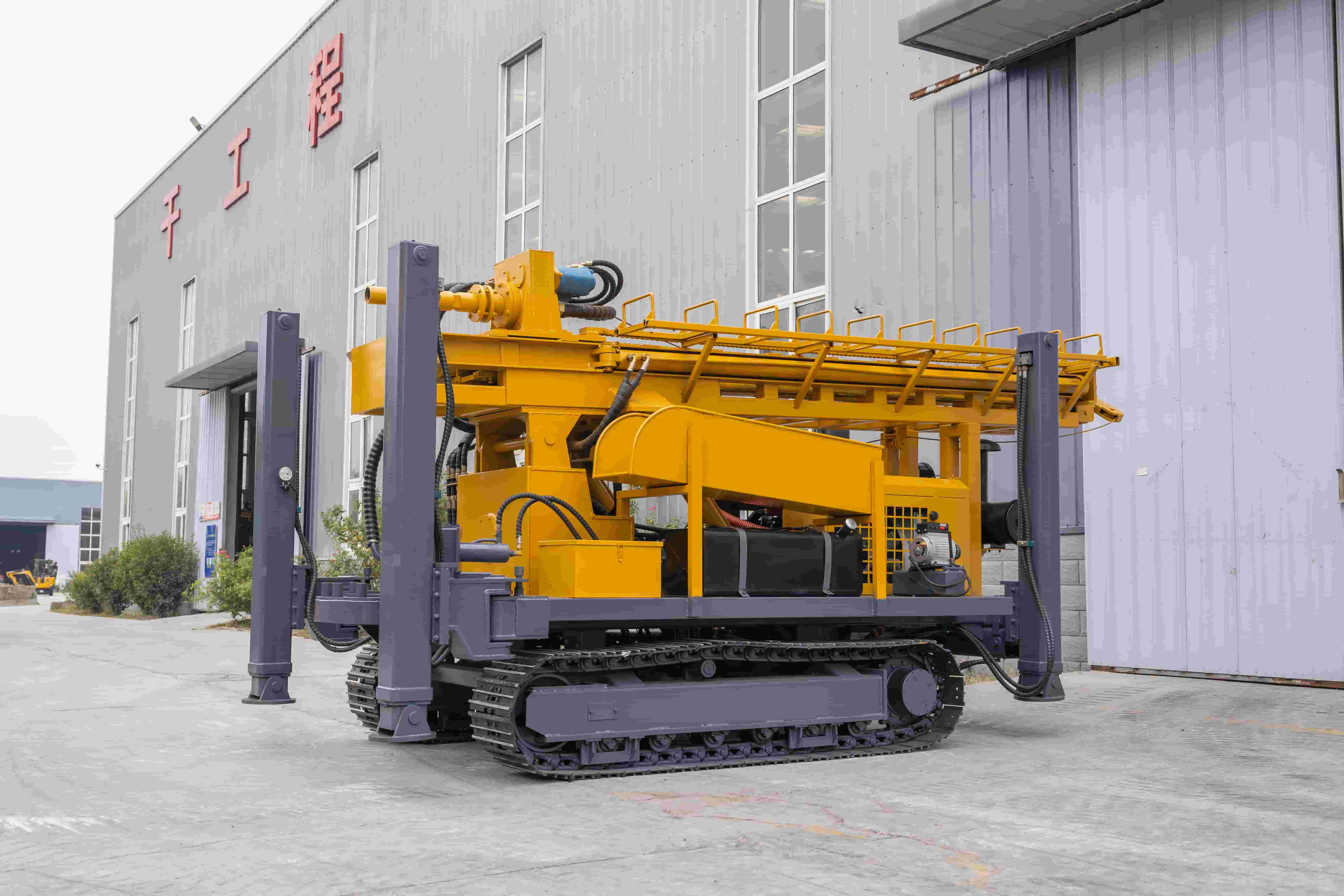

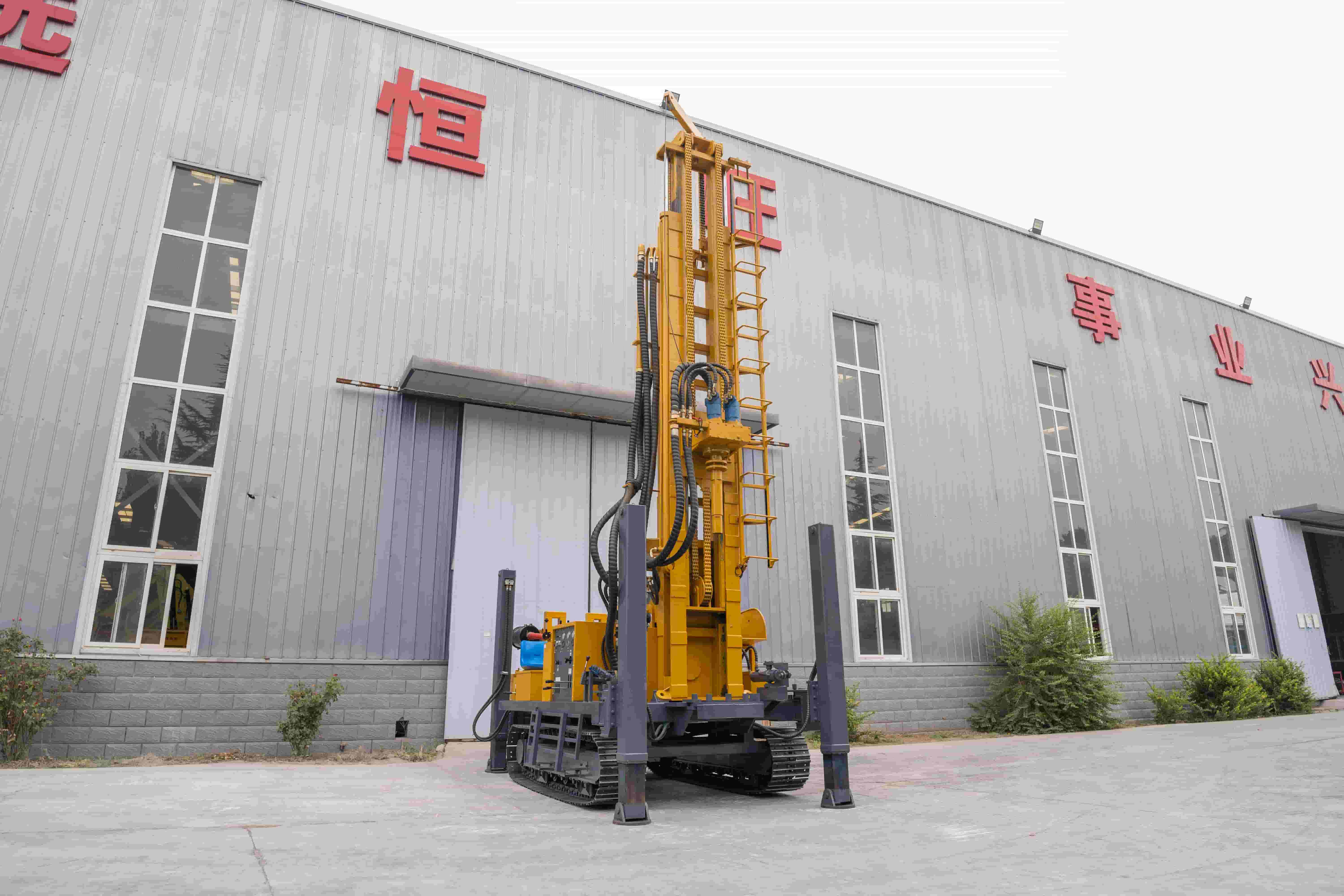

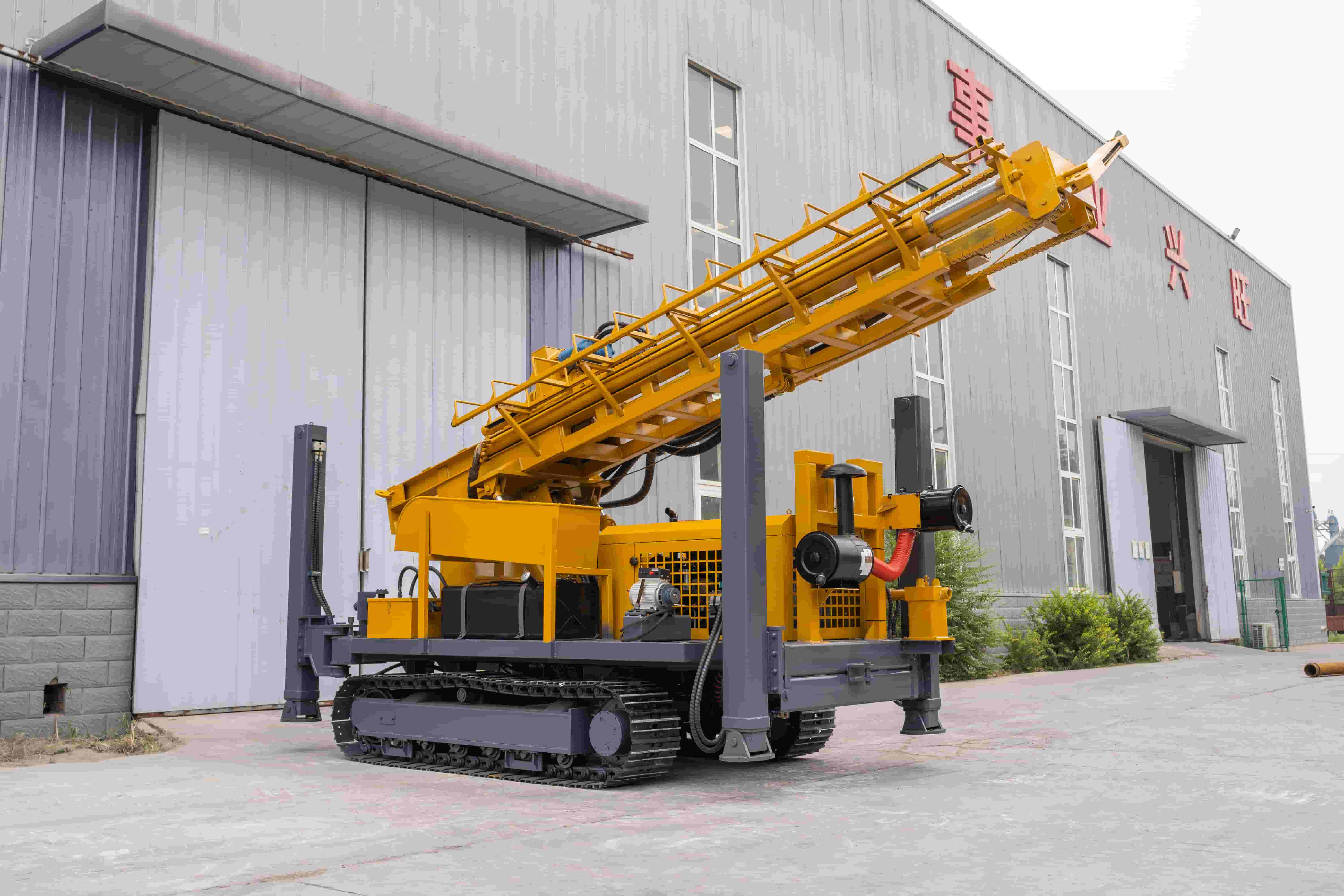

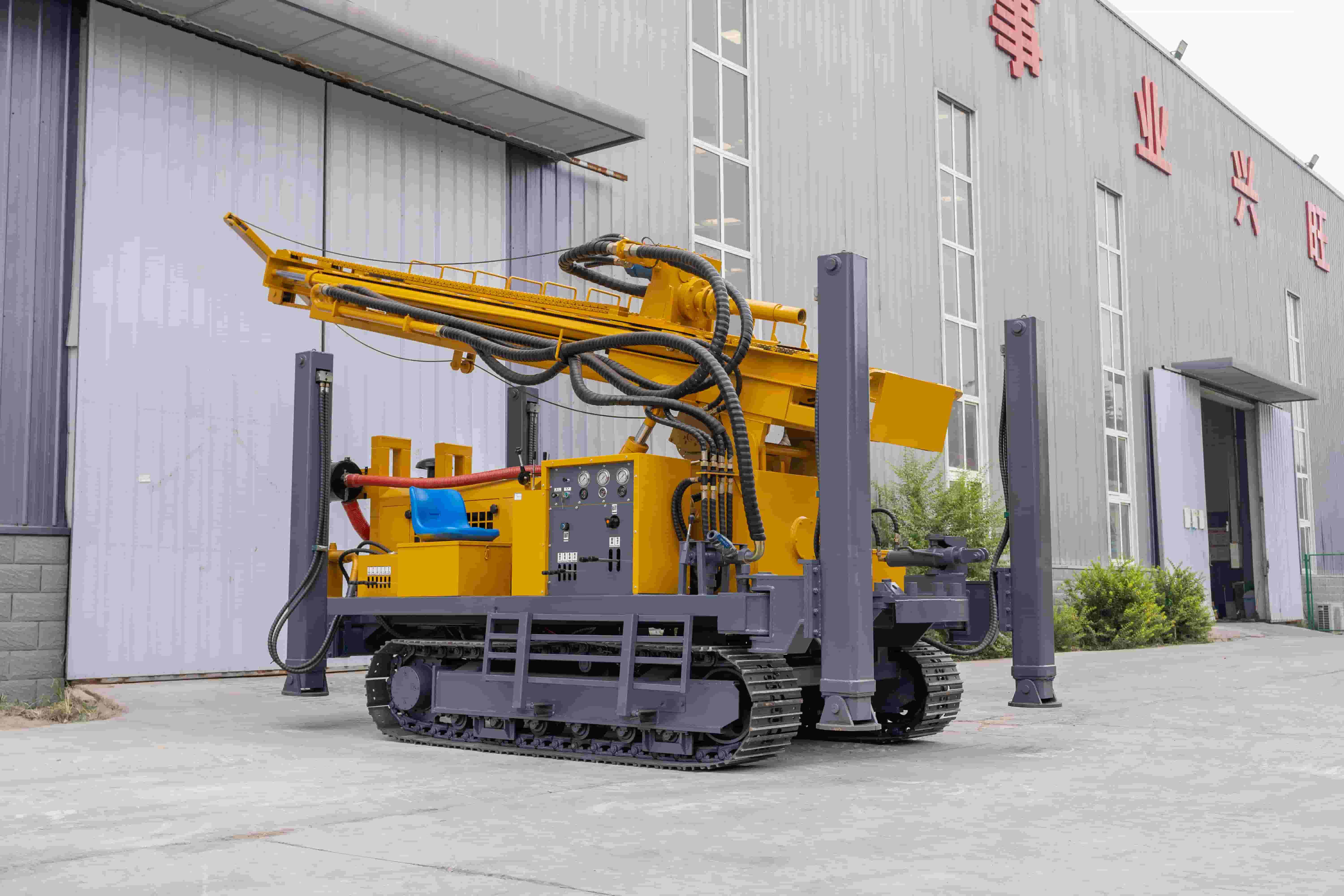

HQZ-600L Pneumatic Drill Rig

Factory Direct
Training on Arrival
One-year warranty

Drilling depth: 600m
Drilling diameter: 130-350mm
Engine Power: 132Kw

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon

ChassisSteel track/
Drilling diameter130-350mm
Drilling depth600m
One-time advancement length6.6m
Walking speed2.5km/h
Maximum gradeability30
Engine brandYuchai/
Engine power132kw
working pressure1.7-3.5mpa
Air consumption17-42m³/min
Drill pipe diameter102/108/114mm
Drill pipe length3.0/6.0m
Lifting power28T
Swing speed45-115rpm
Rotating torque9000-11000N.m

HQZ pneumatic rig for drillling is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.

Main feature:

1. Pneumatic drilling rig cooperates with air compressor, which has high working efficiency.

2. Increase the counterweight, the work stability is strong.

3. The engine and hydraulic system cooperate perfectly, reducing fuel efficiency.
