Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.

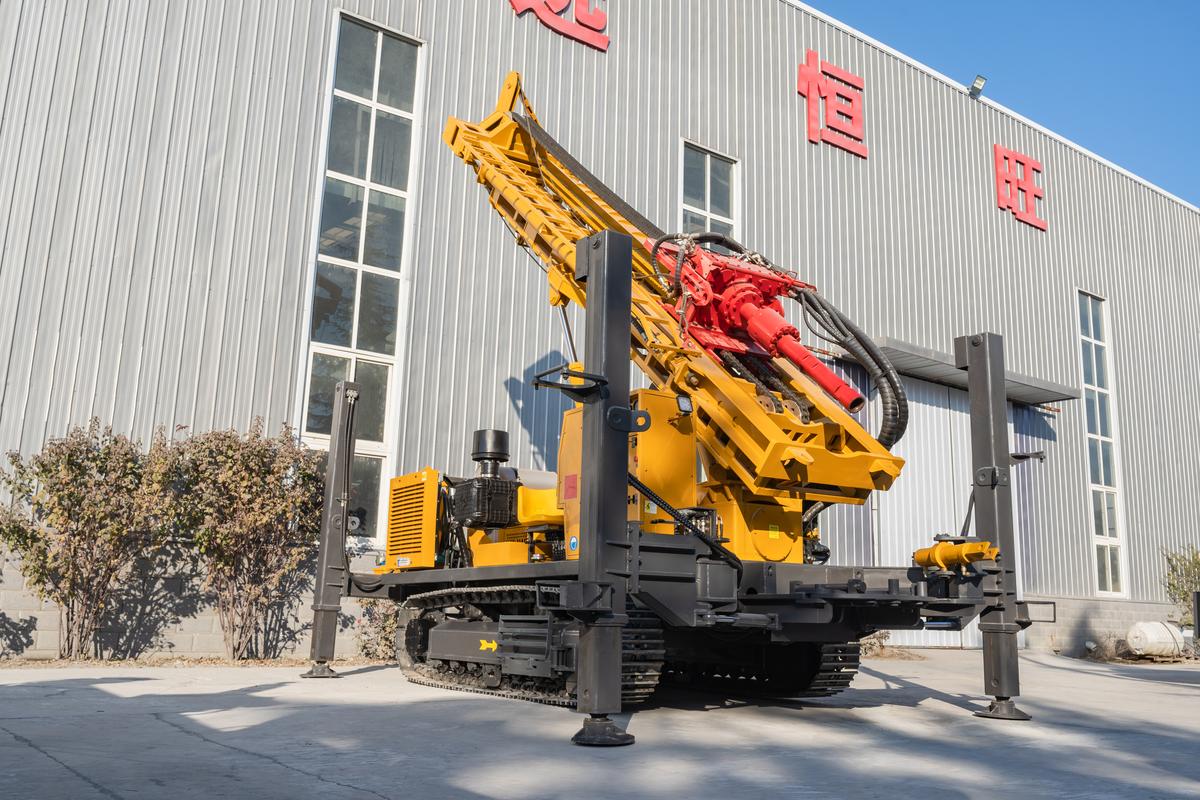

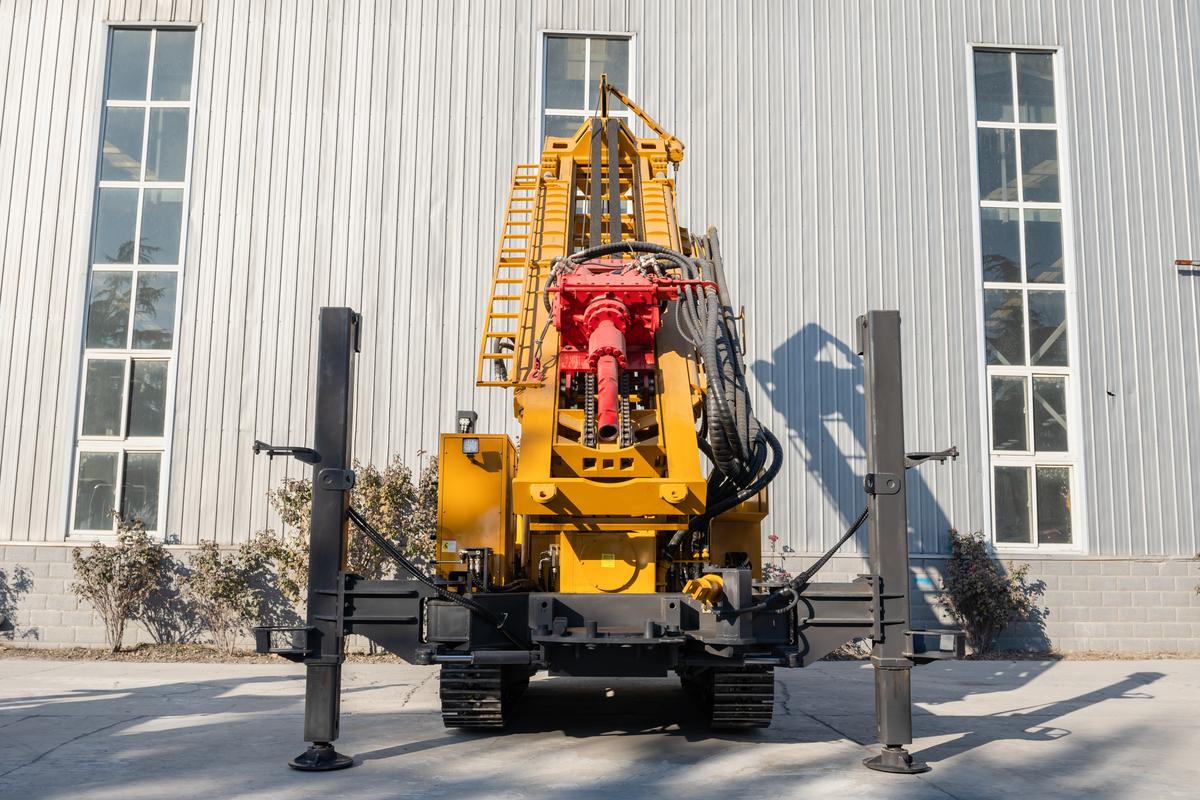

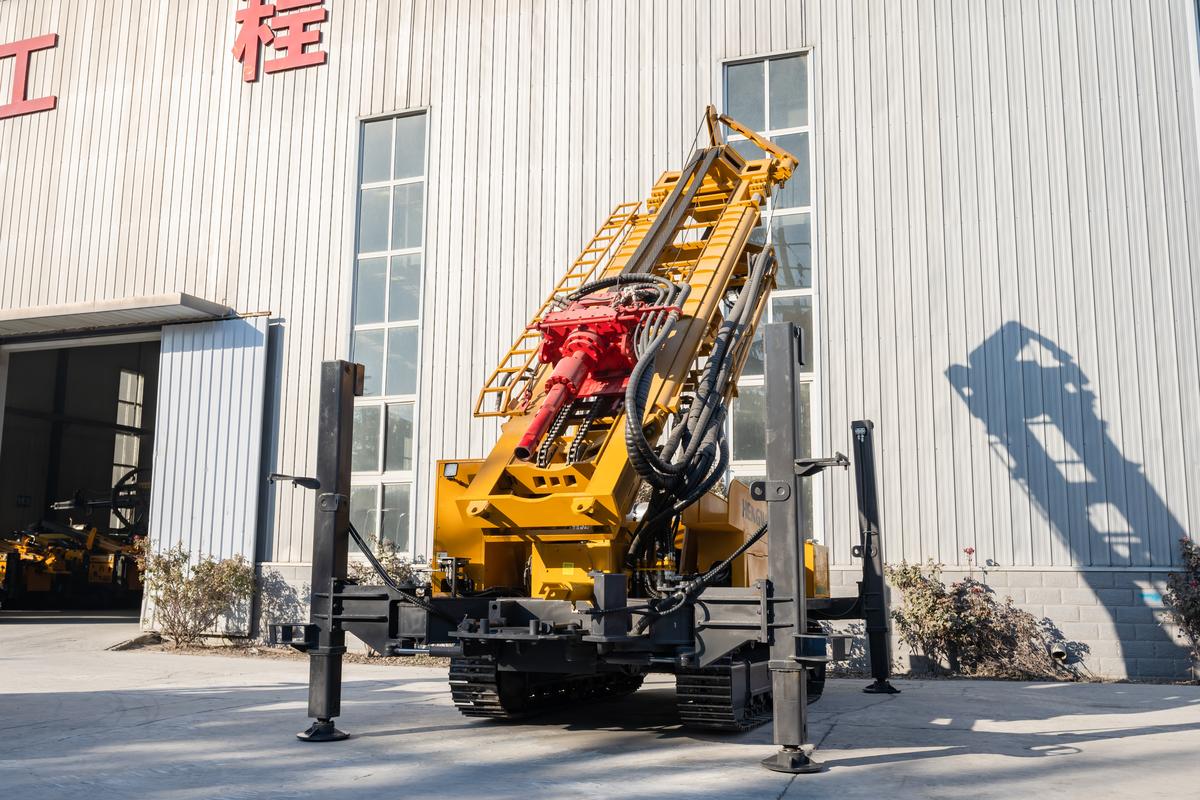

| Model | HW-1000S |
|---|---|
| Engine | Cummins 194KW |
| Power | 110 KW |
| Main Pump | Piston Pump |
| Maximum Drilling Depth | 1000 m |
| Drilling Diameter | 105–800 mm |
| Working Air Pressure (MPa) | 1.6–8 MPa |
| Total Air Consumption | 16–96 m³/min |
| Drill Rod Length | 7m |
| Drill Rod Diameter | Φ114 |
| Lifting Capacity | 8 t / Lifting Capacity: 52 t |
| Slow Lifting Speed | 8 m/min / Slow Feed Speed: 0.5-10 m/min |
| Fast Lifting Speed | 30 m/min / Fast Feed Speed: 61 m/min |
| Rotational Torque | 26,000/13,000 Nm |
| Rotational Speed | 0–70 r/min; 0–140 r/min |
| Feed Efficiency | 10–35 m/h |
| Travel Speed | 5 km/h |
| Climbing Ability | 21° |
| Machine Weight | 17.8t |
| Dimensions | 7.3 × 2.25 × 2.75 m |
| Applicable Rock Conditions | Loose Layers and Bedrock |
| Drilling Method | Drilling with Down-the-Hole Hammer |
| With Impactor | High Air Pressure Series |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
