Pneumatic Drill Rig

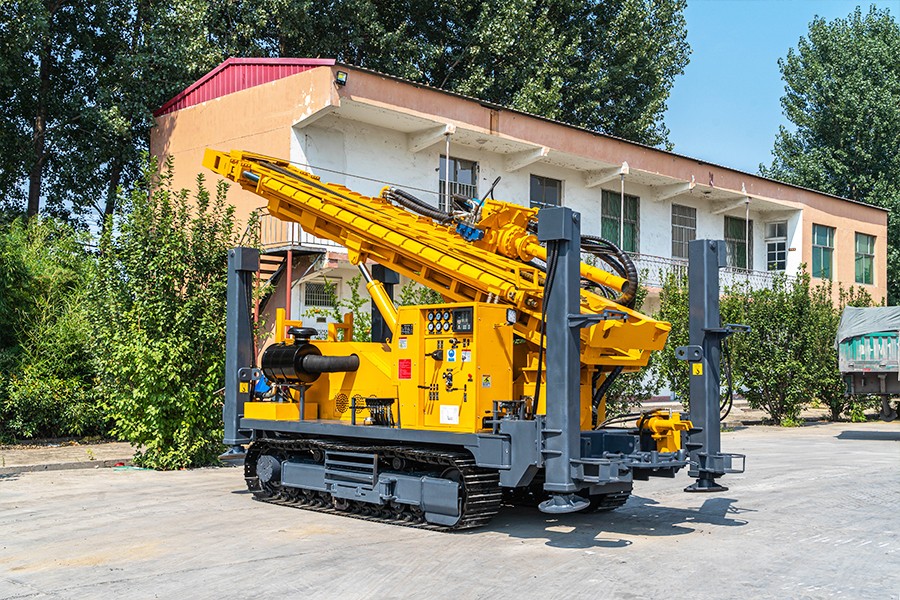

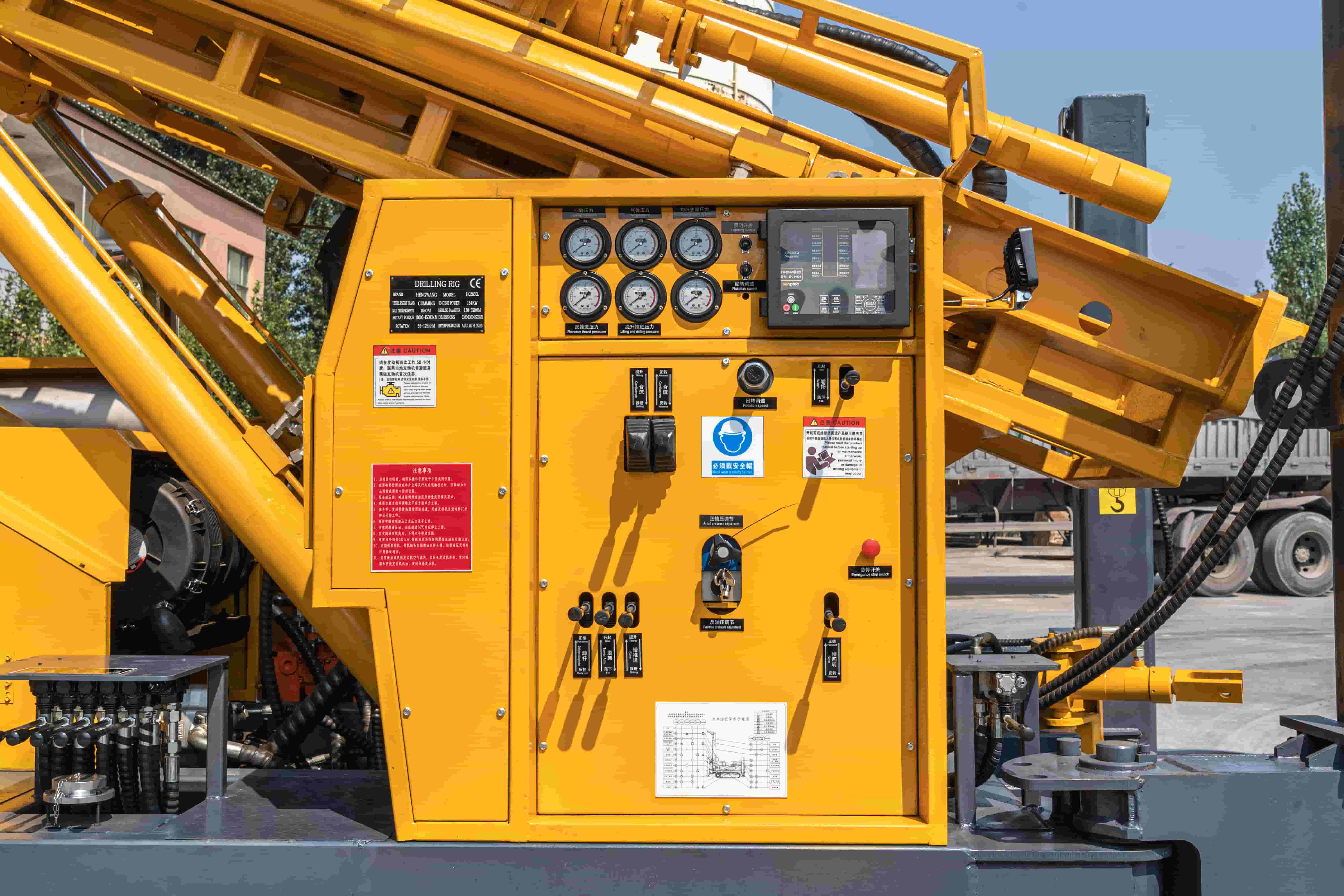

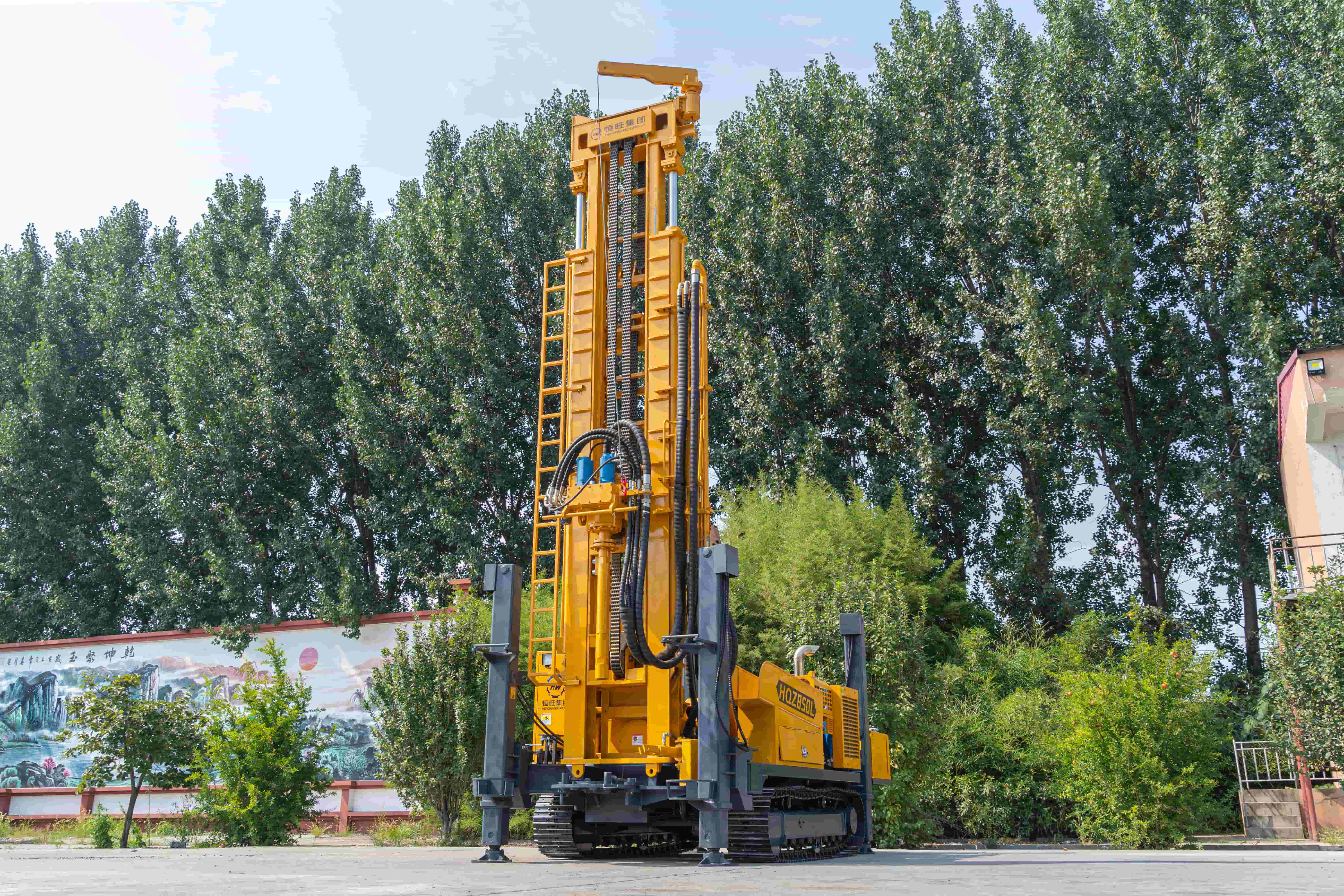

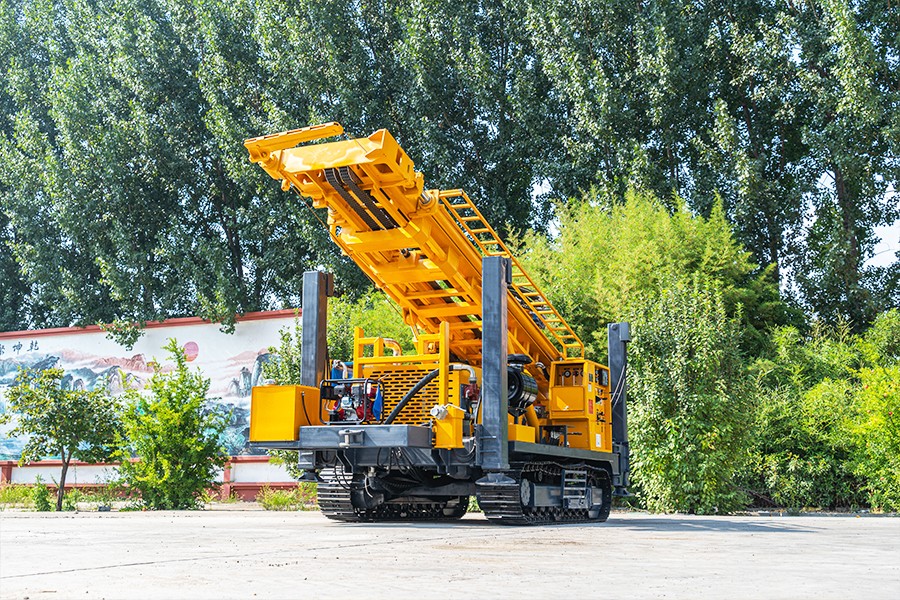

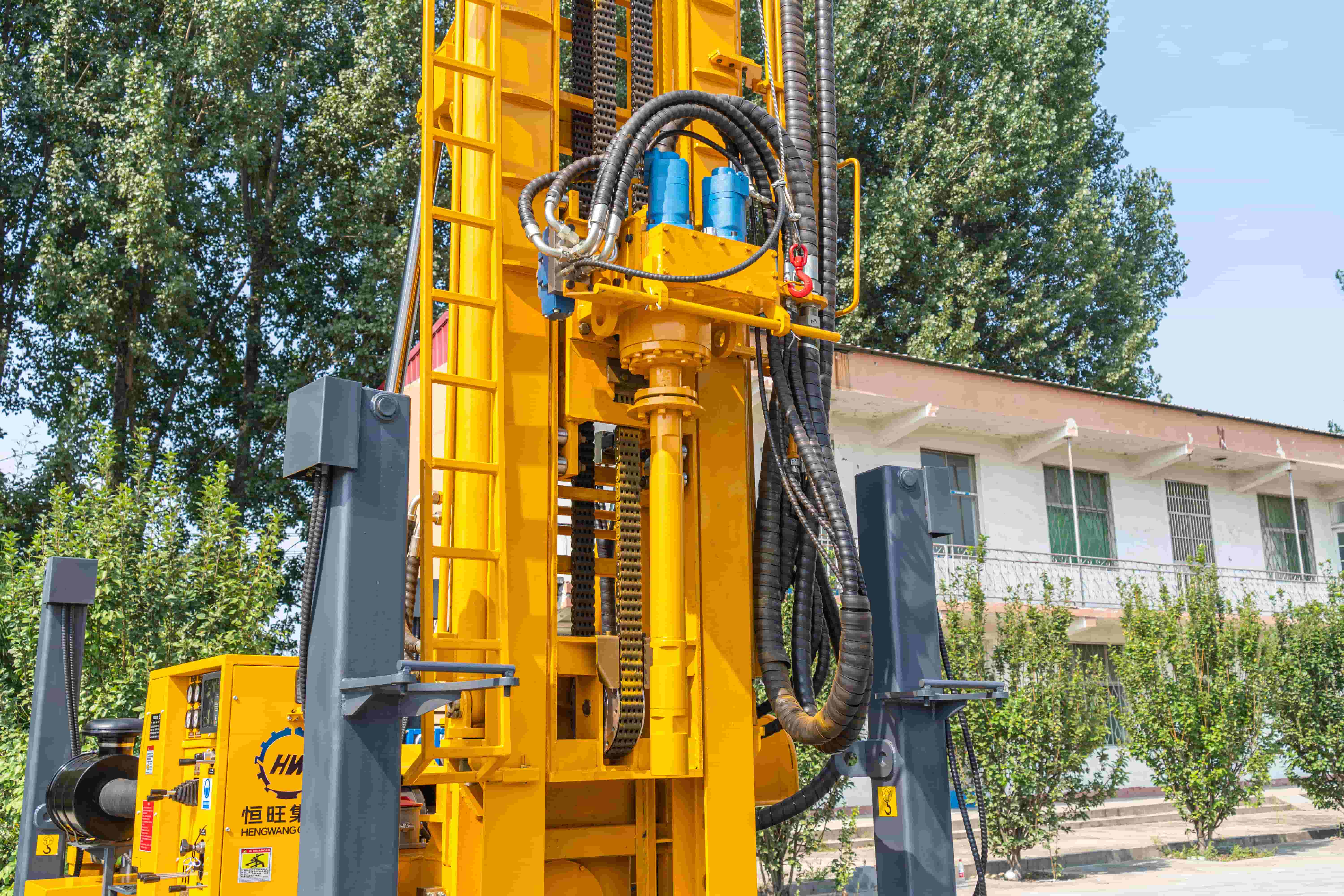

HQZ-800L Pneumatic Drill Rig

Factory Direct
Training on Arrival
One-year warranty

Drilling depth: 800m
Drilling diameter: 130-350mm
Engine Power: 151Kw

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon


ChassisSteel track/
Drilling diameter130-350mm
Drilling depth800m
One-time advancement length6.6m
Walking speed2.5km/h
Maximum gradeability30
Engine brandYuchai/
Engine power151kw
working pressure1.7-3.5mpa
Air consumption17-42m³/min
Drill pipe diameter102/108/114mm
Drill pipe length3.0/6.0m
Lifting power30T
Swing speed55-120rpm
Rotating torque11000-13000N.m

HQZ pneumatic rig for drillling is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.

Main feature:

1. Pneumatic drilling rig cooperates with air compressor, which has high working efficiency.

2. Increase the counterweight, the work stability is strong.

3. The engine and hydraulic system cooperate perfectly, reducing fuel efficiency.
