Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.
| Model | HW45L | HW60L |
| Operating load (kg) | 700 | 850 |
| Max Speed (km/h) | 12 | 12 |
| Rated flux (L/min) | 62.5 | 75 |
| Tire (track) model | 10-16.5 | 12-16.5 |
| Rated power (Kw) | 37 | 45 |
| Fuel tank capacity (L) | 60 | 60 |
| self weight bucket (kg) | 2600 | 3000 |
| Bucket capacity (m3) | 0.4 | 0.45 |
| Overall operating height (mm) | 3670 | 3690 |
| Height to bucket hinge pin (mm) | 2900 | 2920 |
| height to top of cab (mm) | 2030 | 2050 |
| Height to bottom of level bucket (mm) | 2733 | 2753 |
| Overall length ithout bucket (mm) | 2450 | 2630 |
| overall length with bucket (mm) | 3200 | 3380 |

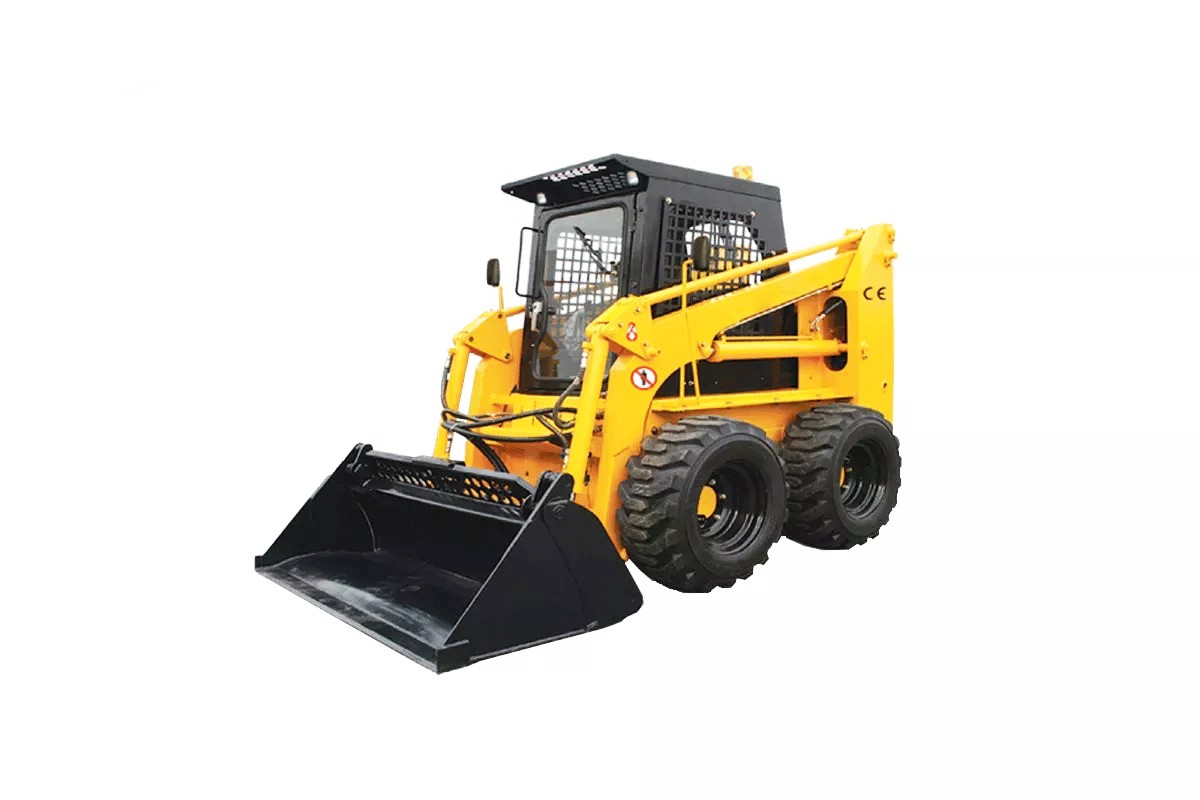

L series Skid Steer Loader:
● The machine features a mechanical leveling system in its body design. It incorporates a tie rod and a rocker arm above the working arm, ensuring the bucket remains balanced during the machine's operation.
● With a focus on lightweight design, the machine weighs less than 3000kg, enhancing its overall efficiency.
Inquire now for the best price.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the lowest price.
Simply complete the form below and a Hengwang product expert will contact you shortly.
