Wheel Loaders

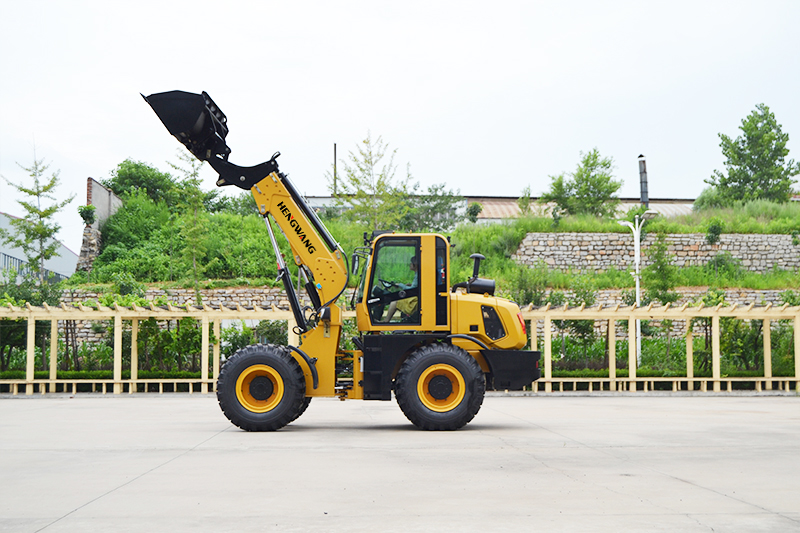

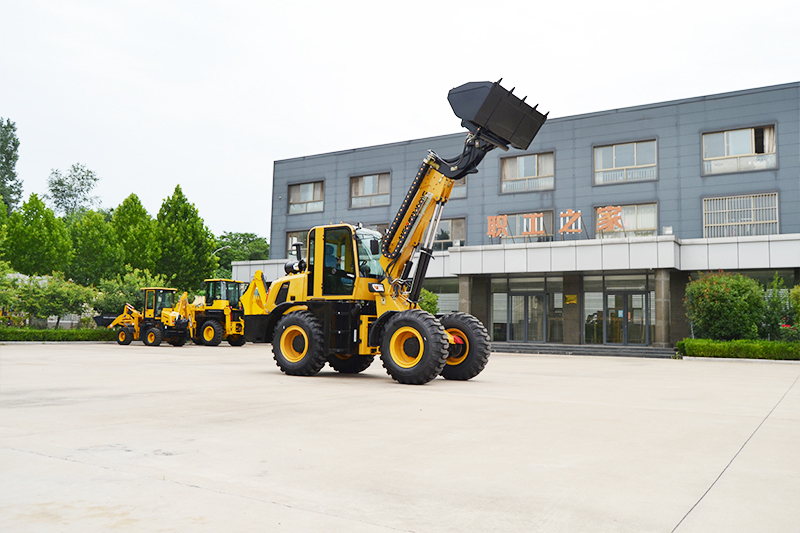

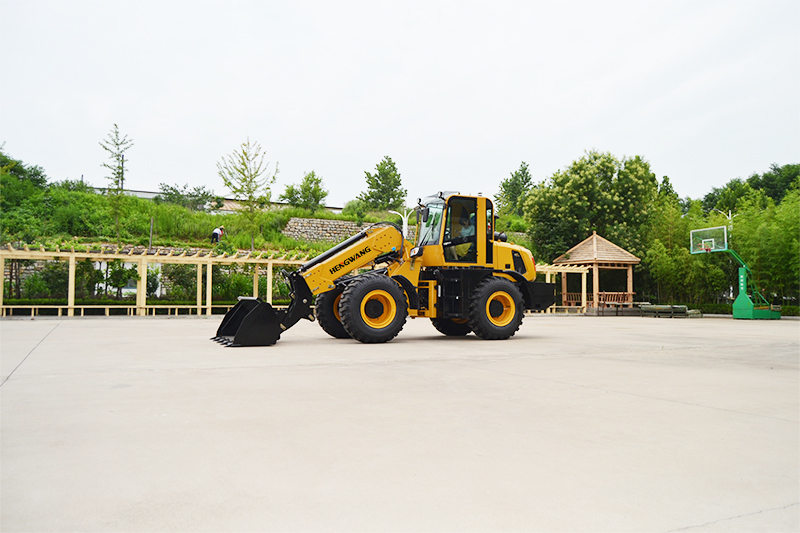

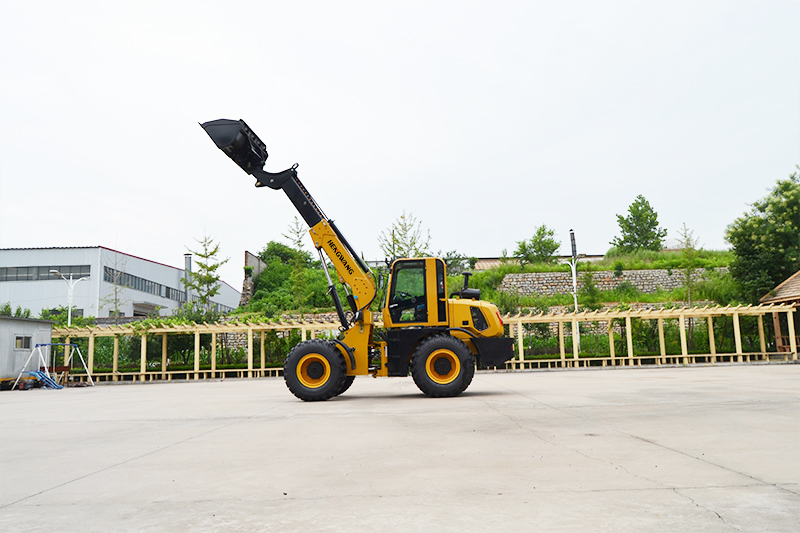

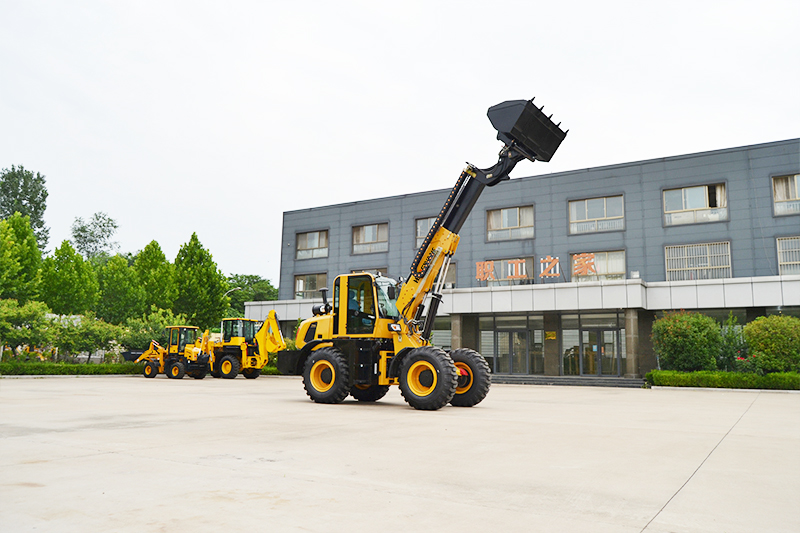

HW3000 Telescopic Loader

Factory Direct
Training on Arrival
One-year warranty

Rated Load: 3000Kg
Bucket Capacity: 1.5m³
Rated Power: 85Kw

The telescopic boom loader is to make the two booms of the forklift into a form that can be extended.

When needed, the forklift arm will extend to complete the work that the original forklift arm length cannot reach. When the forklift is not needed The arm retracts to its normal length to facilitate normal work and use.

It is suitable for different sites and different industries, instead of labor, and its compactness makes it a true partner for narrow site operations.


HW3000 Telescopic Loader
1.Main technical specification
Bucket Capacity(m³)1.5
Operating Weight(kg)7600
Bucket Width(mm)2300
Bucket typeHeavy-duty bolt on teeth
Rated Load(kg)3000kg (including attachment or bucket)
Wheel base(mm)2430
Track(mm)1700
Driving ModeHydraulic converter, four wheel drive
Overall Dimensions(mm)LxWxH:6860x2300x2860
Lifting to bucket hinge pin Height(mm)5300
2.Engine Details
ModelYUCHAI Engine
Engine TypeIn-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine
Rated Power(kw)85
Rated Speed (rpm)r/p.min
Optional EngineWEICHAI / CUMMINS / YUNNEI
3.Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles
4.Operating Specifications
Steering SystemArticulated Frame with hydraulic power steering
Min Turning Radius(mm)5800
Driving SystemHydraulic converter, four wheel drive
European quick coupling system
Joystick control
5.Brake System
Service BrakeSafer air assist disc brake braking system
Parking BrakeHand operated(Disc brakes)
6.Tire
Model:16/70-24
Width(mm)410
Diameter(mm)1175
Optional Model17.5-25
