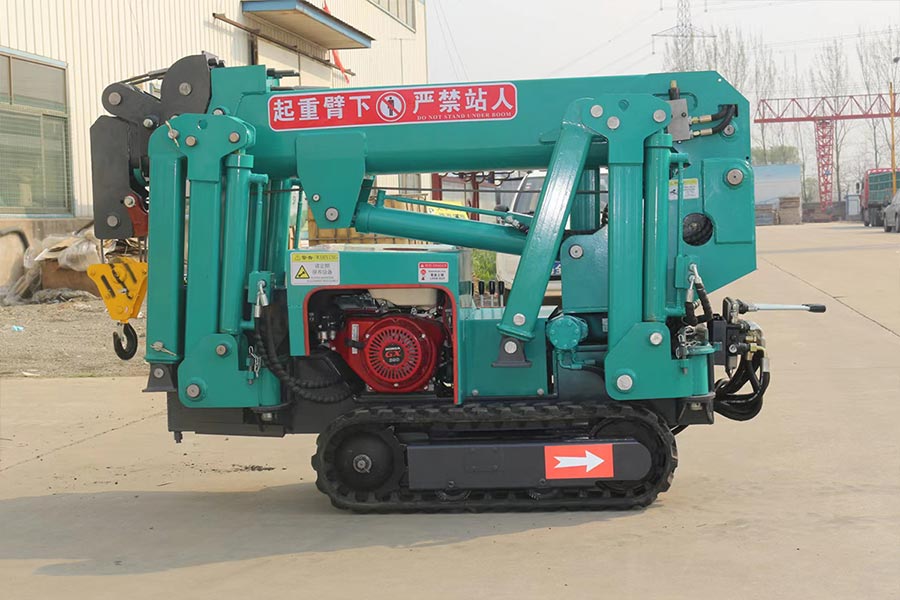

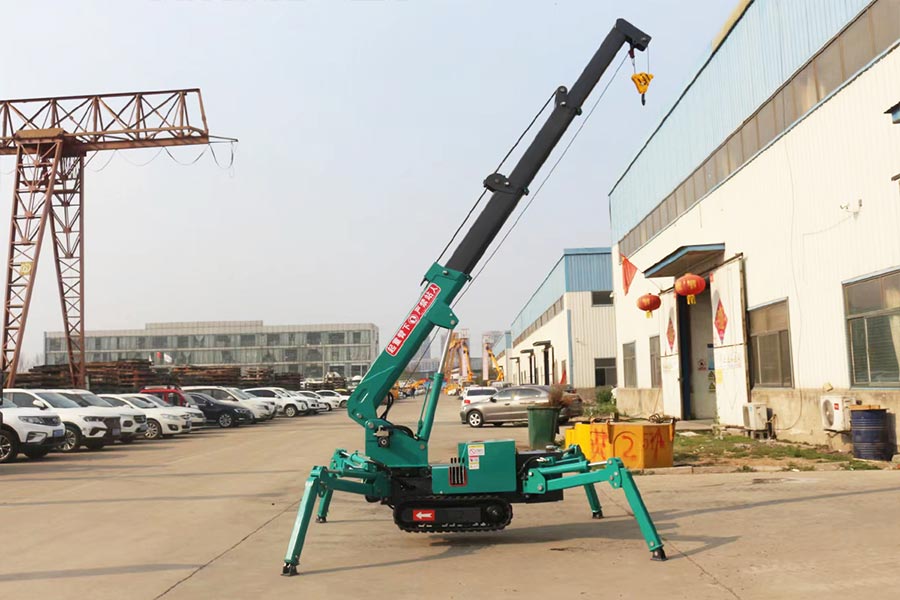

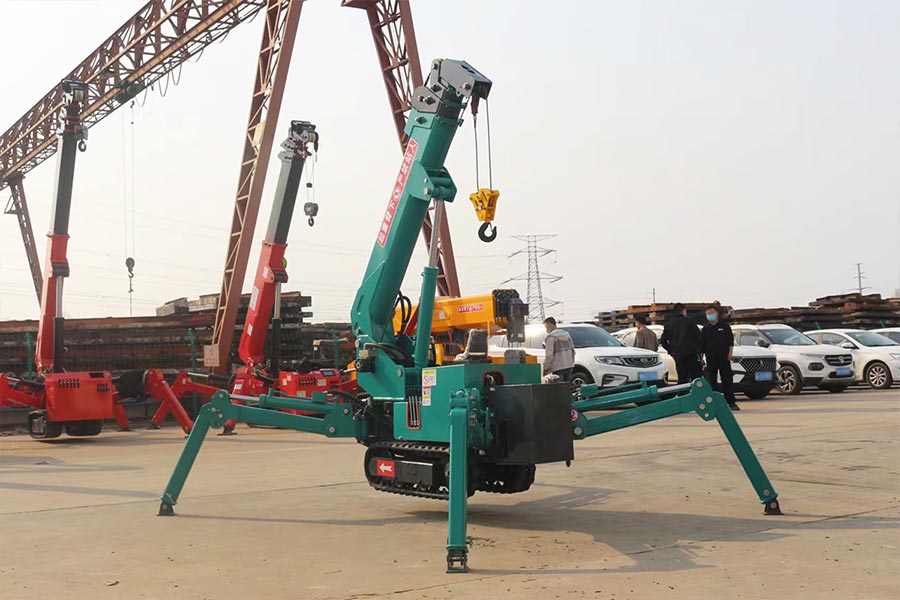

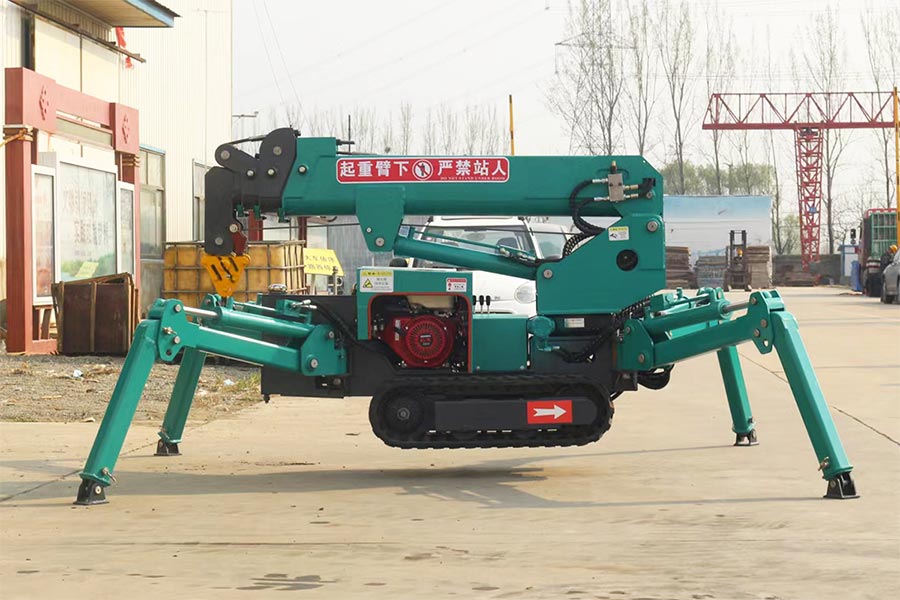

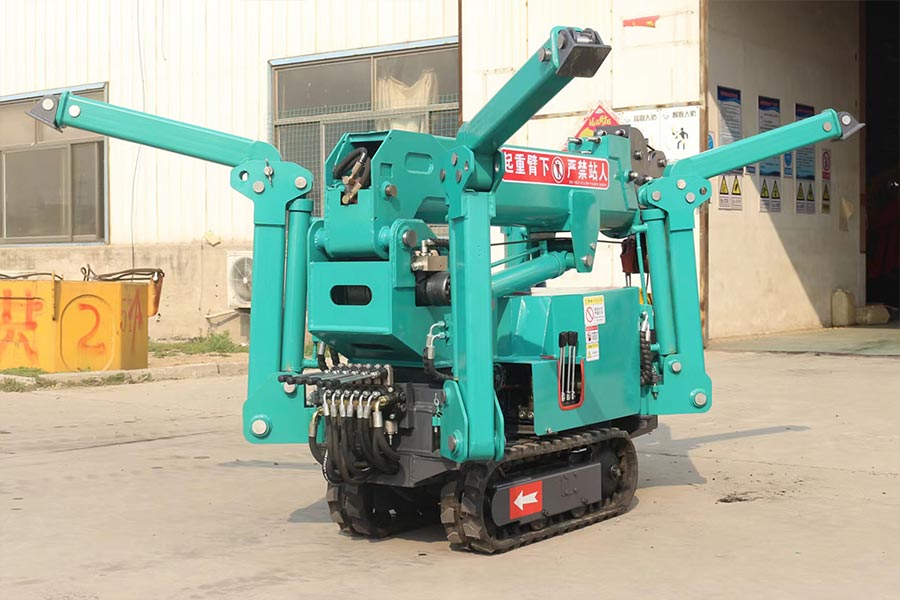

HW120 Spider Crane

Factory Direct
Training on Arrival
One-year warranty

Specification:1.2t
Max working radius:5m(0.3ton)
Engine power:9.6kw

Hengwang brand miniature cranes are specially designed and manufactured for working in indoor or outdoor low-passage confined areas.

It was mounted on a double-track chassis with "spider-type" outriggers. Hengwang miniature cranes are compact and easy to move, and are used in places where traditional lifting equipment or truck-mounted cranes cannot be used due to their size.


ModelHW120
Specification1.2t
DimensionL2095mm*W600mm*H1450mm
Machine weight1230kg
Max working radius5m(0.3ton)
Max lifting height5.8m(0.8ton)
Standard configurationProportional Valve, Petrol engine, Searcher hook, Storage battery, Black rubber track, EMO switch, Three color lamp, Remote control lamp, Luffing balance valve, Telescopic balance valve, Hook anti-decoupling device, Slewing brake, Winch brake, Outrigger off the ground alarm and automatic stop device, Walking/Outrigger/Boom three-mode interlock system, Extra two sets of filters
