Products

Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.

DTH Drilling Rig

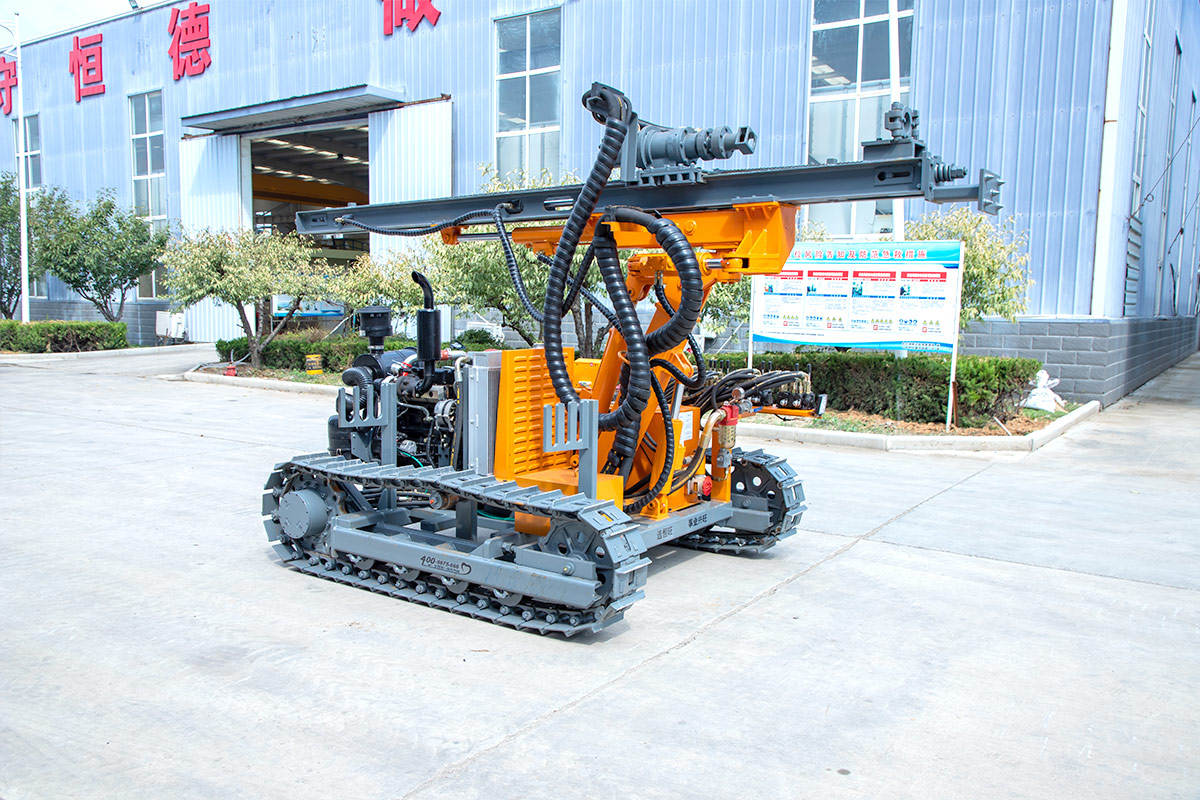

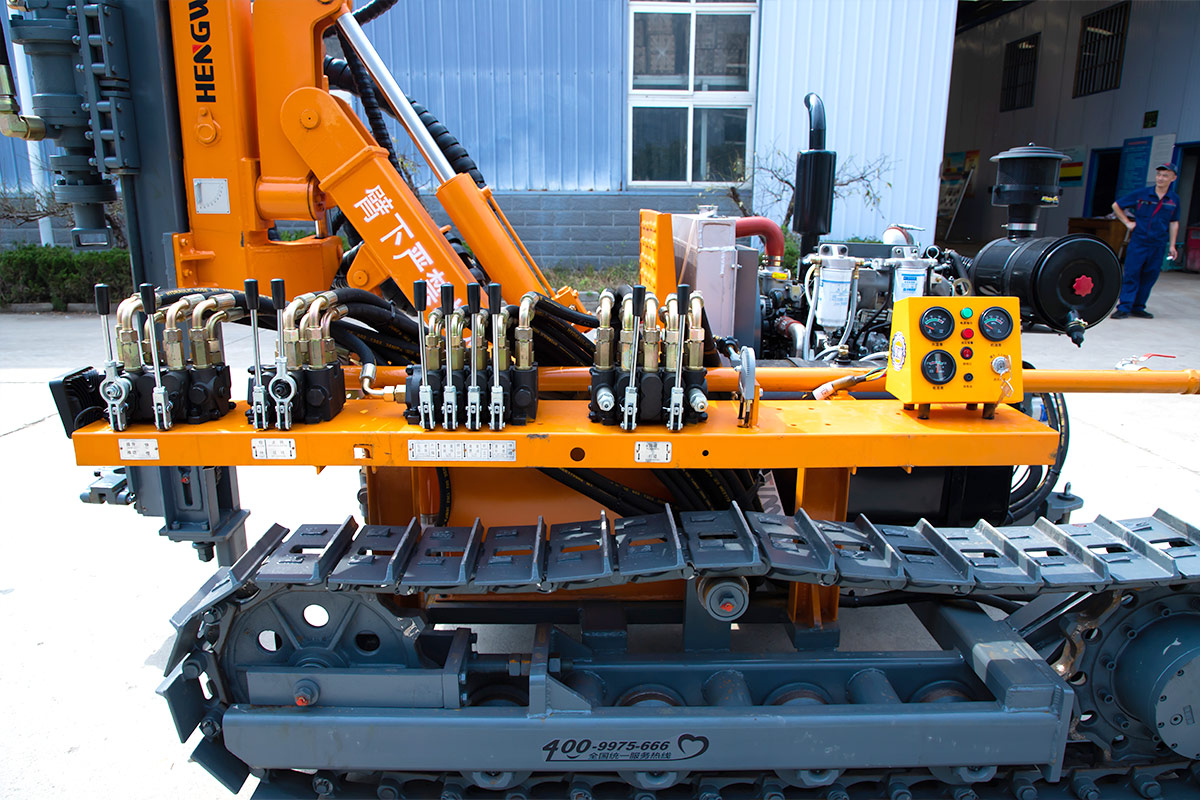

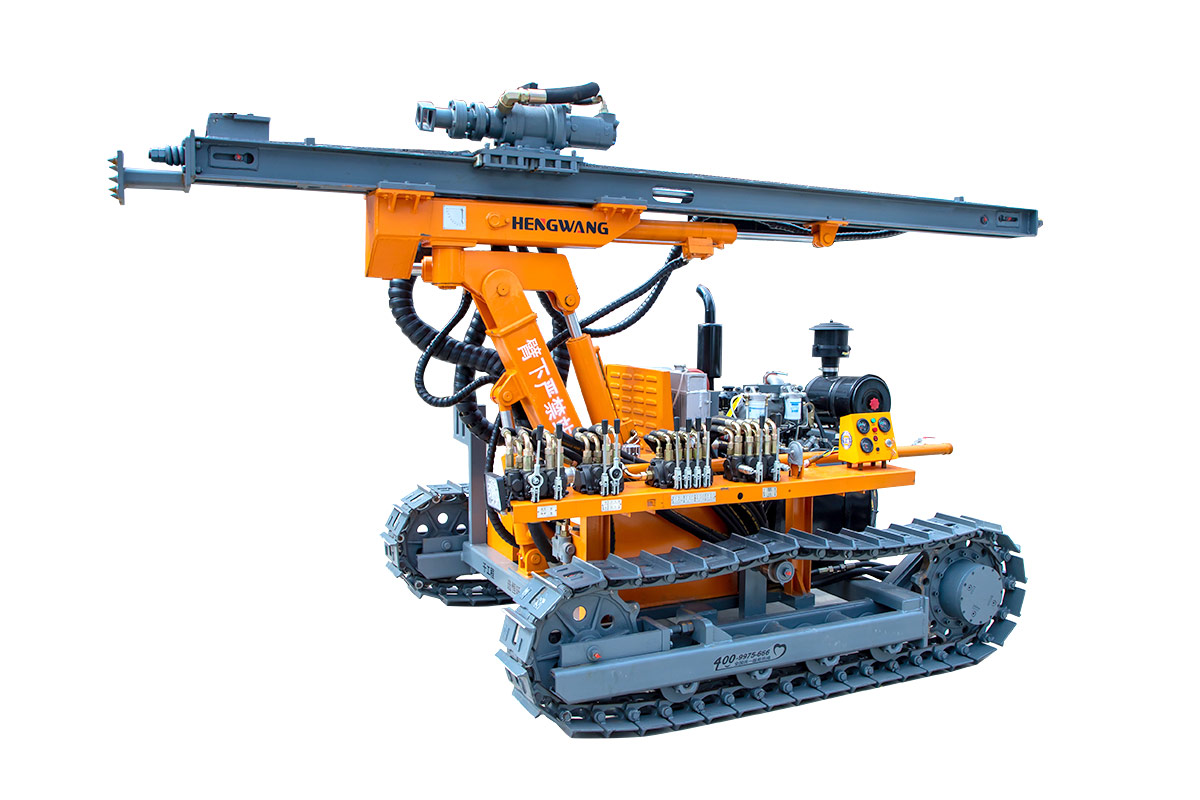

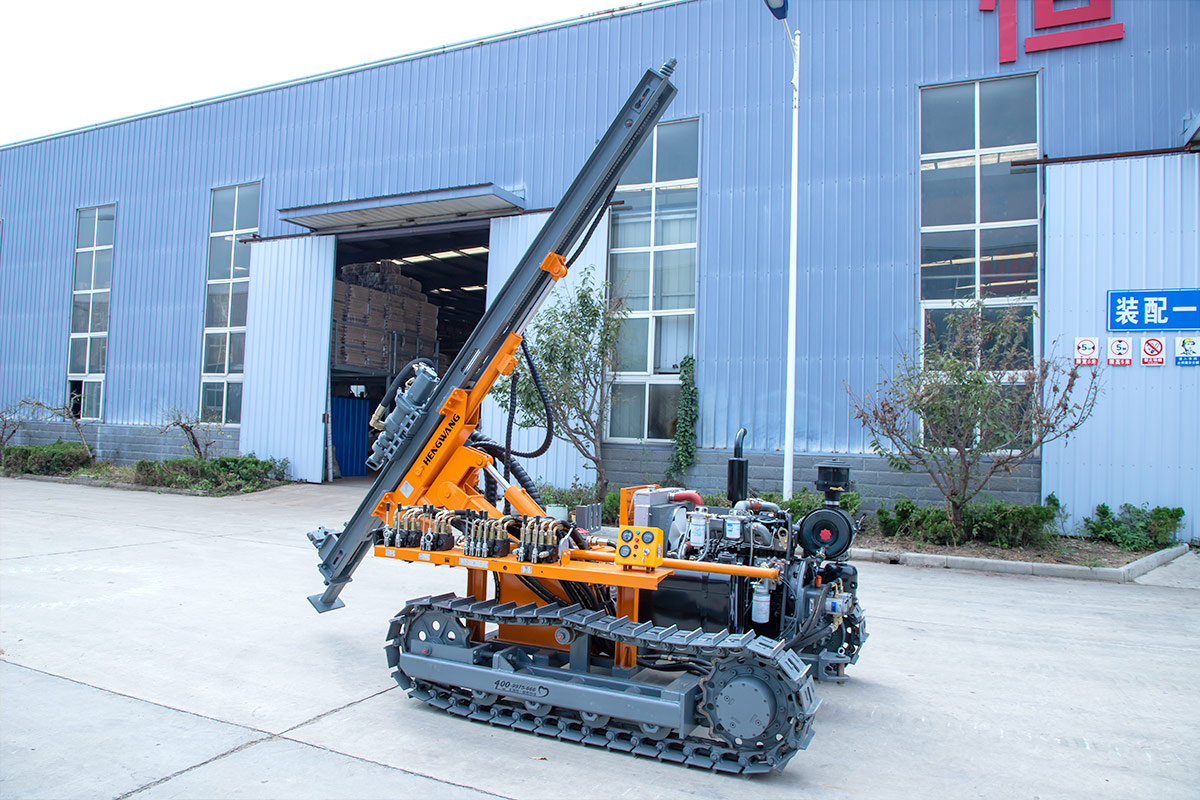

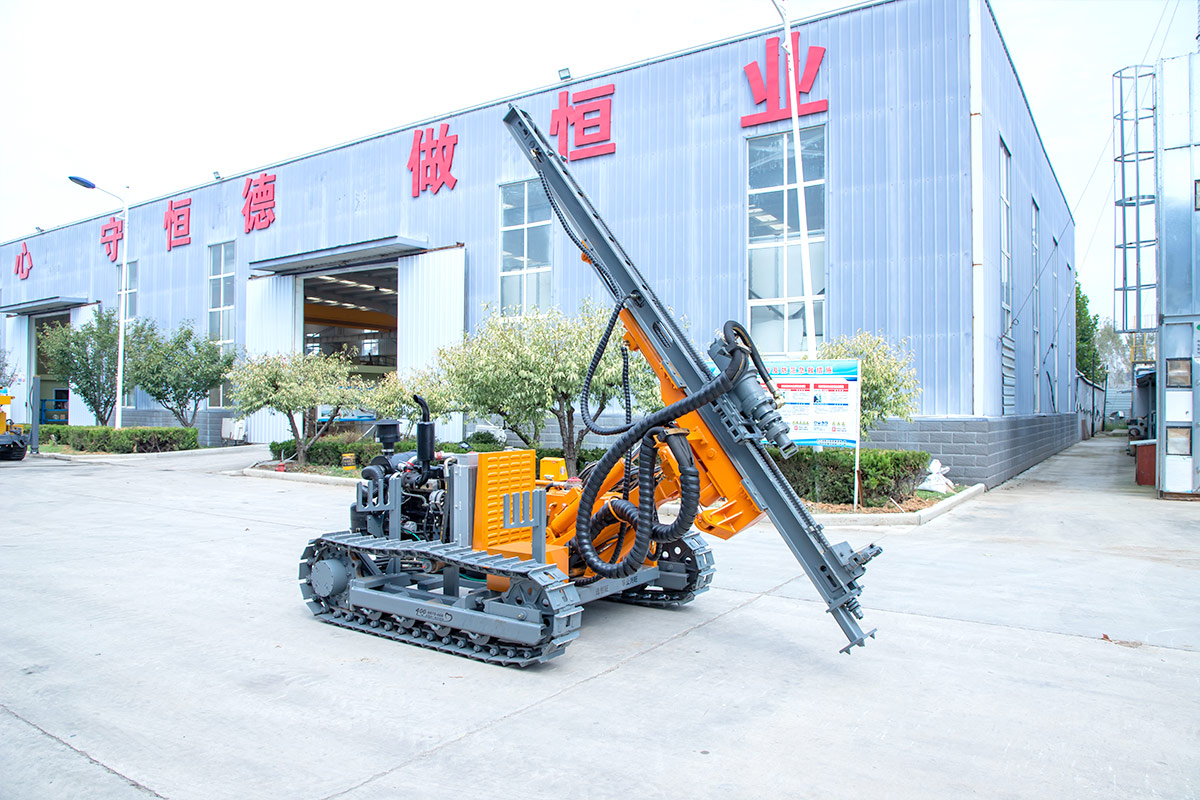

HW910 Separated DTH Surface Drill Rig

Factory Direct
Training on Arrival
One-year warranty

Rated Power: 50Kw
Drill Diameter: 90-110 mm
Weight: 3,800 kg

Our Hengwang surface down-the-hole (DTH) rigs offer high mobility, smaller footprint and the ability to serve multiple locations.

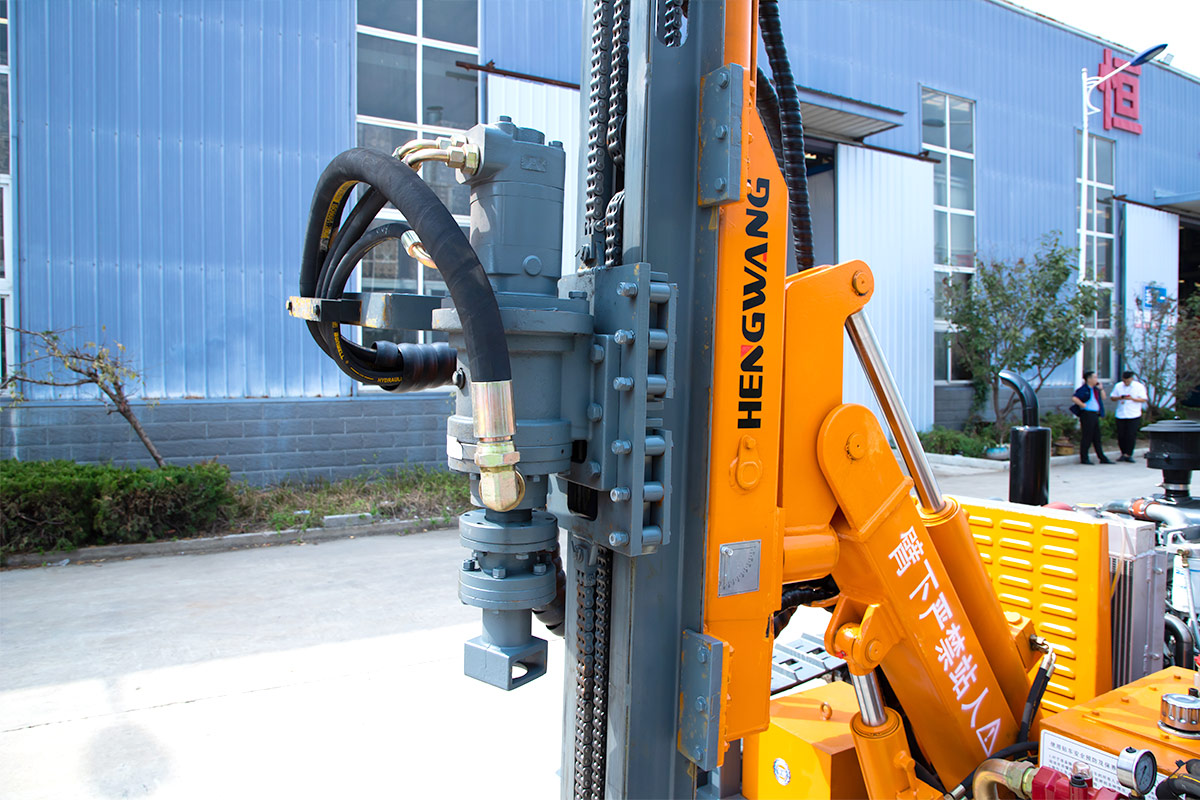

Equipped with a powerful DTH hammer, this rig is designed for high volume rock drilling in quarries, open pit mines and rock excavation projects.


Main feature:

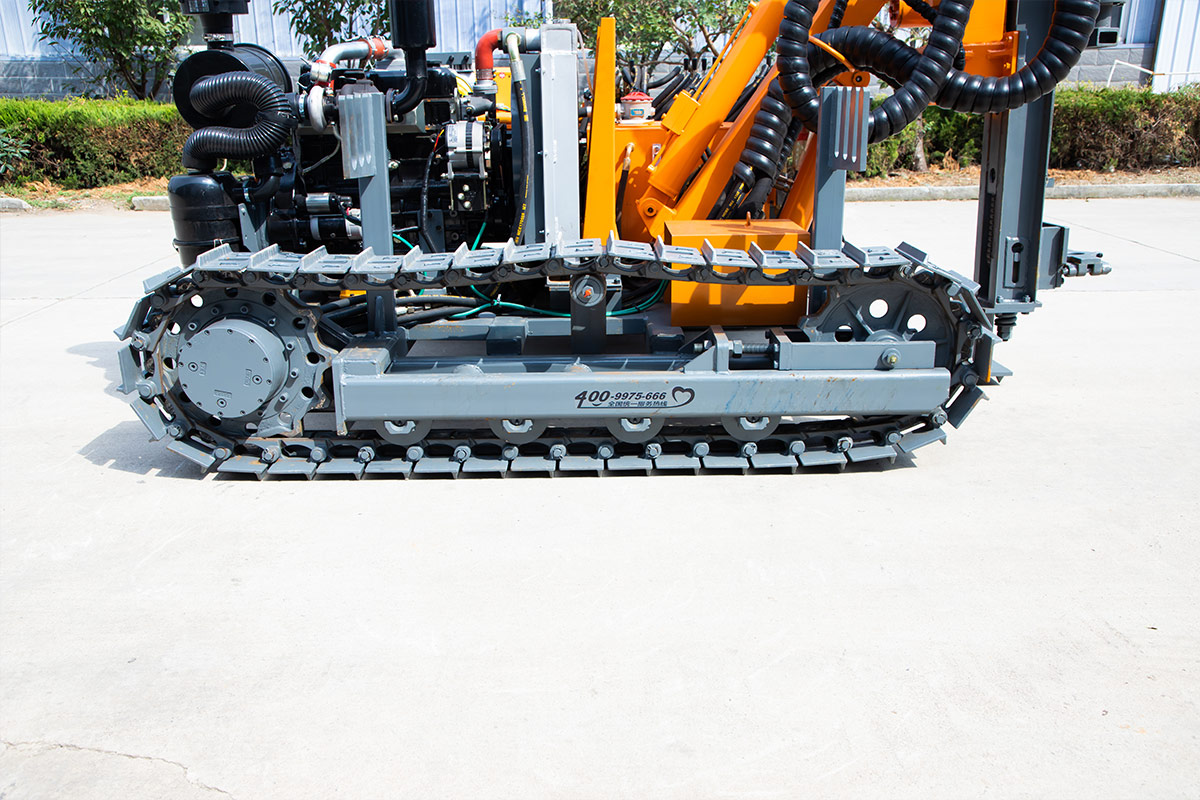

1. Crawler site, while ensuring stability, can adapt to a variety of harsh working conditions;

2. The rig is equipped with dry dust collector, drill pipe changer, and adopts the most advanced design and layout.

3. HW-910 is designed for demanding high volume production drilling applications in surface mining and medium quarry applications.


Parameter

ModelHW910
Power (KW)59
Drilling diameter (mm)<span style="color: rgb(51, 51, 51); font-family: " pingfang="" sc",="" "lantinghei="" "microsoft="" yahei",="" arial,="" 宋体,="" sans-serif,="" tahoma;="" font-size:="" 16px;="" background-color:="" rgb(255,="" 255,="" 255);"="">φ80-105
Maximum torque (Nm980
Propulsion (kN)15
Lifting force (kN)25
Shipping Dimensions (mm)4100*2030*2020

Remark:

This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.

Submit the form for more parameters and quotes.
