Hengwang Group offers a wide range of water well drilling rigs, exploration drilling rigs, rock drilling rigs, piling rigs and other piling drilling equipment.

Geological Exploration Drill Rig

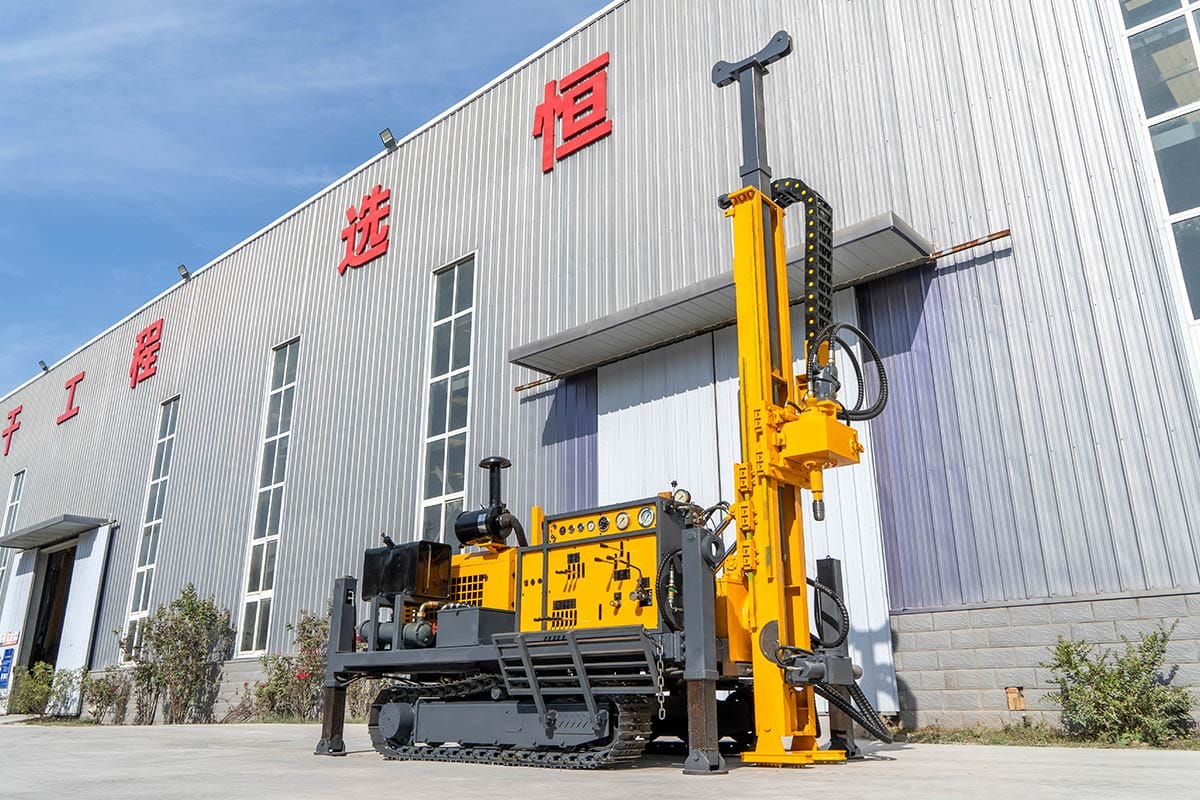

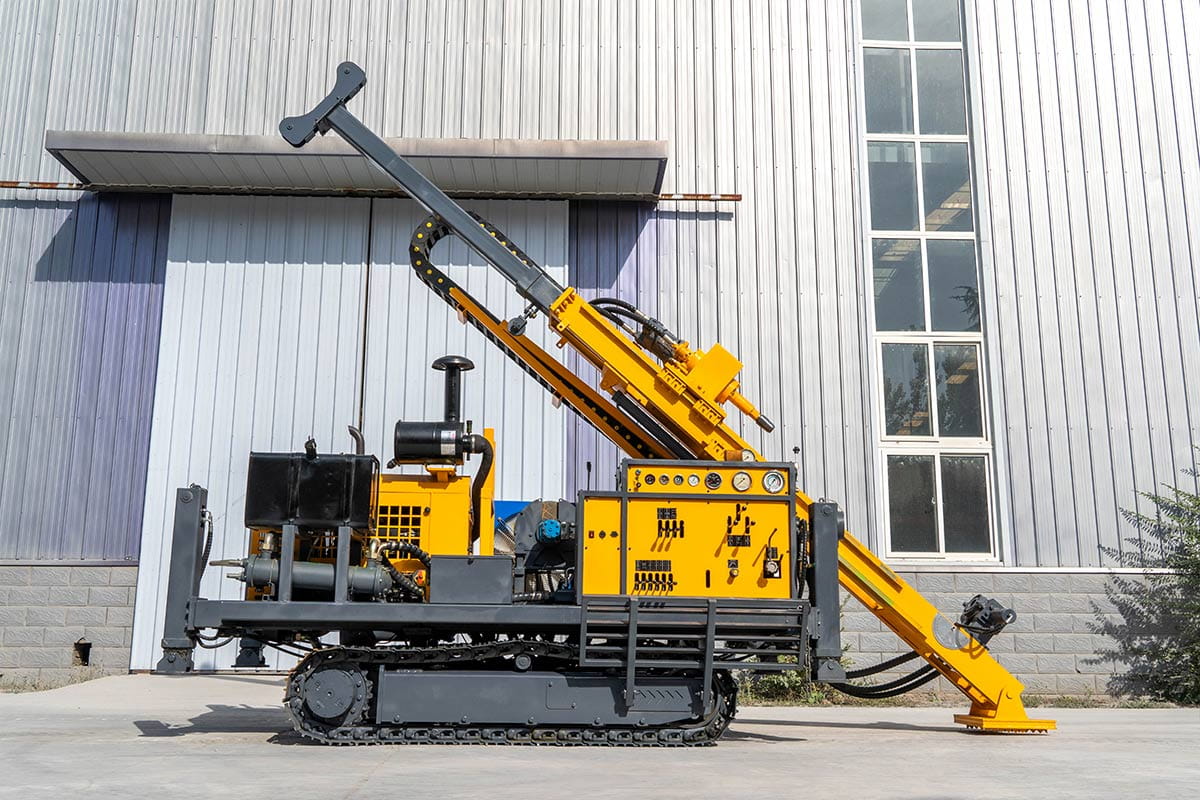

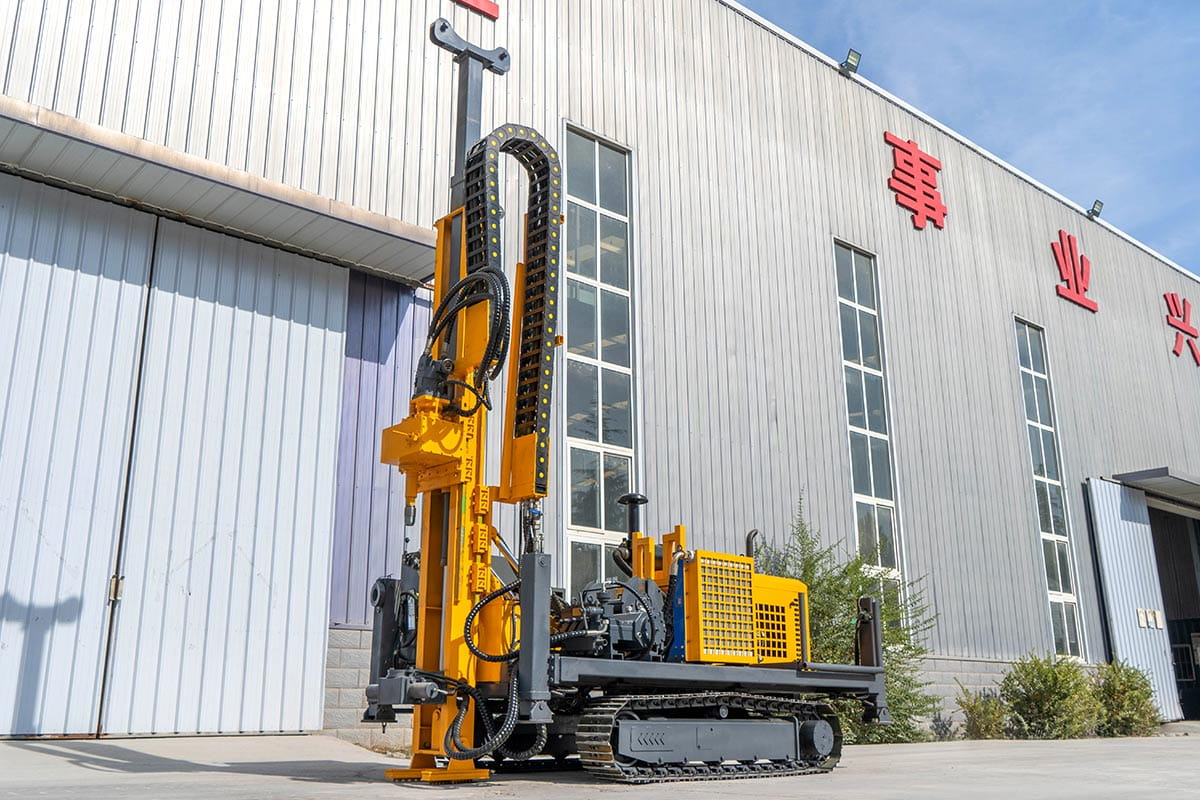

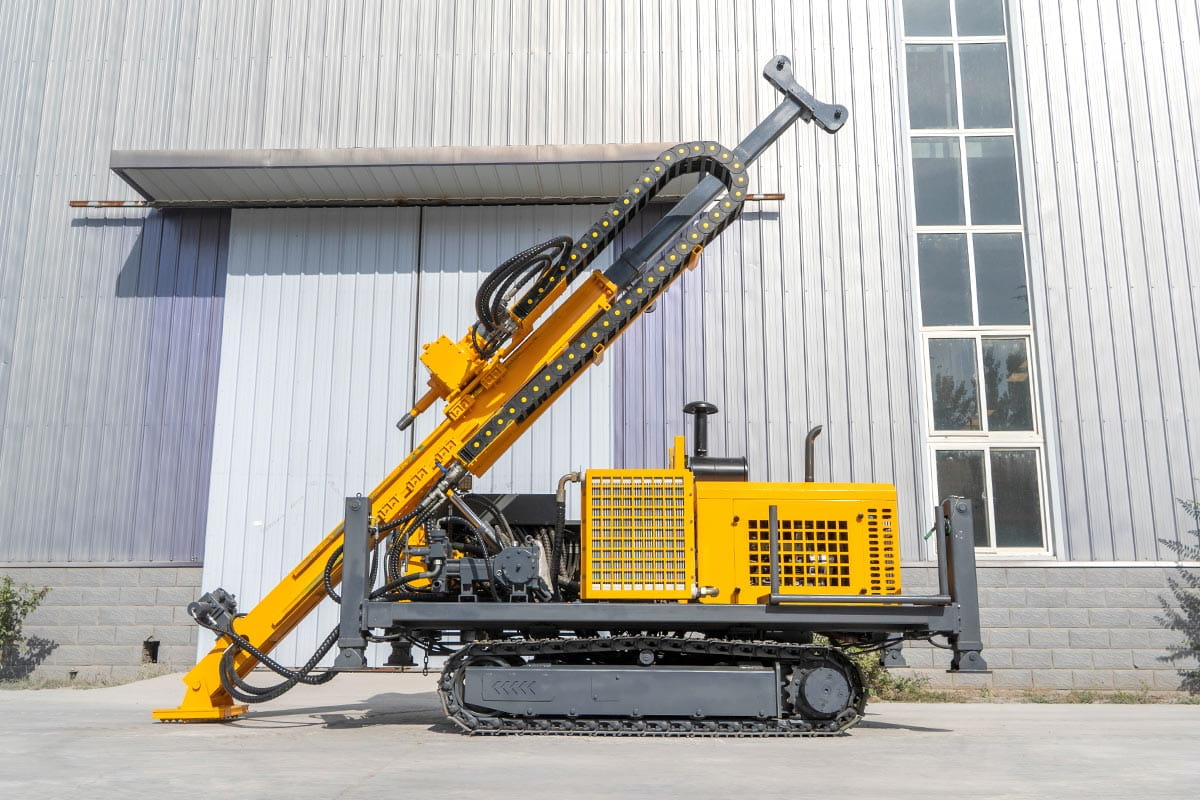

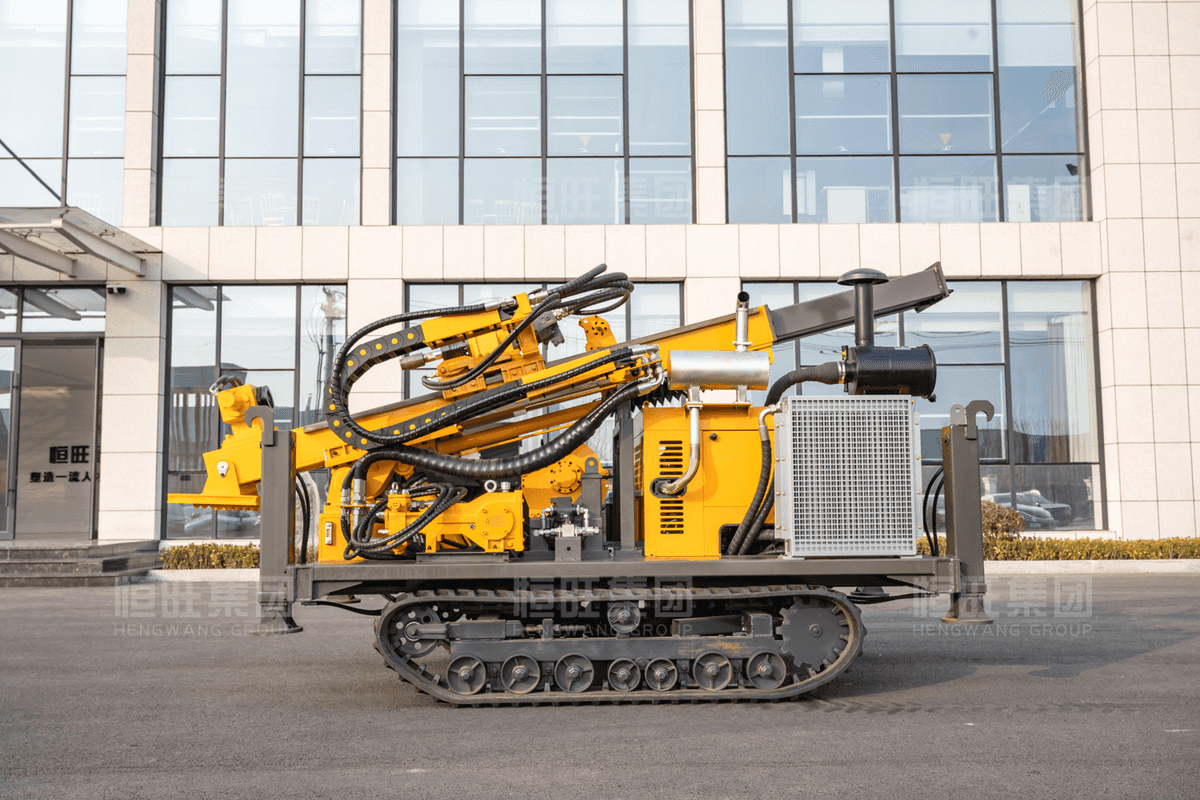

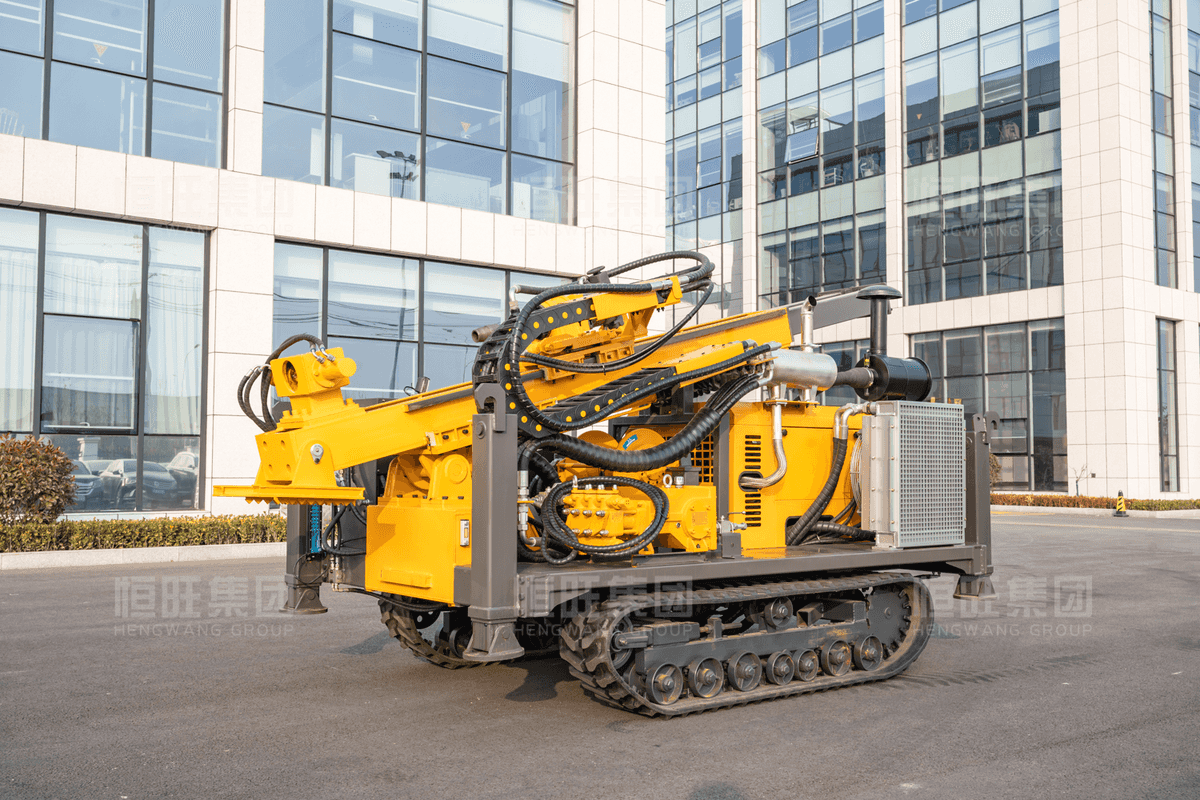

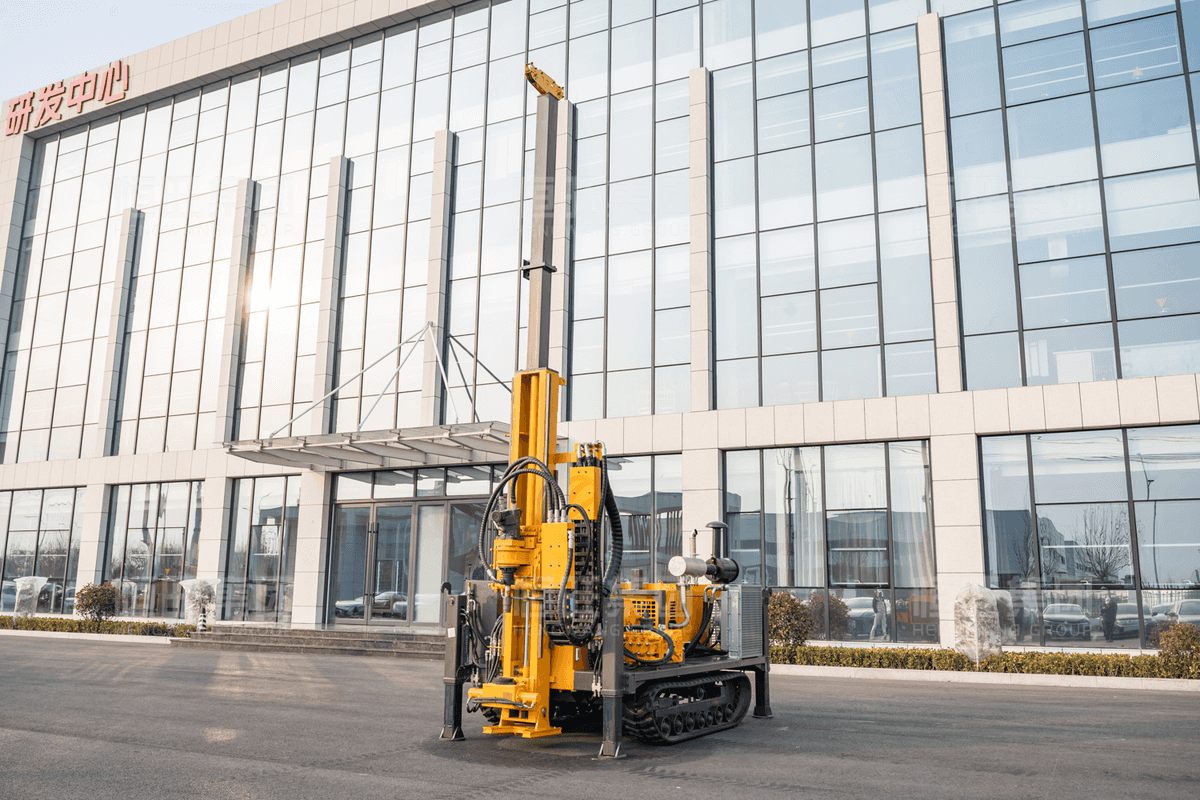

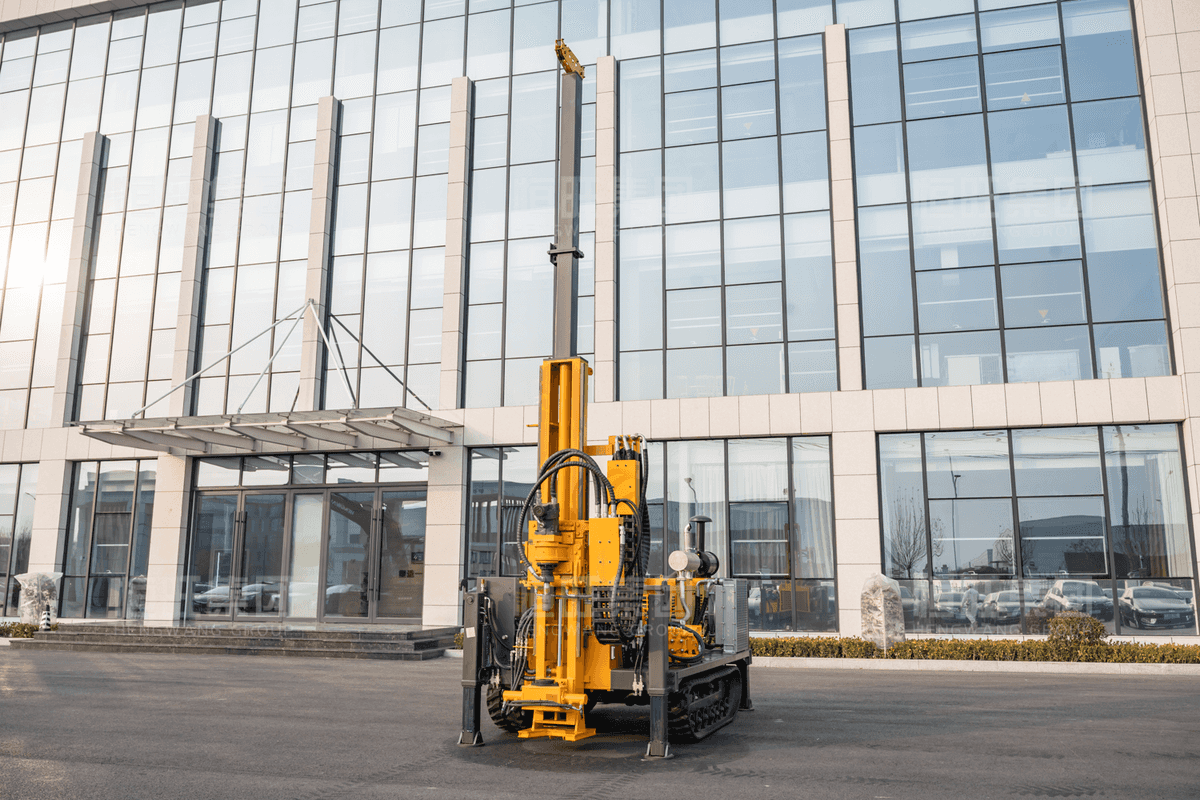

HW-600XL/GL Fully Hydraulic Rope Coring Drilling Rig

Factory Direct
Training on Arrival
One-year warranty

Drilling depth: 200-600-650 (m)
Rated speed: 2400 (rpm)
Maximum torque: 450-1000 (N·M)

Crazy Engineering Days Sale, Submit Form to Get Order Discount and $5,000 Off Coupon

1. It can be widely used in exploration, gold mine, iron ore, coal, lithium mine and other scenarios.

2. Easy to install, no need to lift the drill pipe during the rope coring process.

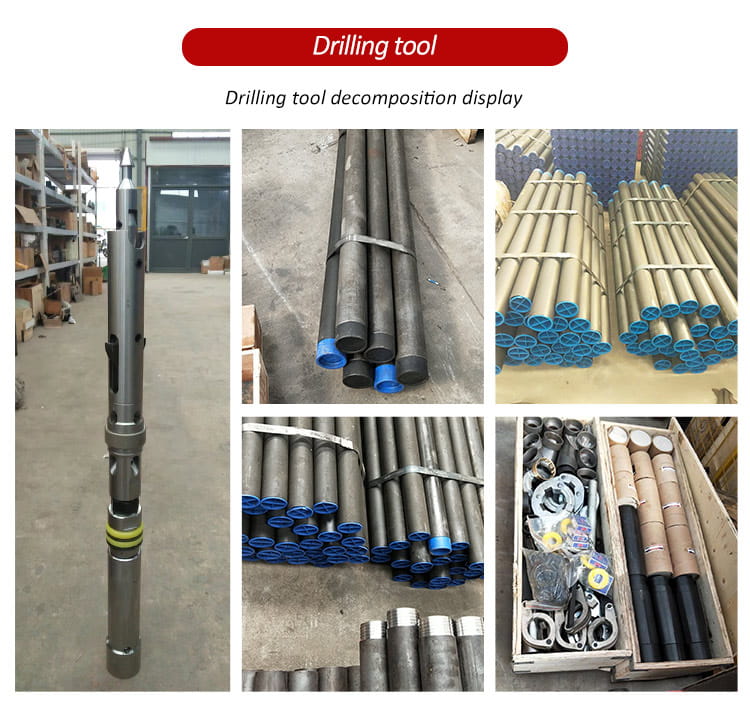

3. Thin-walled drilling tools with high coring efficiency.


Parameter:


modelHW-YDX-600XL
Drilling ability
caliberHTW-NTW-BTW
depth200-600-650(M)

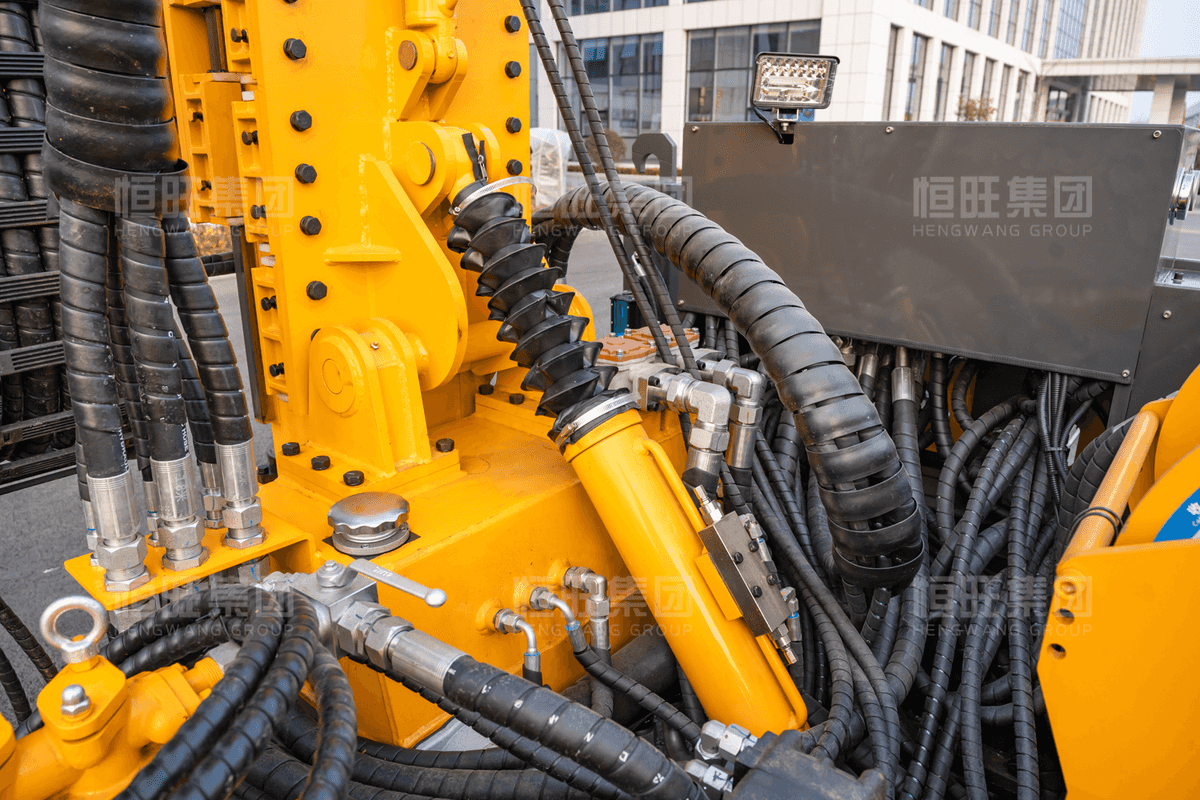

Hydraulic system
preset pressure21(MPA)
Rated flow192(L/min)
Cooling typeAir cooling + Water cooling
Engine
BrandYuchai
TypeTurbocharged
Rated rotary speed2400(RPM)
Rated power92KW

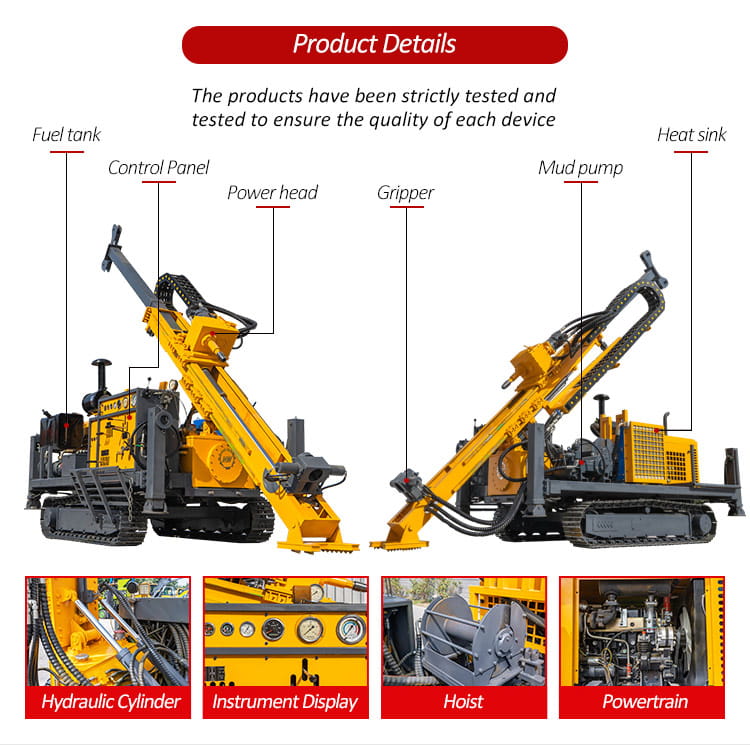

Power head
Maximum torque450-1000(N.M)
Maximum rotary speed1300(RPM)
Feeding stroke1900(MM)

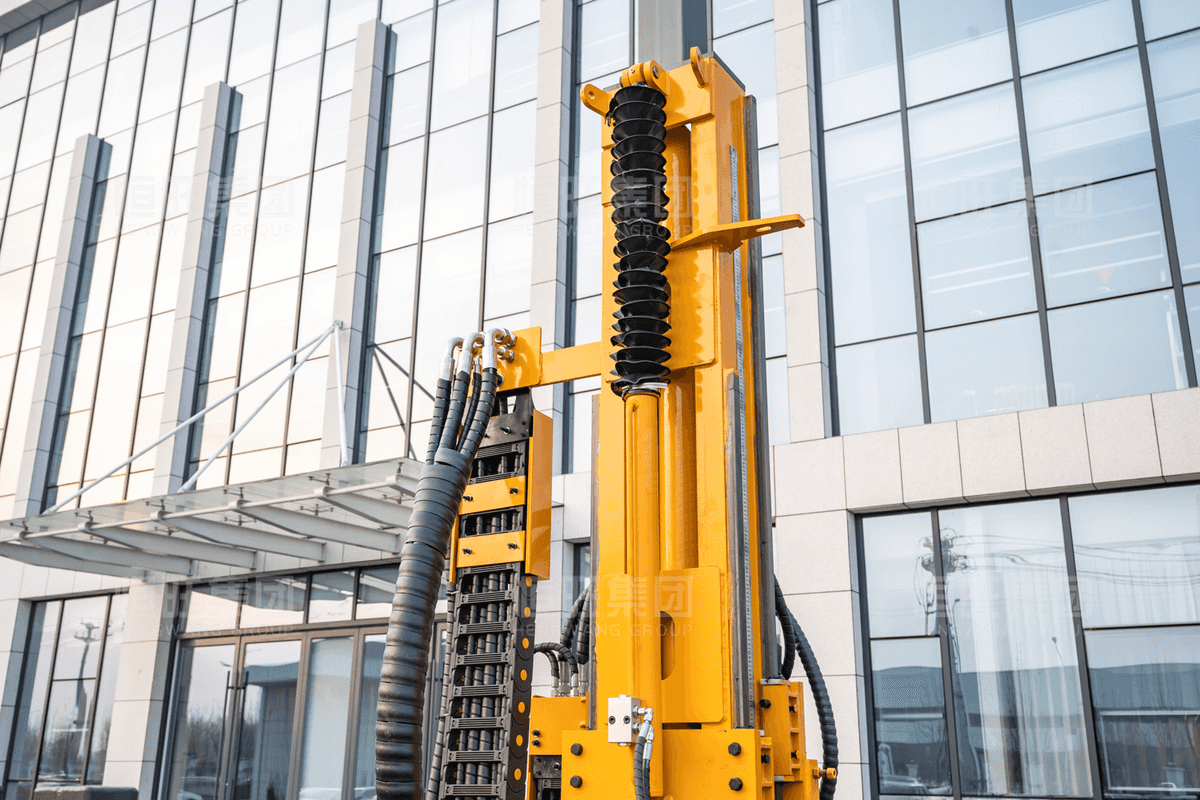

Drilling tower

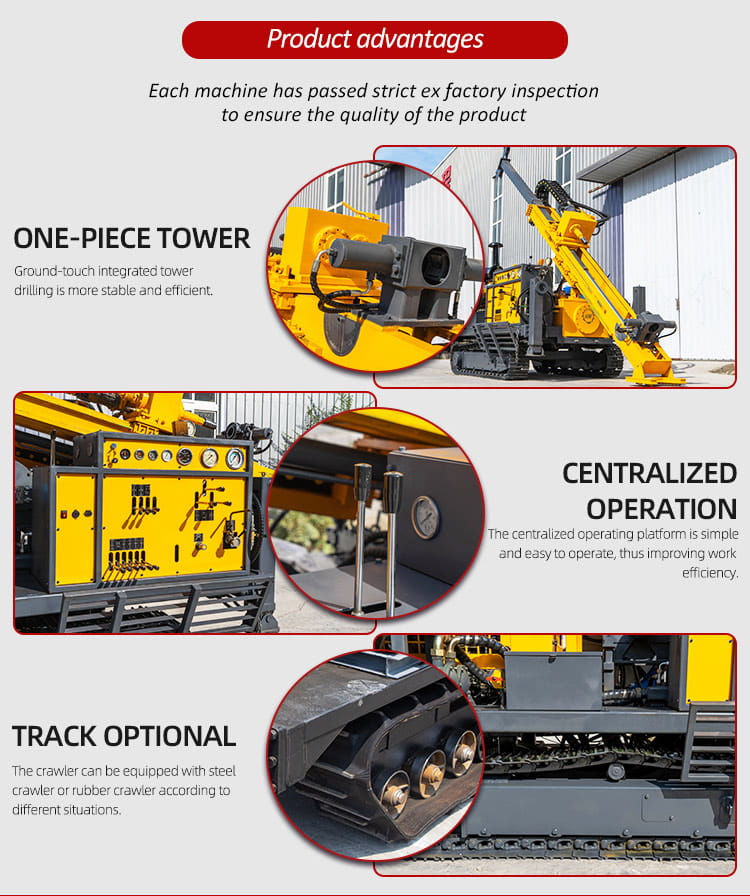

TypeGround contact integrated tower
Drilling angle45-90(°)
Lifting force16(T)
Feeding force8(T)
Winch
Lifting force600(KG)
Rotary speed100-300(RPM)
Wire rope diameter6(MM)
Rope capacity600(M)
walk
typeManual + remote control
Walking speed3.5(KM/H)
Single machine climbing angle45(°)
hydraulic mud pump
mud pumpContains Bw-90 mud pump
flow30-90(L/min)
pressure4-7(MPA)
Shipping dimensions4000*2000*1800(MM)
Total Weight4.5/5.5(T)



Due to product upgrading, some parameters may be changed, and the latest parameters can be obtained by submitting the form.
