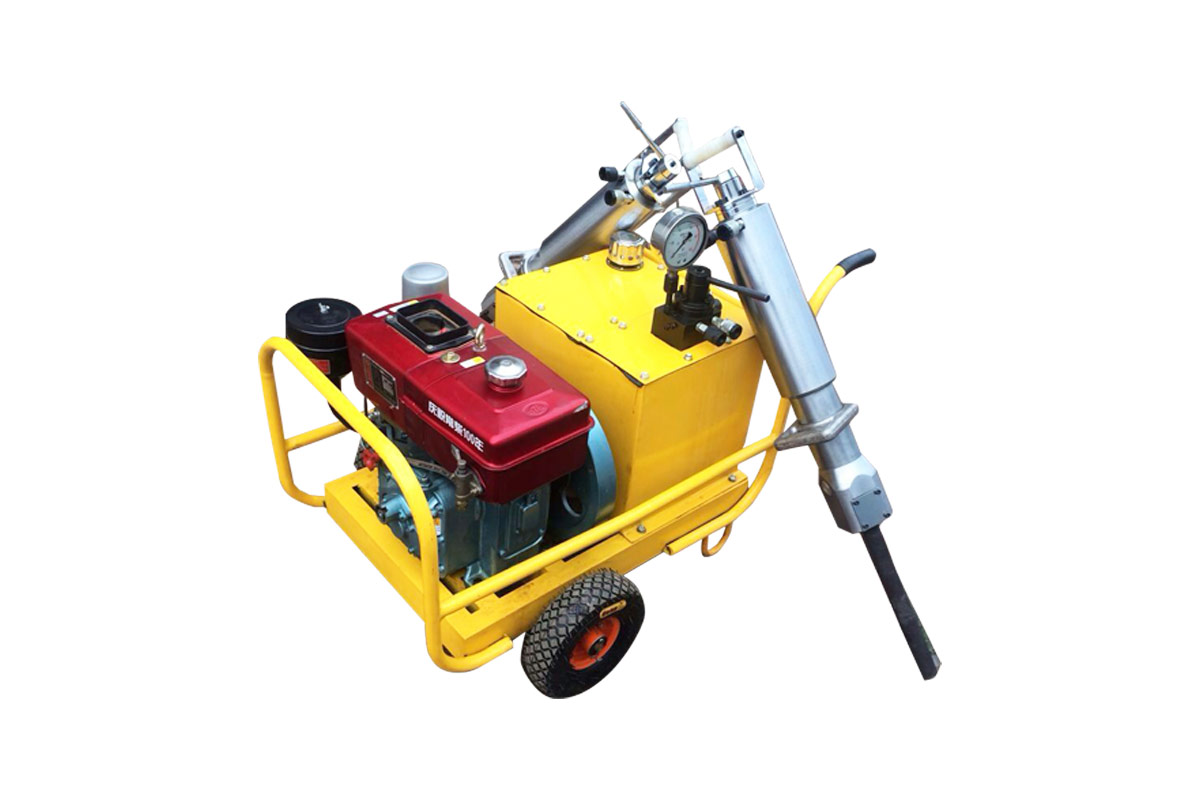

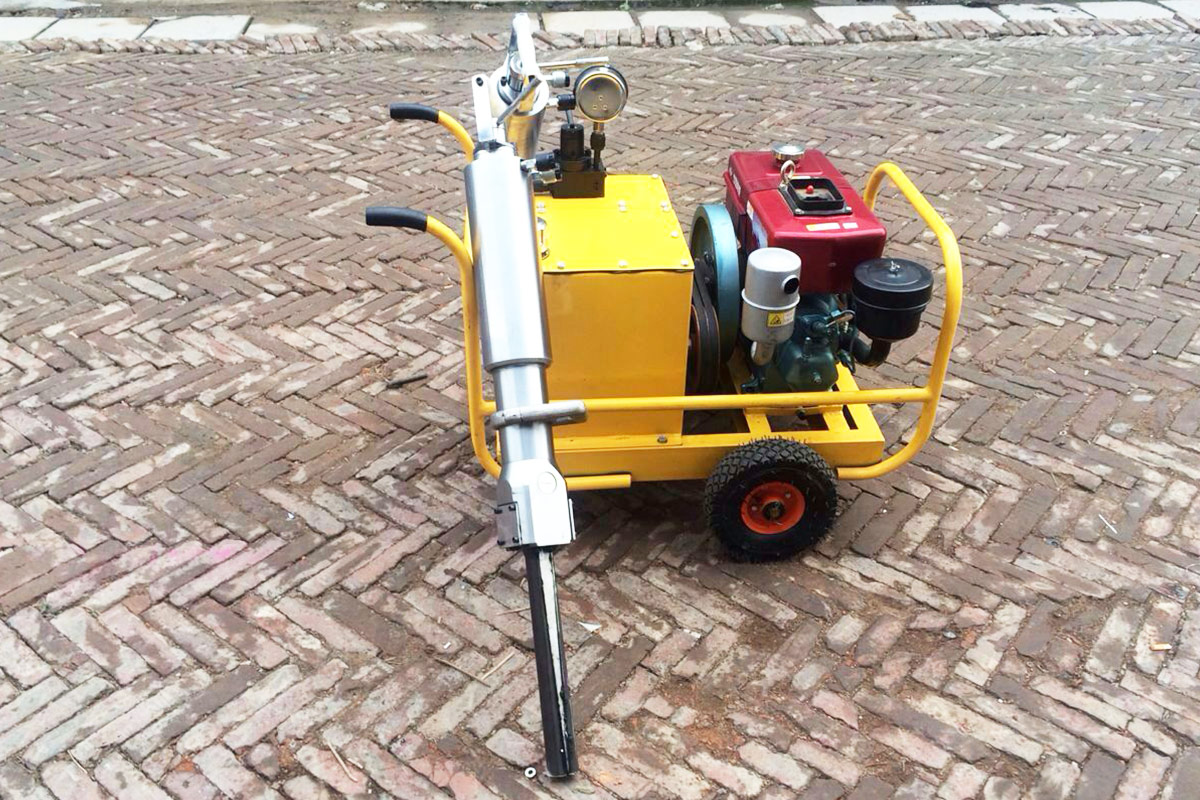

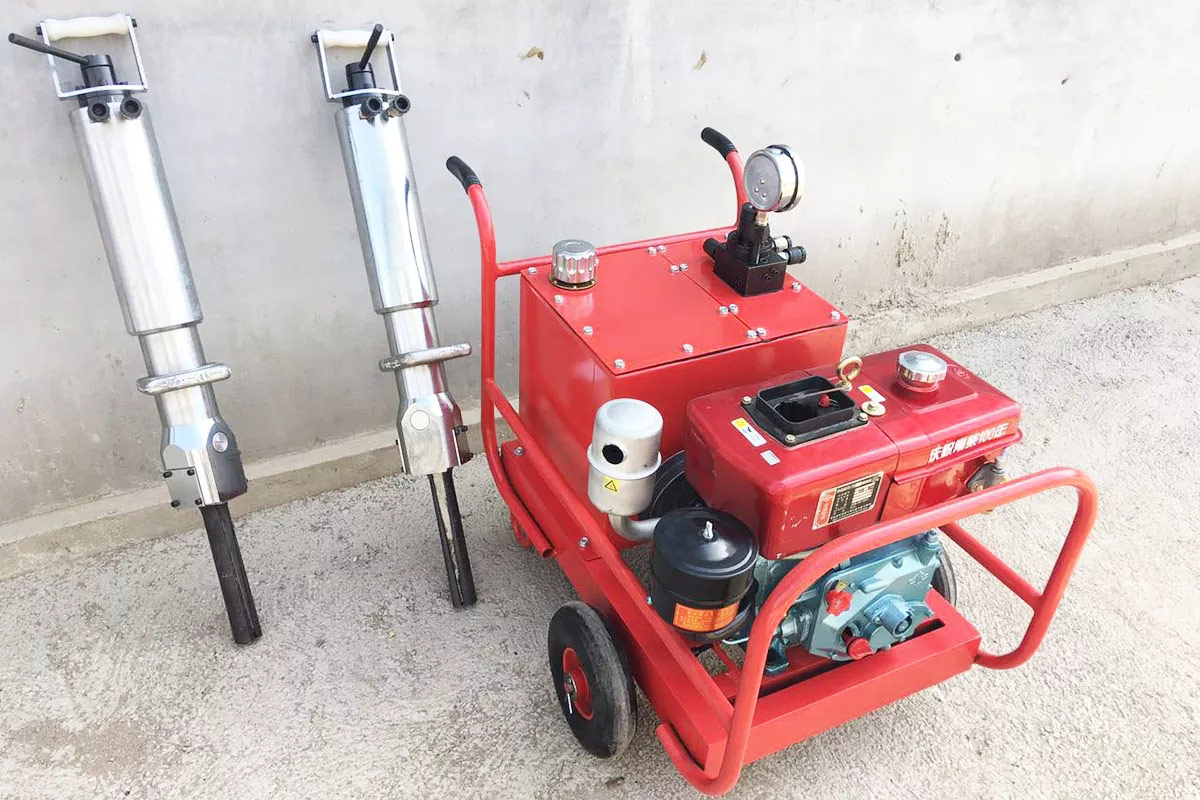

Hydraulic Rock Splitter

Factory Direct

Training on Arrival

One-year warranty

Drilling Diameter: 42-50mm
Engine: Electric/Diesel
Configurable Guns No.: 1-10

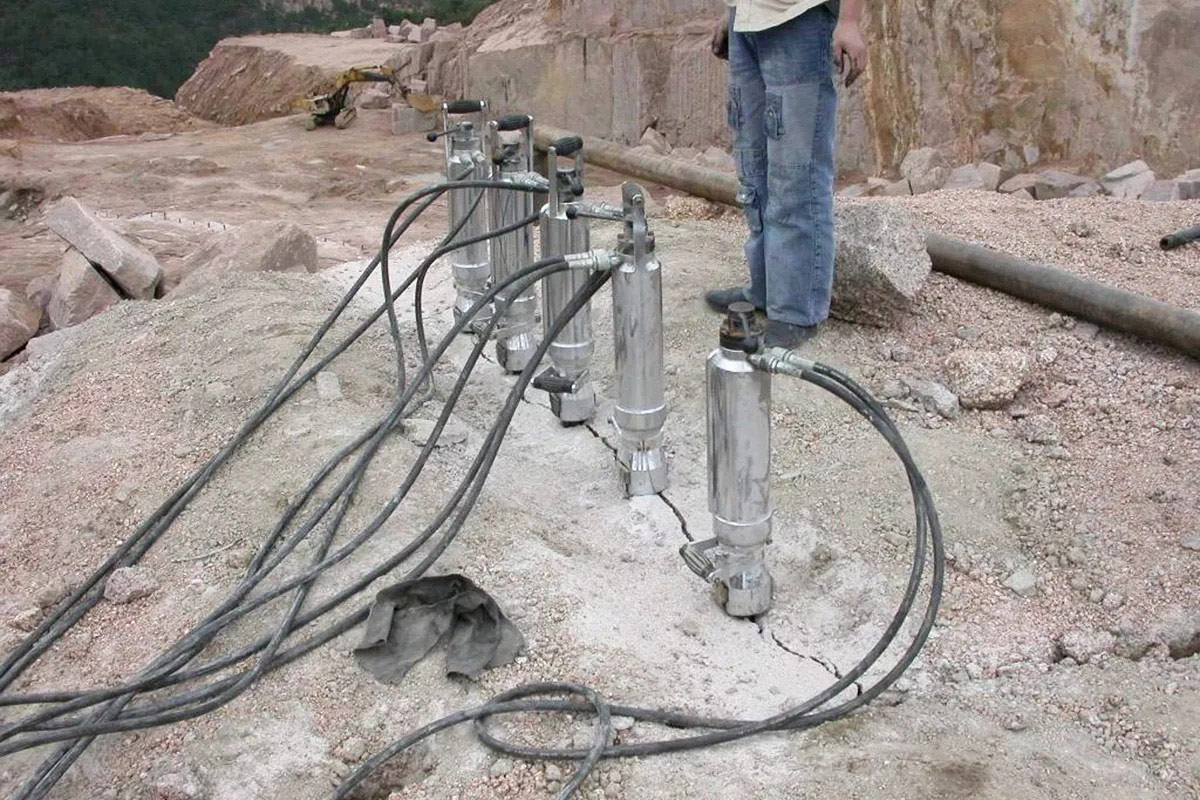

The hydraulic rock & concrete splitter is the most suitable tool for demolition. The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllable split rock or concrete. Especially suit for cabin area where large machine can not work. Such as hydraulic breaker and place where is strictly limited of noise, dust,flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden. Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.

Hydraulic Rock Splitter Features:

1) Powerful (Max:1000T), it can split the stone or concrete easily.

2) High Efficiency, it can split the stone in 5-10 seconds.;

3) Long-life, the wedges stands wear and tear;

4) Easy to operate and maintain.

Splitting cylinders parameters
Model	HW80-250	HW80-350	HW80-450	HW90-250	HW90-350	HW90-450
Piston diameter	80mm	80mm	80mm	90mm	90mm	90mm
Drilling diameter	Φ42mm	Φ45mm	Φ50mm	Φ42mm	Φ45mm	Φ50mm
Drilling depth	≧500mm	≧550mm	≧600mm	≧500mm	≧550mm	≧600mm
Wedge block length	250mm	350mm	450mm	250mm	350mm	450mm
Crack width	10～40mm	10～40mm	10～40mm	10～40mm	10～40mm	10～40mm
Splitting time	5～15s	5～15s	5～15s	5～15s	5～15s	5～15s
Theory of separatist force	600T	600T	600T	800T	800T	800T
The actul split force	480T	480T	480T	480T	480T	480T
weight	28Kg	29Kg	30Kg	31Kg	32Kg	33Kg

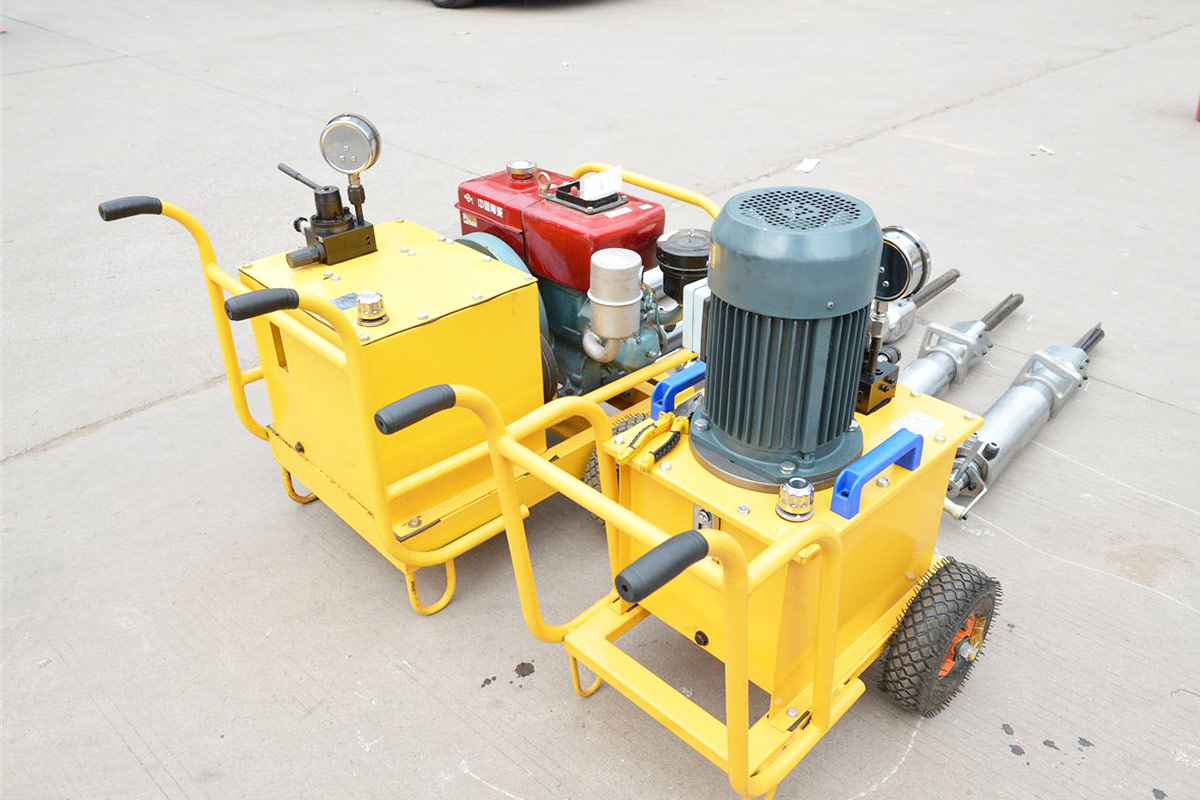

Pump pack parameters
Engine	Electric engine	Diesel engine
Weight	60kg	110kg	150kg	100kg	130kg	150kg
Capacity of tank	40L	60L	88L	45L	65L	90L
Motor power	3.0KW	4.0KW	5.5KW	3Hp	5Hp	7.5Hp
Working pressure (Mpa)	55-60	55-60	55-60	55-60	55-60	55-60
Working flow (L/min)	2—13	2—13	2—13	2—13	2—13	2—13
Configurable guns number	1—5	2—7	2—10	1—3	3—8	3—10
